AP101C123KQU4A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size145KB，3 Pages; ManufacturerAVX; Environmental Compliance; Related ProductsFound15parts with similar functions to AP101C123KQU4A

Download Datasheet Parametric View All

AP101C123KQU4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT

AP101C123KQU4A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1210
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.02 mm
length	3.2 mm
Manufacturer's serial number	APS
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
series	APS
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	2.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

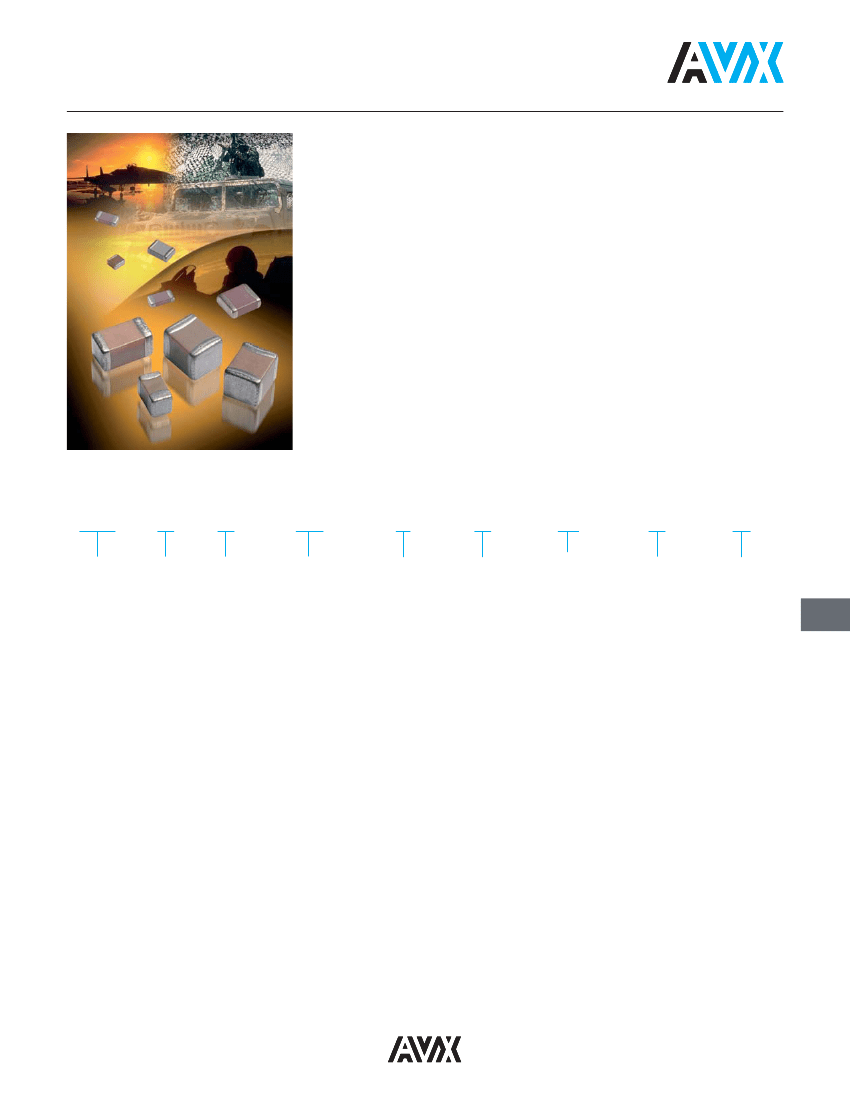

APS Series

APS for COTS+ Applications

GENERAL DESCRIPTION

As part of our continuing support to high reliability customers, AVX

has launched an Automotive Plus Series of parts (APS) qualified and manufactured

in accordance with automotive AEC-Q200 standard. Each production batch is qual-

ity tested to an enhanced requirement and shipped with a certificate of conformance.

On a quarterly basis a reliability package is issued to all APS customers.

A detailed qualification package is available on request and contains results on a

range of part numbers including:

• X7R dielectric components containing BME electrode and copper terminations

with a Ni/Sn plated overcoat.

• X7R dielectric components BME electrode and soft terminations with a Ni/Sn

plated overcoat (FLEXITERM

• X7R for Hybrid applications.

• NP0 dielectric components containing Pd/Ag electrode and silver termination with

a Ni/Sn plated overcoat.

We are also able to support customers who require an AEC-Q200 grade component

finished with Tin/Lead.

HOW TO ORDER

AP03

Size

AP03=0603

AP05=0805

AP06=1206

AP10=1210

AP12=1812

Voltage

16V = Y

25V = 3

50V = 5

100V = 1

200V = 2

500V = 7

Dielectric

NP0 = A

X7R = C

104

Capacitance

Code (In pF)

2 Significant Digits +

Number of Zeros

e.g. 10μF = 106

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Special Code

A = Std. Product

Failure Rate

Packaging

Terminations

Q = APS

T = Plated Ni and Sn** 2 = 7" Reel

4 = 13" Reel

Z = FLEXITERM

U = Conductive Epoxy**

B = 5% min lead

X = FLEXITERM

with

5% min lead

Z, U, X for X7R only

**RoHS compliant

NOTE: Contact factory for availability of Termination and Tolerance Options for Specific Part Numbers.
