DB101 THRU DB107
Technical Data
Data Sheet N1778, Rev. A
DB101 THRU DB107
SINGLE PHASE 1.0AMP GLASS PASSIVATED BRIDGE RECTIFIER
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
“-HF” suffix is for Halogen Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

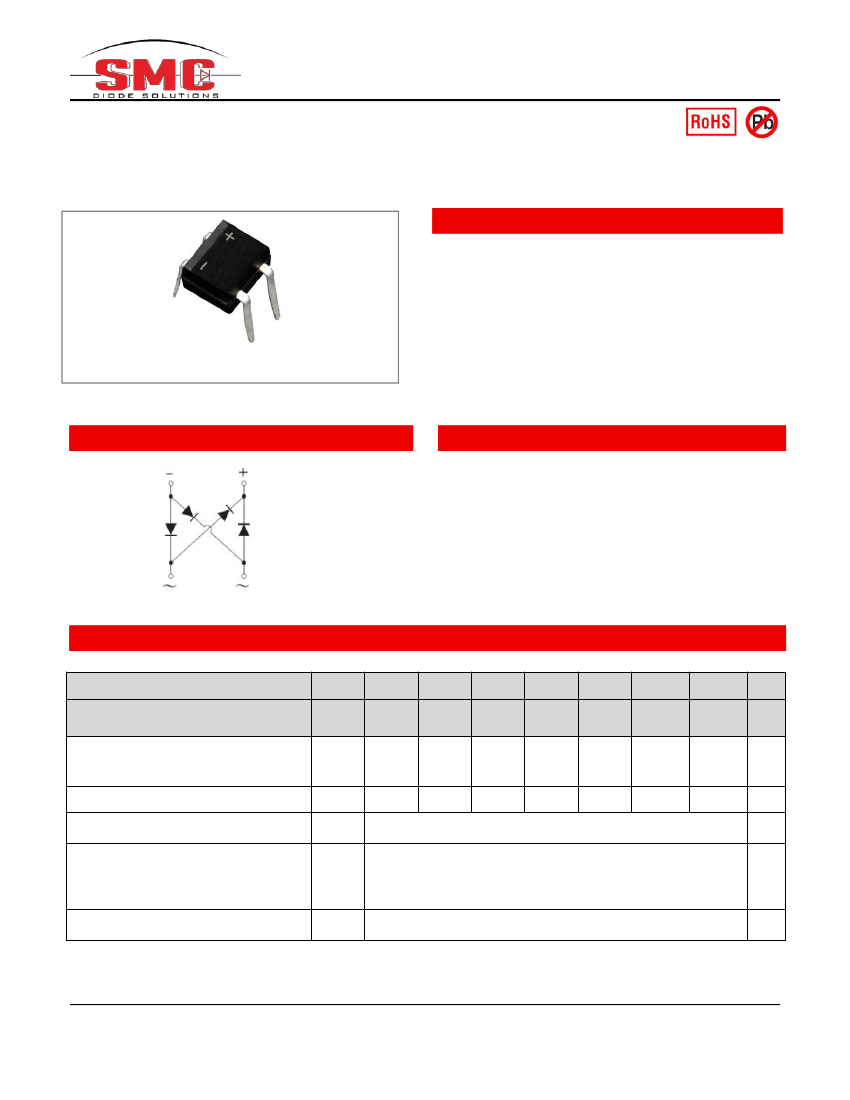

DB-M
Circuit Diagram
Mechanical Data
Case: DB-M, Molded plastic
Terminals: Plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version
Maximum Ratings
@T
A
=25°C unless otherwise specified
Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.
Characteristic
DB101-HF THRU DB107-HF
Marking Code
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Output Current
(Note 1)
@ T
C
=100°C
Non-Repetitive Peak Forward Surge
Current 8.3ms Single half sine-wave
superimposed on rated load (JEDEC
Method)
I
2
t Rating for Fusing (t < 8.3ms)
Symbol DB101
DB102
DB103
DB104
DB105
DB106
DB107
Unit
DB101H DB102H DB103H DB104H DB105H DB106H DB107H
V
RRM
V
RWM
V
R
V
RMS
I
F(AV)
50
35
100
70
200
140
400
280
1.0
600
420
800
560
1000
700
V
V
A
I
FSM
45
A
I
2
t
8.404
A
2
s
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB101 THRU DB107
Technical Data
Data Sheet N1778, Rev. A
Electrical Characteristics
@T
A
=25°C unless otherwise specified
:
Characteristic
DB101-HF THRU DB107-HF
Marking Code
Maximum Forward Voltage Drop
per Bridge Element @I
F
=1.0A, T
J
=25°C
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage @T
A
= 125°C
Typical Junction Capacitance (Note 2)
* Pulse width < 300 µs, duty cycle < 2%
Symbol
DB101
DB102
DB103
DB104
DB105
DB106
DB107
Unit
DB101H DB102H DB103H DB104H DB105H DB106H DB107H
V
F
I
R
C
J
1.0
5
200
25
V
μA
pF
Thermal-Mechanical Specifications:
Characteristic
DB101-HF THRU DB107-HF
Marking Code
Typical Thermal Resistance Junction to
Ambient
Typical Thermal Resistance Junction to Lead
Symbol
DB101
DB102
DB103
DB104
DB105
DB106
DB107
Unit
DB101H DB102H DB103H DB104H DB105H DB106H DB107H
R
θJA
R
θJL
40
15
-55+150
°C/W
°C/W
°C
Operating Junction and Storage Temperature
T
J ,
T
STG
Range
Note: 1. Mounted on glass epoxy PC board with 1.3mm
2
solder pad.
2. Measured at 1.0 MHZ and applied reverse voltage of 4.0 VDC

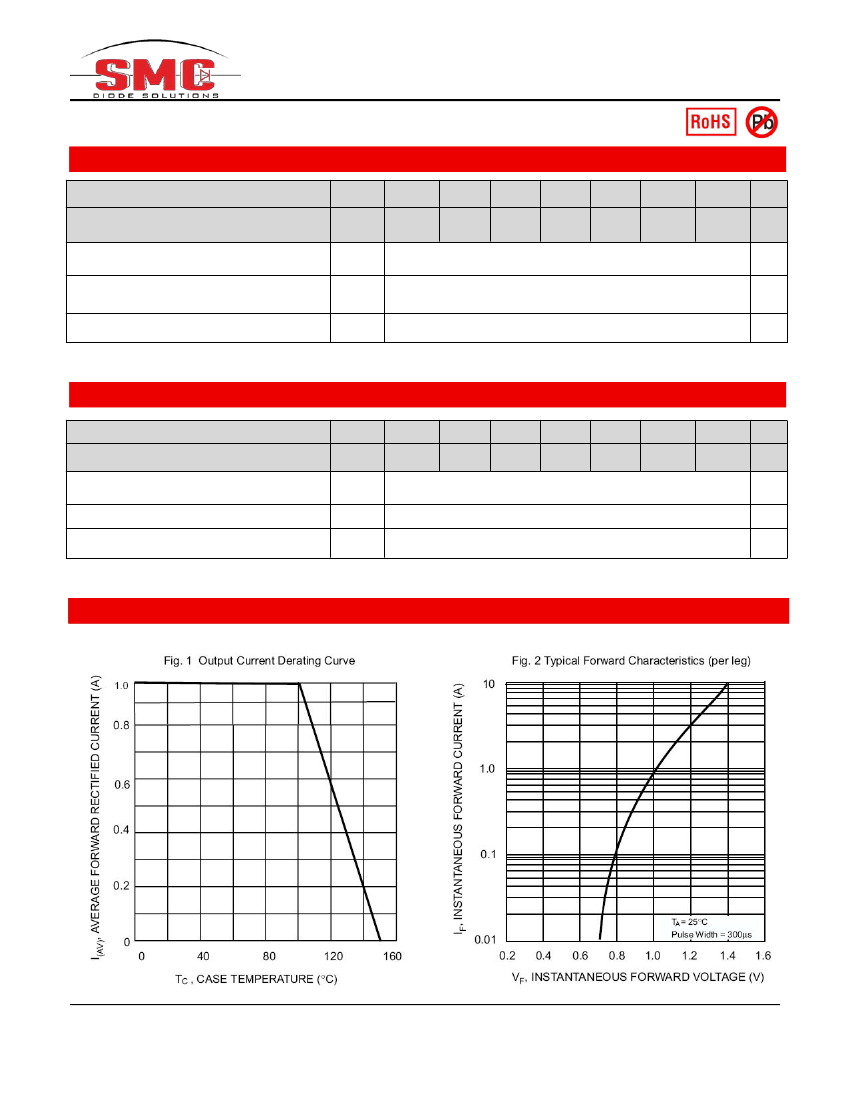

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB101 THRU DB107
Technical Data
Data Sheet N1778, Rev. A

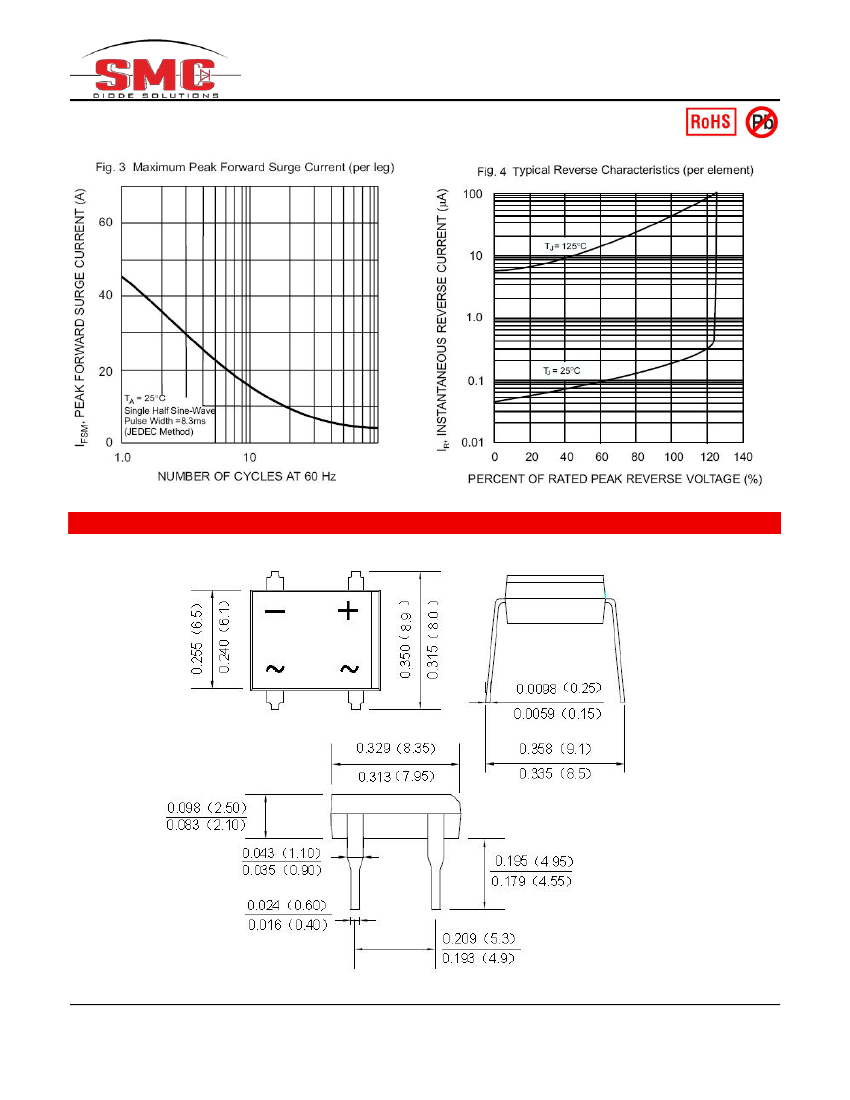

Mechanical Dimensions DB-M(Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
DB101 THRU DB107
Technical Data
Data Sheet N1778, Rev. A

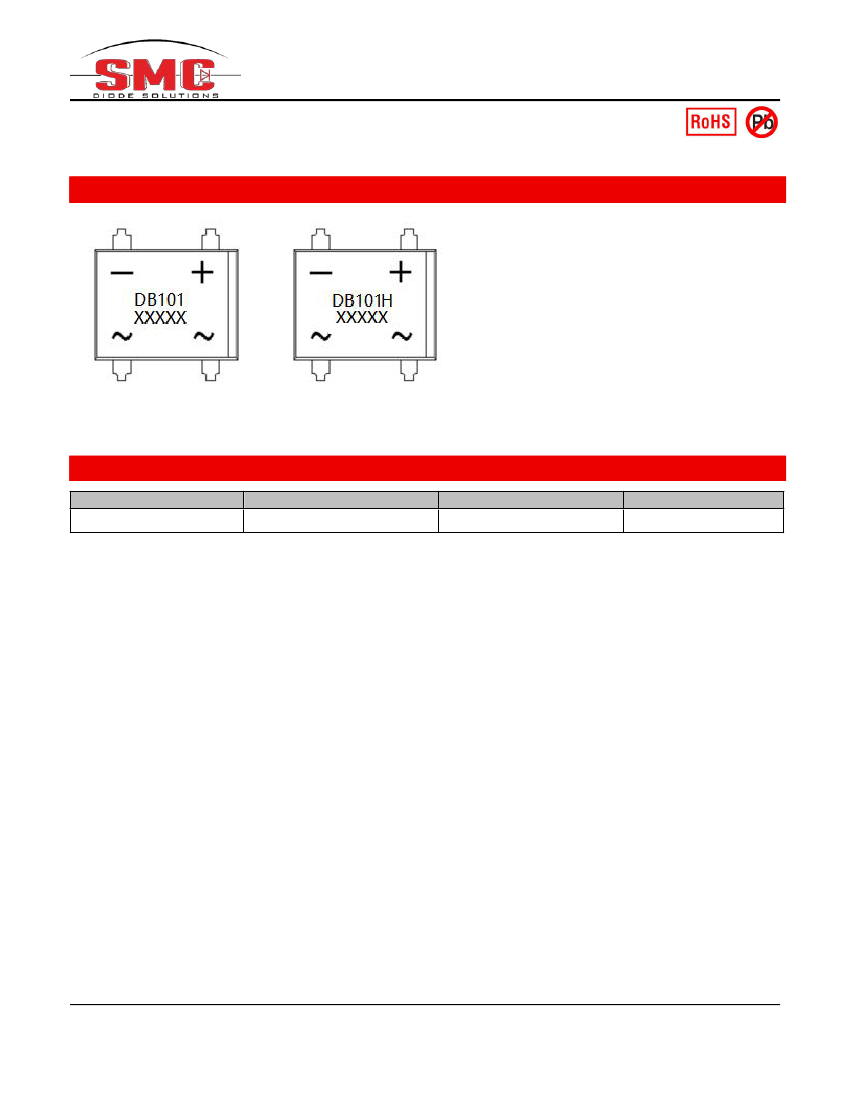

Marking Diagram
Where XXXXX is YYWWL
DB101
DB101H
YY
WW
L
= Type Number
= Marking Code
= Year
= Week
= Lot Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
DB101
DB101-HF
Ordering Information
Device
DB101 THRU DB107
Package
DB-M
Plating
Pure Sn
Shipping
50pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
specification.
