UT54ACS4002-PCC datasheet, PDF

Datasheet> All Categories > logic> logic> UT54ACS4002-PCC

UT54ACS4002-PCC: DescriptionNOR Gate, CMOS, CDIP14,; Categorylogic logic; File Size267KB，6 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric Compare View All

UT54ACS4002-PCC Overview

NOR Gate, CMOS, CDIP14,

UT54ACS4002-PCC Parametric

Parameter Name	Attribute value
Maker	Aeroflex
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.0001 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	14 ns
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

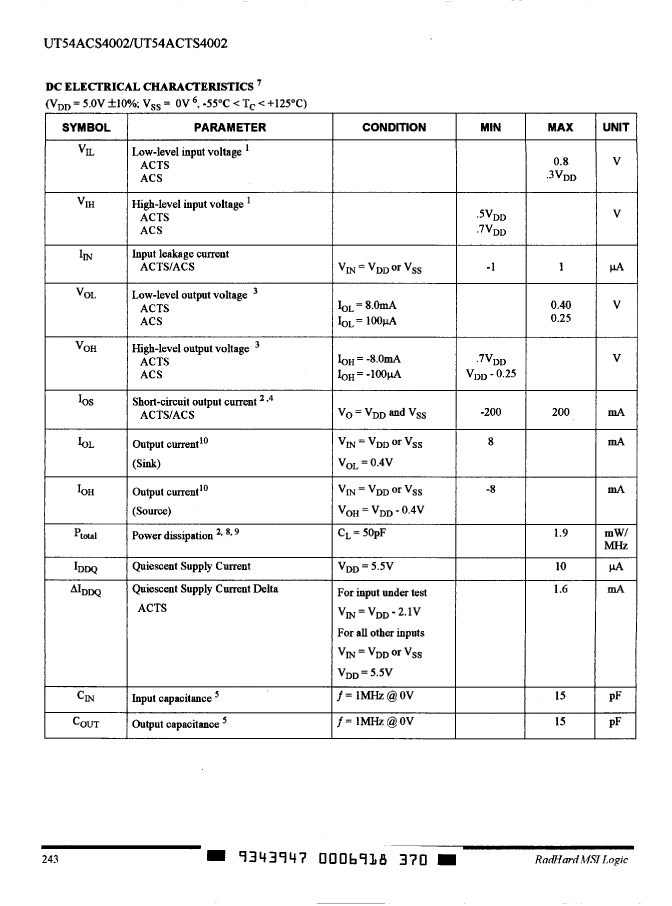

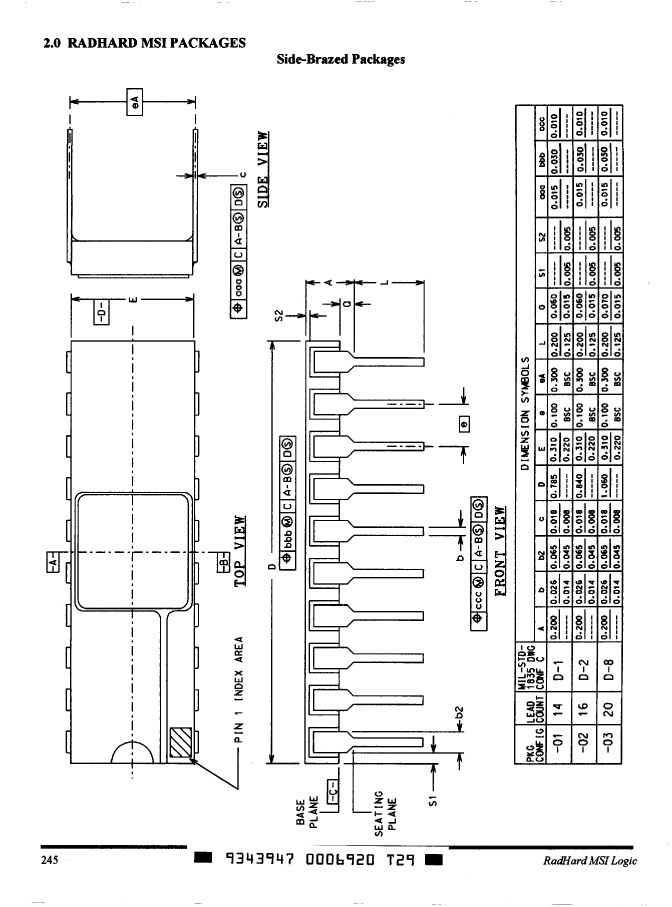

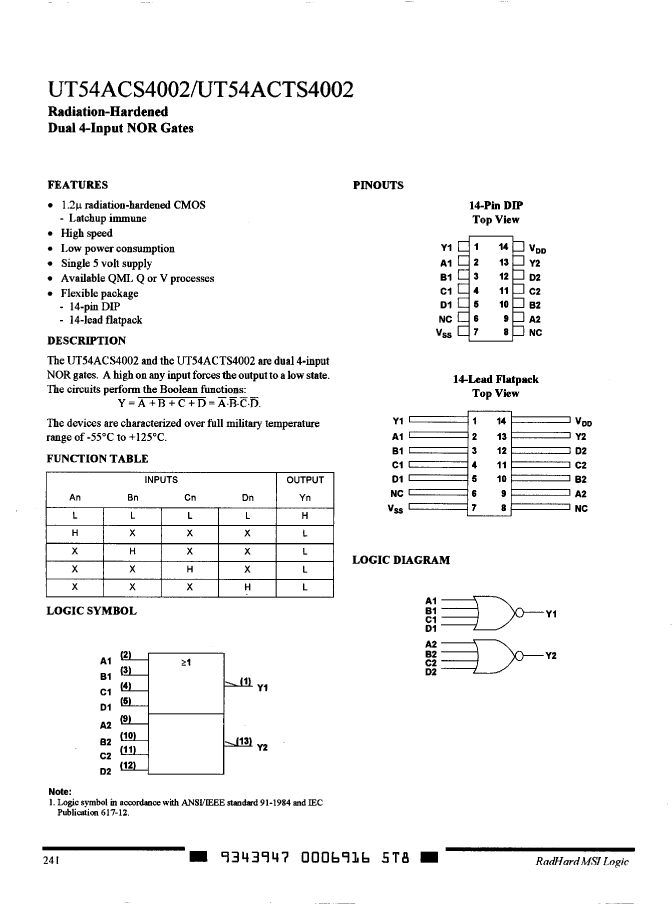

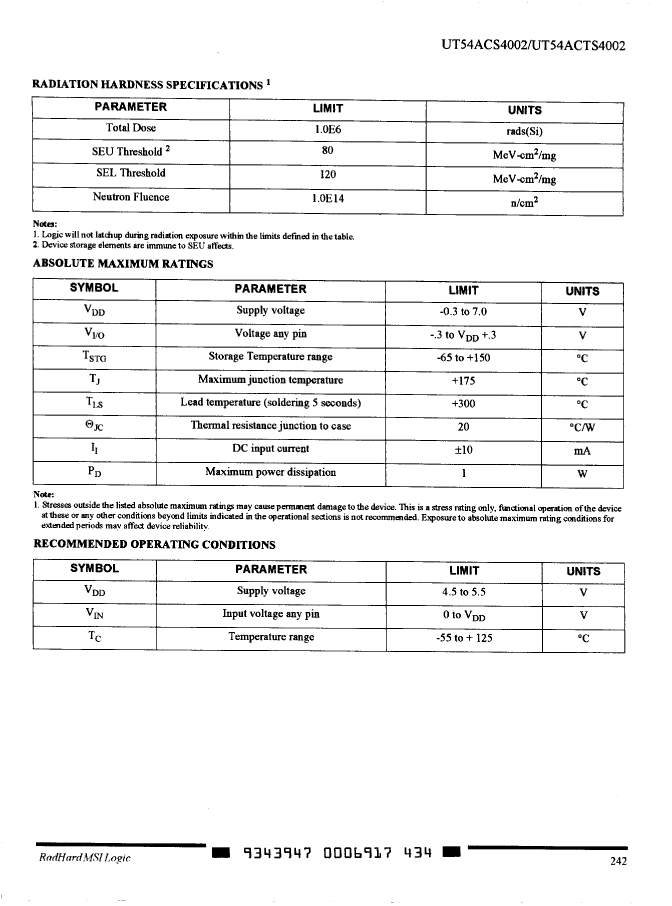

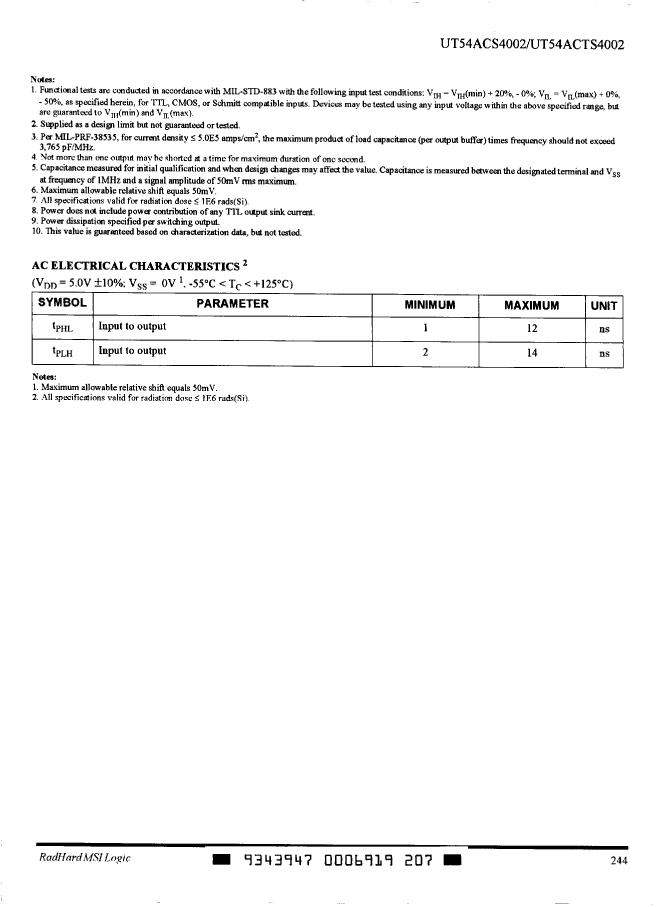

Preview

Download Datasheet

View All

UT54ACS4002-PCC Related Products

	UT54ACS4002-PCC	UT54ACTS4002-PCC	UT54ACS4002-PCX	UT54ACTS4002-PCX	UT54ACS4002-UCC	UT54ACTS4002-UCA	UT54ACS4002-PCA	UT54ACS4002-UCA	UT54ACS4002-UCX	UT54ACTS4002-PCA
Description	NOR Gate, CMOS, CDIP14,	NOR Gate, CMOS, CDIP14,	NOR Gate, CMOS, CDIP14,	NOR Gate, CMOS, CDIP14,	NOR Gate, CMOS, CDFP14,	NOR Gate, CMOS, CDFP14,	NOR Gate, CMOS, CDIP14,	NOR Gate, CMOS, CDFP14,	NOR Gate, CMOS, CDFP14,	NOR Gate, CMOS, CDIP14,
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
MaximumI(ol)	0.0001 A	0.008 A	0.0001 A	0.008 A	0.0001 A	0.008 A	0.0001 A	0.0001 A	0.0001 A	0.008 A
Number of terminals	14	14	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DFP	DFP	DIP	DFP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Aeroflex	-	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex	Aeroflex
