HI23C65C-Y-000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HI23C65C-Y-000

HI23C65C-Y-000: DescriptionMASK ROM, 8KX8, 600ns, CMOS, CDIP28; Categorystorage storage; File Size183KB，4 Pages; ManufacturerHughes Aircraft

Download Datasheet Parametric Compare View All

HI23C65C-Y-000 Overview

MASK ROM, 8KX8, 600ns, CMOS, CDIP28

HI23C65C-Y-000 Parametric

Parameter Name	Attribute value
Maker	Hughes Aircraft
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	600 ns
JESD-30 code	R-GDIP-T28
memory density	65536 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

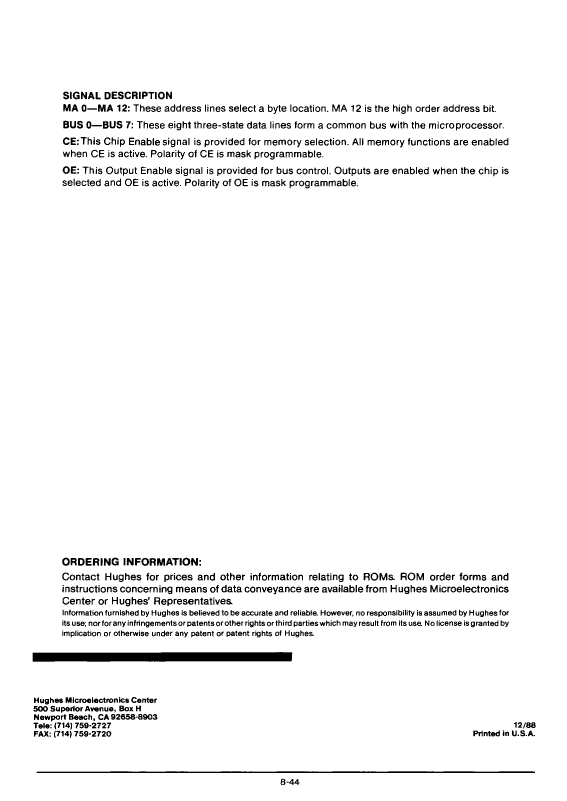

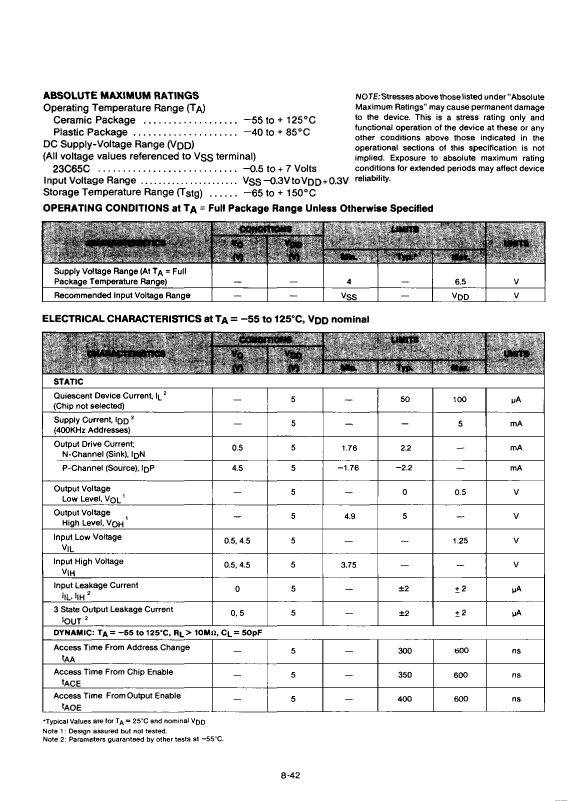

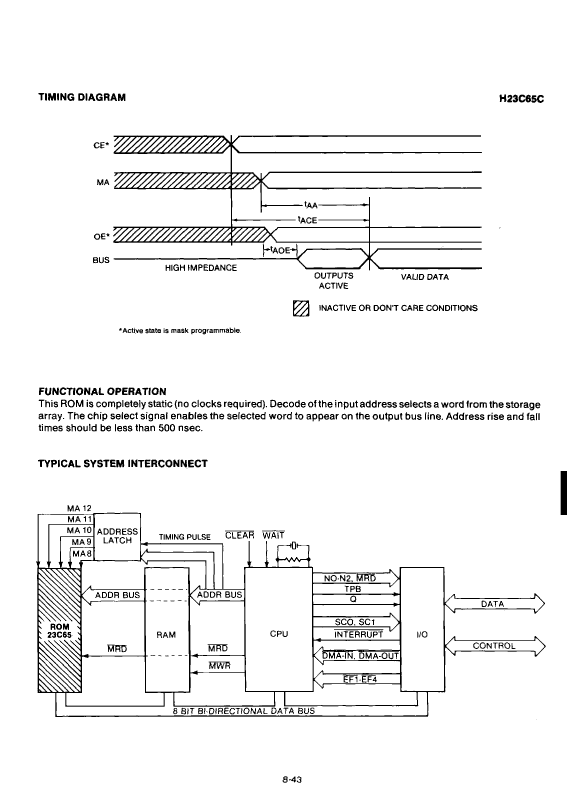

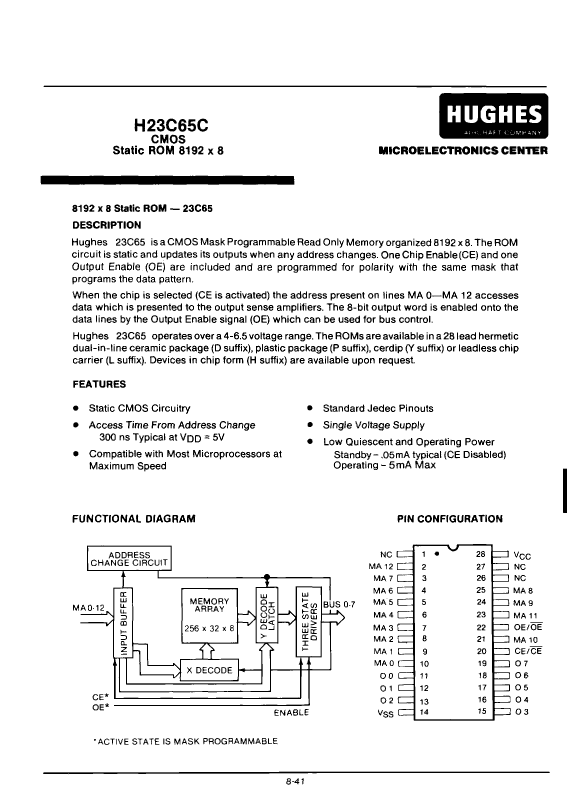

Preview

Download Datasheet

View All

HI23C65C-Y-000 Related Products

	HI23C65C-Y-000	HB23C65C-L-000	HB23C65C-H-000	HB23C65C-Y-000	HI23C65C-L-000	HB23C65C-D-000	HI23C65C-H-000	HI23C65C-P-000	HI23C65C-D-000
Description	MASK ROM, 8KX8, 600ns, CMOS, CDIP28	MASK ROM, 8KX8, 600ns, CMOS, CQCC28	MASK ROM, 8KX8, 600ns, CMOS	MASK ROM, 8KX8, 600ns, CMOS, CDIP28	MASK ROM, 8KX8, 600ns, CMOS, CQCC28	MASK ROM, 8KX8, 600ns, CMOS, CDIP28	MASK ROM, 8KX8, 600ns, CMOS	MASK ROM, 8KX8, 600ns, CMOS, PDIP28	MASK ROM, 8KX8, 600ns, CMOS, CDIP28
Maker	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	600 ns	600 ns	600 ns	600 ns	600 ns	600 ns	600 ns	600 ns	600 ns
JESD-30 code	R-GDIP-T28	S-CQCC-N28	X-XUUC-N25	R-GDIP-T28	S-CQCC-N28	R-CDIP-T28	X-XUUC-N25	R-PDIP-T28	R-CDIP-T28
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	25	28	28	28	25	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	85 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	UNSPECIFIED	RECTANGULAR	SQUARE	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	UNCASED CHIP	IN-LINE	CHIP CARRIER	IN-LINE	UNCASED CHIP	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	UPPER	DUAL	QUAD	DUAL	UPPER	DUAL	DUAL
