IDT49FCT805BTLI datasheet, PDF

Datasheet> All Categories > logic> logic> IDT49FCT805BTLI

IDT49FCT805BTLI: DescriptionLow Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CQCC20, LCC-20; Categorylogic logic; File Size227KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT49FCT805BTLI Overview

Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CQCC20, LCC-20

IDT49FCT805BTLI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	compliant
series	FCT
Input adjustment	STANDARD
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	2
Number of inverted outputs
Number of terminals	20
Actual output times	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
propagation delay (tpd)	5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.7 ns
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	8.89 mm

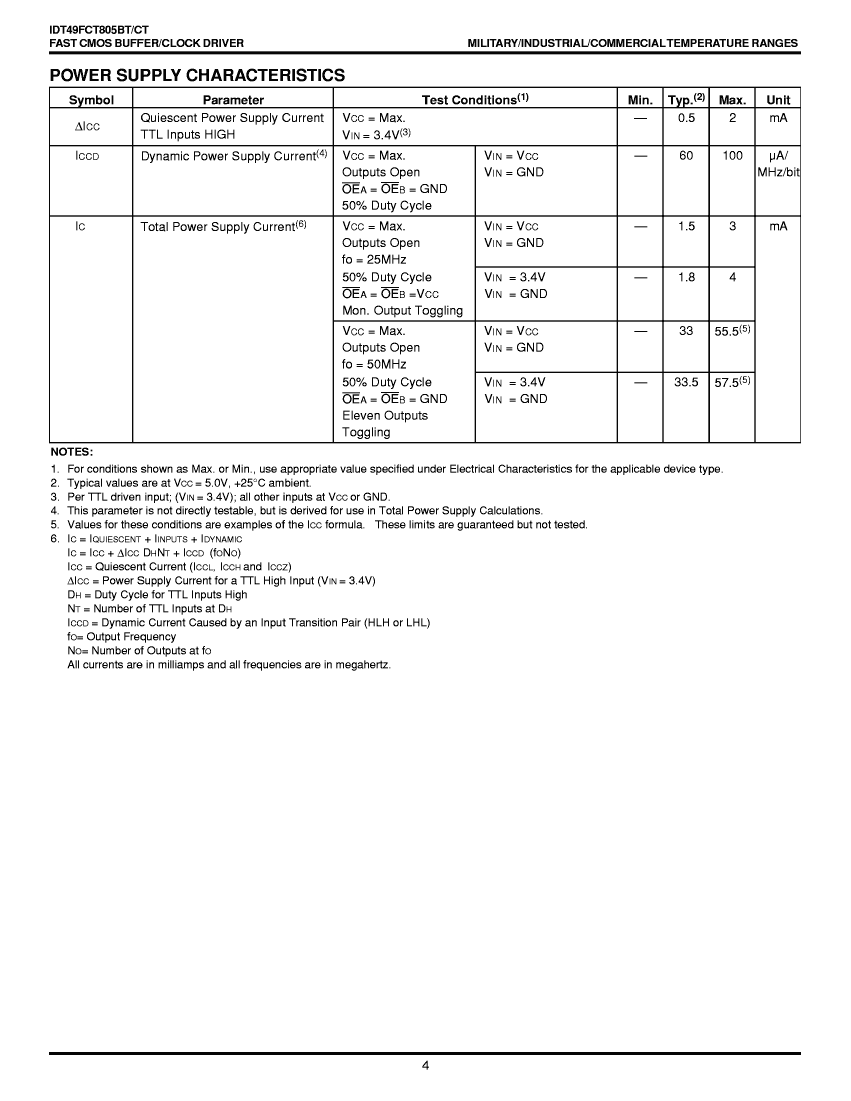

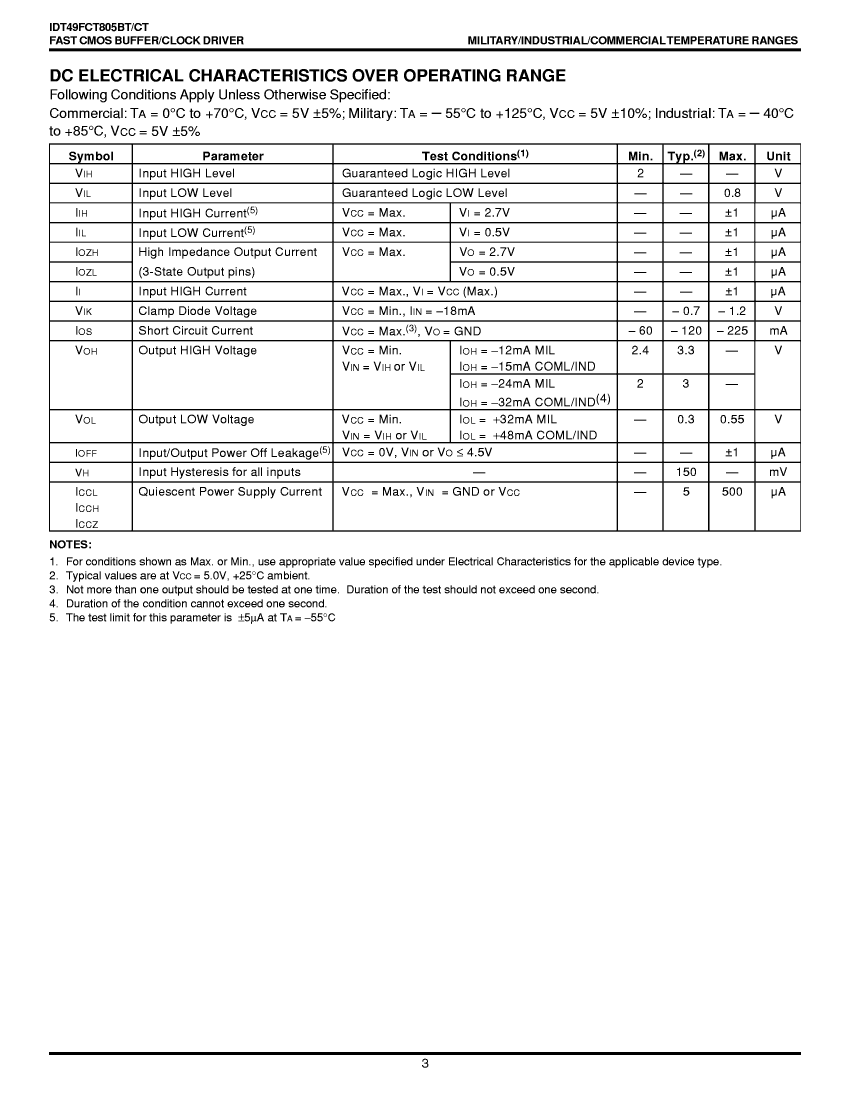

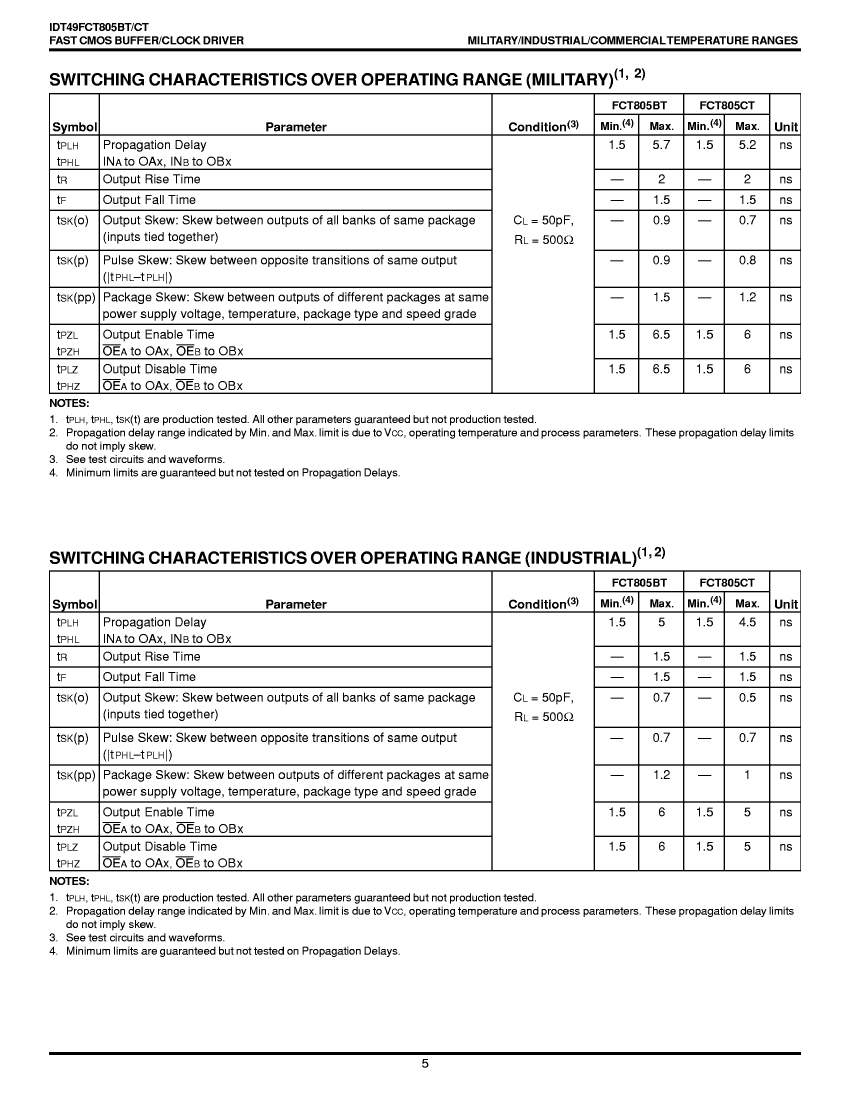

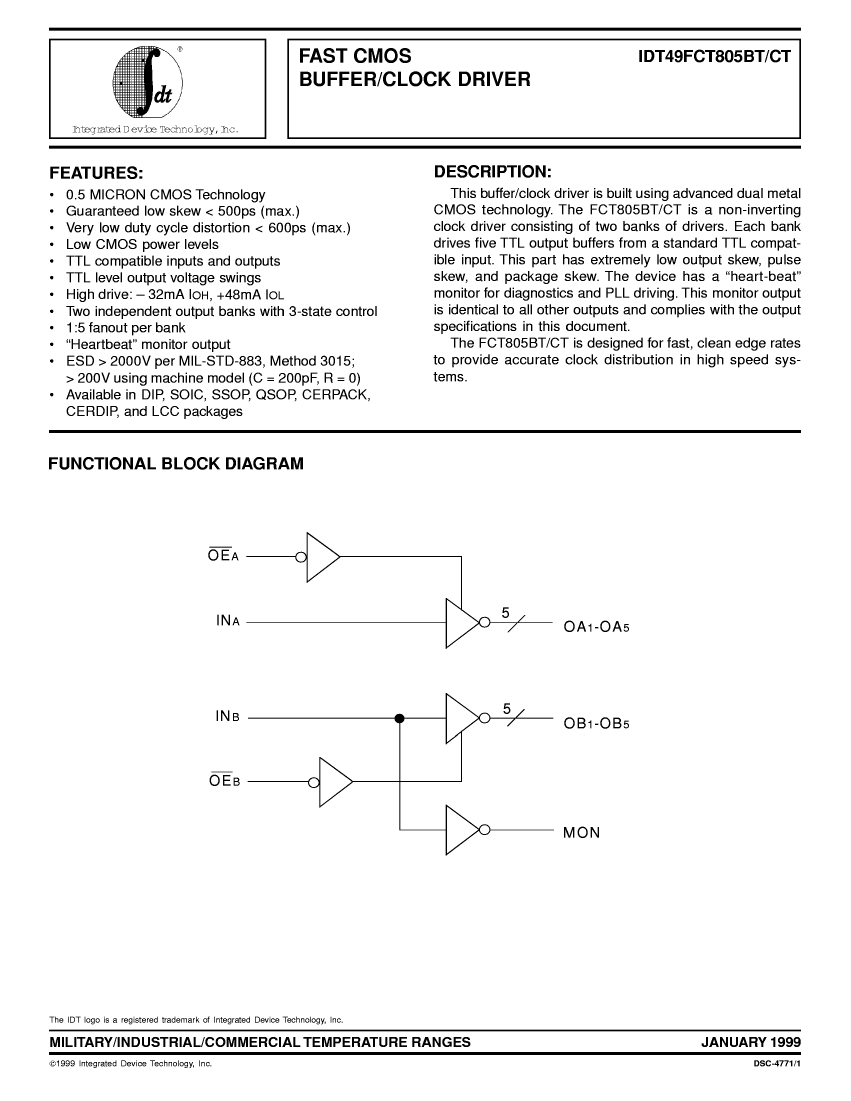

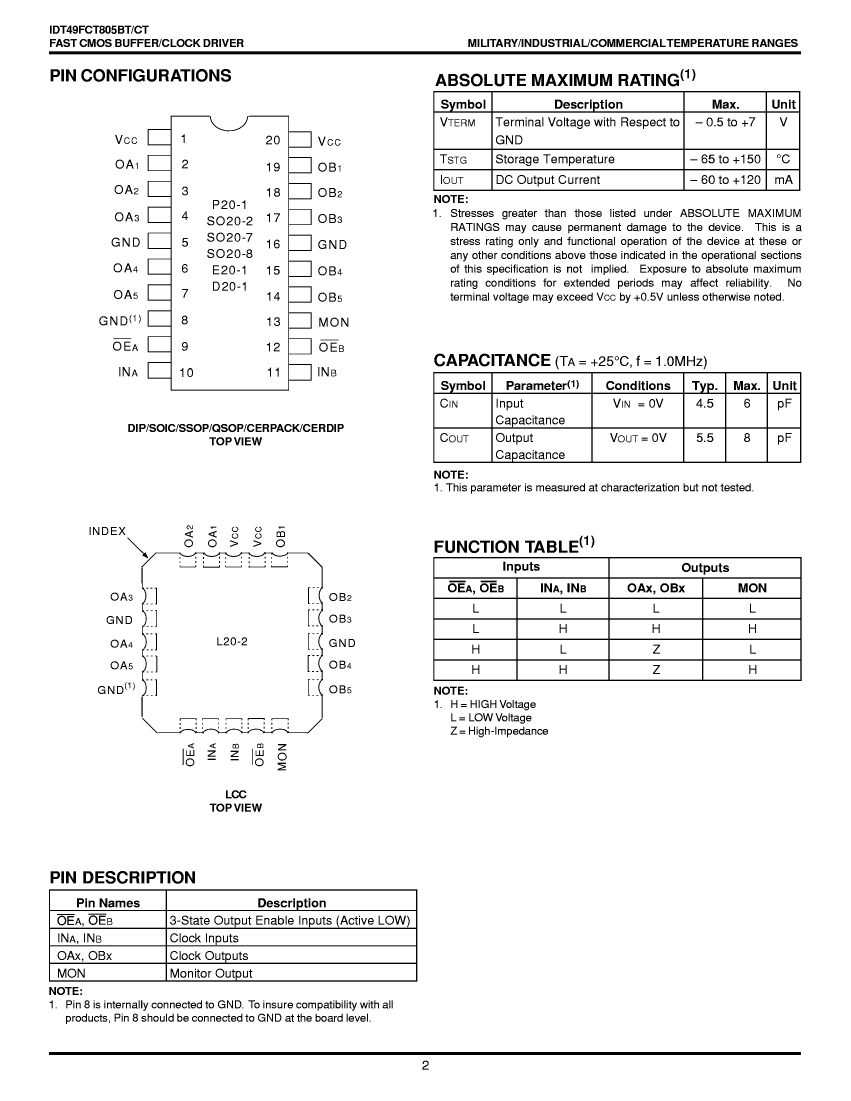

Preview

Download Datasheet

View All

IDT49FCT805BTLI Related Products

	IDT49FCT805BTLI	IDT49FCT805CTLI	IDT49FCT805BTDI	IDT49FCT805CTDI	IDT49FCT805BTEI	IDT49FCT805CTEI
Description	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CQCC20, LCC-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CQCC20, LCC-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDIP20, CERDIP-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDIP20, CERDIP-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERPACK-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERPACK-20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QLCC	QLCC	DIP	DIP	DFP	DFP
package instruction	QCCN,	QCCN,	DIP,	DIP,	CERPACK-20	CERPACK-20
Contacts	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
series	FCT	FCT	FCT	FCT	FCT	FCT
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T20	R-GDIP-T20	R-GDFP-F20	R-GDFP-F20
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Number of functions	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Actual output times	5	5	5	5	5	5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DIP	DFP	DFP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	225	225	NOT SPECIFIED	NOT SPECIFIED	225	225
propagation delay (tpd)	5 ns	4.5 ns	5 ns	4.5 ns	5 ns	4.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.7 ns	0.5 ns	0.7 ns	0.5 ns	0.7 ns	0.5 ns
Maximum seat height	2.54 mm	2.54 mm	5.08 mm	5.08 mm	2.3368 mm	2.3368 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	NOT SPECIFIED	30	30
width	8.89 mm	8.89 mm	7.62 mm	7.62 mm	6.9215 mm	6.9215 mm
length	8.89 mm	8.89 mm	25.3365 mm	25.3365 mm	-	-
