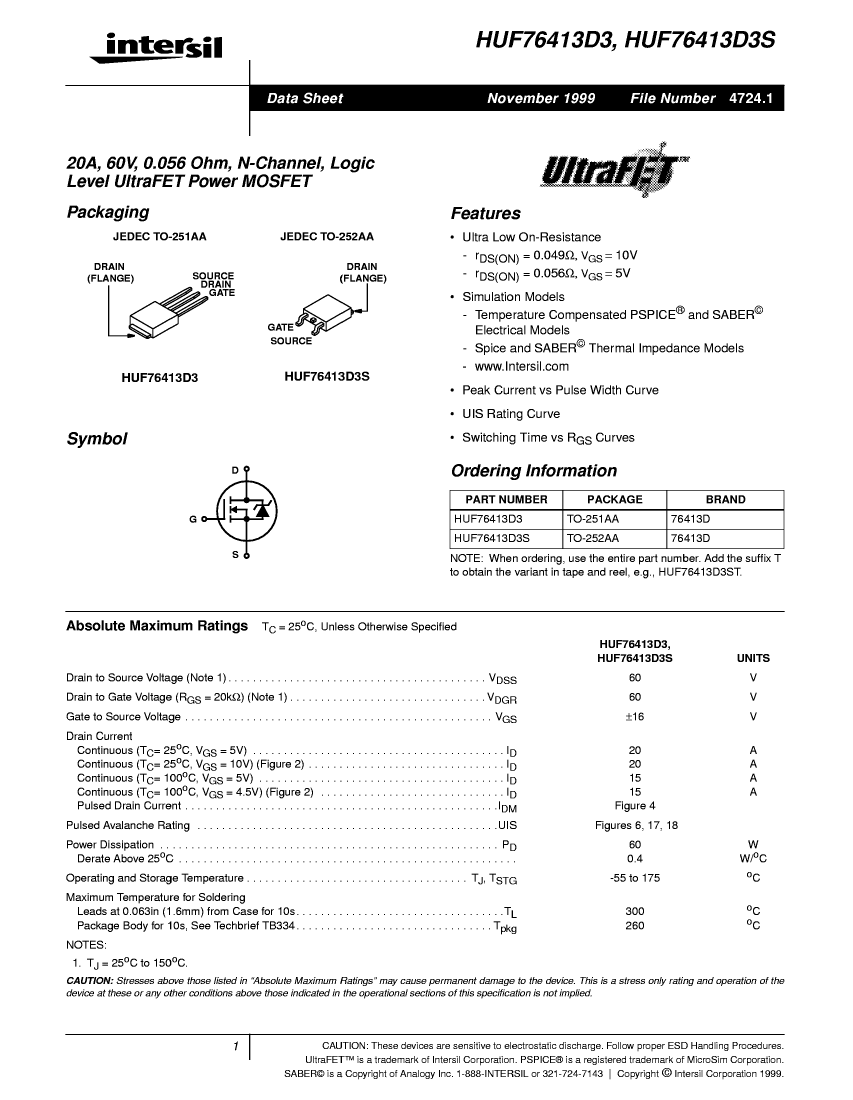

HUF76413D3S

Description
20A, 60V, 0.061ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA
CategoryDiscrete semiconductor    The transistor
File Size558KB,9 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

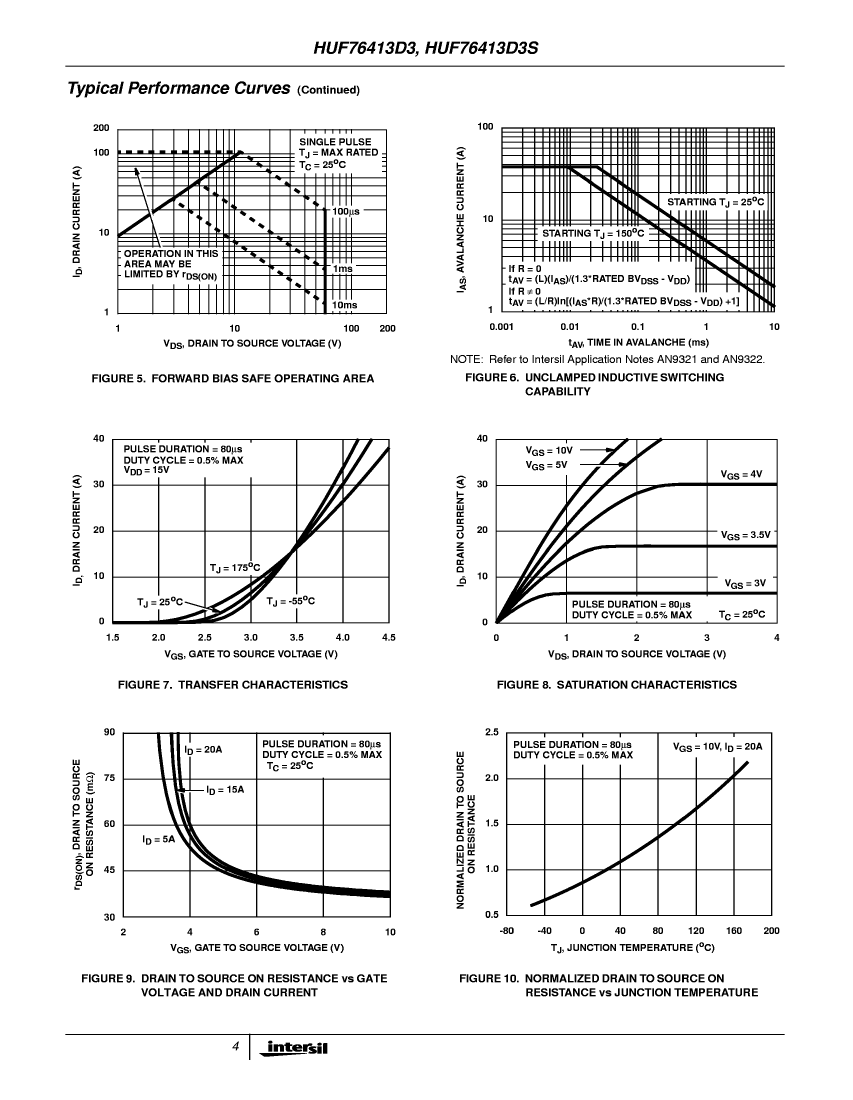

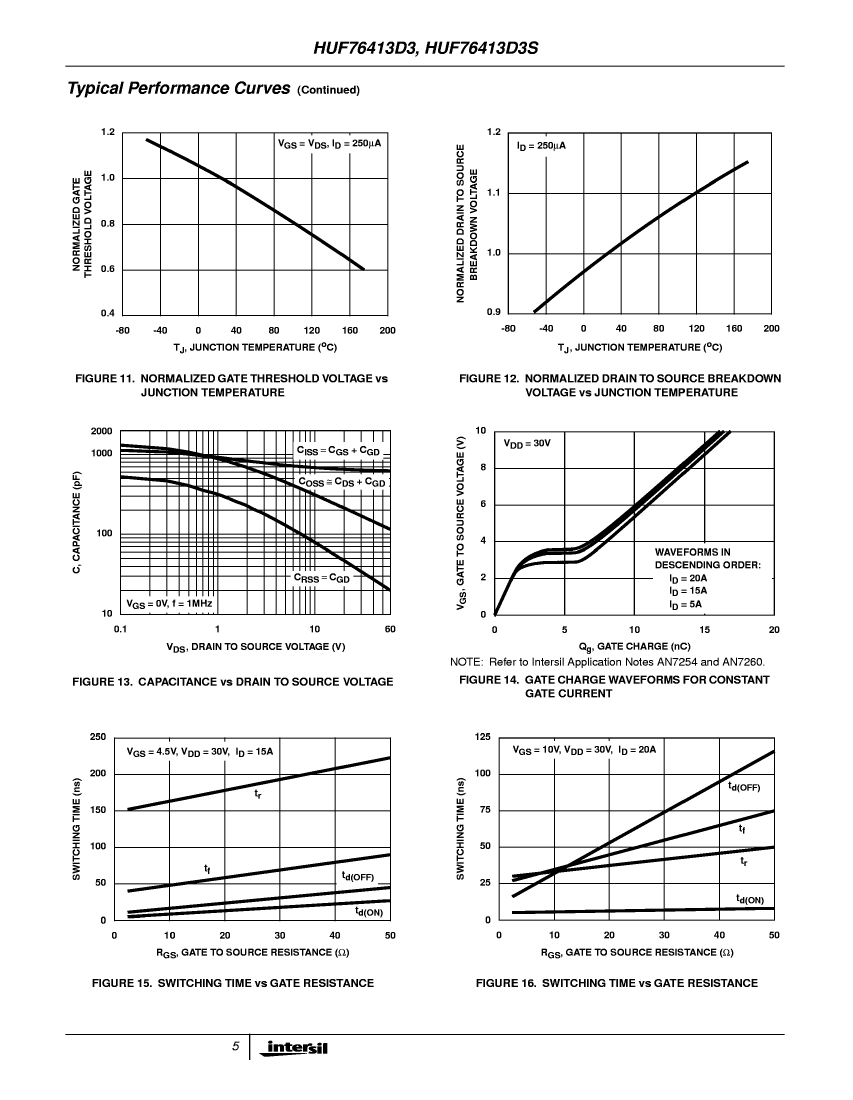

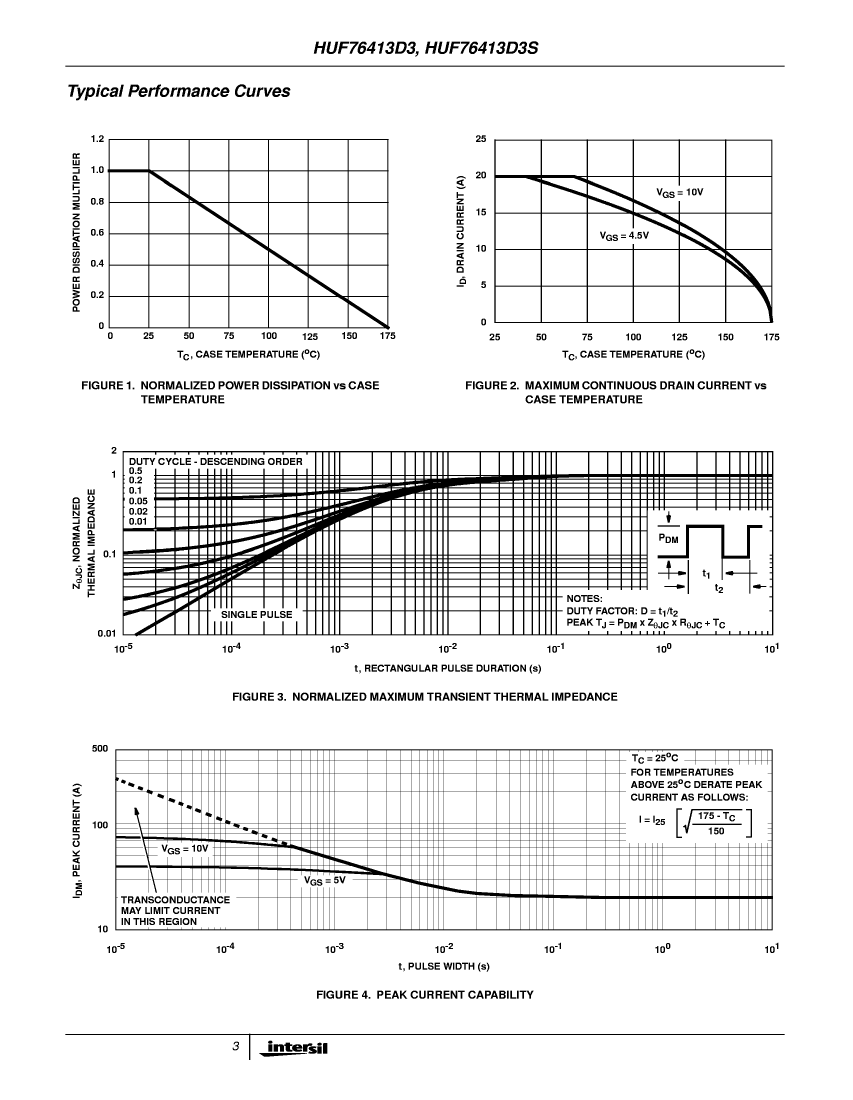

HUF76413D3S Overview

20A, 60V, 0.061ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA

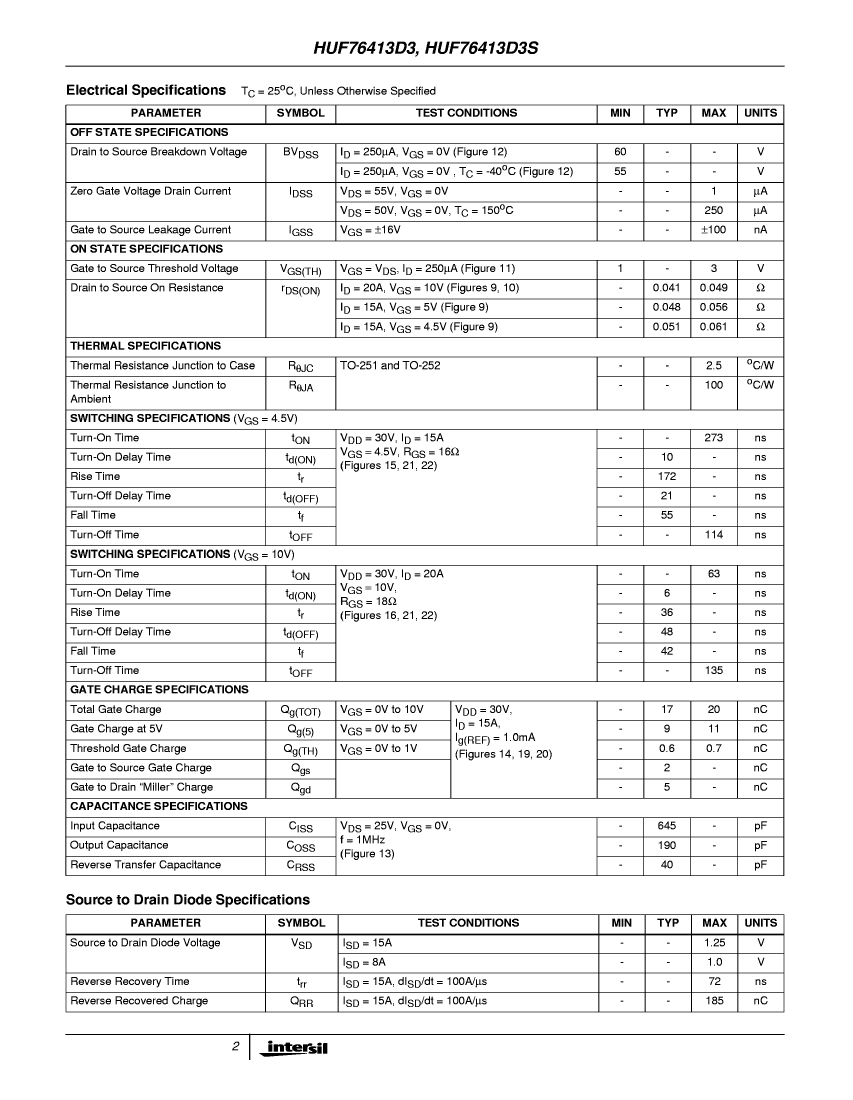

HUF76413D3S Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRenesas Electronics Corporation
package instructionSMALL OUTLINE, R-PSSO-G2
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage60 V
Maximum drain current (Abs) (ID)20 A
Maximum drain current (ID)20 A
Maximum drain-source on-resistance0.061 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-252AA
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)70 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

HUF76413D3S Related Products

HUF76413D3S HUF76413D3T HUF76413D3ST
Description 20A, 60V, 0.061ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA TRANSISTOR,MOSFET,N-CHANNEL,60V V(BR)DSS,20A I(D),TO-251AA 20A, 60V, 0.061ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA
Is it Rohs certified? incompatible incompatible incompatible
Maker Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation
Reach Compliance Code not_compliant not_compliant not_compliant
Configuration SINGLE WITH BUILT-IN DIODE Single SINGLE WITH BUILT-IN DIODE
Maximum drain current (Abs) (ID) 20 A 20 A 20 A
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-609 code e0 e0 e0
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 175 °C 175 °C 175 °C
Polarity/channel type N-CHANNEL N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 70 W 70 W 70 W
surface mount YES NO YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
package instruction SMALL OUTLINE, R-PSSO-G2 - SMALL OUTLINE, R-PSSO-G2
ECCN code EAR99 - EAR99
Shell connection DRAIN - DRAIN
Minimum drain-source breakdown voltage 60 V - 60 V
Maximum drain current (ID) 20 A - 20 A
Maximum drain-source on-resistance 0.061 Ω - 0.061 Ω
JEDEC-95 code TO-252AA - TO-252AA
JESD-30 code R-PSSO-G2 - R-PSSO-G2
Number of components 1 - 1
Number of terminals 2 - 2
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY
Package shape RECTANGULAR - RECTANGULAR
Package form SMALL OUTLINE - SMALL OUTLINE
Certification status Not Qualified - Not Qualified
Terminal form GULL WING - GULL WING
Terminal location SINGLE - SINGLE
transistor applications SWITCHING - SWITCHING
Transistor component materials SILICON - SILICON
Base Number Matches - 1 1
