B51-016-020-IJBIA datasheet, PDF

Datasheet> All Categories > The connector> The connector> B51-016-020-IJBIA

B51-016-020-IJBIA: DescriptionRectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size142KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

B51-016-020-IJBIA Overview

Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug

B51-016-020-IJBIA Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (118)
Contact completed and terminated	TIN (118)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CAM-B51
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

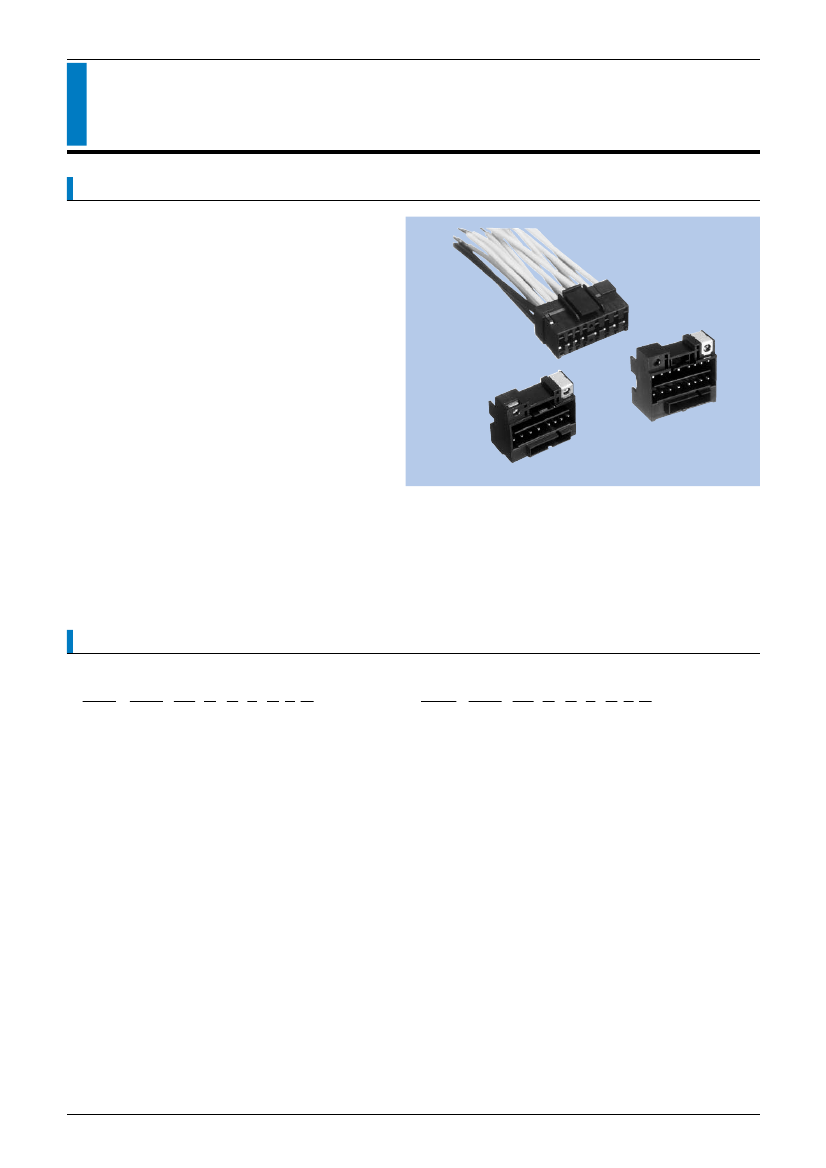

MITSUMI

Power Supply Voltage & Signal

CAM-B51, D35, CCM-B52

Connectors

FEATURES

1. 16 pins power connector of an angle type on

the plug side.

2. The lock device ensures secure fitting.

3. A fuse is mountable to the plug connector.

4. Configured for 2 power supply contact pins

and 14 signal contact pins.

5. Connectors can be fixed by using screws.

6. CAM-D35 has fewer mounting pins to give

more freedom in board pattern design.

CCM-B52(Socket)

CAM-B51/D35(Plug)

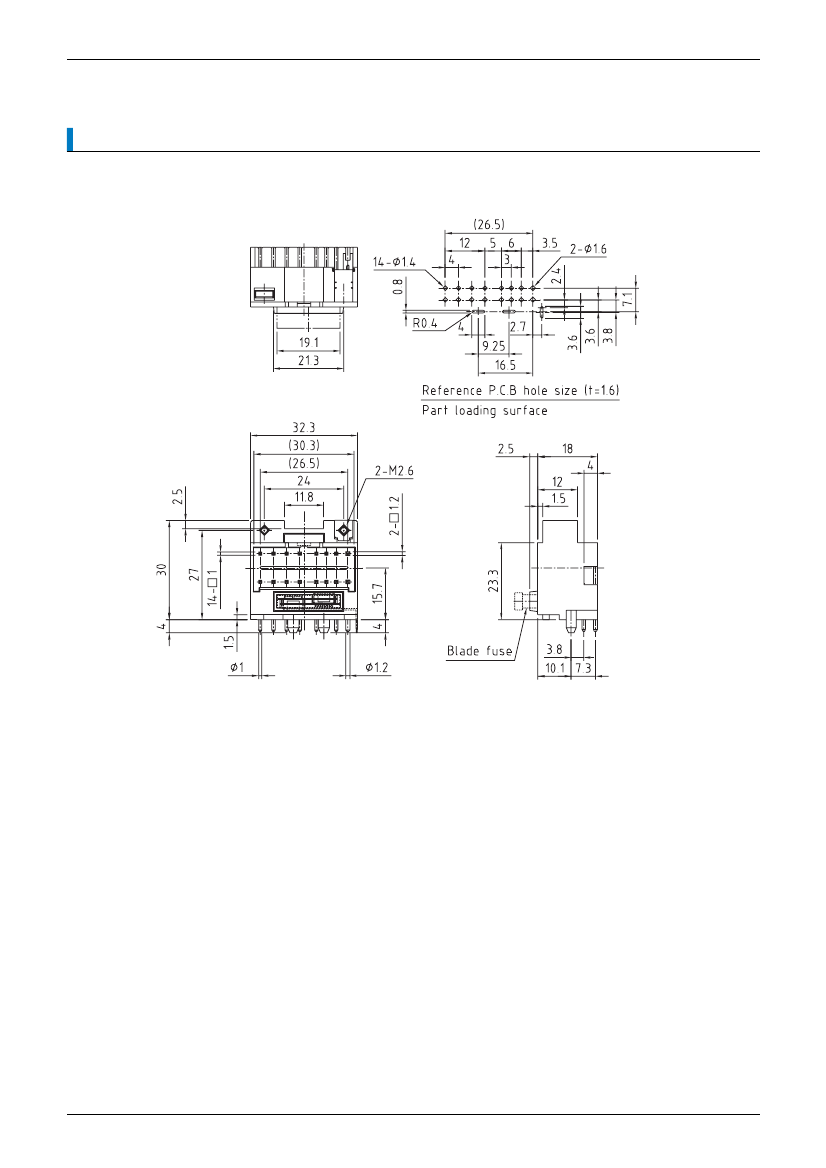

HOW TO ORDER

1. CAM-B51 (Plug)

2. CAM-D35 (Plug)

B51-016-02 0- I J B I A

5 6 7 8 9

Series No.

No. of contacts (016 : 16pins)

Housing material (02 : PBT resin)

Housing UL grade (0 : UL94V-0)

Contact plating (I : Tin reflow plating)

Contact plating thickness (J : 3.0µm)

Contact tail style (B : Angle)

Accessory for connector outside (I : Nut)

Accessory for connector inside (A : None)

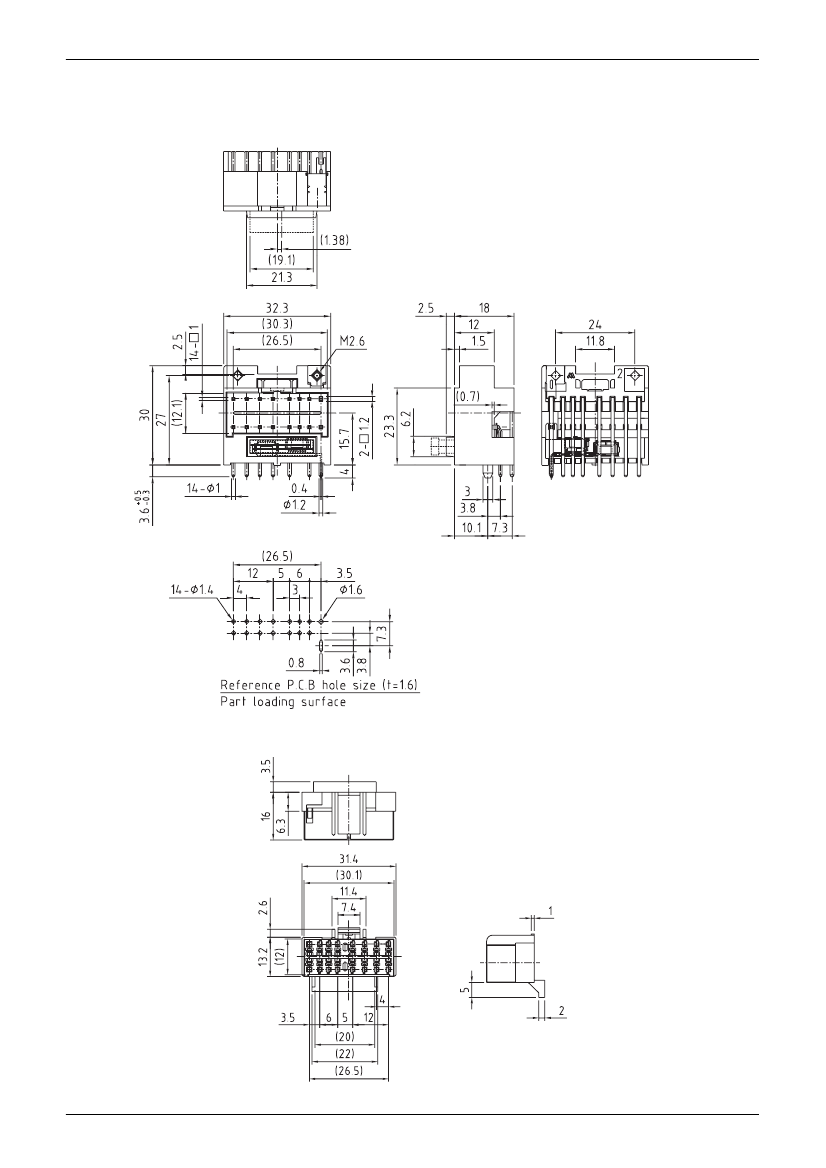

D35-016-02 0- I J B I A

5 6 7 8 9

Series No.

No. of contacts (016 : 16pins)

Housing material (02 : PBT resin)

Housing UL grade (0 : UL94V-0)

Contact plating (I : Tin reflow plating)

Contact plating thickness (J : 3.0µm)

Contact tail style (B : Angle)

Accessory for connector outside (I : Nut)

Accessory for connector inside (A : None)

B51-016-020-IJBIA Related Products

	B51-016-020-IJBIA	D35-016-020-IJBIA
Description	Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug	Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Plug
Maker	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown	unknown
Body/casing type	PLUG	PLUG
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (118)	TIN (118)
Contact completed and terminated	TIN (118)	TIN (118)
Contact point gender	MALE	MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	CAM-B51	CAM-D35
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER	SOLDER
Total number of contacts	16	16
UL Flammability Code	94V-0	94V-0
