97-22140-WW1: DescriptionTelecom and Datacom Connector, 14 Contact(s), Female, Straight, Wire Wrap Terminal, Latch, Socket,; CategoryThe connector The connector; File Size85KB，4 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

97-22140-WW1 Overview

Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Wire Wrap Terminal, Latch, Socket,

97-22140-WW1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LATCH
body length	1.745 inch
Body/casing type	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.8086 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.085 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Terminal length	1.35 inch
Termination type	WIRE WRAP
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.6394 N
Base Number Matches	1

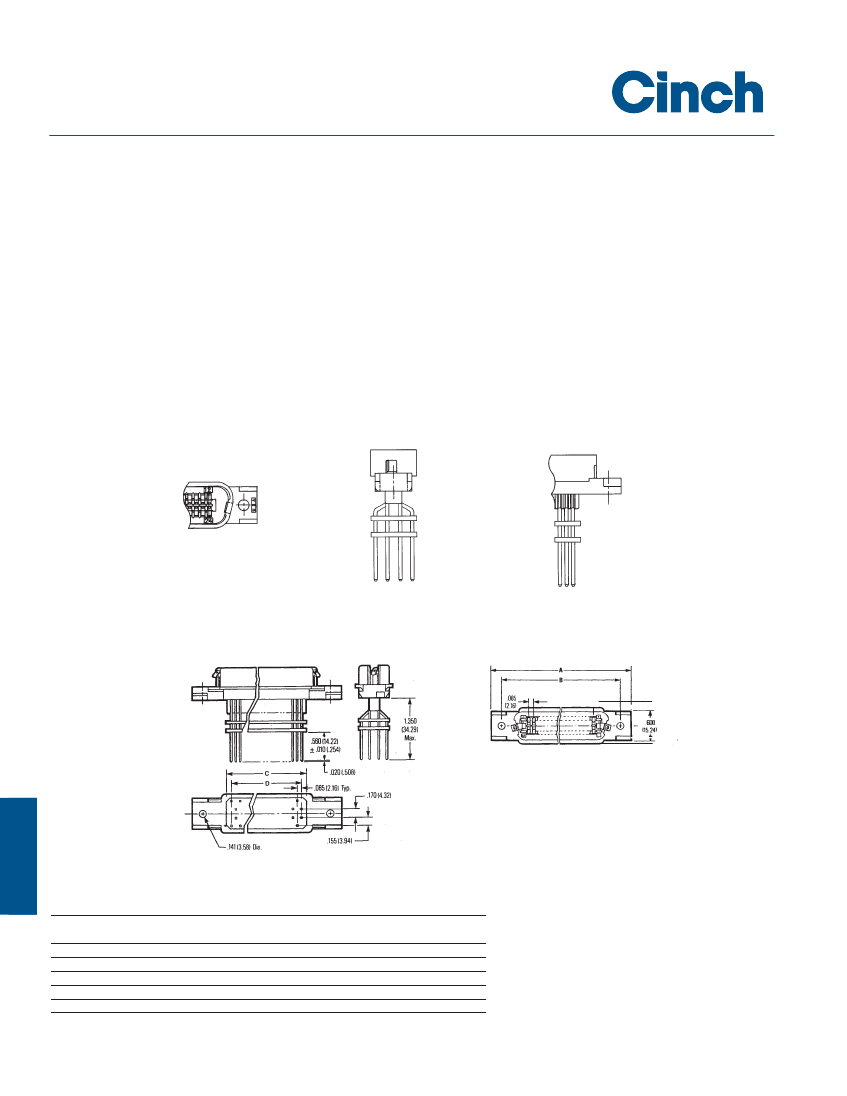

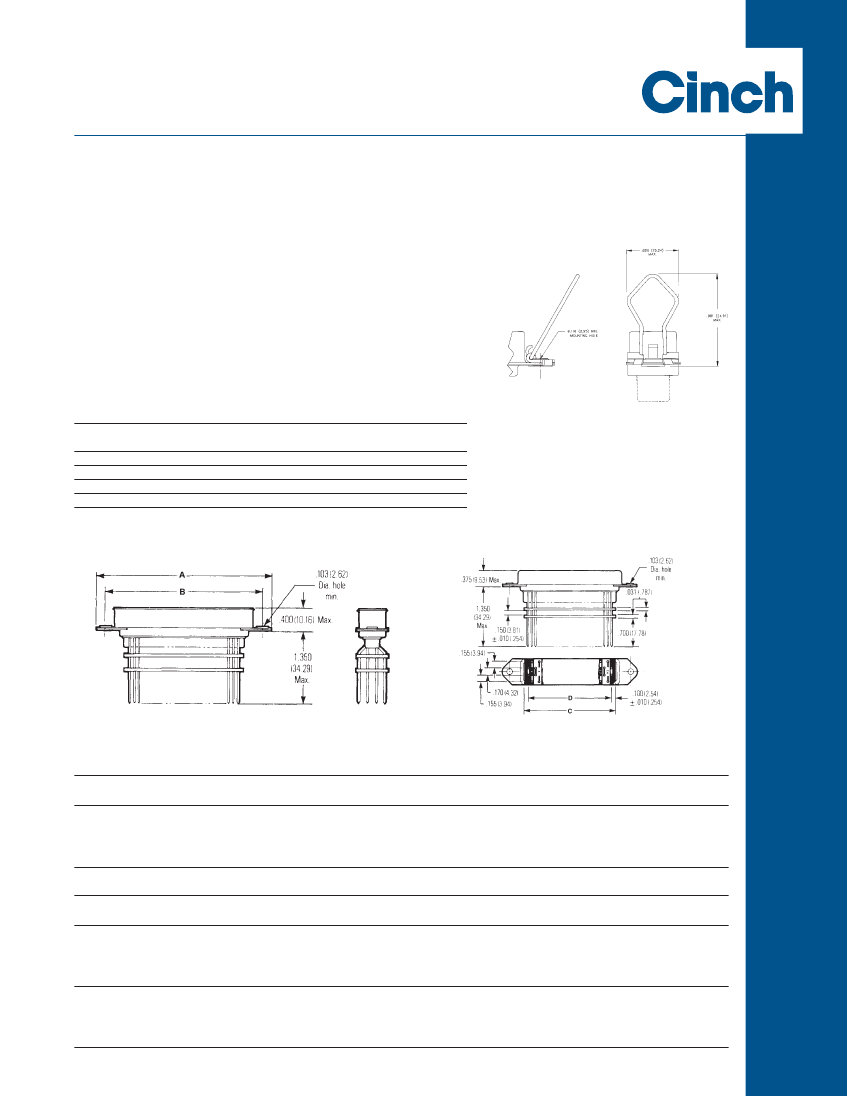

Preview

Download Datasheet

View All

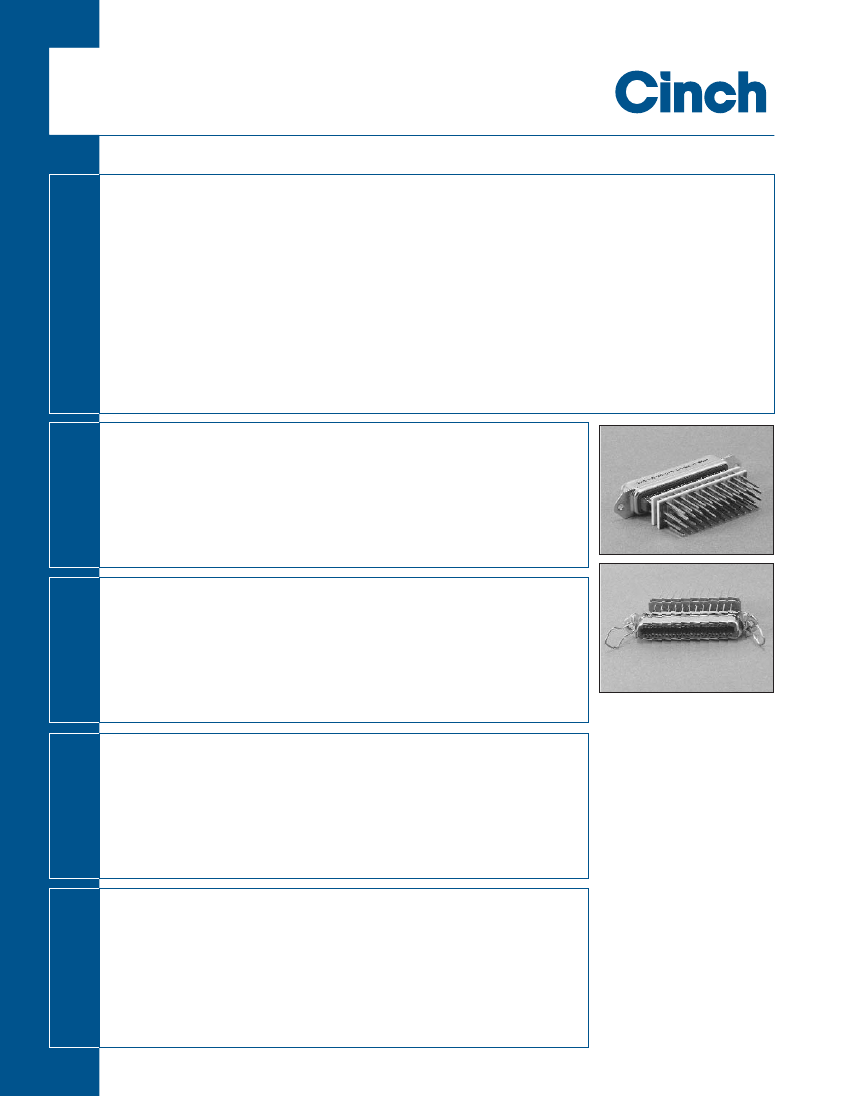

.085 in. (2.16mm)

Density

Miniature Ribbon

Wire Wrap

Metal Shell and All-Plastic

■

Terminates Discrete Wire without soldering, on .025" sq. or .045" sq. tails.

■

All-plastic design reduces cost. Metal Shell available where indicated for improved shielding.

EATURES

ATERIALS

■

Available in plug and socket styles in 14, 24, 36, 50, and 64 position sizes.

■

All plugs lock with InstaLatch passive latch feature for automatic latching.

Sockets available with InstaLatches where indicated.

■

Available with industry-standard bail latch feature for positive locking/unlocking without tools.

■

UL Recognized - Files E170218 (UL1977), E130965 (UL1863).

■

CSA Approved - File LR31996-7.

Insulator (Metal Shell Product):

Blue UL94V-0 rated dialyll phthalate type MDG per MIL-M14F

Insulator (All-Plastic Product):

Gray UL94V-0 rated dialyll phthalate type MDG per MIL-M14F

Contact:

Copper alloy

Contact Plating:

Select gold over 50µin. select nickel standard;

30µin. select gold over 50µin. select nickel available where indicated

Wire-Wrap Terminal:

Cupro nickel

Shell (Metal Shell Product):

Steel

Shell Plating (Metal Shell Product):

Zinc with clear chromate coating

NVIRONMENTAL

Operating Temperature:

-40°C to +105°C

Shock:

50G Peak, per EIA Std. RS364, TP27, Condition A

Vibration:

3 cycles @ 10-55Hz in each of 3 axes per EIA Std. 364, TP28, condition A

Moisture Resistance:

Per EIA Std. RS364, TP31, Condition B, with step 7B excluded

Voltage Rating:

500 VAC @ sea level; 125 VAC @ 70,000 ft.

1200 VAC RMS @ sea level, per EIA Std. RS364, TP20

5 Amps (4 Amps per CSA)

6 milliohms maximum, per EIA Std. RS364, TP6

5000 Megohms minimum initial;

1000 Megohms minimum after moisture

LECTRICAL

Withstanding Voltage:

Contact Rating:

Contact Resistance:

Insulation Resistance:

Durability:

200 mating/unmating cycles

ECHANICAL

Mating / Unmating Forces:

Size

Mating Force (max.)

with InstaLatches

Lb.

5.44

7.71

10.43

14.52

16.78

Unmating Force (min.)

without InstaLatches

Lb.

0.91

1.81

2.72

3.18

3.63

Call Toll Free: 1 (800) 323-9612

6-30
