Datasheet> All Categories > storage> storage> MB841000-80LPF

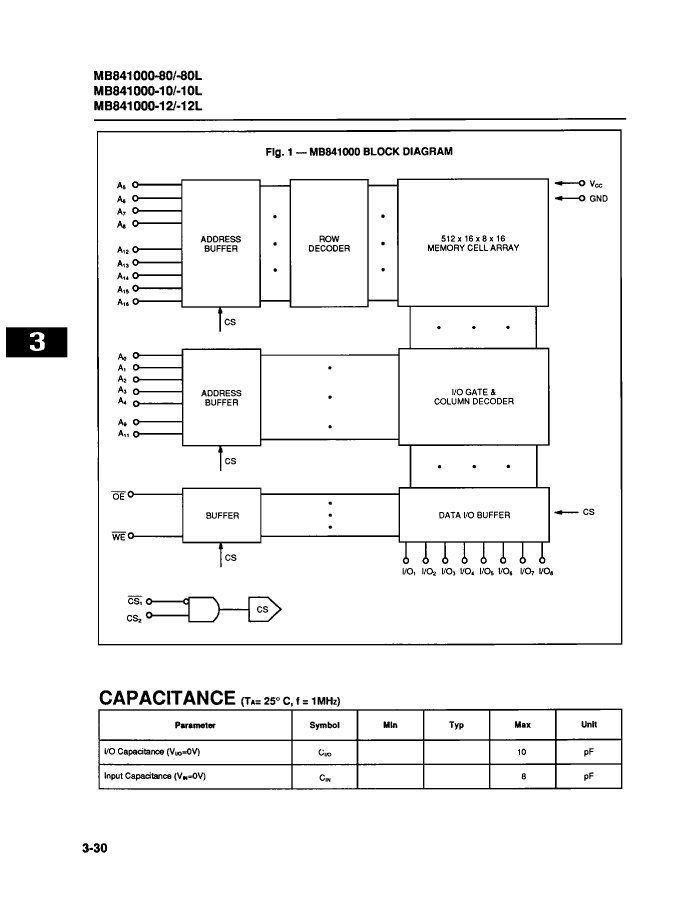

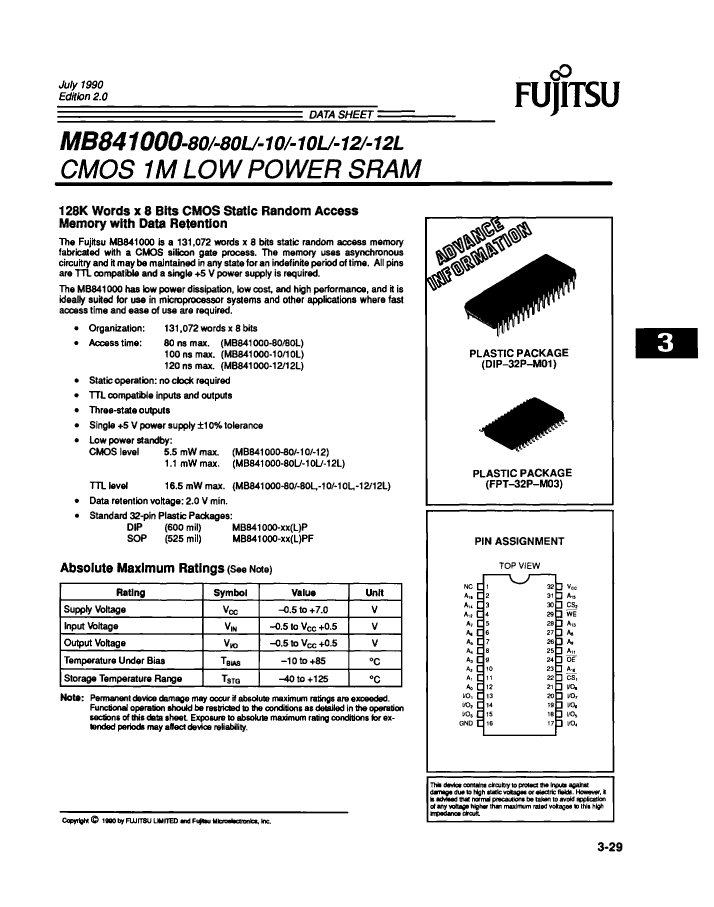

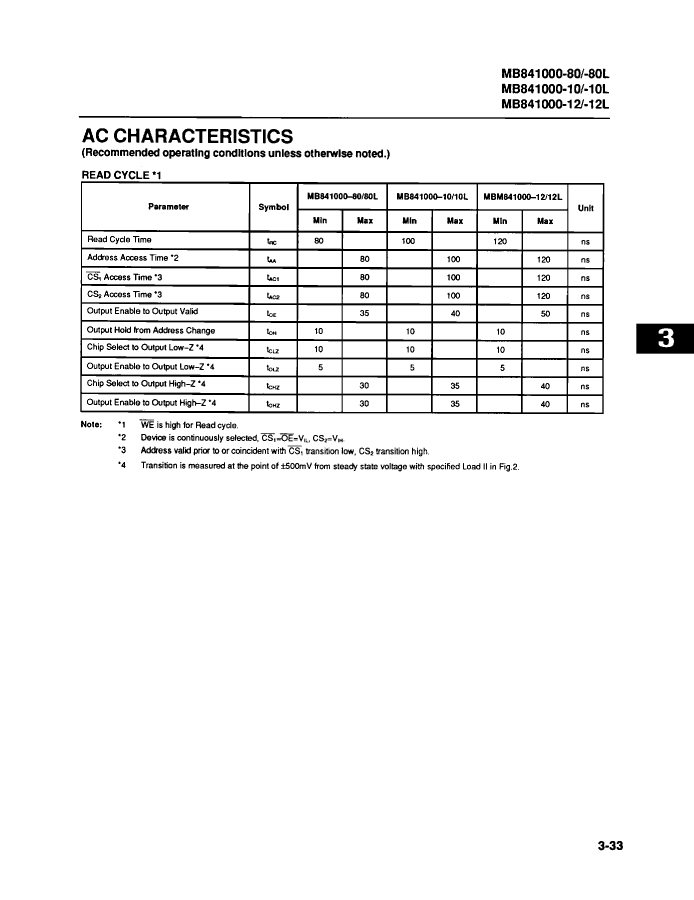

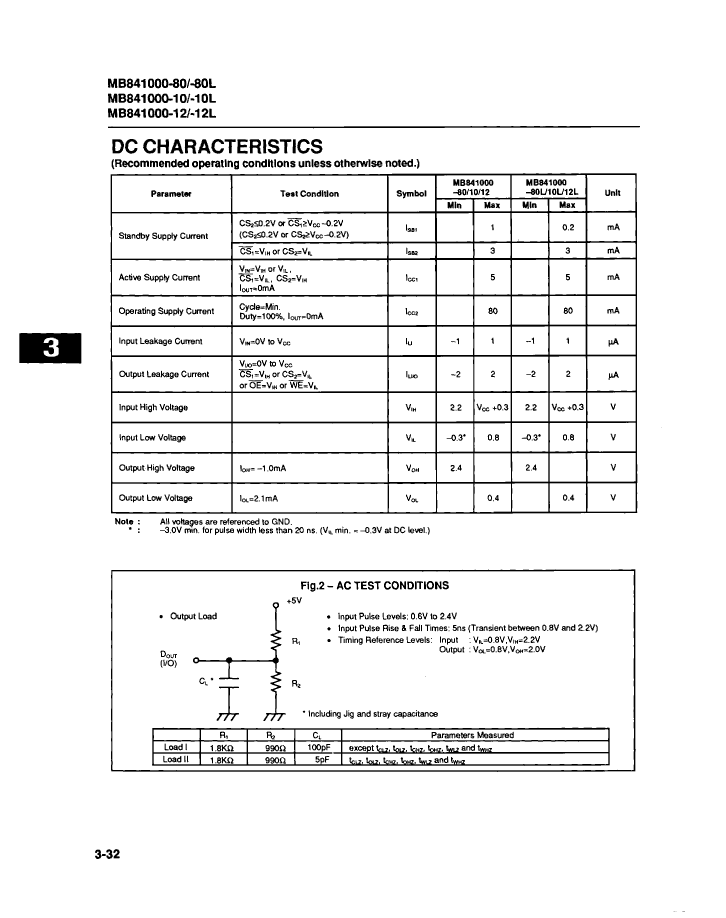

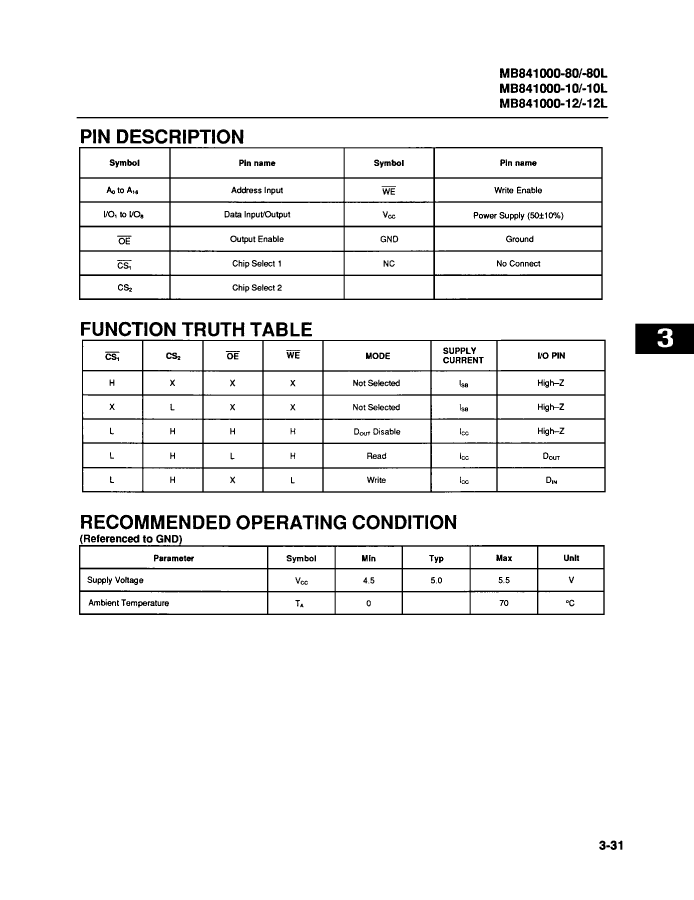

Preview

MB841000-80LPF: DescriptionMemory IC; Categorystorage storage; File Size231KB，14 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB841000-80LPF Overview

Memory IC

MB841000-80LPF Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	SOIC
package instruction	,
Contacts	32
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

MB841000-80LPF Related Products

	MB841000-80LPF	MB841000-10PF	MB841000-80PF	MB841000-12LPF	MB841000-12PF	MB841000-12LP	MB841000-80LP
Description	Memory IC	Standard SRAM, 128KX8, 100ns, CMOS, PDSO32	Standard SRAM, 128KX8, 80ns, CMOS, PDSO32	Standard SRAM, 128KX8, 120ns, CMOS, PDSO32	Standard SRAM, 128KX8, 120ns, CMOS, PDSO32	Standard SRAM, 128KX8, 120ns, CMOS, PDIP32	Standard SRAM, 128KX8, 80ns, CMOS, PDIP32
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	DIP	DIP
package instruction	,	SOP, SOP32,.56	SOP, SOP32,.56	SOP, SOP32,.56	SOP, SOP32,.56	DIP, DIP32,.6	DIP, DIP32,.6
Contacts	32	32	32	32	32	32	32
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maximum access time	-	100 ns	80 ns	120 ns	120 ns	120 ns	80 ns
I/O type	-	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	-	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDIP-T32	R-PDIP-T32
JESD-609 code	-	e0	e0	e0	e0	e0	e0
memory density	-	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	-	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	-	8	8	8	8	8	8
Number of terminals	-	32	32	32	32	32	32
word count	-	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	-	128000	128000	128000	128000	128000	128000
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	-	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	SOP	SOP	SOP	DIP	DIP
Encapsulate equivalent code	-	SOP32,.56	SOP32,.56	SOP32,.56	SOP32,.56	DIP32,.6	DIP32,.6
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Parallel/Serial	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	-	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	-	0.0005 A	0.0005 A	0.0001 A	0.0005 A	0.0001 A	0.0001 A
Minimum standby current	-	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	-	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	YES	YES	YES	YES	NO	NO
technology	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
