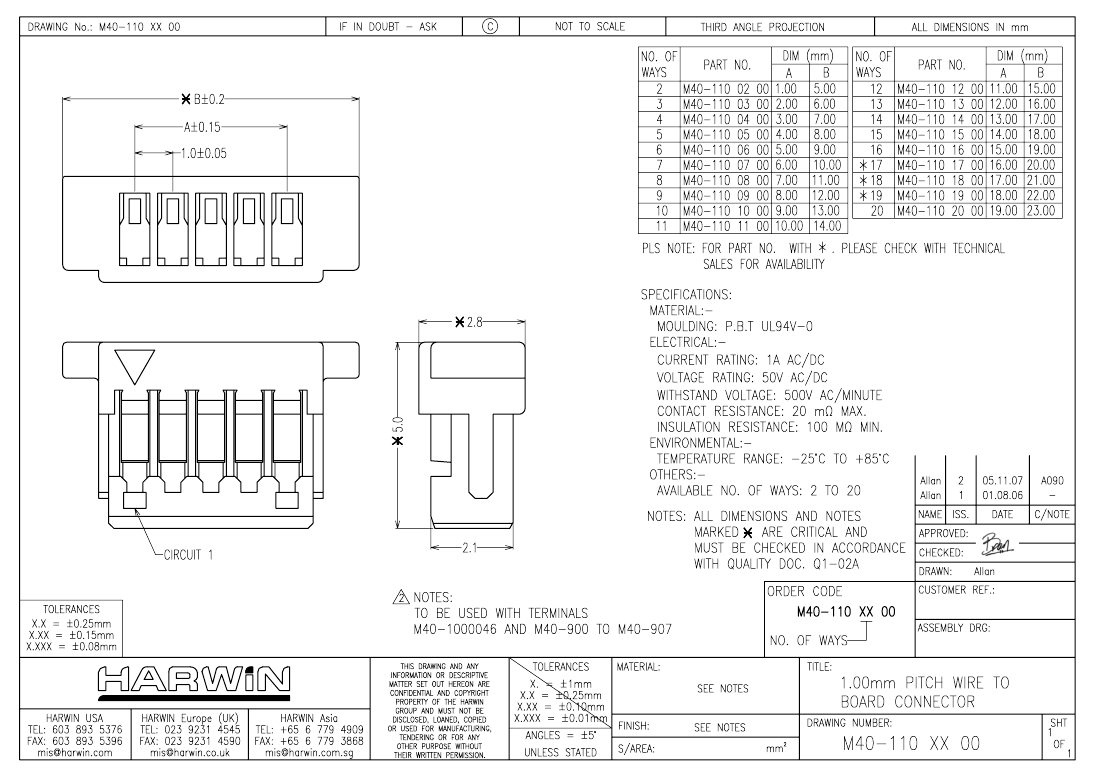

M40-1101900: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M40-1101900 Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Crimp Terminal, Locking, Plug

M40-1101900 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: M40-1000046
body width	0.11 inch
subject depth	0.197 inch
body length	0.866 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	M40
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	CRIMP
Total number of contacts	19
UL Flammability Code	94V-0
