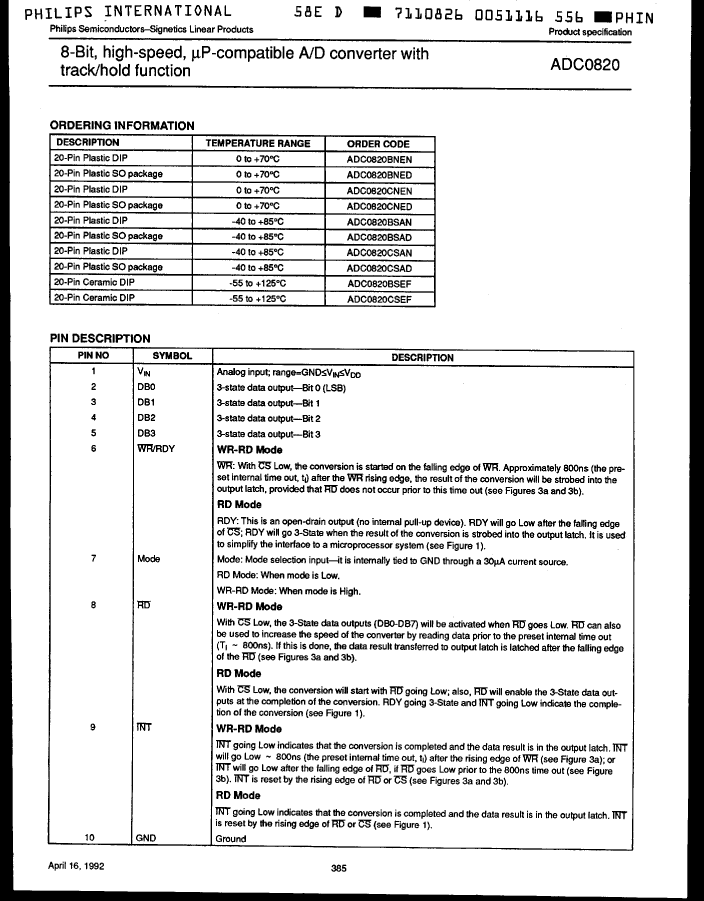

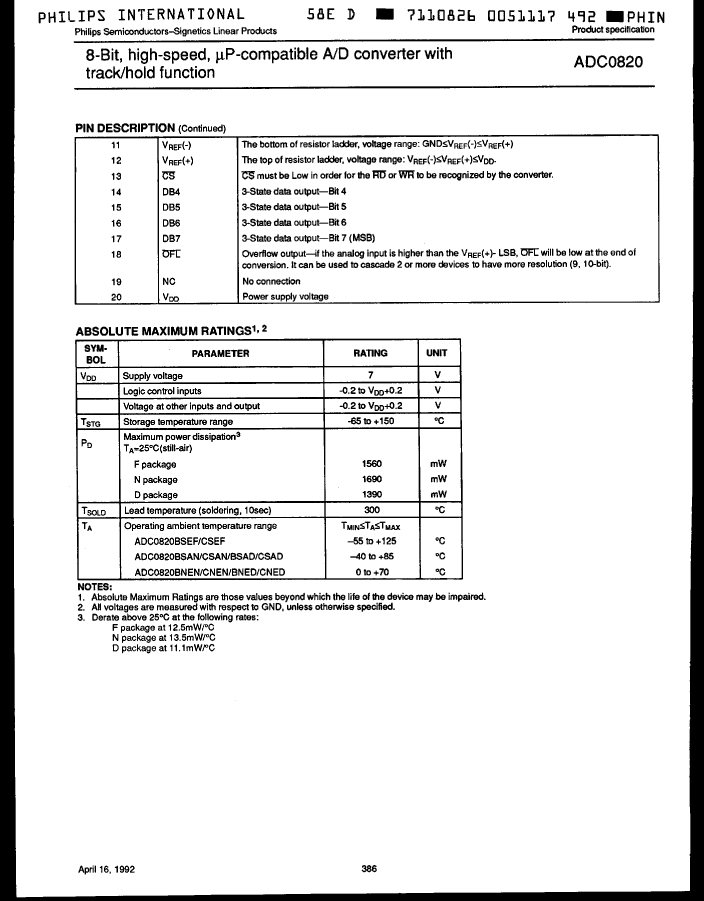

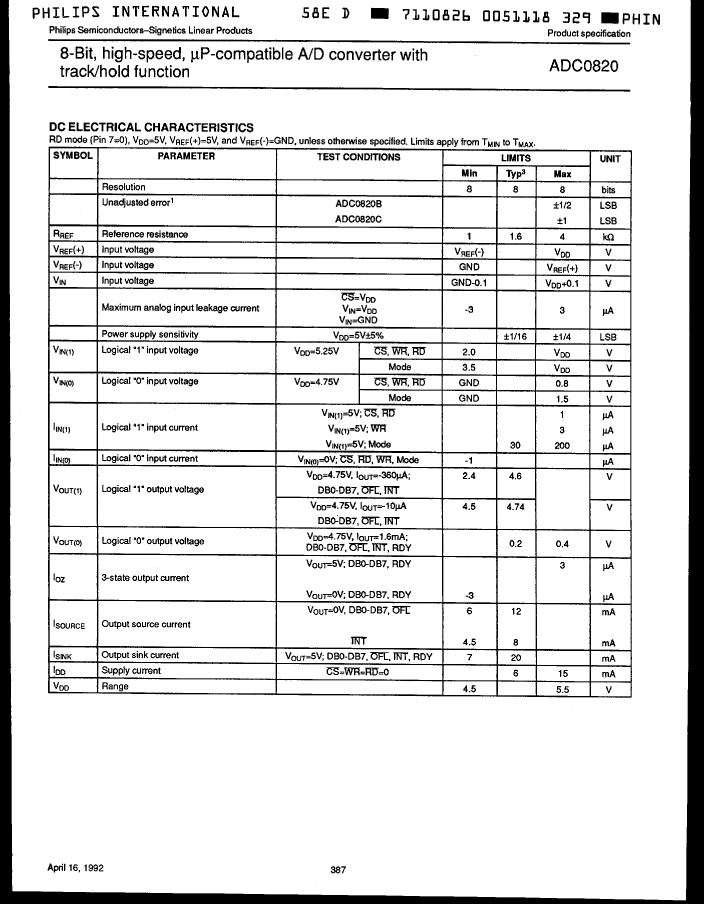

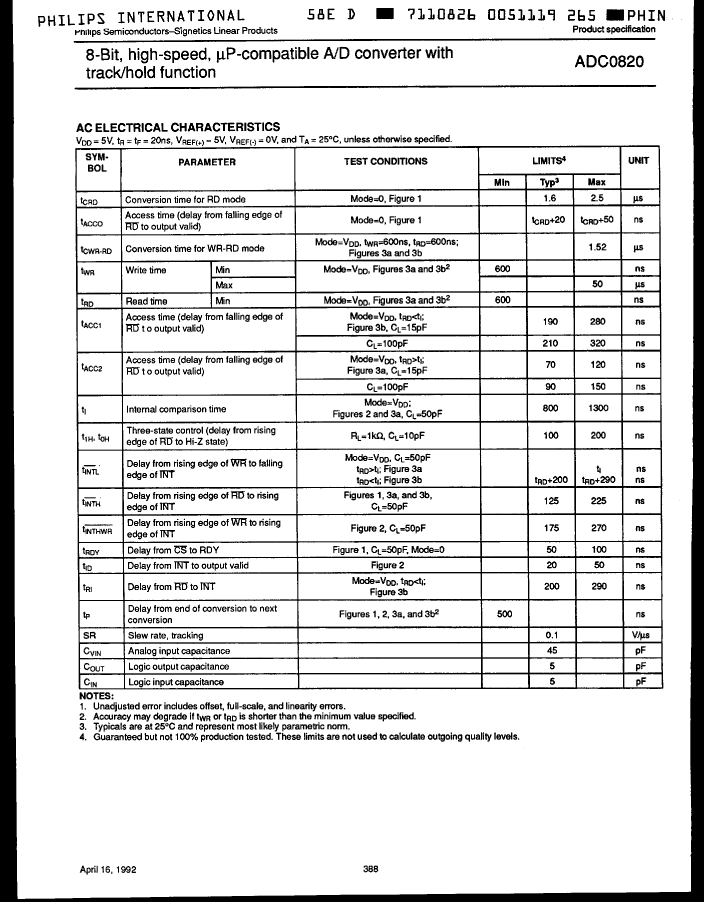

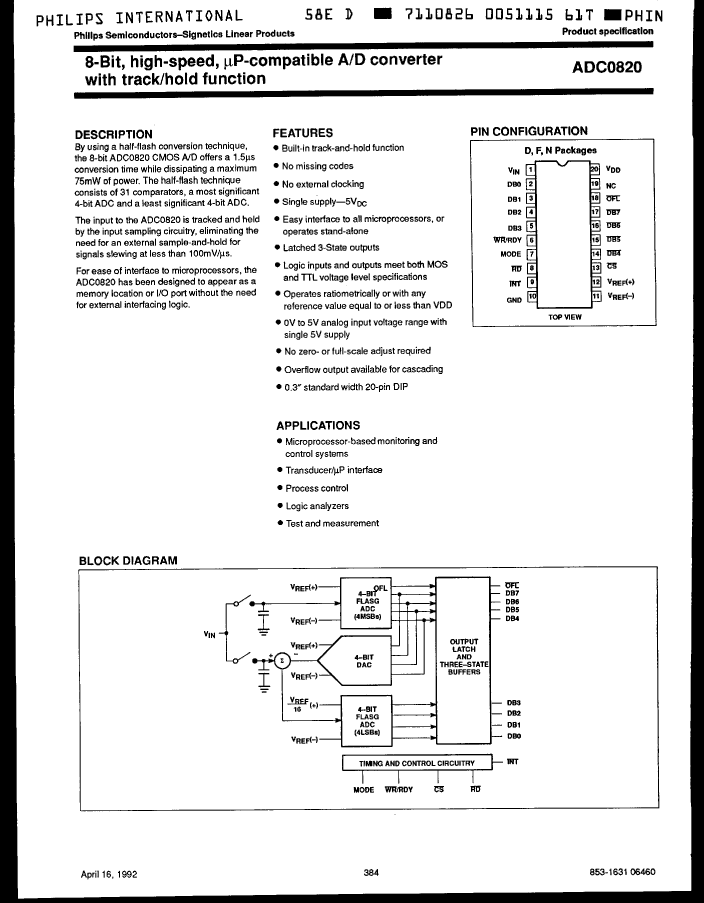

A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP20,.3 |
| Reach Compliance Code | unknown |
| Maximum analog input voltage | 5.1 V |
| Converter type | A/D CONVERTER |
| JESD-30 code | R-PDIP-T20 |
| JESD-609 code | e0 |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output bit code | BINARY, OFFSET BINARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| ADC0820CSAN | ADC0820BNED | ADC0820BNEN | ADC0820BSAD | ADC0820BSAN | ADC0820CSAD | ADC0820BSEF | |
|---|---|---|---|---|---|---|---|
| Description | A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDSO20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDSO20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDSO20, | A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP20,.3 | SOP, SOP20,.4 | DIP, DIP20,.3 | SOP, SOP20,.4 | DIP, DIP20,.3 | SOP, SOP20,.4 | DIP, DIP20,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Maximum analog input voltage | 5.1 V | 5.1 V | 5.1 V | 5.1 V | 5.1 V | 5.1 V | 5.1 V |
| Converter type | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER |
| JESD-30 code | R-PDIP-T20 | R-PDSO-G20 | R-PDIP-T20 | R-PDSO-G20 | R-PDIP-T20 | R-PDSO-G20 | R-XDIP-T20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 70 °C | 70 °C | 85 °C | 85 °C | 85 °C | 125 °C |
| Minimum operating temperature | -40 °C | - | - | -40 °C | -40 °C | -40 °C | -55 °C |
| Output bit code | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | DIP | SOP | DIP | SOP | DIP | SOP | DIP |
| Encapsulate equivalent code | DIP20,.3 | SOP20,.4 | DIP20,.3 | SOP20,.4 | DIP20,.3 | SOP20,.4 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | YES | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Is Samacsys | - | N | N | N | N | - | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - | - |
