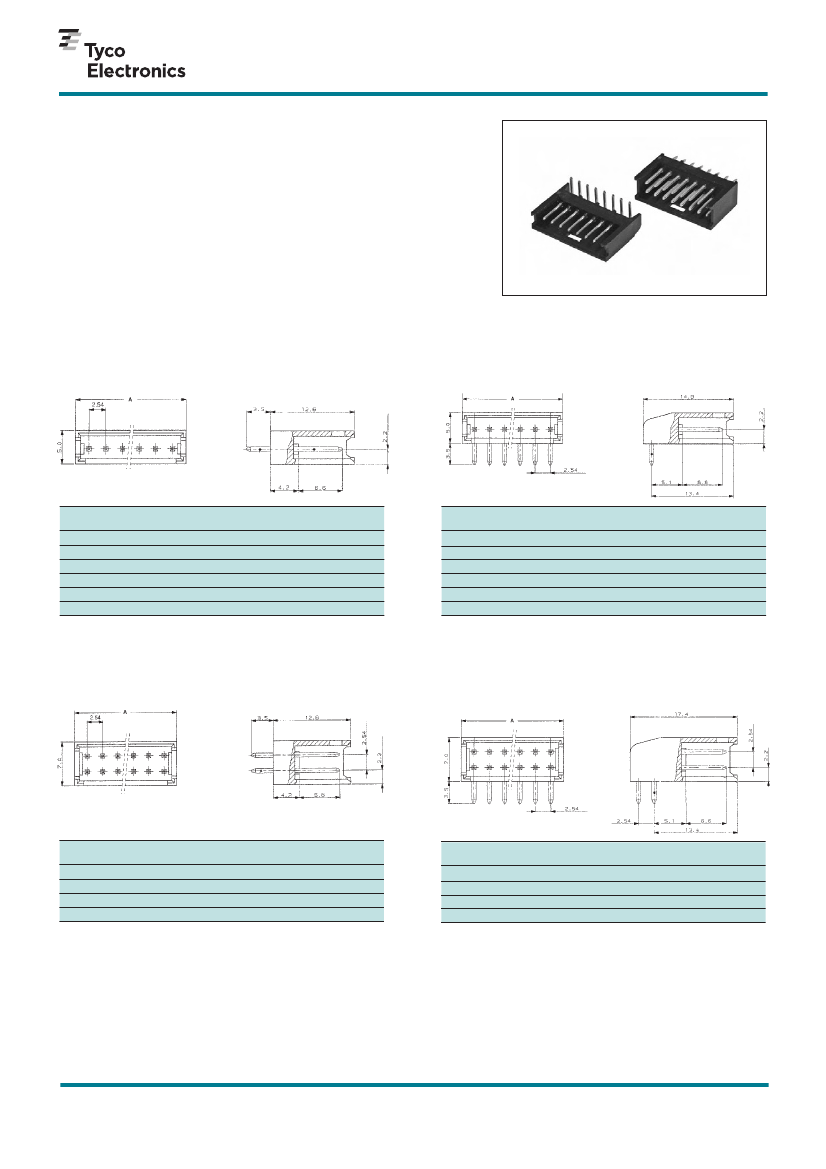

Internal Equipment Connection
Wire-to-Board for Discrete Wire 2.54mm Centreline
AMPMODU MOD II Shrouded Headers
I
I
I
I
I
Single and double row
Straight or right angle
Built-in polarisation and latching
Gold or tin plated contacts
0.63mm square posts
Specification:
Housing
Mating Connectors:
MOD II Receptacle Housings - Page 23
- Black thermoplastic
UL 94V-0
Contacts
- Brass (gold plating) or
phosphor bronze (tin plating)
Current Rating
- 3A
Single Row Straight
Single Row Right Angle
No. of
Positions
2
4
6
8
10
15
Dimension
A
7.7
12.7
17.8
22.9
28.0
40.7
Part Number
0.4µm Gold
Tin
280370-2
280371-2
280372-2
280373-2
280374-2
280375-2
280370-1
280371-1
280372-1
280373-1
280374-1
280375-1
No. of
Positions
2
4
6
8
10
15
Dimension
A
7.7
12.7
17.8
22.9
28.0
40.7
Part Number
0.4µm Gold
Tin
280377-2
280378-2
280379-2
280380-2
280381-2
280382-2
280377-1
280378-1
280379-1
280380-1
280381-1
280382-1
Double Row Straight
Double Row Right Angle
No. of
Positions
2x4
2x8
2 x 12
2 x 15
Dimension
A
12.7
22.9
33.1
40.7
Part Number
0.4µm Gold
Tin
280384-2
280385-2
280521-2
280387-2
280384-1
280385-1
280521-1
280387-1
No. of
Positions
2x4
2x8
2 x 12
2 x 15
Dimension
A
12.7
22.9
33.1
40.7
Part Number
0.4µm Gold
Tin
280389-2
280390-2
280522-2
280392-2
280389-1
280390-1
280522-1
280392-1
24
Catalogue No. 1773443-6
Revise May 2007
Dimensions are shown in mm
for reference purposes only.
Specifications subject to change.
