QS86446-12L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> QS86446-12L

QS86446-12L: DescriptionCache SRAM, 64KX4, 12ns, CMOS, CQCC28, CERAMIC, LCC-28; Categorystorage storage; File Size175KB，8 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS86446-12L Overview

Cache SRAM, 64KX4, 12ns, CMOS, CQCC28, CERAMIC, LCC-28

QS86446-12L Parametric

Parameter Name	Attribute value
Maker	Quality Semiconductor Inc
package instruction	CERAMIC, LCC-28
Reach Compliance Code	unknown
Maximum access time	12 ns
JESD-30 code	S-CQCC-N28
length	11.43 mm
memory density	262144 bit
Memory IC Type	CACHE SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm

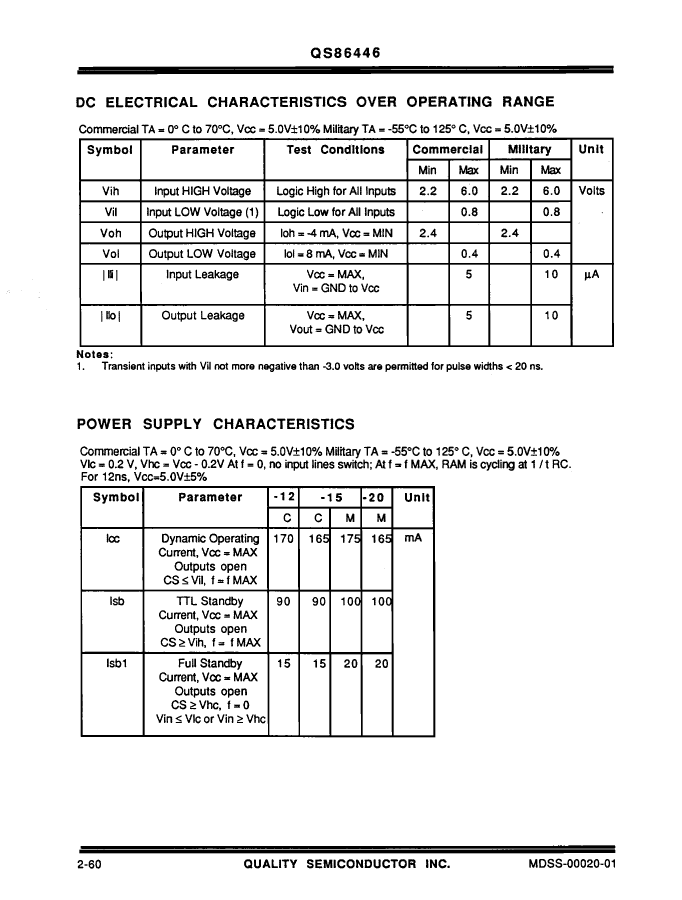

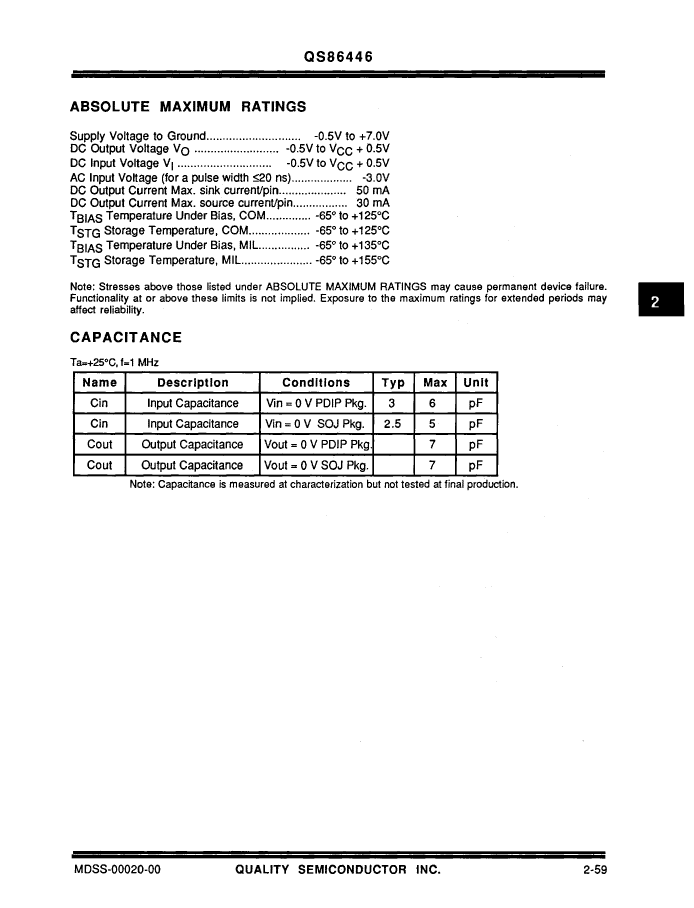

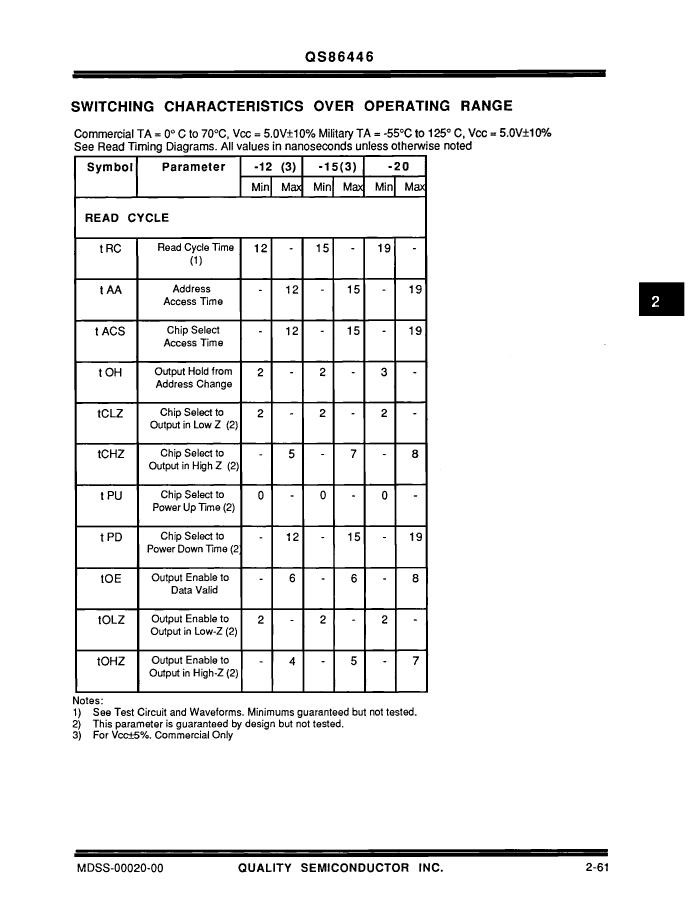

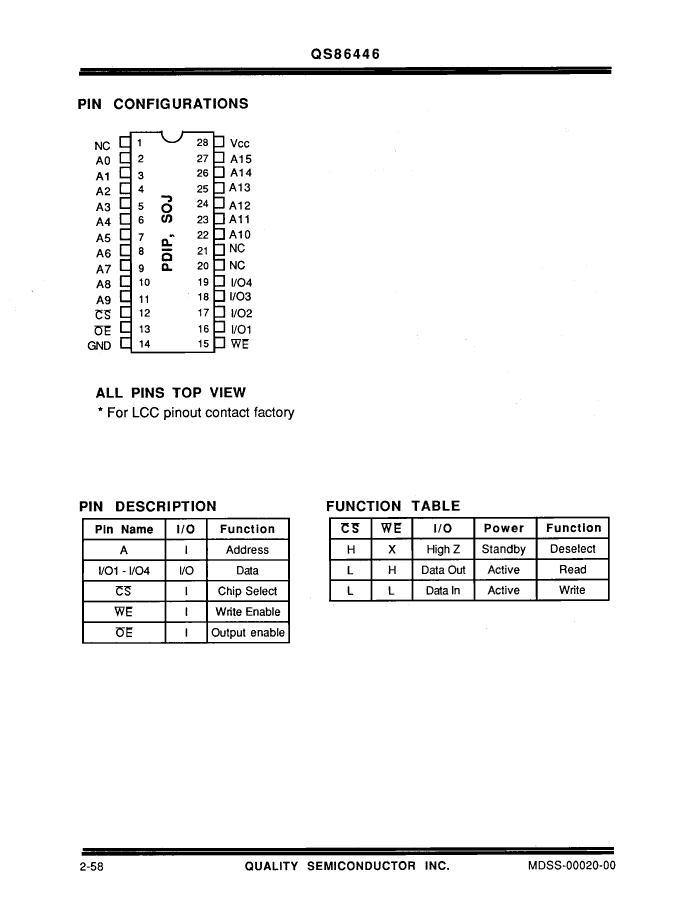

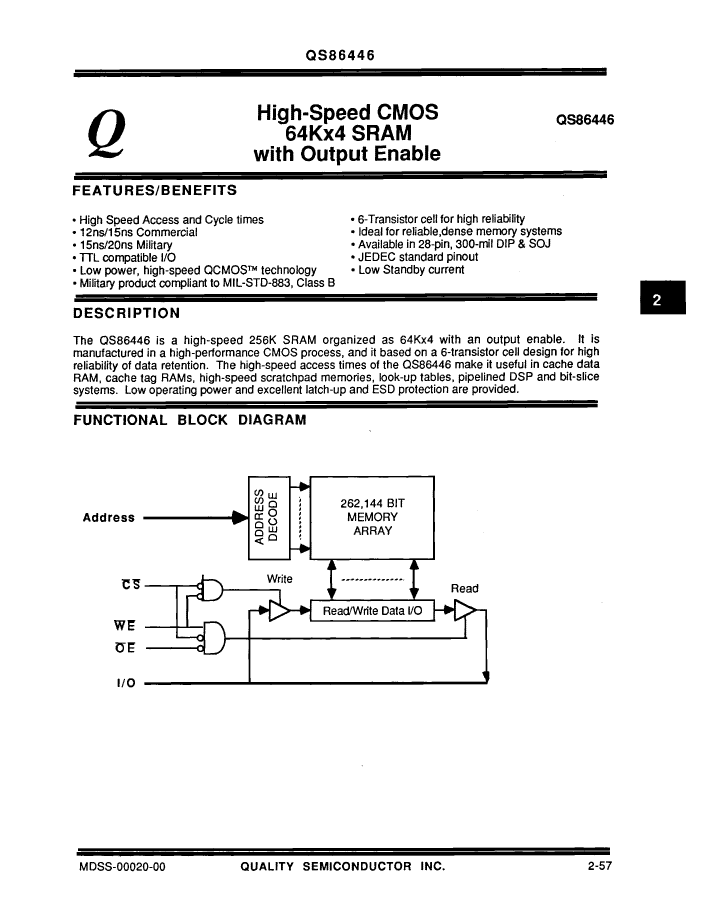

Preview

Download Datasheet

View All

QS86446-12L Related Products

	QS86446-12L	QS86446-15LB	QS86446-15L	QS86446-20LB
Description	Cache SRAM, 64KX4, 12ns, CMOS, CQCC28, CERAMIC, LCC-28	Cache SRAM, 64KX4, 15ns, CMOS, CQCC28, CERAMIC, LCC-28	Cache SRAM, 64KX4, 15ns, CMOS, CQCC28, CERAMIC, LCC-28	Cache SRAM, 64KX4, 19ns, CMOS, CQCC28, CERAMIC, LCC-28
package instruction	CERAMIC, LCC-28	CERAMIC, LCC-28	CERAMIC, LCC-28	CERAMIC, LCC-28
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	12 ns	15 ns	15 ns	19 ns
JESD-30 code	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28
length	11.43 mm	11.43 mm	11.43 mm	11.43 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	28	28	28	28
word count	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	70 °C	125 °C
organize	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	11.43 mm	11.43 mm	11.43 mm	11.43 mm
