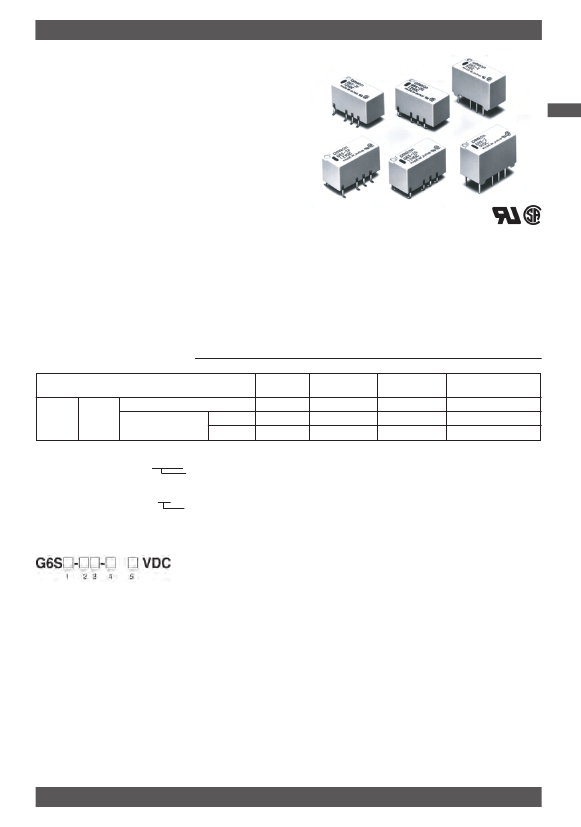

Surface-Mounting Signal Relay – G6S
Surface-Mounting DPDT Relay
■
ROHS compliant.
■
Long terminals ideal for soldering and
mounting reliability.
■
High dielectric strength between coil and
contacts (2,000 VAC), and between contacts
of different polarity (1,500 VAC).
■
High impulse withstand voltages between coil
and contacts, and between contacts of
different polarity (2,500 V, 2 10 µs: Bellcore
requirements).
■
Low power consumption (140 mW).
■
Bifurcated crossbar contact (Au-clad) and
■
Ultra-miniature at 15 x 7.5 x 9.4 mm
(L x W x H).
■
Through-hole terminal is available
■
EN60950 Supplementary Insulation-certified
Fully sealed construction for high reliability.
■
Applicable to IRS.
■
High sealability after IRS.
type is available.
Ordering Information
Classification
DPDT
Fully
sealed
Through-hole terminal
Surface mounting
terminal
Inside-L
Outside-L
Single-side
Stable
G6S-2
G6S-2G
G6S-2F
Single-winding Double-winding
latching
latching
G6SU-2
G6SU-2G
G6SU-2F
G6SK-2
G6SK-2G
G6SK-2F
Single-side stable
EN60950/EN41003
G6S-2-Y
G6S-2G-Y
G6S-2F-Y
Note:
1. When ordering, add the rated coil voltage to the model number.
Example: G6S-2F 12 VDC
Rated coil voltage
2. When ordering tape packing, add -TR" to the model number.
Example: G6S-2F-TR 12 VDC
Tape packing
Be sure since -TR" is not part of the relay model number, it is not marked on the relay case.
Model Number Legend
1. Relay Function
None: Single-side stable
U:
Single-winding latching
K:
Double-winding latching
2. Contact Form
2:
DPDT
4. Approved Standards
None: UL/CSA
Y:
EN60950
5. Rated Coil Voltage
4.5, 5, 12, 24 VDC
3. Terminal Shape
None: Through-hole terminal
G:
Inside-L surface mounting terminal
F:
Outside-L surface mounting terminal
231
Signal Relays
■
Space-saving inside-L terminal.
Surface-Mounting Signal Relay – G6S
Text
Specifications
■
Coil Ratings
4.5 VDC
31.0 mA
145
Ω
75% max. of rated voltage
10% min. of rated voltage
200% of rated voltage at 23°C
Approx. 140 mW
170% of rated
voltage at 23°C
Approx. 200 mW
5 VDC
28.1 mA
178
Ω
12 VDC
24 VDC
Single-side Stable Type (G6S-2, G6S-2F, G6S-2G)
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
11.7 mA 8.3 mA
1,028
Ω
2,880
Ω
Single-winding Latching Type (G6SU-2, G6SU-2F, G6SU-2G)
Rated voltage
Rated current
Coil resistance
4.5 VDC
22.2 mA
203
Ω
5 VDC
20 mA
250
Ω
0.36
0.18
12 VDC
8.3 mA
1,440
Ω
2.12
1.14
24 VDC
6.3 mA
3,840
Ω
5.80
3.79
Coil inductance Armature OFF
0.27
(H) (ref. value)
Armature ON
0.14
75% max. of rated voltage
75% min. of rated voltage
Must set voltage
Must reset voltage
Max. voltage
Power consumption
180% of rated voltage at 23°C
Approx. 100 mW
Approx. 150 mW
Double-winding Latching Type (G6SK-2, G6SK-2F, G6SK-2G)
Rated voltage
Rated current
Coil resistance
Coil ind- Set
uctance
(H) (ref.
value)
Reset
4.5 VDC
44.4 mA
101
Ω
Armature OFF
Armature ON
Armature OFF
Armature ON
Must set voltage
Must reset voltage
Max. voltage
Power consumption
75% max. of rated voltage
75% min. of rated voltage
170% of rated voltage at 23°C
Approx. 200 mW
140% of rated
voltage at 23˚C
Approx. 300 mW
5 VDC
40 mA
125
Ω
0.12
0.074
0.082
0.14
12 VDC
16.7 mA
720
Ω
0.14
0.088
0.098
0.16
24 VDC
12.5 mA
1,920
Ω
0.60
0.41
0.46
0.54
1.98
1.23
1.34
2.23
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
232
Text
Surface-Mounting Signal Relay – G6S
Single-side Stable EN60950 Approved Type (G6S-2-Y, G6S-2F-Y, G6S-2G-Y)
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
5 VDC
40 mA
125
Ω
75% max. of rated voltage
10% min. of rated voltage
170% of rated voltage at 23°C
Approx. 200 mW
170% of rated voltage at 23°C
Approx. 230 mW
12 VDC
16.7 mA
720
Ω
24 VDC
9.6 mA
2,504
Ω
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
■
Contact Ratings
Resistive load (cosφ = 1)
0.5 A at 125 VAC; 2 A at 30 VDC
Ag (Au-alloy)
2A
250 VAC, 220 VDC
2A
62.5 VA, 60 W
10 µA at 10 mVDC
Load
Rated Load
Contact material
Rated Carry Current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value)
(see note)
Note:
P level:
λ
60 = 0.1 x 10
-6
/operation. This value was measured at a switching frequency of 120 operations/min and the criterion of
contact resistance is 50Ω. This value may vary depending on the operating environment. Always double-check relay suitability under
actual operating conditions.
233
Signal Relays
Surface-Mounting Signal Relay – G6S
Text
■
Characteristics
75 mΩ max.
4 ms max. (mean value: approx. 2.5 ms; latching type: approx. 2 ms)
4 ms max. (mean value: approx. 1.5 ms; latching type: approx. 2 ms)
Mechanical: 36,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min between coil and contacts
1,000 VAC, 50/60 Hz for 1 min between coil and contacts (double-winding latching)
1,500 VAC, 50/60 Hz for 1 min between contacts of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
500 VAC, 50/60 Hz for 1 min between set and reset coil (double-winding latching)
2,500
1,500
2,500
1,500
V
V
V
V
(2 x 10 µs) between coil and contacts
(10 x 160 µs) between coil and contacts (double-winding latching)
(2 x 10 µs) between contacts of different polarity
(10 x 160 µs) between contacts of same polarity (conforms to FCC Part 68)
Contact resistance (Note)
Operate (set) time (Note 2)
Release (reset) time (Note 2)
Max. operating frequency
Insulation resistance (Note 3)
Dielectric strength
Impulse withstand voltage
Vibration resistance
Shock resistance
Endurance
Destruction: 10 to 55 to 10 Hz, 2.5mm single amplitude (5mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 1.65mm single amplitude (3.3mm double amplitude)
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 750 m/s
2
(approx. 175G)
Mechanical: 100,000,000 operations min. (at 36,000 operations/hr)
Electrical: 100,000 operations min. (2 A at 30 VDC, resistive load: 1,200 operations/hr)
100,000 operations min. (0.5 A at 125 VAC, resistive load)
Operating: -40˚C to 85˚C (with no icing), -40˚C to 70˚C (double-winding latching, 24 VDC)
Operating: 5% to 85%
Approx. 2 g
Ambient temperature
Ambient humidity
Weight
Note:
Note:
Note:
Note:
The above values are initial values.
1.
The contact resistance was measured with 10mA at 1 VDC with a voltage drop method.
2.
Values in parentheses are actual values.
3.
The insulation resistance was measured with a 500-VDC megohmeter applied to the same parts as those used for checking
the dielectric strength (except between the set and reset coil).
■
Approved Standards
UL (File No. E41515)/CSA C22.2 (File No. LR24825)
Model
G6S-2, G6S-2F, G6S-2G
G6SU2, G6SK-2, G6SU-2F
G6SU2G, G6SK-2F, G6SK-2G
DPDT
Contact form
Coil ratings
1.5 to 48 VDC
1.5 to 24 VDC
Contact ratings
2 A, 30 VDC
0.3 A, 110 VDC
0.5 A, 125 VAC
EN60950
Model
G6S-2-Y, G6S-2G-Y, G6S-2F-Y
DPDT
Contact form
Isolation category
Supplementary Isolation
250 VAC
Voltage
234
Text
Surface-Mounting Signal Relay – G6S

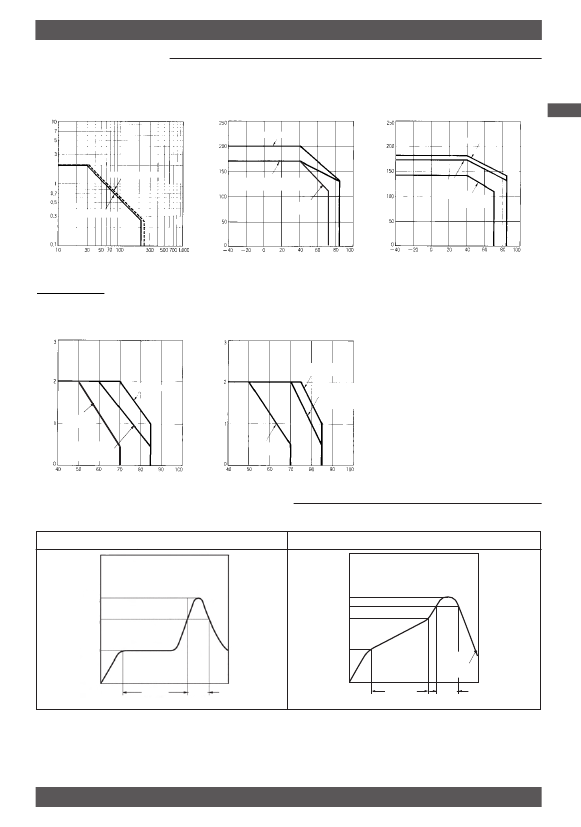

Engineering Data
Maximum Switching Power
Ambient Temperature vs.
Maximum Coil Voltage
Single-side Stable
Switching current (A)
Maximum coil voltage (%)
Single-winding Latching
Double-winding Latching
Maximum coil voltage (%)
12 VDC max.
G6SU
AC resistive load
24 VDC
(G6S-Y, 12 VDC max.)
24 VDC
(G6S-Y)
G6SK
12 VDC
max.
G6SK
24 VDC
DC resistive load
Switching voltage (V)
Ambient temperature (°C)
Ambient temperature (°C)
Note:
The maximum coil voltage refers to the maximum value in a varying range of
operating power voltage, not a continuous voltage.
Reference Data
Ambient Temperature vs. Switching Current
Single-side Stable
Single-winding Latching
Double-winding Latching
Switching current (A)
Operating current (A)
G6SU
12 VDC max.
G6SU
24 VDC
G6SK
12 VDC max.
12 VDC max.
24 VDC
(G6S-Y)
24 VDC
(G6S-Y, 12 VDC
max.)
G6SK
24 VDC
Ambient temperature (°C)
Ambient temperature (°C)
Recommended Soldering Method
Temperatures indicate the surface temperatures of the PCB.
1. IRS Method (Mounting solder: Lead)
temperature (°C)
temperature (°C)
2. IRS Method (Mounting solder: Lead-free)
220 to
245
180 to
200
Soldering
250 max.
230
180
Upper surface of case (peak):
255∞C max.
Soldering
150
Preheating
150
Preheating
Relay
terminal
section
90 to 120
20 to 30
120 max.
30 max
Time (s)
• The thickness of cream solder to be applied should be within a
range between 150 and 200 µm on OMRON’s recommended
PCB pattern.
• In order to perform correct soldering, it is recommended that the
correct soldering conditions be maintained as shown below on
the left side.
Time (s)
Note:
The temperature profile indicates the temperature of the
relay terminal section.
235
Signal Relays
