BR24G16NUX-3ATR datasheet, PDF

Datasheet> All Categories > storage> storage> BR24G16NUX-3ATR

BR24G16NUX-3ATR: DescriptionEEPROM, 2KX8, Serial, CMOS, PDSO8, VSON-8; Categorystorage storage; File Size898KB，36 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR24G16NUX-3ATR Overview

EEPROM, 2KX8, Serial, CMOS, PDSO8, VSON-8

BR24G16NUX-3ATR Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
package instruction	VSON,
Reach Compliance Code	compliant
Other features	IT ALSO OPERATES AT 1.6V WITH 400KHZ
Maximum clock frequency (fCLK)	1 MHz
JESD-30 code	R-PDSO-N8
length	3 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	VSON
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE
Parallel/Serial	SERIAL
Maximum seat height	0.6 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
width	2 mm
Maximum write cycle time (tWC)	5 ms

Preview

Download Datasheet

View All

Datasheet

Serial EEPROM series Standard EEPROM

C BUS EEPROM (2-Wire)

BR24G16-3A

●General

Description

BR24G16-3A is a serial EEPROM of I C BUS interface method

●Features

Completely conforming to the world standard I C BUS.

All controls available by 2 ports of serial clock(SCL) and

serial data(SDA)

Other devices than EEPROM can be connected to the

same port, saving microcontroller port

1.6V to 5.5V single power source action most suitable

for battery use

1MHz action is possible (1.7V to 5.5V)

Up to 16 bytes in page write mode

Self-timed programming cycle

Low current consumption

Prevention of write mistake

Write (write protect) function added

Prevention of write mistake at low voltage

More than 1 million write cycles

More than 40 years data retention

Noise filter built in SCL / SDA terminal

Initial delivery state FFh

●Packages

W(Typ.) x D(Typ.)x H(Max.)

DIP-T8

9.30mm x 6.50mm x 7.10mm

TSSOP-B8J

3.00mm x 4.90mm x 1.10mm

SOP8

5.00mm x 6.20mm x 1.71mm

MSOP8

2.90mm x 4.00mm x 0.90mm

SOP-J8

4.90mm x 6.00mm x 1.65mm

VSON008X2030

2.00mm x 3.00mm x 0.60mm

TSSOP-B8

3.00mm x 6.40mm x 1.20mm

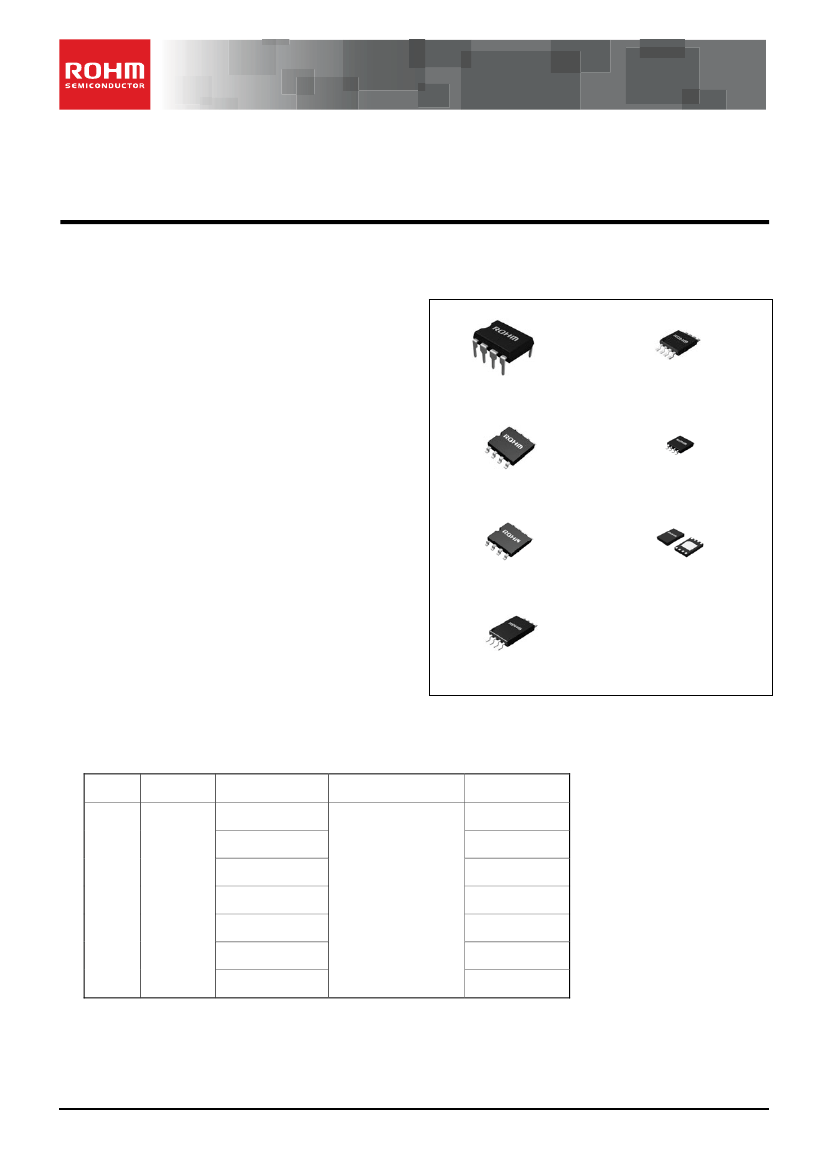

Figure 1.

●BR24G16-3A

Capacity

Bit Format

Type

BR24G16-3A

BR24G16F-3A

BR24G16FJ-3A

16Kbit

2K×8

BR24G16FVT-3A

BR24G16FVJ-3A

BR24G16FVM-3A

BR24G16NUX-3A

1.6V to 5.5V

Power Source

Voltage

Package

DIP-T8

SOP8

SOP-J8

TSSOP-B8

TSSOP-B8J

MSOP8

VSON008X2030

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product is not designed protection against radioactive rays

1/33

TSZ02201-0R2R0G100540-1-2

31.May.2013 REV.002
