OP-27BD/883 datasheet, PDF - EEWORLD Datasheet

OP-27BD/883: DescriptionOperational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size868KB，15 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric View All

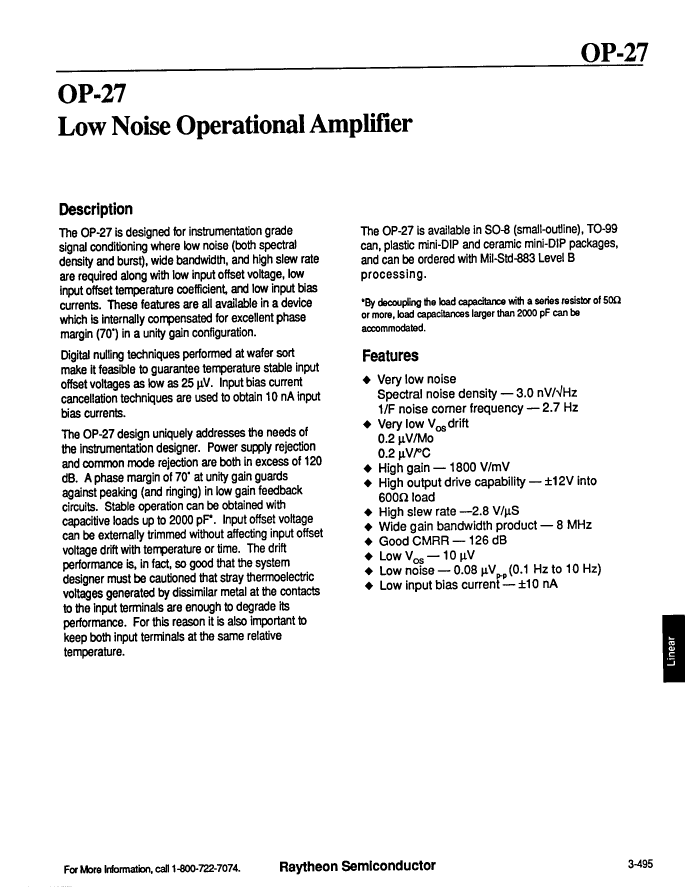

OP-27BD/883 Overview

Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company

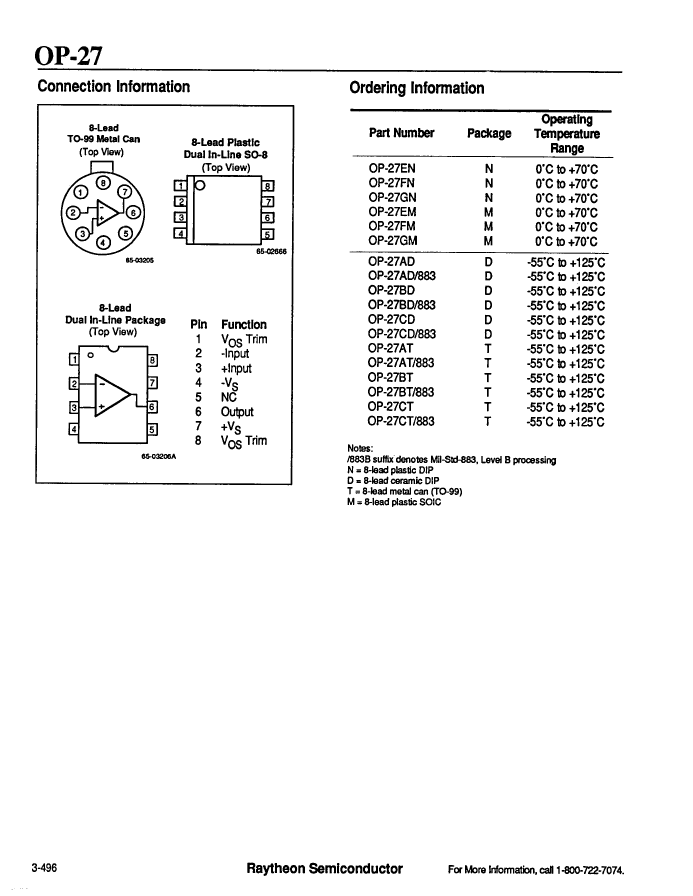

package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK

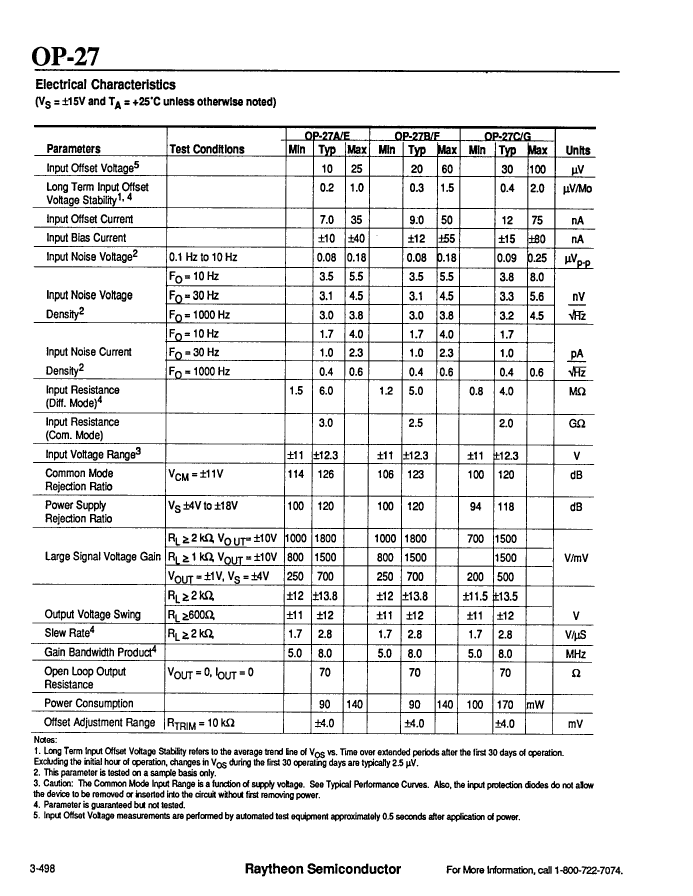

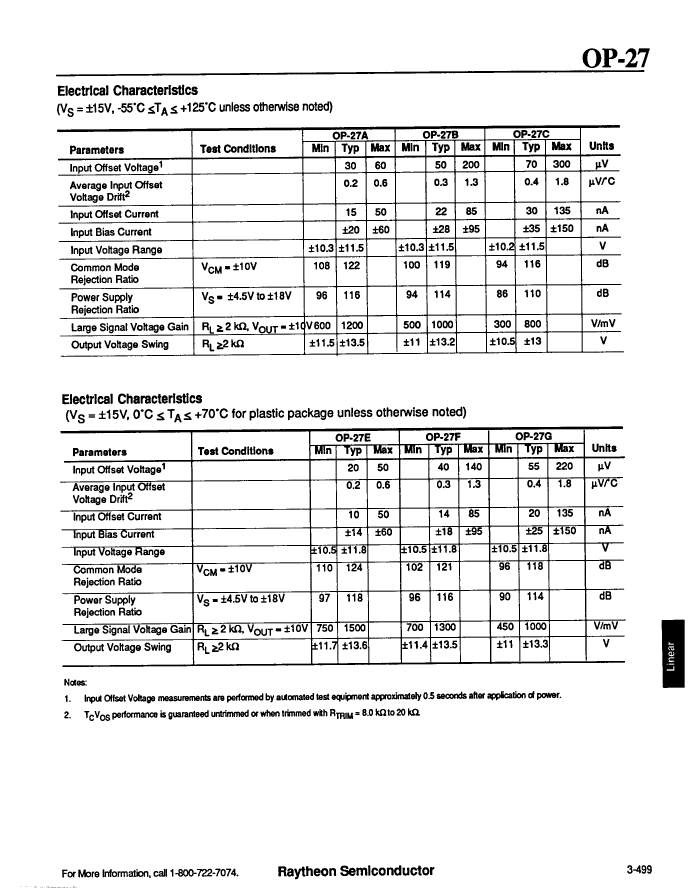

Maximum average bias current (IIB)	0.055 µA
Maximum bias current (IIB) at 25C	0.055 µA
Minimum Common Mode Rejection Ratio	106 dB
Nominal Common Mode Rejection Ratio	123 dB
frequency compensation	YES
Maximum input offset voltage	60 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
low-dissonance	YES
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8

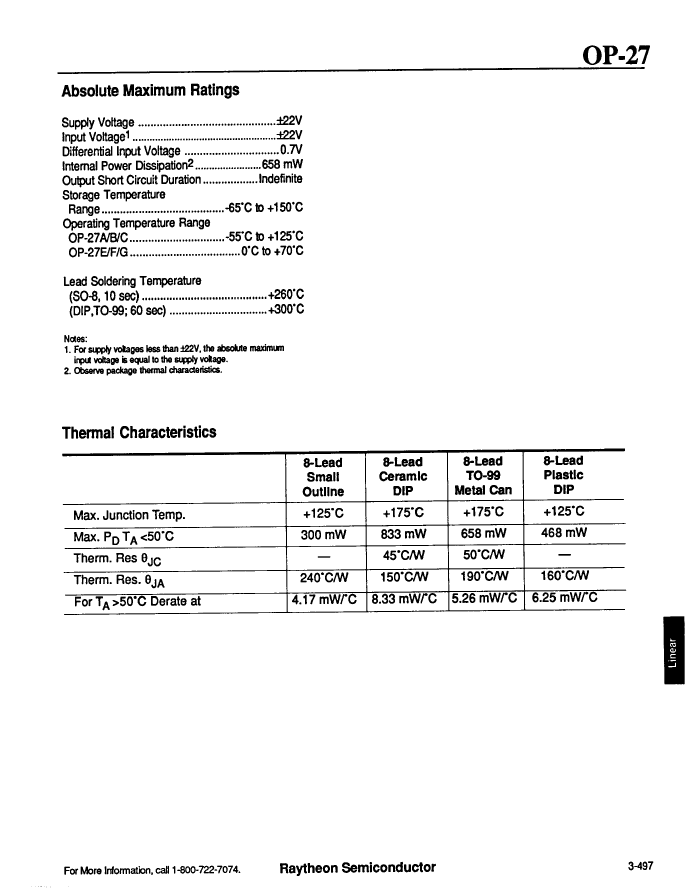

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	1.7 V/us
Nominal slew rate	2.8 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	8000 kHz
Minimum voltage gain	800
