SER8052-402MTD

Description
General Purpose Inductor, 4uH, 20%, Ferrite-Core, 3335
CategoryPassive components    inductor
File Size160KB,3 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

SER8052-402MTD Overview

General Purpose Inductor, 4uH, 20%, Ferrite-Core, 3335

SER8052-402MTD Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction3533
Reach Compliance Codecompli
ECCN codeEAR99
uppercase and lowercase codes3533
structureRectangul
core materialFerrite
DC Resistance0.01433 Ω
Nominal inductance(L)4 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee1
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package height5.2 mm
Package length8.8 mm
Package formSMT
Package width8.5 mm
method of packingTR, Embossed Plastic, 13 Inch
Maximum rated current6.3 A
self resonant frequency66 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal locationDUAL IN-LINE
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

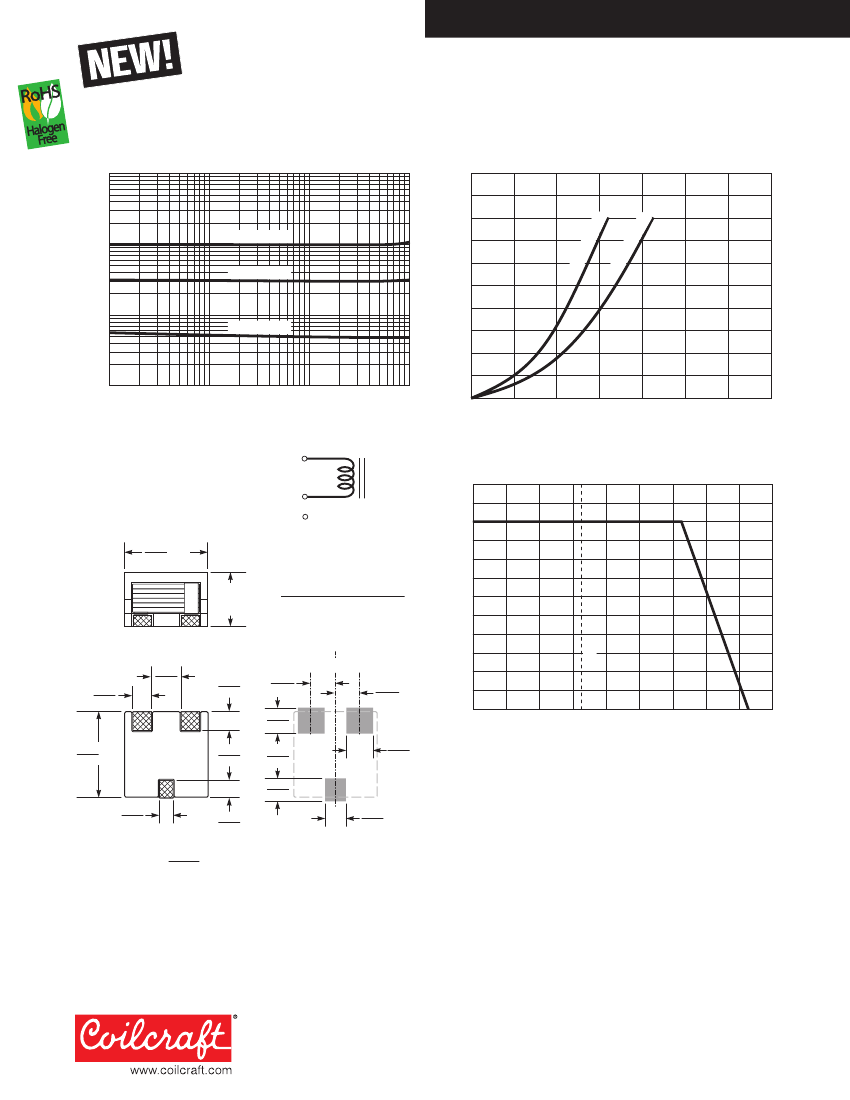

Document 892 -1

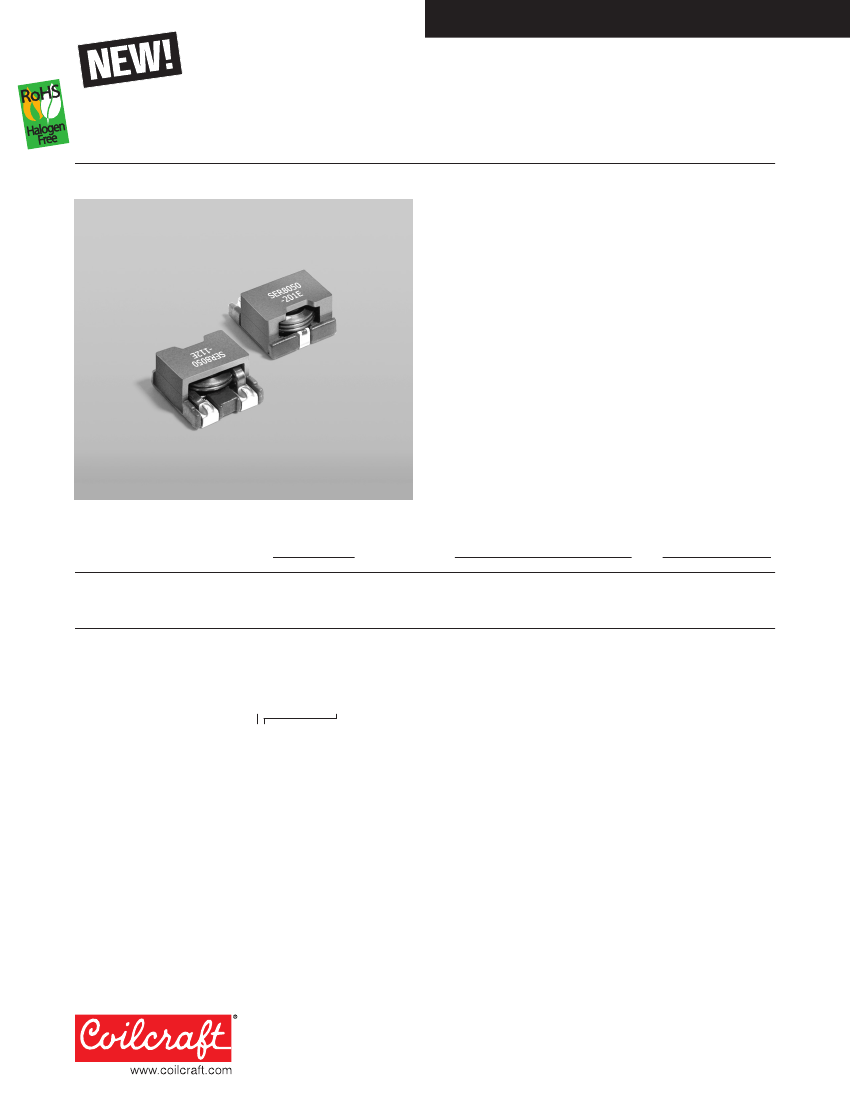

Shielded Power Inductors – SER80xx
Two different DCR /
Isat
versions to match the requirements
of a wide variety of applications
Low DCR; excellent current handling
Core material
Ferrite
Terminations
RoHS tin-silver over tin over nickel over phos bronze
(pins 1 and 2); Matte tin over nickel over phos bronze (pin 3). Other
terminations available at additional cost.
Weight
0.86 – 1.0 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel, 1000/13″ reel; Plastic tape: 16 mm wide,
0.4 mm thick, 12 mm pocket spacing, 5.2 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Low DCR version for high average current applications
Part number
1
SER8050-501ME_
SER8050-112ME_
SER8050-202ME_
SER8052-312ME_
SER8052-452ME_
SER8052-612ME_
SER8052-802ME_
SER8052-103ME_
Inductance
2
±20% (µH)
0.50
1.1
2.0
3.1
4.5
6.1
8.0
10
DCR (mOhm)
3
typ
max
2.22
3.19
5.35
6.44
8.64
8.64
13.03
13.03
2.50
3.50
5.88
7.20
9.50
9.50
14.33
14.33
SRF typ
4
(MHz)
234
109
74
63
52
45
43
40
10% drop
19.40
12.22
7.94
6.58
4.76
3.44
2.90
2.24
Isat
(A)
5
20% drop
22.02
13.86
9.22
7.56
5.74
4.22
3.58
2.80
30% drop
22.68
14.50
9.78
8.00
6.14
4.58
3.86
3.10
Irms
(A)
6
20°C rise 40°C rise
9.78
8.05
7.83
6.26
5.37
5.17
4.57
4.61
13.52
11.97
10.79
8.71
7.68
7.31
6.31
6.32
1. When ordering, please specify
termination
and
packaging
code:
SER8052-103MED
Termination: E =
RoHS tin-silver over tin over nickel over phos bronze (pins 1 and 2); Matte tin over nickel over phos bronze (pin 3).
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked(1000 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A or equivalent.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753D network analyzer and an Agilent/HP 16193A test fixture.
5. DC current at which the inductance drops the specified amount from its value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 892-1
Revised 08/21/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
