UPD22148CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UPD22148CA

UPD22148CA: DescriptionCrossbar Switch, 1-Bit, CMOS, PDIP22, 0.300 INCH, SHRINK, PLASTIC, DIP-22; CategoryThe embedded processor and controller Microcontrollers and processors; File Size305KB，15 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD22148CA Overview

Crossbar Switch, 1-Bit, CMOS, PDIP22, 0.300 INCH, SHRINK, PLASTIC, DIP-22

UPD22148CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	DIP
package instruction	SDIP,
Contacts	22
Reach Compliance Code	compliant
boundary scan	NO
JESD-30 code	R-PDIP-T22
JESD-609 code	e0
low power mode	NO
Number of terminals	22
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	18 V
Minimum supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH

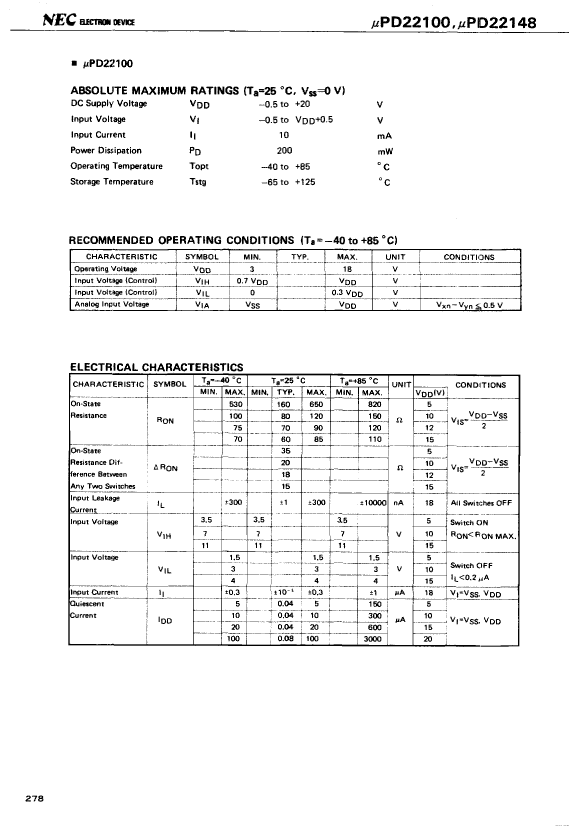

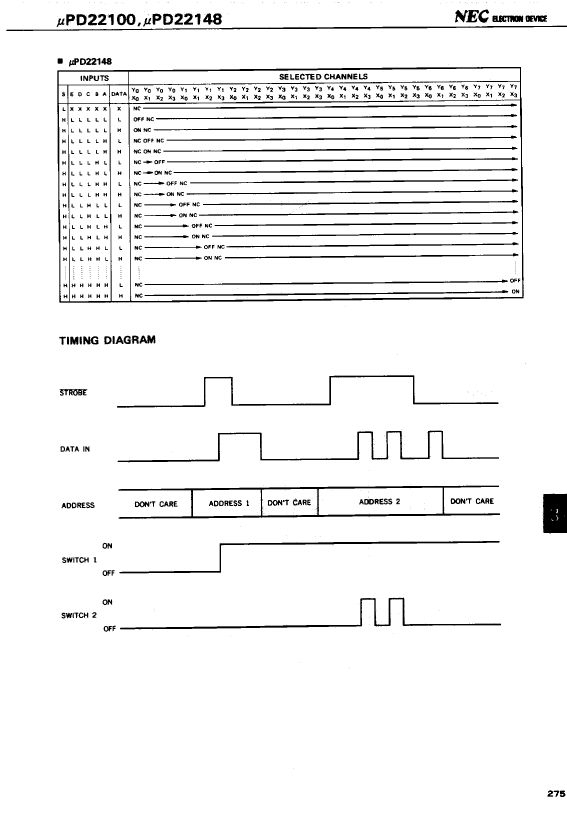

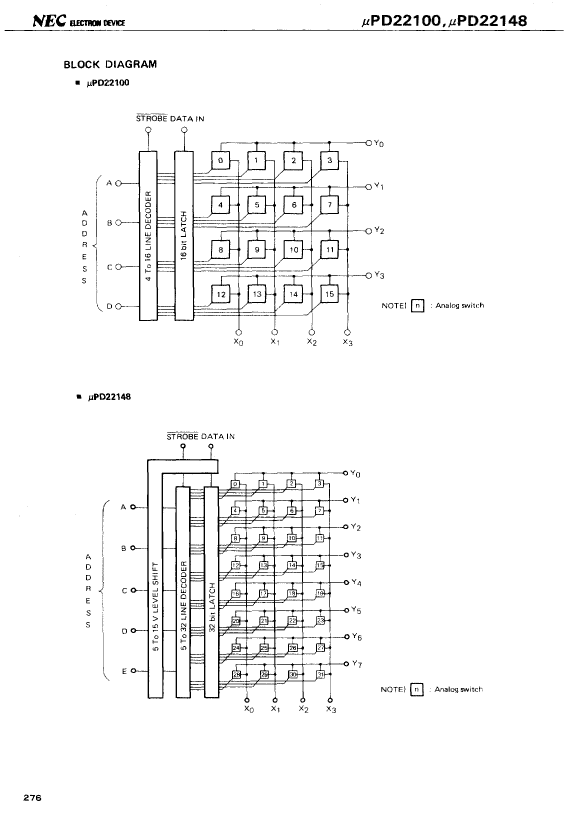

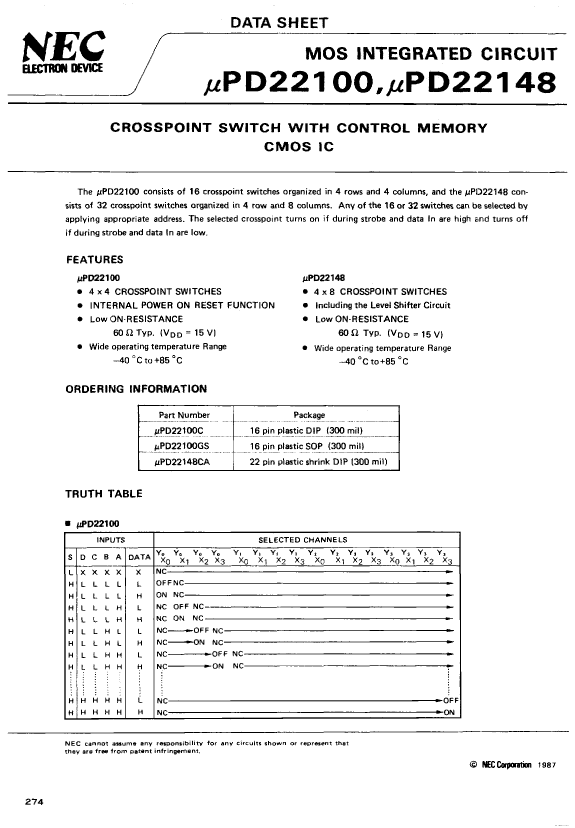

Preview

Download Datasheet

View All

UPD22148CA Related Products

	UPD22148CA	UPD22148CA-A	UPD22100C	UPD22100GS	UPD22100C-A
Description	Crossbar Switch, 1-Bit, CMOS, PDIP22, 0.300 INCH, SHRINK, PLASTIC, DIP-22	Crossbar Switch, 1-Bit, CMOS, PDIP22, 0.300 INCH, SHRINK, PLASTIC, DIP-22	Crossbar Switch, 1-Bit, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16	Crossbar Switch, 1-Bit, CMOS, PDSO16, 0.300 INCH, PLASTIC, SOP-16	Crossbar Switch, 1-Bit, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	conform to
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	SDIP,	SDIP,	0.300 INCH, PLASTIC, DIP-16	0.300 INCH, PLASTIC, SOP-16	0.300 INCH, PLASTIC, DIP-16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
boundary scan	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T22	R-PDIP-T22	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e1	e0	e0	e6/e4
low power mode	NO	NO	NO	NO	NO
Number of terminals	22	22	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	1.8 mm	5.08 mm
Maximum supply voltage	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
surface mount	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN SILVER COPPER	TIN LEAD	TIN LEAD	TIN BISMUTH/NICKEL PALLADIUM GOLD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	5.6 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH
Nominal supply voltage	-	15 V	5 V	5 V	5 V
External data bus width	-	-	1	1	1
Output data bus width	-	-	4	4	4
Maximum slew rate	-	-	3 mA	3 mA	3 mA
