DF5A6.8JE
TOSHIBA Diodes for Protecting against ESD Epitaxial Planar Type
DF5A6.8JE
Product for Use Only as Protection against Electrostatic
Discharge (ESD)
*
This product is for protection against electrostatic discharge (ESD) only
and is not intended for any other usage, including without limitation,
the constant voltage diode application.
The mounting of four devices on an ultra-compact package allows the
number of parts and the mounting cost to be reduced.
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Power dissipation
Junction temperature
Storage temperature range
Symbol
P
T
j
T
stg
Rating
100
150
−55~150
Unit
mW
°C
°C
1.CATHODE1
2.ANODE
3.CATHODE2
4.CATHODE3
5.CATHODE4
Note: Using continuously under heavy loads (e.g. the application of high
JEDEC
⎯
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
JEITA
⎯
reliability significantly even if the operating conditions (i.e.
TOSHIBA
1−2W1A
operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Weight: 0.003 g (typ.)
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and
estimated failure rate, etc).

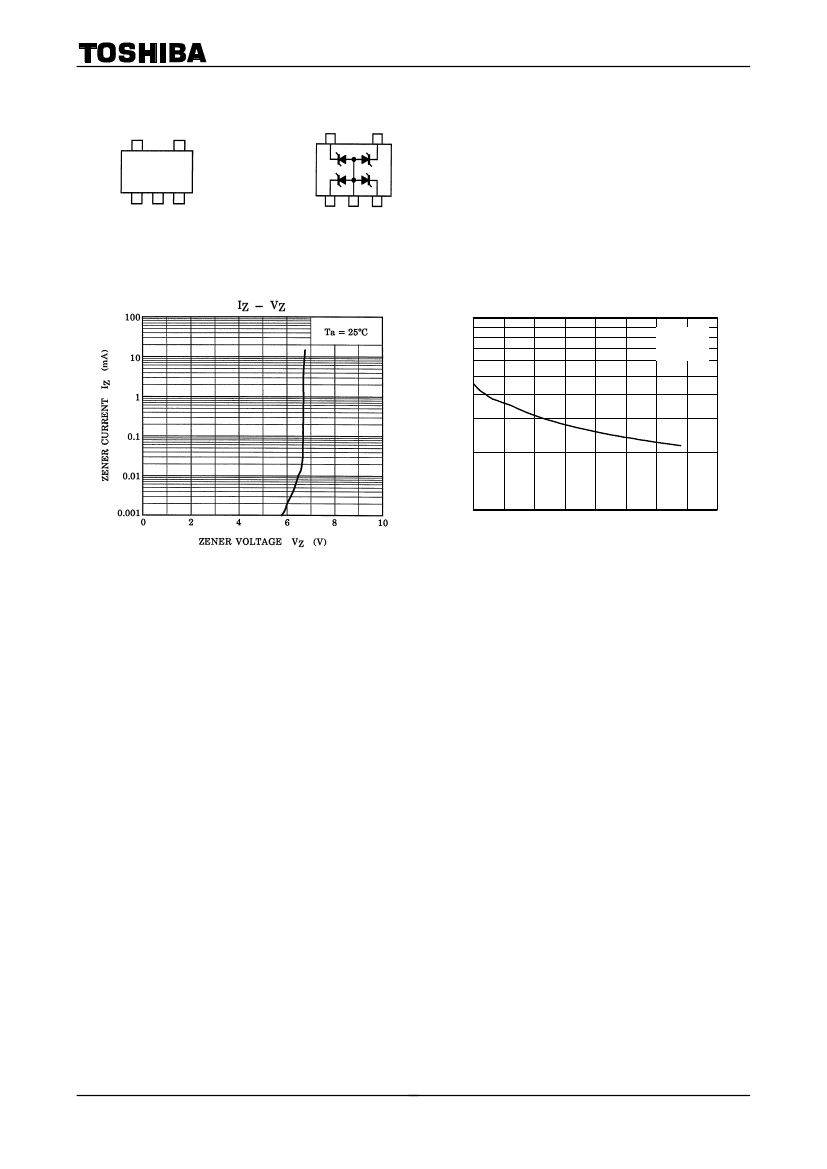

Electrical Characteristics
(Ta = 25°C)
Characteristic
Zener voltage
Dynamic impedance
Reverse current
Terminal capacitance
(between Cathode and Anode)
Symbol
V
Z
Z
Z
I
R
C
T
I
Z
= 5 mA
I
Z
= 5 mA
V
R
= 5 V
V
R
= 0, f = 1 MHz
Test Condition
Min
6.4
―
―
―
Typ.
6.8
―
―
45
Max
7.2
25
0.5
―
Unit
V
Ω
μA
pF
Guaranteed Level of ESD Immunity
Test Condition
IEC61000-4-2
(Contact discharge)
ESD Immunity Level
±
30 kV
Criterion: No damage to device elements
1
2007-11-01
