SY10ELT22LZG-TR datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SY10ELT22LZG-TR

SY10ELT22LZG-TR: DescriptionTTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size63KB，5 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SY10ELT22LZG-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SY10ELT22LZG-TR	-	-	View	Buy Now

SY10ELT22LZG-TR Overview

TTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8

SY10ELT22LZG-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Micrel ( Microchip )
package instruction	SOP,
Reach Compliance Code	compliant
ECCN code	EAR99
maximum delay	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	R-PDSO-G8
JESD-609 code	e4
length	4.93 mm
Humidity sensitivity level	1
Number of digits	1
Number of functions	2
Number of terminals	8
Output latch or register	NONE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.73 mm
Maximum supply voltage	3.8 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	ECL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.94 mm

Preview

Download Datasheet

View All

Micrel, Inc.

3.3V DUAL TTL-to-DIFFERENTIAL

PECL TRANSLATOR

SY10ELT22L

SY100ELT22L

SY10ELT22L

SY100ELT22L

FEATURES

■

3.3V power supply

■

300ps typical propagation delay

■

<100ps output-to-output skew

■

Differential PECL outputs

■

PNP TTL inputs for minimal loading

■

Flow-through pinouts

■

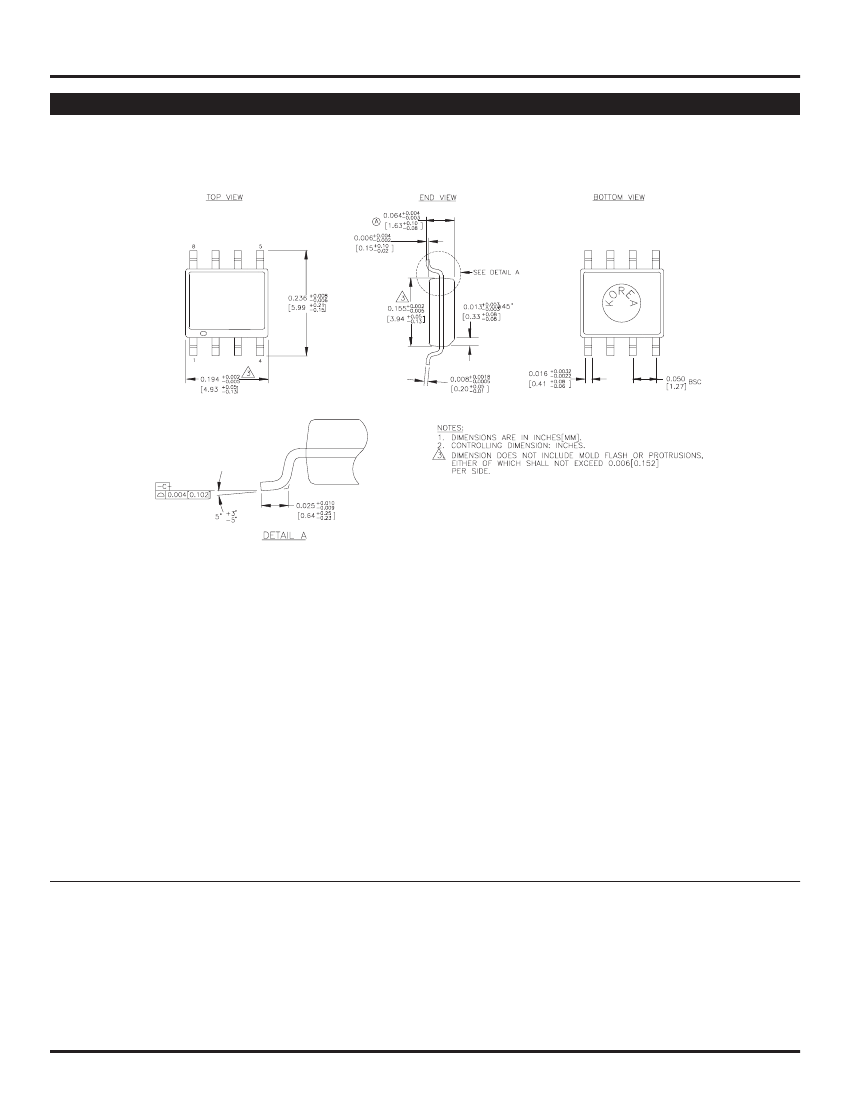

Available in 8-pin SOIC package

DESCRIPTION

The SY10/100ELT22L are dual TTL-to-differential

PECL translators with +3.3V power supply. Because

PECL (Positive ECL) levels are used, only +3.3V and

ground are required. The small outline 8-lead SOIC

package and the low skew, dual gate design of the

ELT22L makes it ideal for applications which require the

tranlation of a clock and a data signal.

The ELT22L is available in both ECL standards: the

10ELT is compatible with positive ECL 10H logic levels,

while the 100ELT is compatible with positive ECL 100K

logic levels.

PIN NAMES

GND

Function

Differential PECL Outputs

TTL Inputs

+3.3V Supply

Ground

M9999-052108

hbwhelp@micrel.com or (408) 955-1690

Rev.: J

Amendment: /0

Issue Date: May 2008

SY10ELT22LZG-TR Related Products

	SY10ELT22LZG-TR	SY100ELT22LZGTR
Description	TTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8	DUAL TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8
Is it Rohs certified?	conform to	conform to
package instruction	SOP,	SOP,
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
maximum delay	0.6 ns	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e4	e4
length	4.93 mm	4.93 mm
Humidity sensitivity level	1	1
Number of digits	1	1
Number of functions	2	2
Number of terminals	8	8
Output latch or register	NONE	NONE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.73 mm	1.73 mm
Maximum supply voltage	3.8 V	3.8 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
technology	ECL	ECL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	40
width	3.94 mm	3.94 mm
