LT1034BMH-2.5/883B datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> LT1034BMH-2.5/883B

LT1034BMH-2.5/883B: DescriptionIC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference; CategoryPower/power management The power supply circuit; File Size141KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1034BMH-2.5/883B Overview

IC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference

LT1034BMH-2.5/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	TO-46
package instruction	METAL CAN, TO-46, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of functions	1
Output times	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	2.54 V
Minimum output voltage	2.46 V
Nominal output voltage	2.5 V
Package body material	METAL
encapsulated code	TO-46
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO

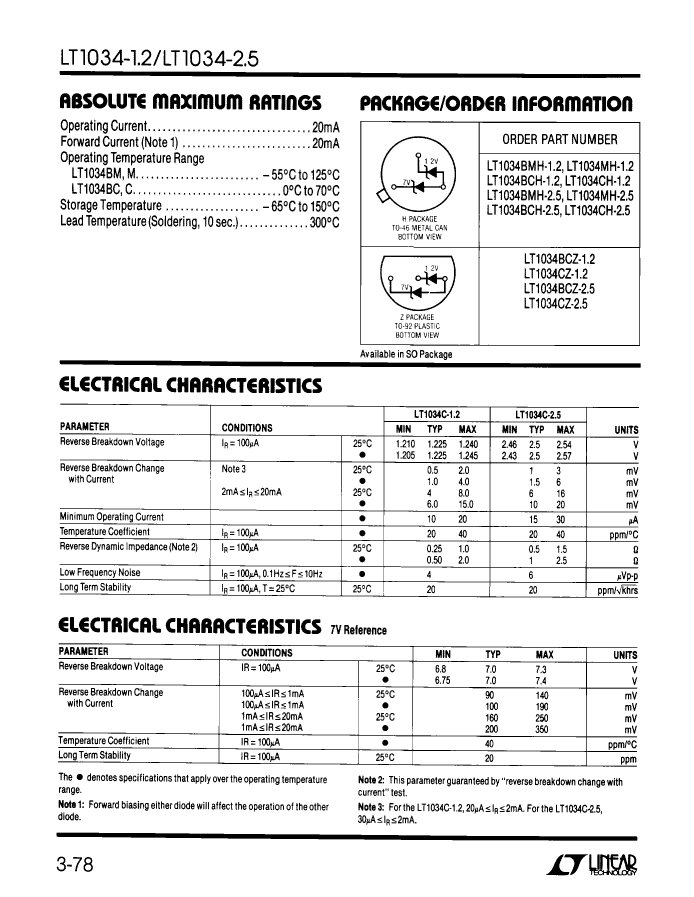

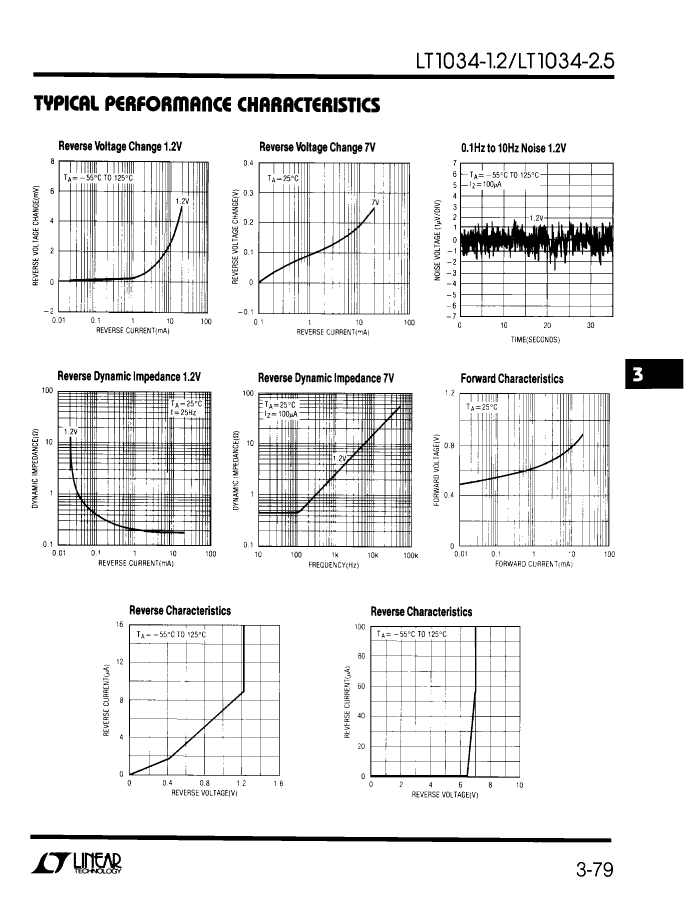

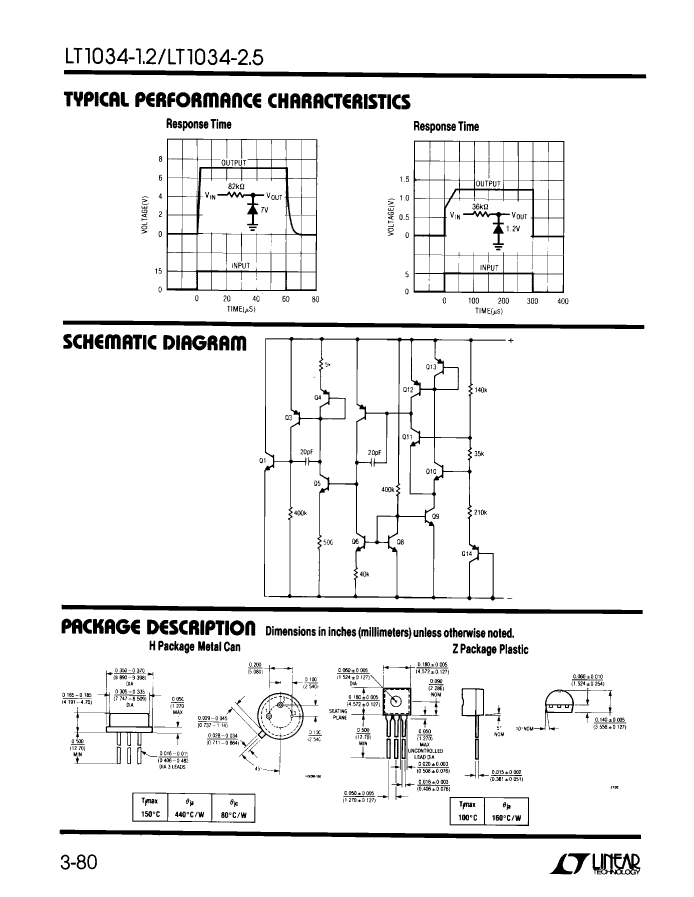

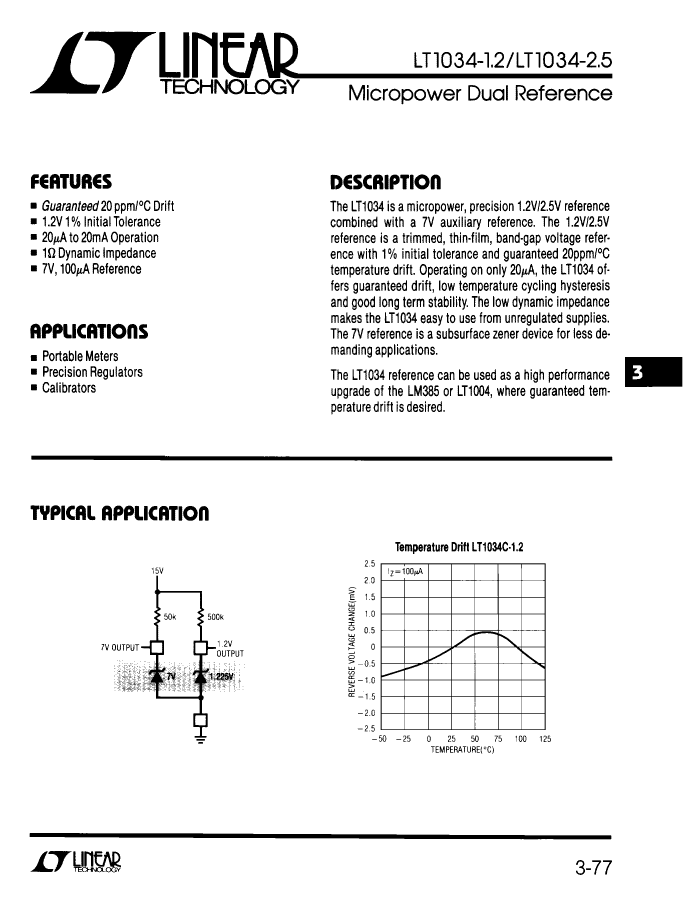

LT1034BMH-2.5/883B Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LT1034BMH-2.5/883B Related Products

	LT1034BMH-2.5/883B	LT1034MH-1.2/883B	LT1034MH-2.5/883B	LT1034BMH-1.2/883B
Description	IC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference	IC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.225 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference	IC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference	IC 2-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.225 V, MBCY3, METAL CAN, TO-46, 3 PIN, Voltage Reference
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	TO-46	TO-46	TO-46	TO-46
package instruction	METAL CAN, TO-46, 3 PIN	TO-46,	METAL CAN, TO-46, 3 PIN	TO-46,
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Output times	2	2	2	2
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output voltage	2.54 V	1.24 V	2.54 V	1.24 V
Minimum output voltage	2.46 V	1.21 V	2.46 V	1.21 V
Nominal output voltage	2.5 V	1.225 V	2.5 V	1.225 V
Package body material	METAL	METAL	METAL	METAL
encapsulated code	TO-46	TO-46	TO-46	TO-46
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Fine-tuning/adjustable output	NO	NO	NO	NO
