HN62444TFP-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HN62444TFP-10

HN62444TFP-10: DescriptionMASK ROM, 512KX8, 100ns, CMOS, PQFP44, PLASTIC, TQFP-44; Categorystorage storage; File Size133KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN62444TFP-10 Overview

MASK ROM, 512KX8, 100ns, CMOS, PQFP44, PLASTIC, TQFP-44

HN62444TFP-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	QFP
package instruction	TQFP, TQFP44,.6SQ,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
Spare memory width	16
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	14 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP44,.6SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum standby current	0.00003 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm

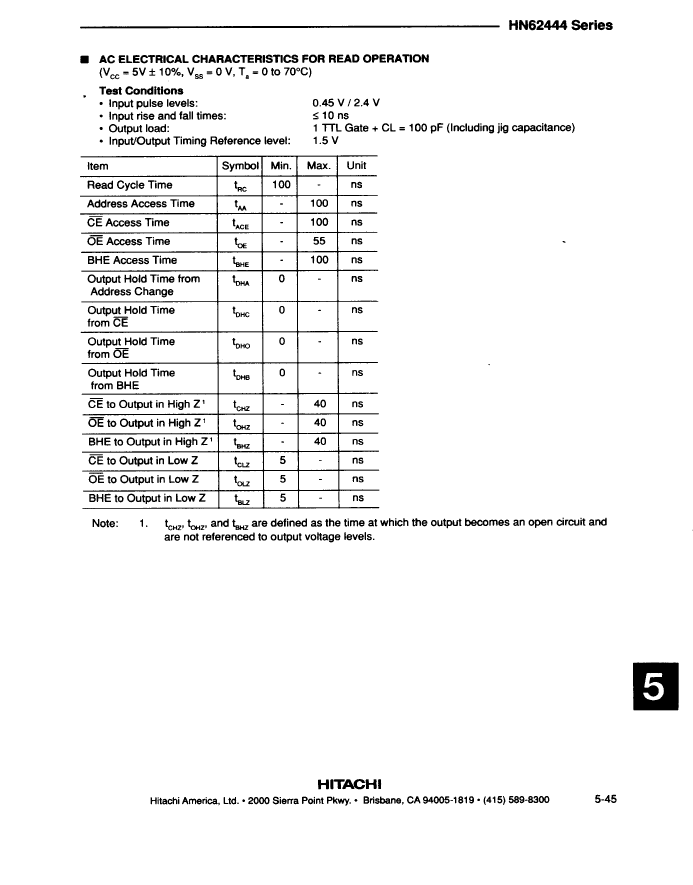

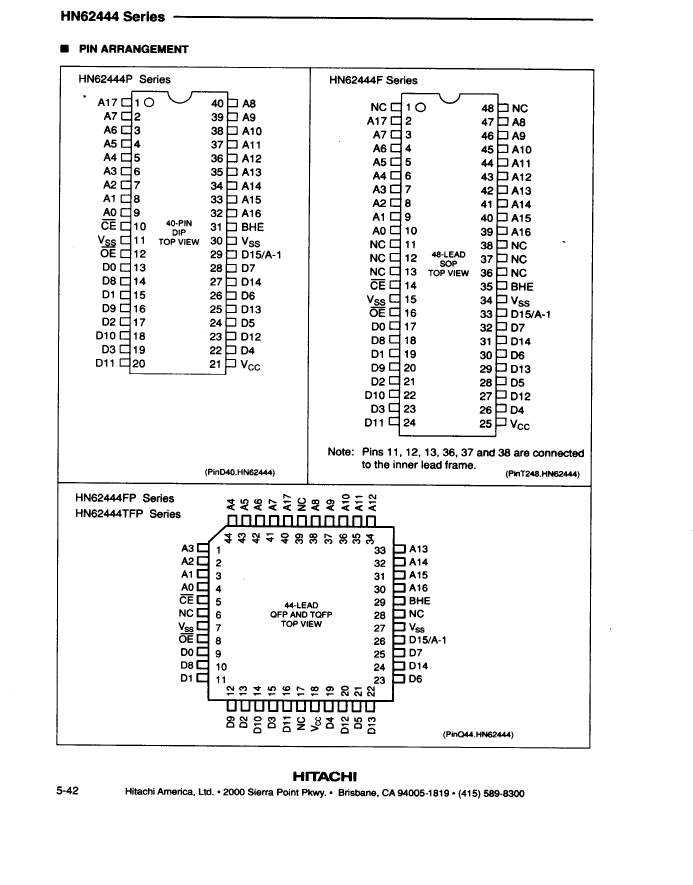

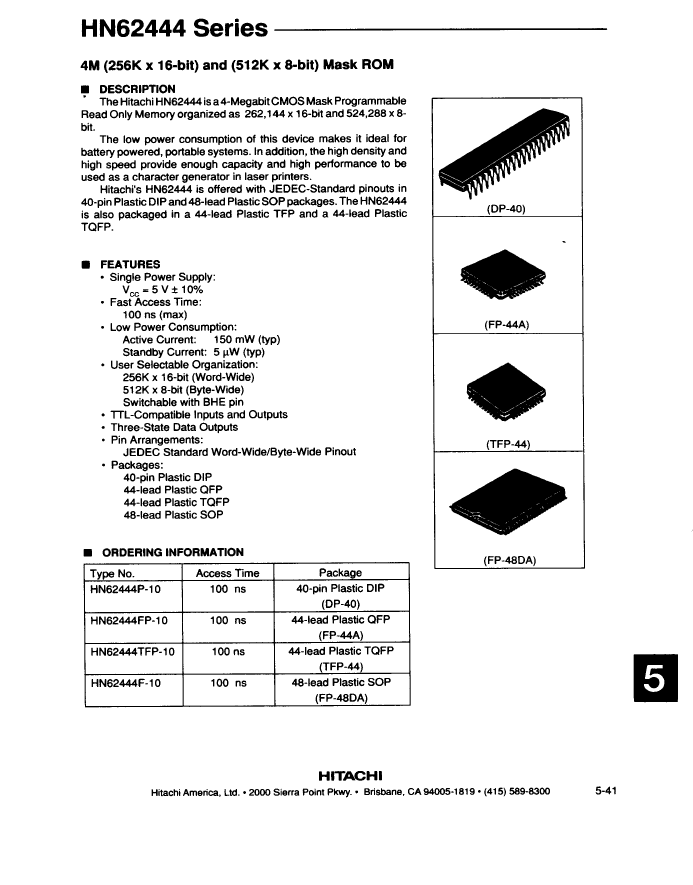

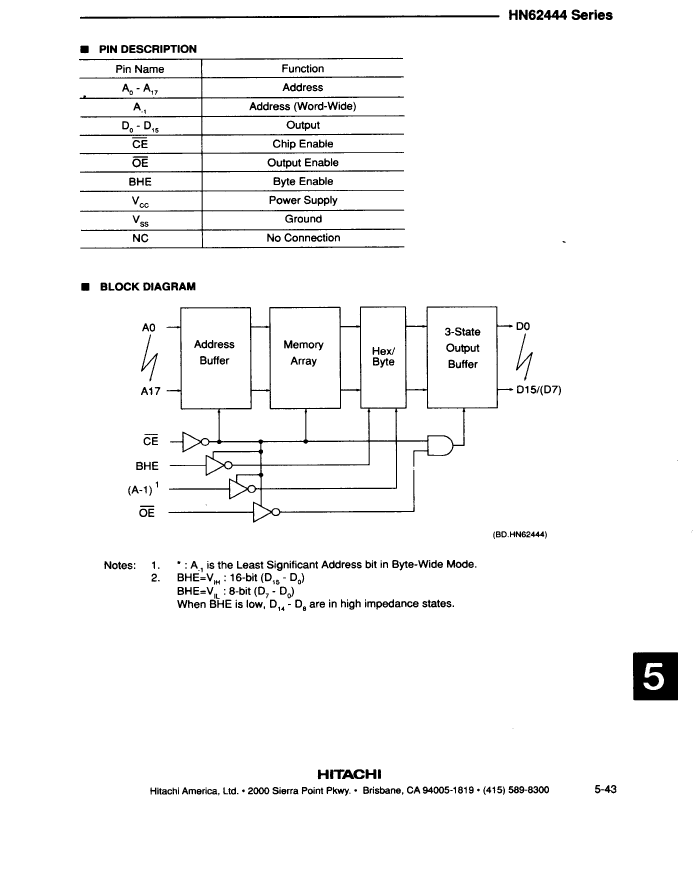

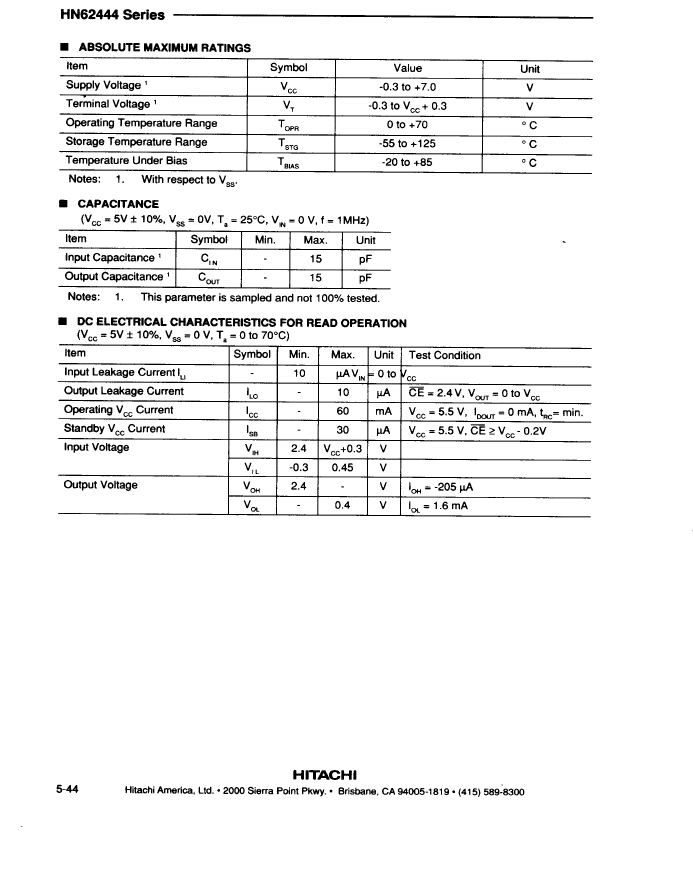

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

HN62444TFP-10 Related Products

	HN62444TFP-10	HN62444F-10	HN62444FP-10	HN62444P-10
Description	MASK ROM, 512KX8, 100ns, CMOS, PQFP44, PLASTIC, TQFP-44	MASK ROM, 512KX8, 100ns, CMOS, PDSO48, PLASTIC, SOP-48	MASK ROM, 512KX8, 100ns, CMOS, PQFP44, PLASTIC, QFP-44	MASK ROM, 512KX8, 100ns, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	SOIC	QFP	DIP
package instruction	TQFP, TQFP44,.6SQ,32	SSOP, SOP48,.61,32	QFP, QFP44,.7SQ,32	DIP, DIP40,.6
Contacts	44	48	44	40
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	100 ns	100 ns	100 ns
Spare memory width	16	16	16	16
JESD-30 code	S-PQFP-G44	R-PDSO-G48	S-PQFP-G44	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0
length	14 mm	20 mm	14 mm	52.8 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	44	48	44	40
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TQFP	SSOP	QFP	DIP
Encapsulate equivalent code	TQFP44,.6SQ,32	SOP48,.61,32	QFP44,.7SQ,32	DIP40,.6
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK, THIN PROFILE	SMALL OUTLINE, SHRINK PITCH	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	3 mm	3.05 mm	5.08 mm
Maximum standby current	0.00003 A	0.00003 A	0.00003 A	0.00003 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
width	14 mm	14 mm	14 mm	15.24 mm
Maker	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）
