UPC2709T datasheet, PDF - EEWORLD Datasheet

UPC2709T: DescriptionWide Band Low Power Amplifier, 2300MHz Max, MINIMOLD, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size340KB，16 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

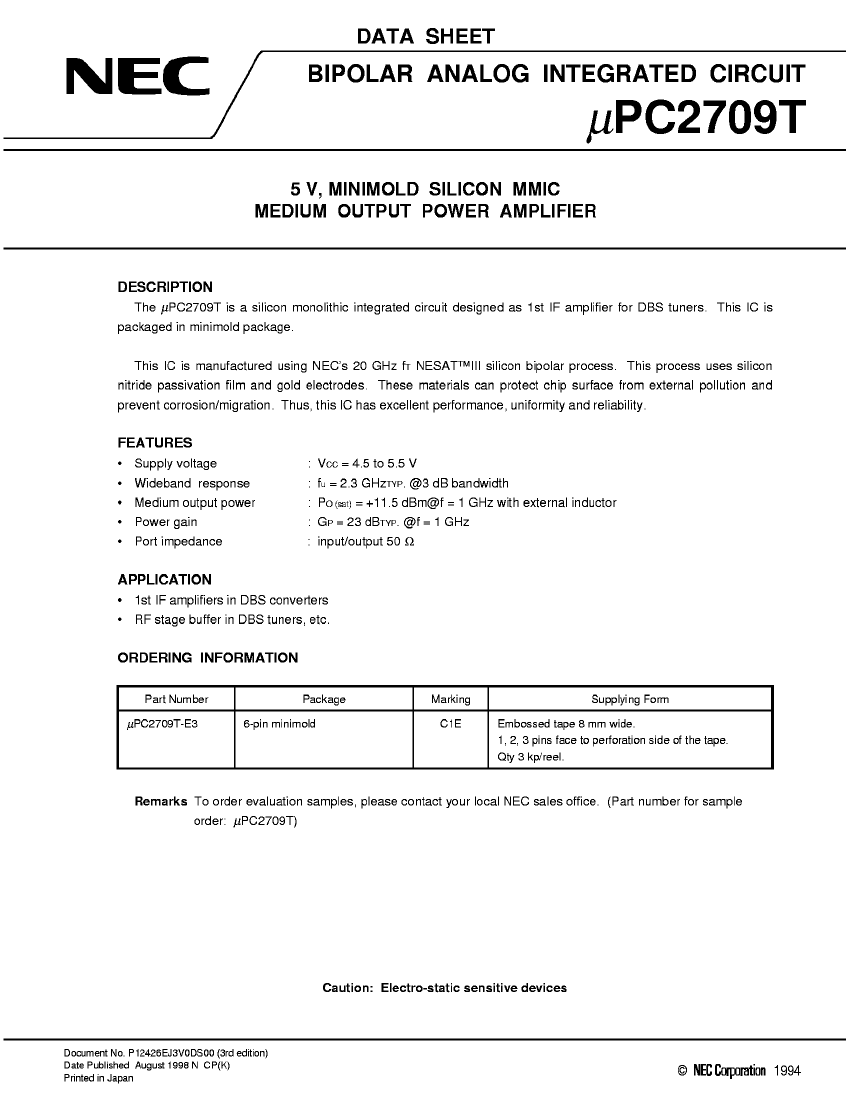

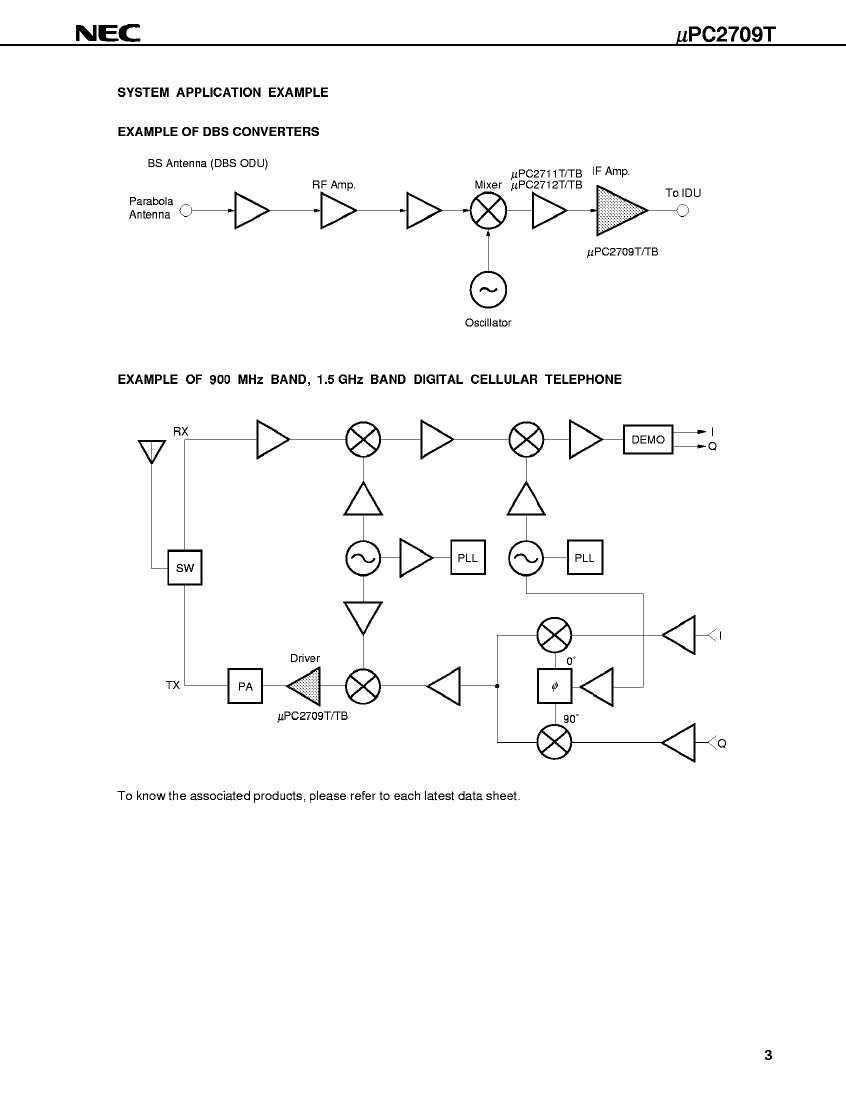

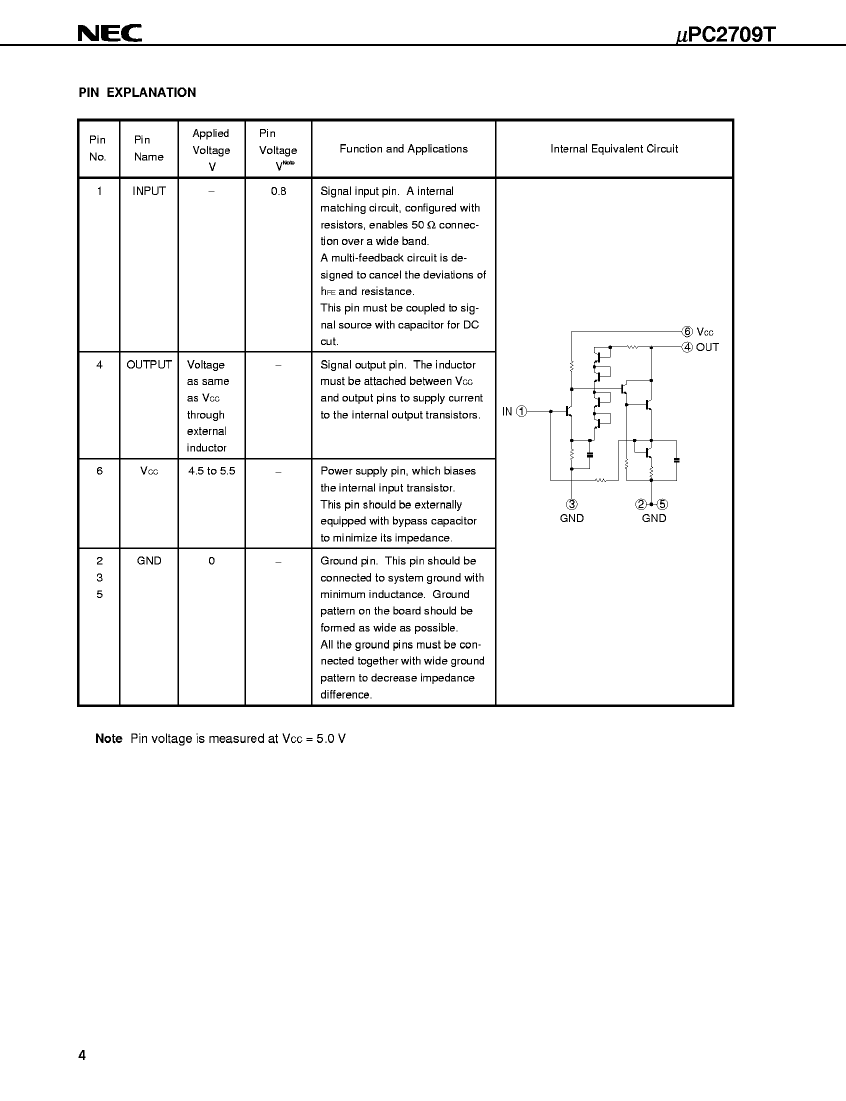

UPC2709T Overview

Wide Band Low Power Amplifier, 2300MHz Max, MINIMOLD, 6 PIN

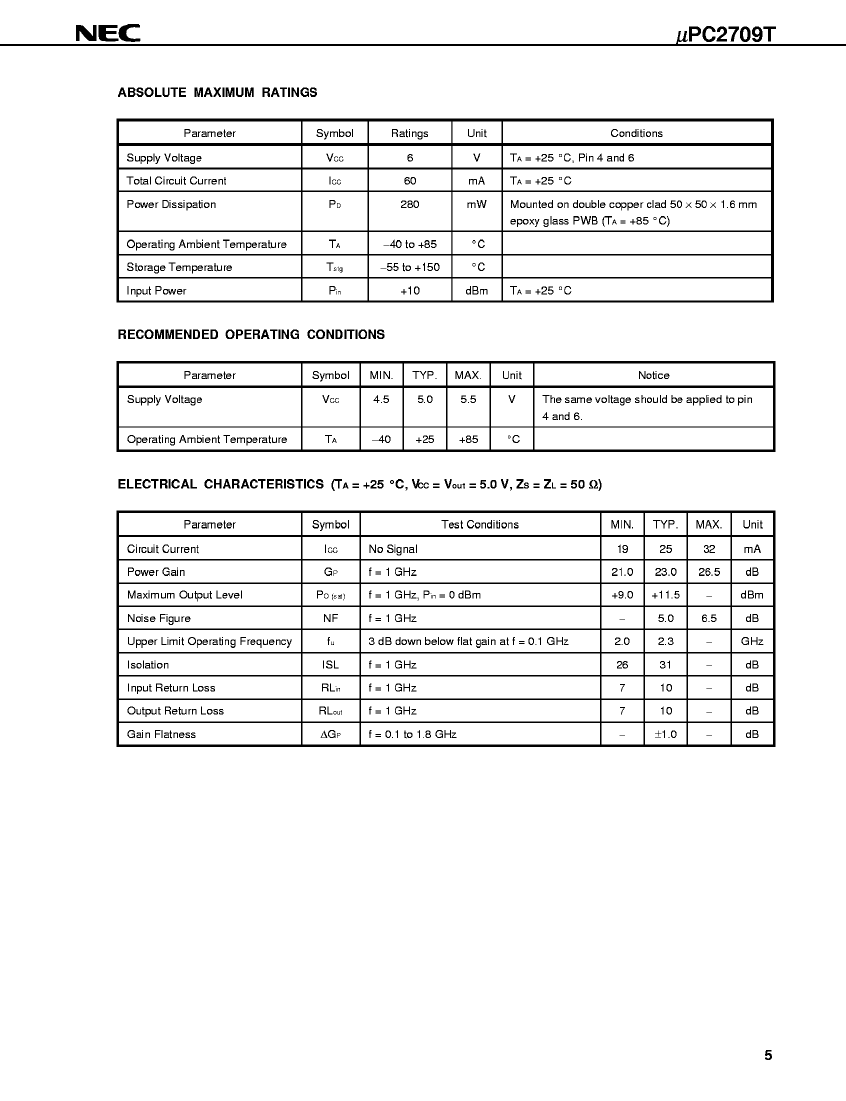

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	21 dB
Maximum input power (CW)	10 dBm
JESD-609 code	e0
Maximum operating frequency	2300 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Terminal surface	Tin/Lead (Sn/Pb)

	UPC2709T	UPC2709T-E3-A	UPC2709T-E3
Description	Wide Band Low Power Amplifier, 2300MHz Max, MINIMOLD, 6 PIN	Wide Band Low Power Amplifier, 2300MHz Max, MINIMOLD, 6 PIN	Wide Band Low Power Amplifier, 2300MHz Max, MINIMOLD, 6 PIN
Is it Rohs certified?	incompatible	conform to	incompatible
Maker	NEC Electronics	NEC Electronics	NEC Electronics
Reach Compliance Code	compliant	compliant	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT
Gain	21 dB	21 dB	21 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm
JESD-609 code	e0	e6	e0
Maximum operating frequency	2300 MHz	2300 MHz	2300 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Bismuth (Sn/Bi)	Tin/Lead (Sn/Pb)
