SSW-105-22-L-S-VS-P datasheet, PDF

Datasheet> All Categories > The connector> The connector> SSW-105-22-L-S-VS-P

SSW-105-22-L-S-VS-P: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size807KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSW-105-22-L-S-VS-P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSW-105-22-L-S-VS-P	-	-	View	Buy Now

SSW-105-22-L-S-VS-P Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

SSW-105-22-L-S-VS-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TIGER BUY CONTACT
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SSW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5

Preview

Download Datasheet

View All

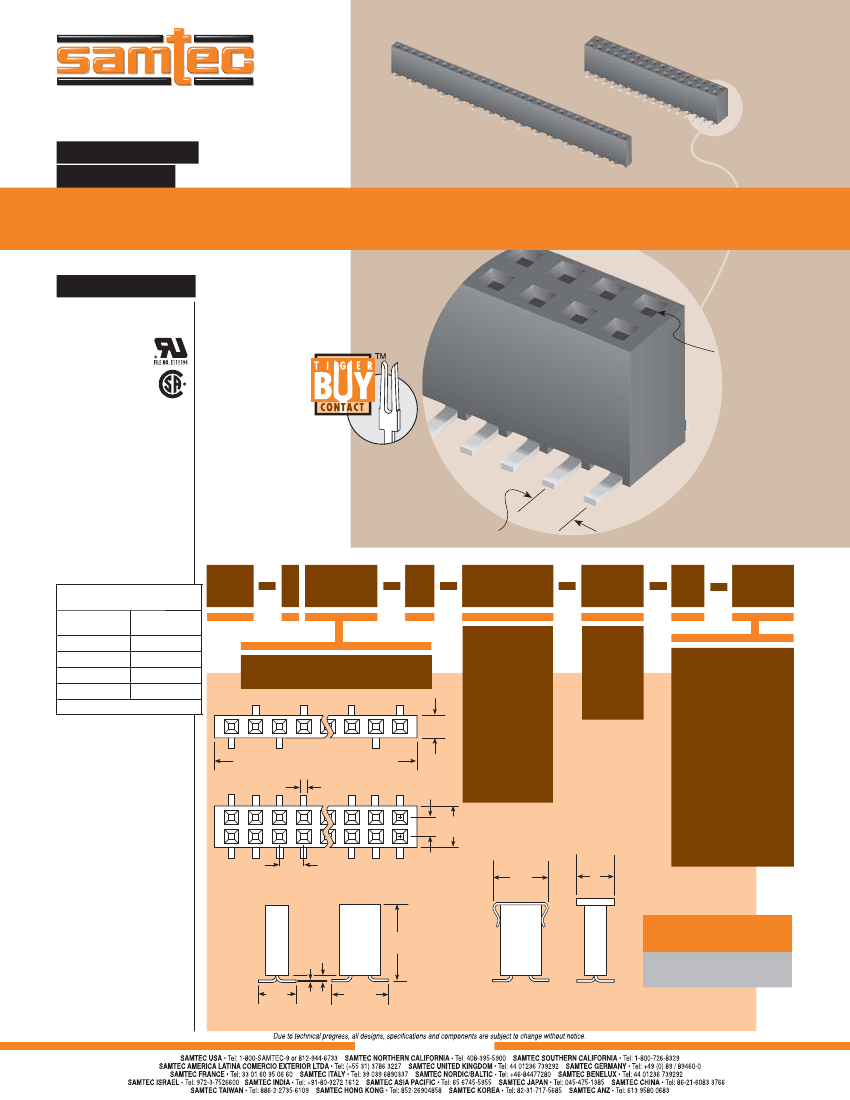

F-212-1

SSW–116–22–G–D–VS

(2,54 mm) .100"

SSW SERIES

SSW–130–22–L–S–VS

SMT .025" SQ POST SOCKET

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?SSW

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ max

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

3 oz (0,83 N) avg.

Withdrawal Force:

(Single contact only)

2.6 oz (0,72 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

CURRENT RATING

(PER CONTACT)

AMBIENT

TEMP

20°C

40°C

60°C

95°C

SSW mated

with TSW

6.9A

6.1A

5.3A

3.5A

Mates With:

TSW, MTSW, HTSW,

HMTSW, MTLW, EW, ZW,

TSS, HTSS, ZSS, TSM,

TSSH, DW, HW

Tiger Buy

contacts

(2,54 mm) .100"

SSW

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

–F

02 thru 36

(2,41)

.095

–S

= Single

Row

= Gold ﬂash

on contact,

Matte Tin on tail

–“XX”

= Polarized Position

6 POSITIONS (2x3) POWERED

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–D

= Double

Row

–K

= –S: (3,50 mm) .138" DIA,

–D: (6,50 mm) .256" DIA

Polyimide ﬁlm Pick

& Place Pad

(03 positions min.)

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max

(2,54) .100 x No. of Positions + (0,51) .020

(0,79)

.031

–G

= 20µ" (0,51 µm)

Gold on contact,

Gold ﬂash on tail

(2,54) (4,95)

.100 .195

(4,95)

.195

(10,03)

.395

–P

= Pick & Place Pad

(05 positions min.)

–TR

(7,11)

.280

(5,72)

.225

(2,54)

.100

= Tape & Reel Packaging

(–02 thru –28)

(1,27)

.050

(9,78)

.385

APPLICATION

SPECIFIC OPTION

Notch available.

Call Samtec.

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(5,16)

.203

(0,41)

.016

(7,87)

.310

–P

OPTION

–S

–D

WWW.SAMTEC.COM
