DS0026G: DescriptionLow Skew Clock Driver, DS00 Series, 0 True Output(s), 1 Inverted Output(s), CMOS, MBCY12, METAL CAN, TO-8, 12 PIN; Categorylogic logic; File Size2MB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DS0026G Overview

Low Skew Clock Driver, DS00 Series, 0 True Output(s), 1 Inverted Output(s), CMOS, MBCY12, METAL CAN, TO-8, 12 PIN

DS0026G Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
series	DS00
Input adjustment	STANDARD
JESD-30 code	O-MBCY-W12
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	2
Number of inverted outputs	1
Number of terminals	12
Actual output times
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
propagation delay (tpd)	12 ns
Nominal supply voltage (Vsup)	20 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	WIRE
Terminal location	BOTTOM

Preview

Download Datasheet

View All

REI Datasheet

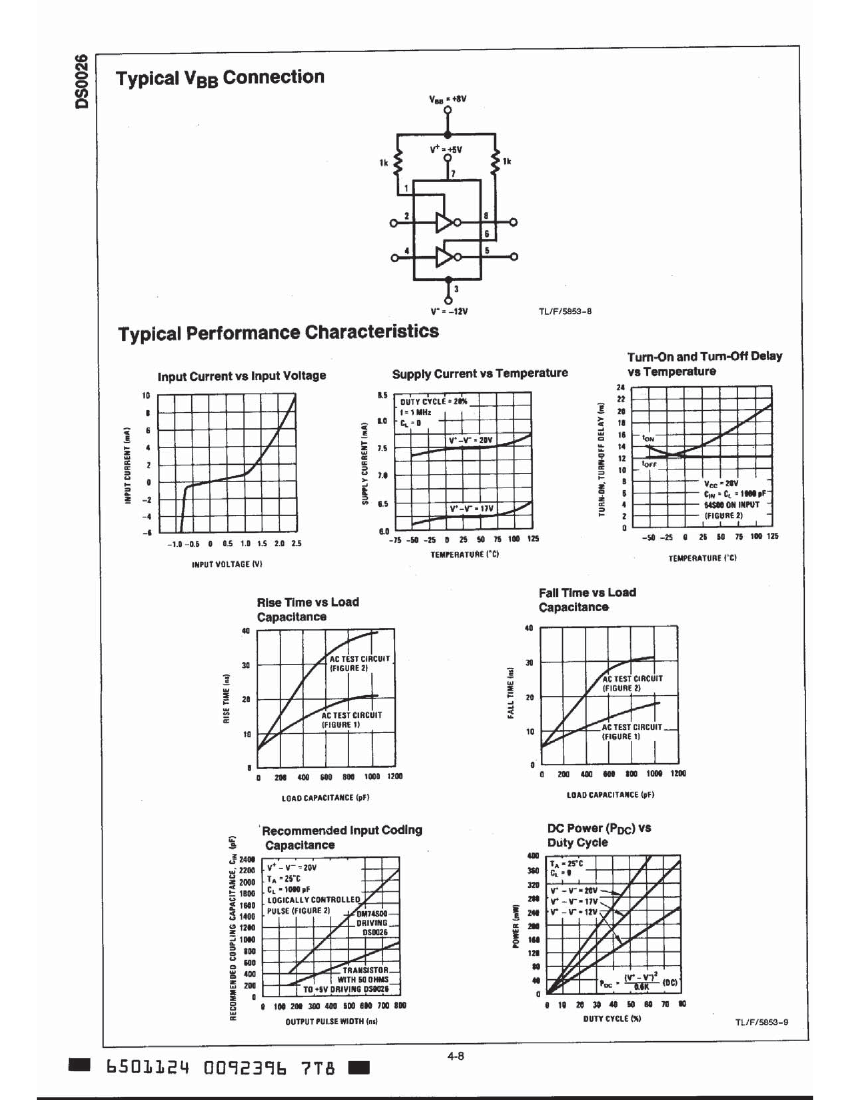

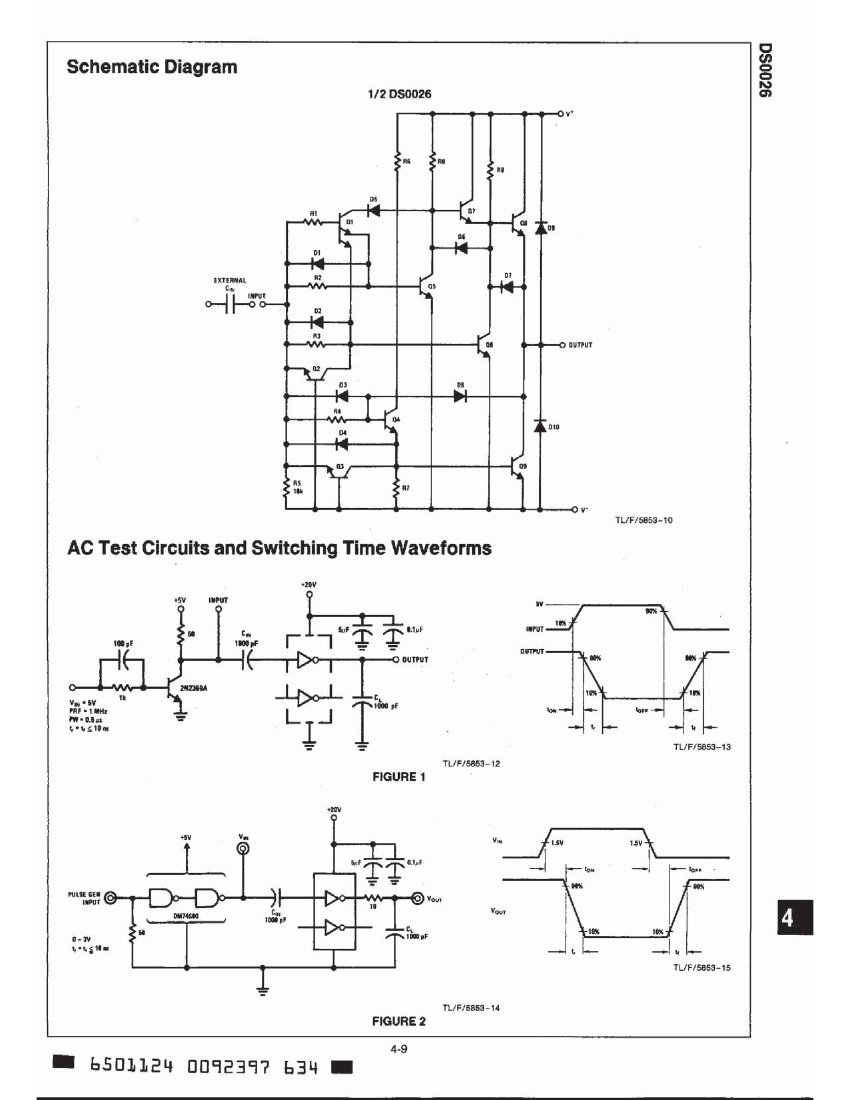

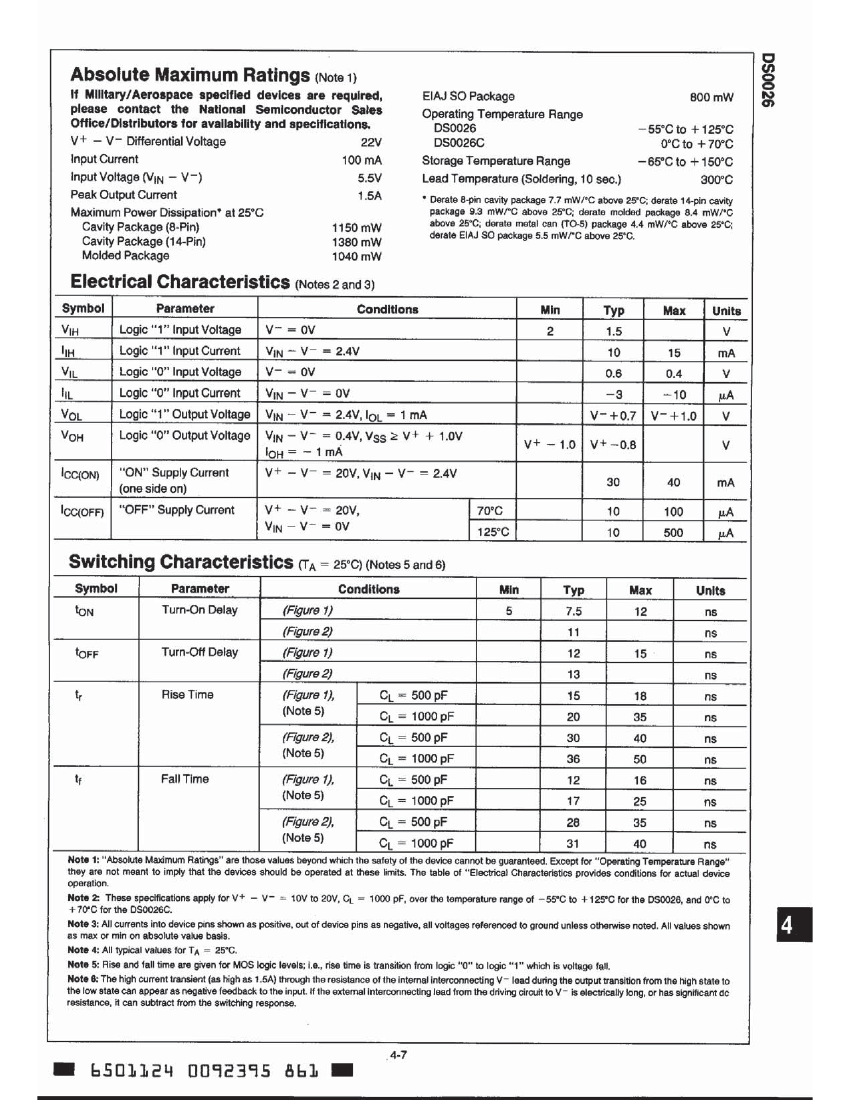

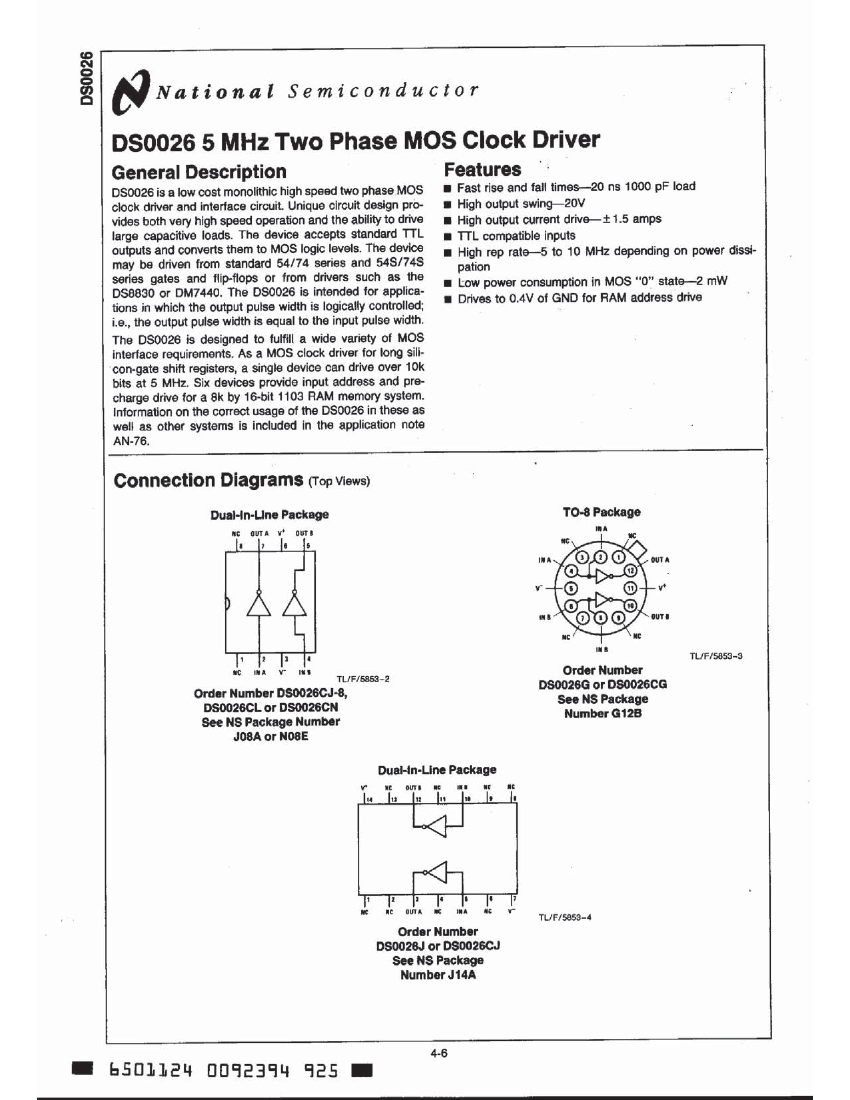

DS0026

5 MHz Two Phase MOS Clock Driver

DS0026 is a low cost monolithic high speed two phase MOS clock driver and interface circuit. Unique

circuit design provides both very high speed operation and the ability to drive large capacitive loads.

The device accepts standard TTL outputs and converts them to MOS logic levels. The device may

be driven from standard 54/74 series and 54S/74S series gates and flip-flops or from drivers such as

the DS8830 or DM7440. The DS0026 is intended for applications in which the output pulse width is

logically controlled; i.e., the output pulse width is equal to the input pulse width.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

DS0026G Related Products

	DS0026G	DS0026F/B	DS0026G/B	DS0026H/B	DS0026J/B
Description	Low Skew Clock Driver, DS00 Series, 0 True Output(s), 1 Inverted Output(s), CMOS, MBCY12, METAL CAN, TO-8, 12 PIN	Low Skew Clock Driver	Low Skew Clock Driver	Low Skew Clock Driver	Low Skew Clock Driver
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Base Number Matches	-	1	1	1	1
