9-1393234-2: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.021A (COIL), 24VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size350KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

9-1393234-2 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.021A (COIL), 24VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT

9-1393234-2 Parametric

Parameter Name	Attribute value
Maximum operating temperature	70 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT
state	ACTIVE
seal	RT3
Coil power	500 mW
Relay action	MOMENTARY
Relay function	DPDT
Coil resistance	1100 ohm
Manufacturer Series	1393845
Maximum DC coil current	0.0210 A
Maximum DC coil voltage	24 V
Maximum AC contact current	8 A
Maximum AC contact voltage	400 V
DC coil operating voltage	16.8 V
DC coil release voltage	2.4 V
width	12.6 mm
high	25.5 mm
length or diameter	29 mm
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	9 ms
Relay type	POWER/SIGNAL RELAY
release time	3 ms
Terminal type	SOLDER

Preview

Download Datasheet

View All

General Purpose Relays

PCB Relays

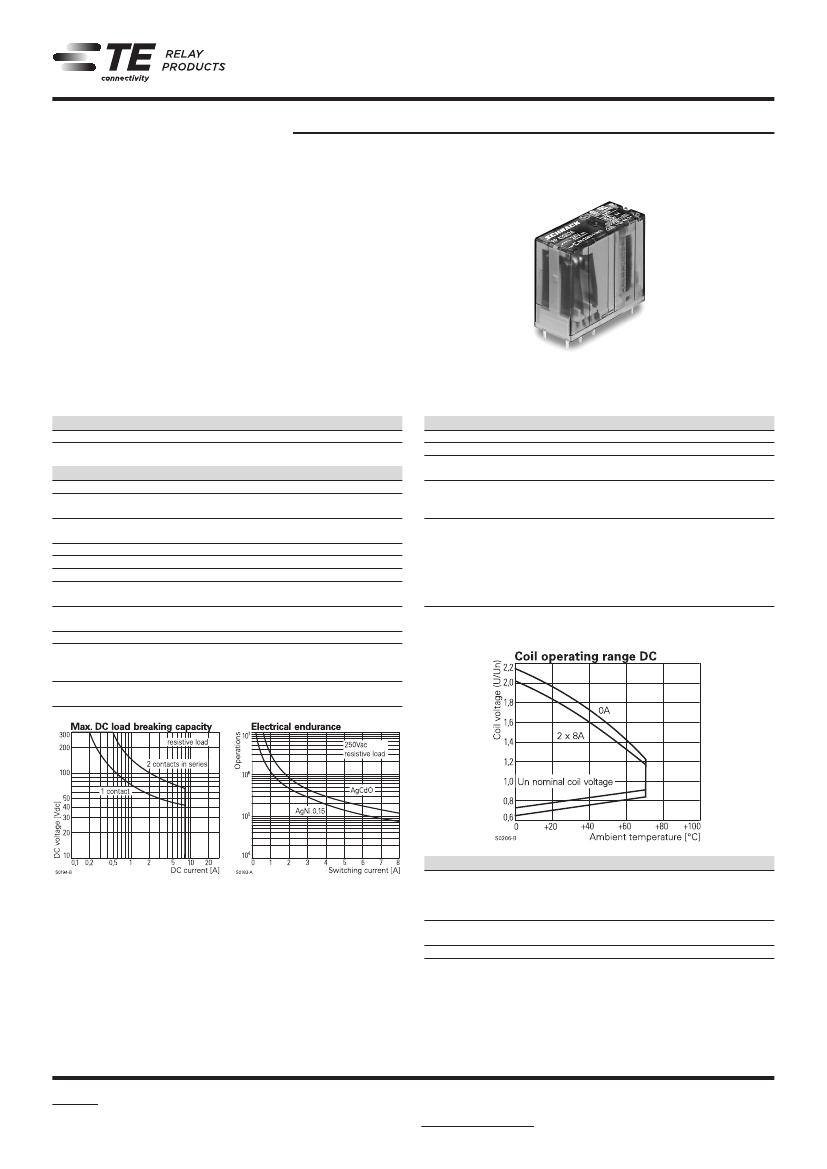

Power PCB Relay RPII/2

SCHRACK

2 pole 8A, 2 form C (CO) or 2 form A (NO) contacts

4kV/8mm coil-contact

Twin contacts available

RoHS compliant (Directive 2002/95/EC)

Typical applications

Domestic appliances, UPS

Approvals

VDE REG.-Nr. C894, UL E214024

Technical data of approved types on request

F0150-B

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

005

3.5

006

4.2

012

8.4

024

16.8

048

33.6

060

42.0

110

77.0

Release

voltage

VDC

0.5

0.6

1.2

2.4

4.8

6.0

11.0

5 to 110VDC

Coil

resistance

Ω±10%

270

1100

4400

6540

23100

Rated coil

power

500

Contact Data

Contact arrangement

2 form C (CO) or 2 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

8A (UL: 10A)

Limiting making current, max 4s, duty factor 10%

14A

Breaking capacity max.

2000VA

Contact material

AgCdO, AgNi0.15

Frequency of operation, with/without load

600/72000h

-1

Operate/release time typ.

9/3ms

Bounce time typ., form A/form B

2/3ms

Contact ratings

Type

Contact

IEC61810

RP420/421

A (NO)

RP420

A (NO)

Mechanical endurance

Load

8A, 250VAC, resistive, 35°C

5A, 250VAC, resistive, 70°C

>20x10

operations

Cycles

100x10

30x10

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +20°C.

Other coil voltages on request.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

between adjacent contacts

Clearance/creepage

between contact and coil

Material group of insulation parts

1000V

rms

4000V

rms

2500V

rms

≥8/8mm

IIIa

04-2011, Rev. 0411

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
