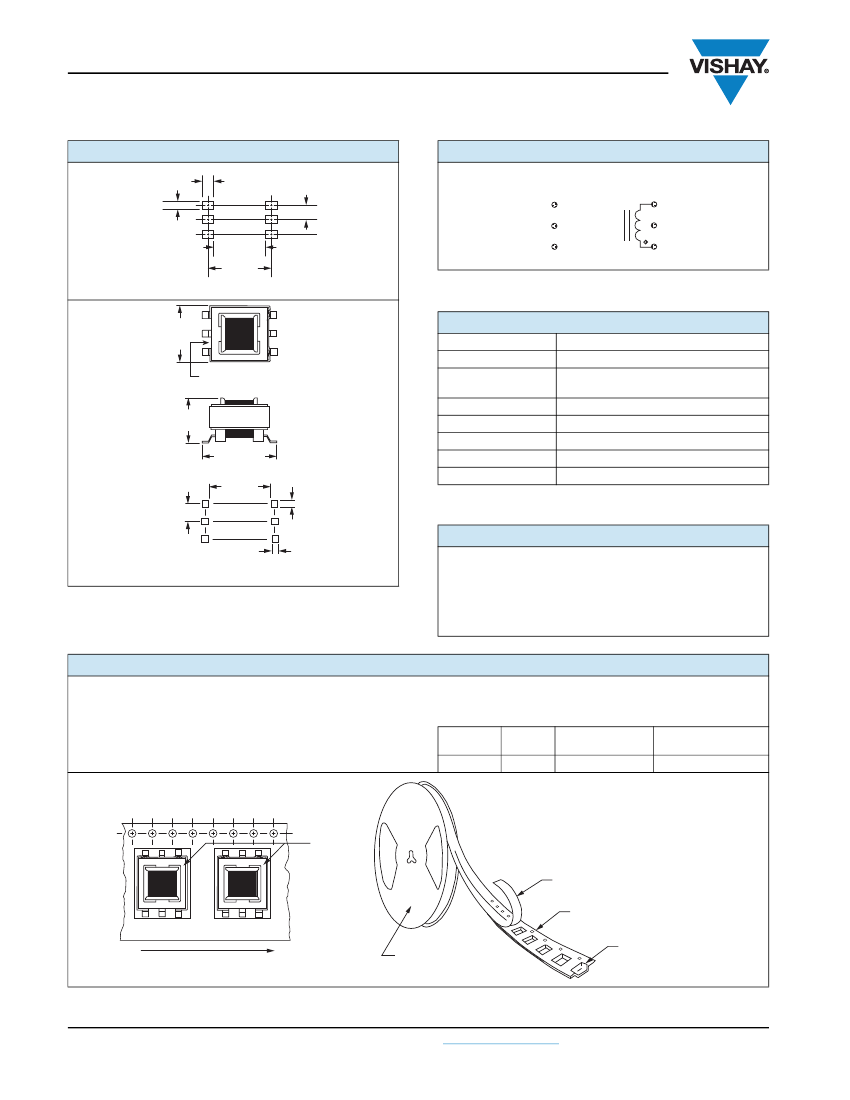

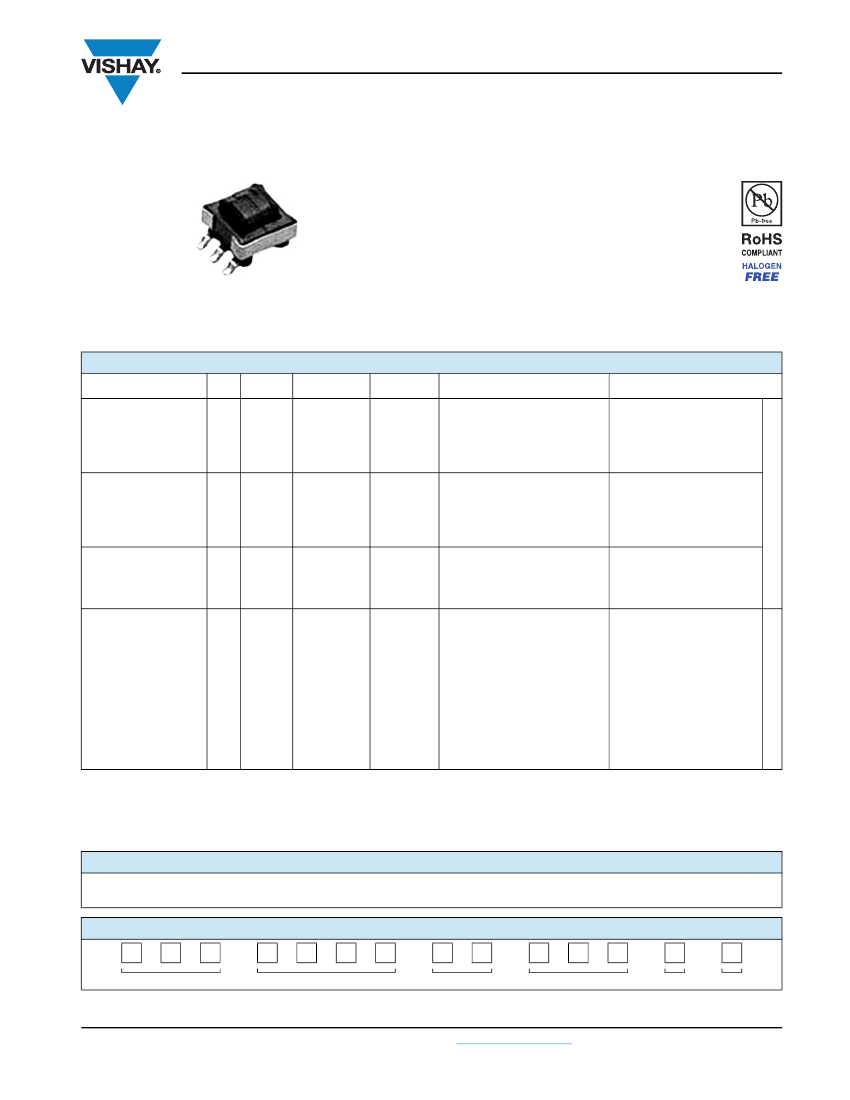

LPE-3325
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
FEATURES
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21
definition
ELECTRICAL SPECIFICATIONS
Inductance Range:
10 μH to 3900 μH, measured
at 0.10 V
RMS
at 10 kHz without DC current, using an
HP 4263A or 4284A impedance analyzer
DC Resistance Range:
0.06
to 18.0
,
measured at
+ 25 °C ± 5 °C
Rated Current Range:
1.00 A to 0.06 A
Dielectric Withstanding Voltage:
500 V
RMS
, 60 Hz, 5 s
STANDARD ELECTRICAL SPECIFICATIONS
SATURATING CURRENT
IND.
IND.
SCHEMATIC DCR MAX.
MAX. RATED DC CURRENT
(A)
(2)
MODEL
(μH)
TOL.
LETTER
()
(A)
(1)
LPE3325ER100NU
10
± 30 %
A
0.06
1.01
N/A
LPE3325ER150NU
15
± 30 %
A
0.08
0.91
N/A
LPE3325ER220NU
22
± 30 %
A
0.09
0.83
N/A
LPE3325ER330NU
33
± 30 %
A
0.11
0.75
N/A
LPE3325ER470NU
47
± 30 %
A
0.14
0.69
N/A
LPE3325ER680NU
68
± 30 %
A
0.16
0.63
N/A
LPE3325ER101NU
100 ± 30 %
A
0.20
0.57
N/A
LPE3325ER151NU
150 ± 30 %
A
0.76
0.29
N/A
LPE3325ER221NU
220 ± 30 %
A
0.92
0.26
N/A
LPE3325ER331NU
330 ± 30 %
A
1.13
0.24
N/A
LPE3325ER471NU
470 ± 30 %
A
1.35
0.22
N/A
LPE3325ER681NU
680 ± 30 %
A
1.62
0.20
N/A
LPE3325ER102NU
1000 ± 30 %
A
1.97
0.18
N/A
LPE3325ER152NU
1500 ± 30 %
A
2.41
0.16
N/A
LPE3325ER222NU
2200 ± 30 %
A
3.00
0.15
N/A
LPE3325ER332NU
3300 ± 30 %
A
5.96
0.10
N/A
LPE3325ER392NU
3900 ± 30 %
A
7.00
0.10
N/A
LPE3325ER100MG
10
± 20 %
A
0.22
0.54
1.480
LPE3325ER150MG
15
± 20 %
A
0.27
0.48
1.240
LPE3325ER220MG
22
± 20 %
A
0.42
0.39
1.050
LPE3325ER330MG
33
± 20 %
A
0.65
0.31
0.872
LPE3325ER470MG
47
± 20 %
A
0.97
0.26
0.740
LPE3325ER680MG
68
± 20 %
A
1.45
0.21
0.622
LPE3325ER101MG
100 ± 20 %
A
2.22
0.17
0.518
LPE3325ER151MG
150 ± 20 %
A
3.55
0.13
0.426
LPE3325ER221MG
220 ± 20 %
A
4.31
0.12
0.354
LPE3325ER331MG
330 ± 20 %
A
6.72
0.10
0.290
LPE3325ER471MG
470 ± 20 %
A
9.83
0.08
0.244
LPE3325ER681MG
680 ± 20 %
A
14.8
0.07
0.204
LPE3325ER102MG
1000 ± 20 %
A
18.0
0.06
0.169
Notes
(1)
DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C ambient.
(2)
DC current that will typically reduce the initial inductance by 20 %.
•
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and
line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter inductance tolerance with better temperature stability than
ungapped models. Beneficial in DC/DC converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.
DESCRIPTION
LPE
MODEL
3325
SIZE
1000 μH
INDUCTANCE VALUE
± 30 %
INDUCTANCE TOLERANCE
A
CORE
ER
PACKAGE CODE
e2
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
3
3
SIZE
2
5
E
R
1
0
2
N
TOL.
U
CORE
PRODUCT FAMILY
PACKAGE CODE
INDUCTANCE VALUE
Note
• Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).
Document Number: 34063
Revision: 24-Feb-11
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
GAPPED MODELS (B)
UNGAPPED MODELS (A)
LPE-3325
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
SCHEMATIC
(top view)
Schematic
A
4
5
0.232
[5.89]
0.288
[7.32]
Reference Only
Typical
two
places
6
3
2
1
DIMENSIONS
in inches [millimeters]
Pad Layout
0.056 [1.42]
Pad Dimensions Typical,
6 places
0.073 [1.85]
0.042
[1.07]
Note
• Schematic A for both gapped and ungapped LPE series
3
Dimensional
4
Outline
0.256 [6.50]
Max.
6
Clip Opening
Opposite Pin 1
ENVIRONMENTAL PERFORMANCE
TEST
CONDITIONS
Withstands - 55 °C to + 125 °C
- 55 °C to + 125 °C
(1)
85 %
Tested to + 230 °C
Per MIL-STD-202, method 213 (100G)
Per MIL-STD-202, method 204 (20G)
Thermal Cycling
Operating
Temperature
High Humidity
Soldering Heat
Mechanical Shock
Vibration
1
0.205 [5.21]
Max.
0.323 [8.20]
Max.
0.268
[6.81]
0.073 [1.85]
Typ.
0.028
[0.71]
Solderability
Per industry standards
Note
(1)
Must be checked in end use application
PART MARKING
0.028 [0.71]
Footprint Diagram
- Vishay Dale
- Date code
- Marking code (suffix of model #)
- Pin 1 indicator
Notes
• Pad layout guidelines per MIL-STD-275E (printed wiring for
electronic equipment).
• Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005" [± 0.12 mm].
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 g ± 30 g
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic
Placement”.
MODEL
LPE-3325
TAPE
WIDTH
24 mm
COMPONENT
PITCH
12 mm
UNITS PER 13"
REEL
1000
Tape and Reel Orientation
Pin 1
Indicator
Cover Tape
Carrier Tape
USER DIRECTION OF FEED
Label Area
Embossed Cavity
Note
• Top view shown with cover tape removed
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34063
Revision: 24-Feb-11
