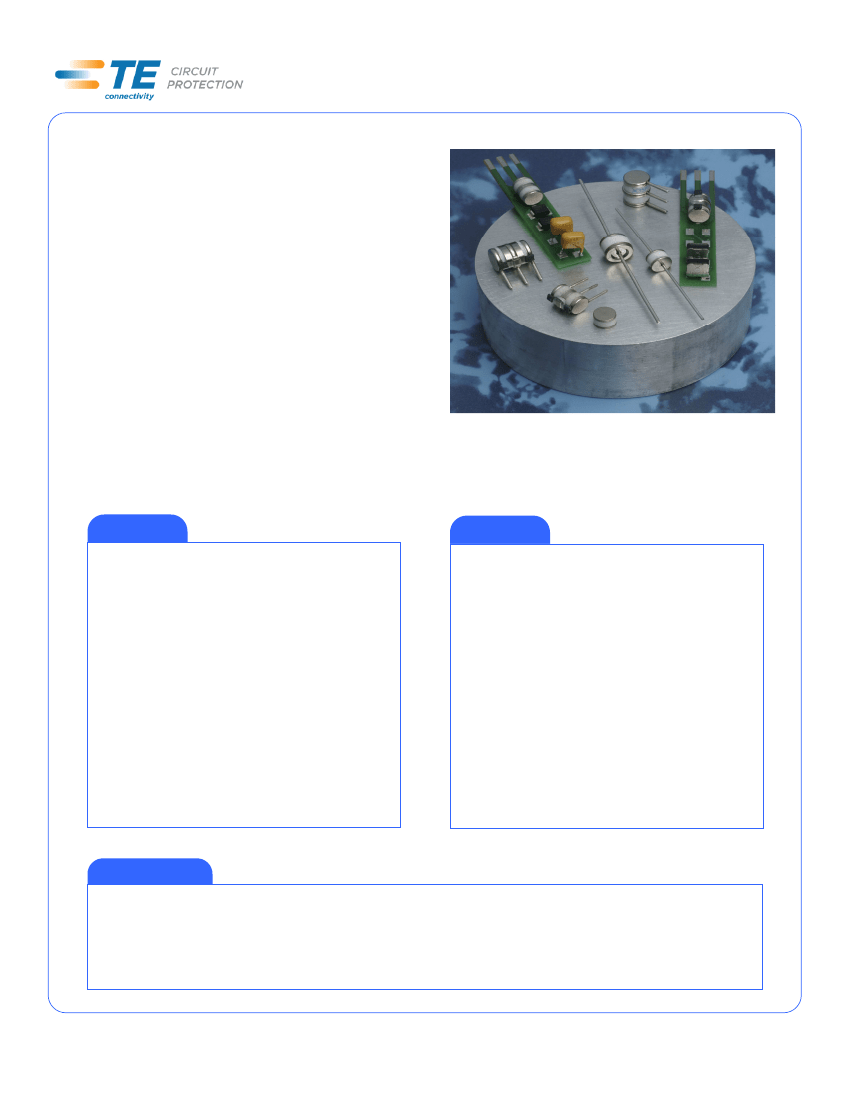

GTCX25-XXXM-R02 Series

TE Circuit Protection 5mm 2Pole GDTs (ceramic

gas discharge tubes), are commonly used to help

protect sensitive telecom equipment such as

communication lines, signal lines and data

transmission lines from damage caused by

transient surge voltages that typically result from

lightning strikes and equipment switching

operations.

Raychem Circuit Protection GDTs offer a high

level of surge protection, low capacitance and a

broad array of breakover voltage levels, making

them suitable for applications such as MDF (Main

Distribution Frame) modules, high data-rate

telecom applications (e.g. ADSL, VDSL), and

surge protection on power lines. Raychem Circuit

Protection GDTs, can help equipment meet the

most stringent regulatory standards.

Benefits:



Compact, small form factor suitable for efficient

assembly



Helps provide overvoltage fault protection against

high energy surges



Suitable for high-frequency applications

Features:



2Pole, 5mm devices



Broad voltage range from 75V-600V



Various form factors: surface mount, axial leads, no

leads



Low capacitance and insertion loss



UL 497B recognized



RoHS compliant



Devices tested per ITU K.12 recommendations



Non-radioactive materials

Applications:



Telecommunications

- MDF modules, xDSL equipment, RF system

protection, antenna, base station

•

Industrial and consumer electronics, such as

- Surge protectors

- Alarm system

Gas Discharge Tubes

Document: SCD27304

Status: Released

Rev: B

Date: MAY 11, 2011
