Quick Reference Guide
SIM Card Connector Series
SIM (Subscriber Identity Module) and UIM (Universal Identity Module) cards are widely used in a variety of mobile
applications, including, billing, security and number storage purposes in mobile devices. The SIM card parameters
are defined by ISO, ETSI and GSM standards.
TE's outstanding technological capability delivers a high comfort for the end customer and great durability and
longevity of the SIM connectors. In addition, TE has the ability to fabricate very high volume products in a cost-
efficient, lean manufacturing process. The huge array of products, combined with TE's ability to redesign existing
products to customer requirements, allow TE to be a reliable source for SIM and UIM card connectors.
Features
•
Large portfolio covering
Benefits
•
Large, versatile portfolio offers
Applications
•
Mobile Phones
•
Tablets
•
Personal computers
•
Ultrabook
•
Data cards
•
Portable GSM modems
•
Servers
several styles and card sizes
•
Connectors optimized for
reliability (i.e. by spherical
contact points increasing hertz
stress, pre-loaded contacts and
anti retention features in the
contacts.)
•
The SIM connector series
offers the best possible design
freedom; many products are
even scalable in height within
the same form factor
•
Best possible applied cost by
fully-automated processing
•
•
•
•
the best product closest to the
actual need
Highly reliable connector
technology helps customers
reduce production line defect
rates – ultimately reducing costs
for quality control and service
Unmatched design freedom
creates optimal possibilities for
the design engineer to match
the device's requirements
Fully-automated processing
leads to stable quality
Global footprint means
enhanced support for all regions
te.com/products/simcardconnectors
TE Connectivity
SIM Card Connector Series

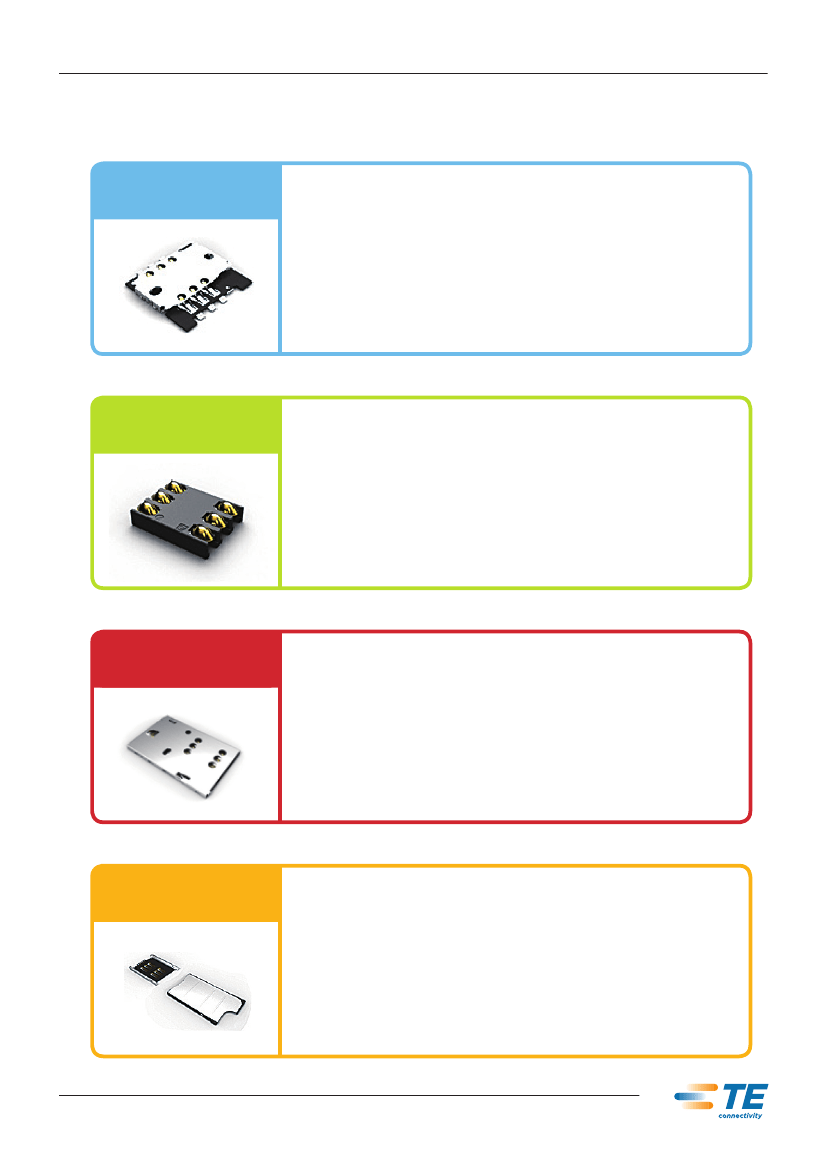

Variety of SIM Card Connectors Portfolio
Push-Pull Type
•
Card guidance and card stops provides fixation of the SIM card in X, Y and Z
direction
•
Card is typically located inside the device shell. Consumer must open the device
shell to extract the card, and must insert and eject card manually
•
Full single clip, provides shielding, and prevents card bending. This ensures a
stable connection with all card types
•
Components underneath the SIM card are possible (optional)
Block Type
•
Basic SIM Connector without enhanced features in combination with an efficient
manufacturing process leads to an extremely cost-effective component
•
Anti-lifting contact prevents the contact from being accidentally lifted. Reduces
the risk of damaged contacts
•
Five (5) directional mating allows for card insertion from five directions: front,
back, left, right and top. It thereby allows for maximum design freedom
Push-Push Type
•
Push to insert, push to eject mechanism provides enhanced card handling for the
end user
•
Push-Push type connectors are typically used under the battery cover or behind
a door at the device exterior
•
The card detection switch senses card removal
•
The connector prevents for reversed card insertion, eliminating damage done by
wrong card insertion
Tray Type
•
Tray type SIM connectors are typically used on the exterior of a device. The tray
•
•
•
•
forms a unity with the device covers
Tray can be fully separated from the body, allowing for easy card handling by the
end user
Fully-shielded, preventing EMI or other disturbances
The connector prevents reversed card insertion, eliminating damage done by
wrong card insertion
The card detection switch senses card removal
te.com/products/simcardconnectors
TE Connectivity
SIM Card Connector Series

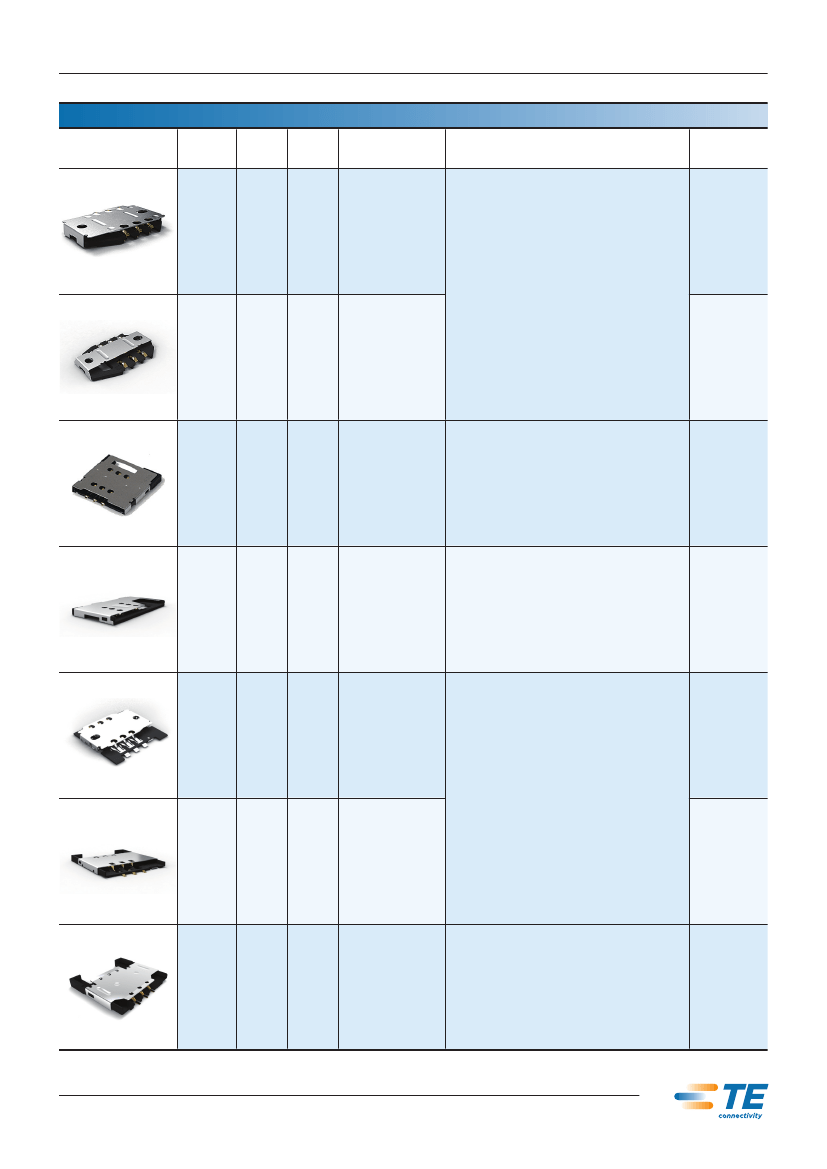

Connectors for mini SIM (2FF) cards
Push-Pull Type
P/N
Height
range
Length x
width
Description
Features and Benefits
Status
*-2042647-*
*-2042920-*
1.8 – 2.0
15.5 x 10
Scalable Shielded SIM
MP
SH/India
Features
-shielded
-holes for additional components under the connector
-test holes for automatic inline testing
Benefits
-shield protects against radio interference
-holes under the connector save space
-test holes reduce applied costs
*-1551663-*
1.8 – 2.0
15.5 x 10
Narrow shield version
MP
SH/India
Features
-fully shielded
-test holes
-super low height contact
Super low profile SIM
-super low height
1981898-1
1.43
17.5 x 16.3
MP SH
Benefits
-shield protects against radio interference
-test holes reduce applied costs
-can only be engaged from one side
Features
Side entry SIM
connector LEFT
26.3 x 14.7
Side entry SIM
connector RIGHT
-visible detection of wrong card insertion
-chamfered housing
-user friendly shield design
-test holes
1932669-2
2.05
Benefits
-prevents wrong card insertion
-safe user handling
-can remove card without tools
-shield prevents EMI
-inline testing reduces costs
MP SH
1551956-1
1.4
15.5 x 14.25
SIM 1.4mm height
Features
-provides card stop
-shielded
-preloaded contacts
-holes under the connector
-test holes
MP GD
Benefits
-card stop prevents damage to the SIM card
-shield prevents EMI, RF distortion and card bend
-preloaded anti-lifting contacts protect card from abuse
-mounting components under the connector saves space
-automated testing reduces costs
1932766-1
1.5
17.6 x 16.1
SIM 1.5mm height
MP GD
Features
Super low profile SIM
Benefits
with flange
-prevents card damage
(big shield)
-one clip type (Bridge type)
-shielded
-holes under the connector
-card stop and guide
-preloaded contacts
-test holes
1932768-1
1.95
16.3 x 14.8
MP SH
-shield prevents EMI, RF distortion and card bend
-preloaded anti-lifting contacts protect card from abuse
-mounting components under the connector saves space
-automated testing reduces costs
(dimensions : mm)
te.com/products/simcardconnectors
TE Connectivity
SIM Card Connector Series

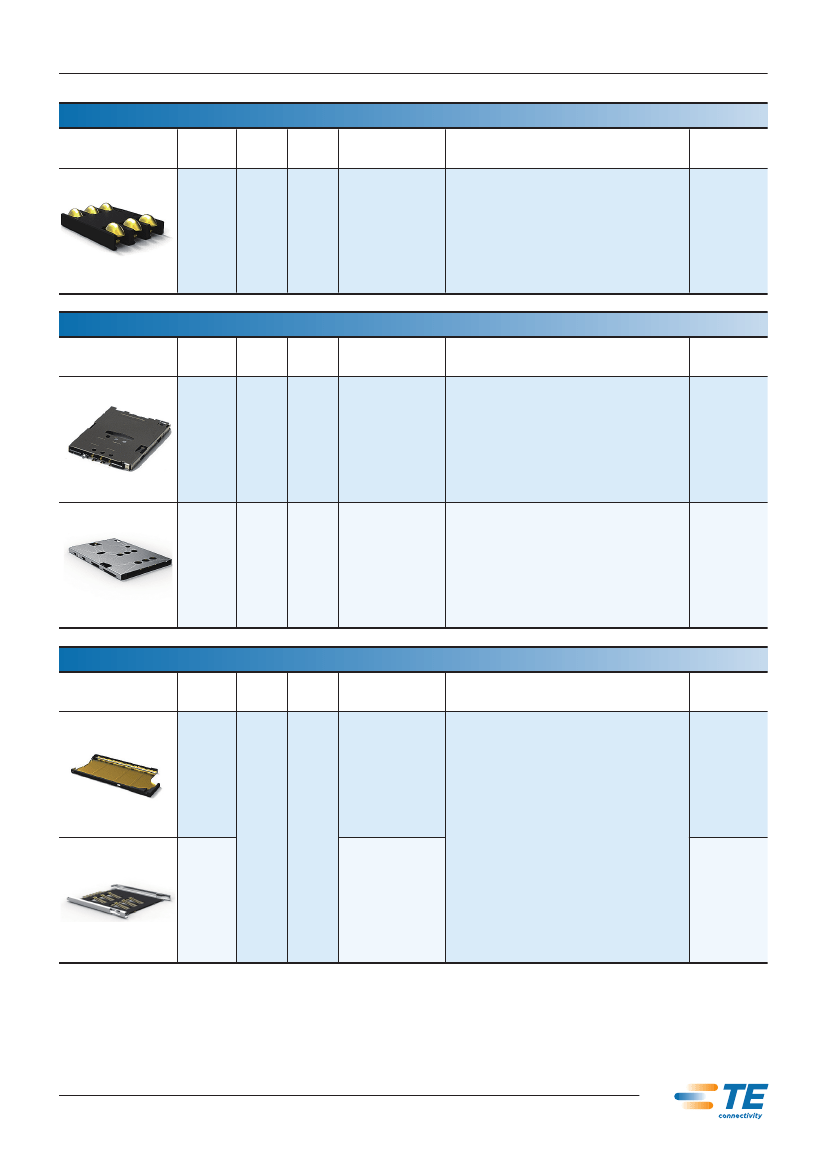

Block Type
P/N
Heights
Length x
width
Description
Features and Benefits
Status
Features
5-Directional SIM
connector
-5 insert directions
-preloaded contacts
-fits both standards
(2FF and 3FF)
*-1705300-*
1.5 – 2.8
10 x 7.6
MP QD
Benefits
-smooth insertion for consumer
-design flexibility
Push – Push Type
P/N
Height
Length x
width
Description
Features
-Push Push function
-card detection switch
-fully shielded
-anti launch mechanism
-test holes
Features and Benefits
Status
1981959-1
1.87
23.7 x 18.9
Push Push SIM
connector
Benefits
-prevents inaccurate switch readings caused by common
rough edges on cards
-shield prevents EMI RF distortion and card bend
-prevents wrong card insertion
-prevents card going airborne when extracted
-automated testing reduces costs
MP SH
Features
-Push Push function allows SIM card ejection by
connector itself
-Lower profile
-Dual slanted contacts
-card detection switch
2174918-1
1.40
26 x 17
Push Push SIM,
super low profile
Benefits
-Easy to handle SIM Card
-Low profile saves PCB space
-Dual slanted contacts provide strong mating force and
avoid contact jam
-card detection switch secures circuit design
MP GD
Tray Type
P/N
Height
Length x
width
Description
Features and Benefits
Status
2134033-1
Double Contact
Metal Tray
MP JP
1.4
25.85 x
16.7
-Tray can be fully separated from the body, allowing for
easy card handling by the end user
2134034-1
Double Contact
Body Assy
MP JP
(dimensions : mm)
te.com/products/simcardconnectors
TE Connectivity
SIM Card Connector Series

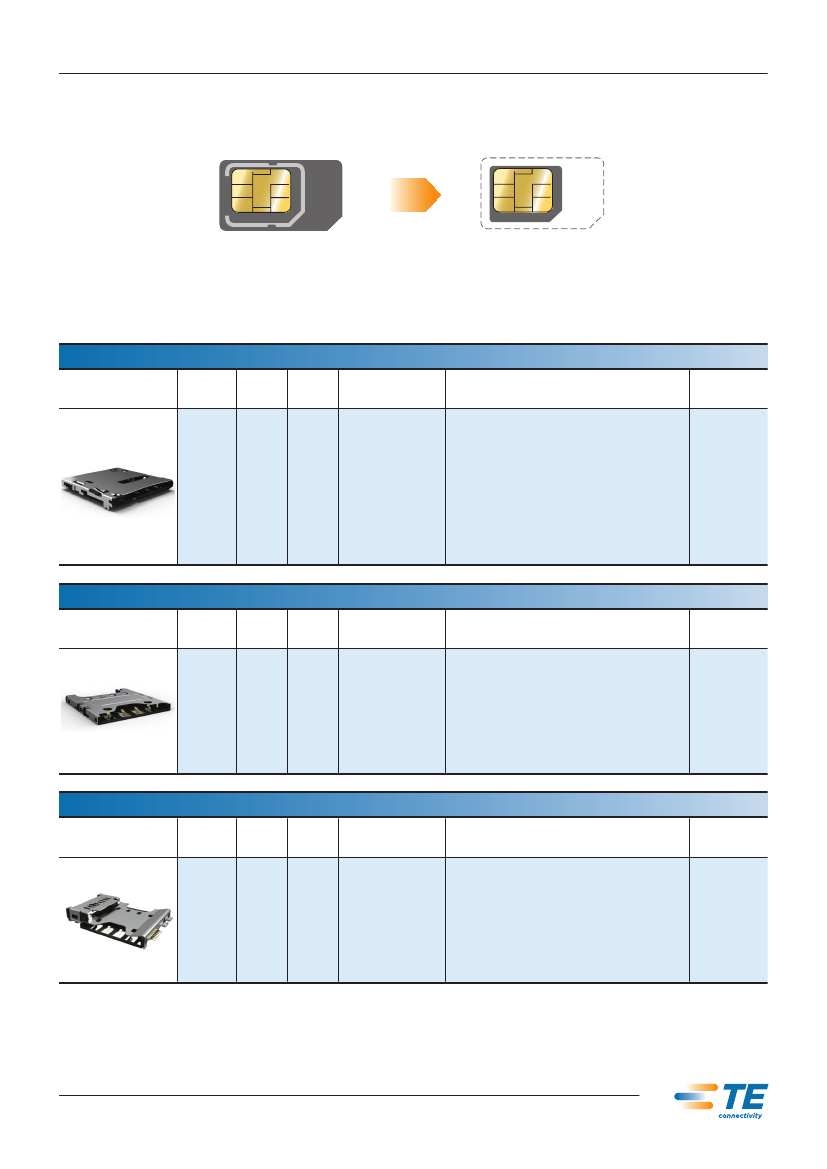

Connectors for micro SIM (3FF*) cards
Size Comparison : Mini SIM (2FF) vs Micro SIM (3FF)
Pad Layout is identical
Mini SIM/2FF
25L x 15W (375mm )
2
Micro SIM/3FF
15L x 12W (180mm
2
)
*FF : Form Factor
Push-Push Type
P/N
Height
range
Length x
width
Description
Features and Benefits
Status
2174803-2
1.27
15.98 x
15.1
Ultra Low profile
push-push
-Push-Push function allows SIM card ejection by
connector itself to help the end customer handle SIM
Card easily
-Avoid card insertion with wrong direction, avoid card
jamming issue
-Low profile saves space
-Dual slanted contacts provide strong mating force and
avoid contact jam
-Card detection switch secures circuit design
MP SH
Push-Pull Type
P/N
Height
range
Length x
Width
Description
Features and Benefits
Status
Features and Benefits
-Low profile saves space
-Card detect switch uniquely integrated on connector
contacts to better secure circuit connection while not
taking extra PCB space
-Avoid card insertion with wrong direction
-6position is optional
-Card stop confirms full insertion to the user
-Inspection holes allow customers to inspect solder
connection
2108431-3
(8 position)
1.24
14.1 x
13.3
Ultra Low Profile
Push-Pull
MP SH
Combo Type Connector for Micro SIM + MicroSD
TM
P/N
Height
range
Length x
width
Description
Features and Benefits
Status
2199003-2
2.5
17.75 x
14.0
Micro SIM +
Micro SD Combo
-Dual Card reader Micro SIM/Micro SD type, space
saving design
-Transverse card orientation
-Push pull type
-Micro SD card retention feature
-Micro SD detect switch
-Pick and place design on Shell
MP GD
(dimensions : mm)
te.com/products/simcardconnectors
