D-500-9457-2-614-236 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> D-500-9457-2-614-236

D-500-9457-2-614-236: DescriptionD-500-9457-2-614-236; CategoryAnalog mixed-signal IC The signal circuit; File Size106KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

D-500-9457-2-614-236 Overview

D-500-9457-2-614-236

D-500-9457-2-614-236 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Base Number Matches	1

Preview

Download Datasheet

View All

• Complete line of space-qualified

MIL-STD-1553B components

• Low outgassing levels that meet

NASA requirements

• Light weight

• Rugged construction

MIL-STD-1553B

Space-Grade Data

Bus Components

Raychem’s full line of data bus products has now

been expanded to include space-grade couplers,

terminators (in-line and demateable), triaxial

connectors, and SolderShield splices. These

space-grade components meet the low outgassing

requirements of NASA specification SP-R-0022A

and can be used in outer-space applications.

Raychem space-grade components are designed

in a variety of configurations and are currently

available either as discrete items or as Raychem-

assembled harnesses. Using factory-built harnesses

eliminates unnecessary splices and connectors,

reducing the cost and increasing the reliability of

the networks.

Specification control drawings describe the design

features and performance characteristics of Raychem

space-grade couplers, terminators, connectors, and

splices. The space-grade data bus couplers, termi-

nators, and connectors have tin/nickel-plated metallic

parts and baked silicone rubber components. For

strain relief they include Raychem’s RT-218 low-

outgassing tubing. Unlike parts intended for aircraft

applications, these components do not have polymeric

environmental covers.

The table on the reverse lists Raychem standard

space-grade data bus components with their part

numbers and descriptions. New components will

become available per customer request.

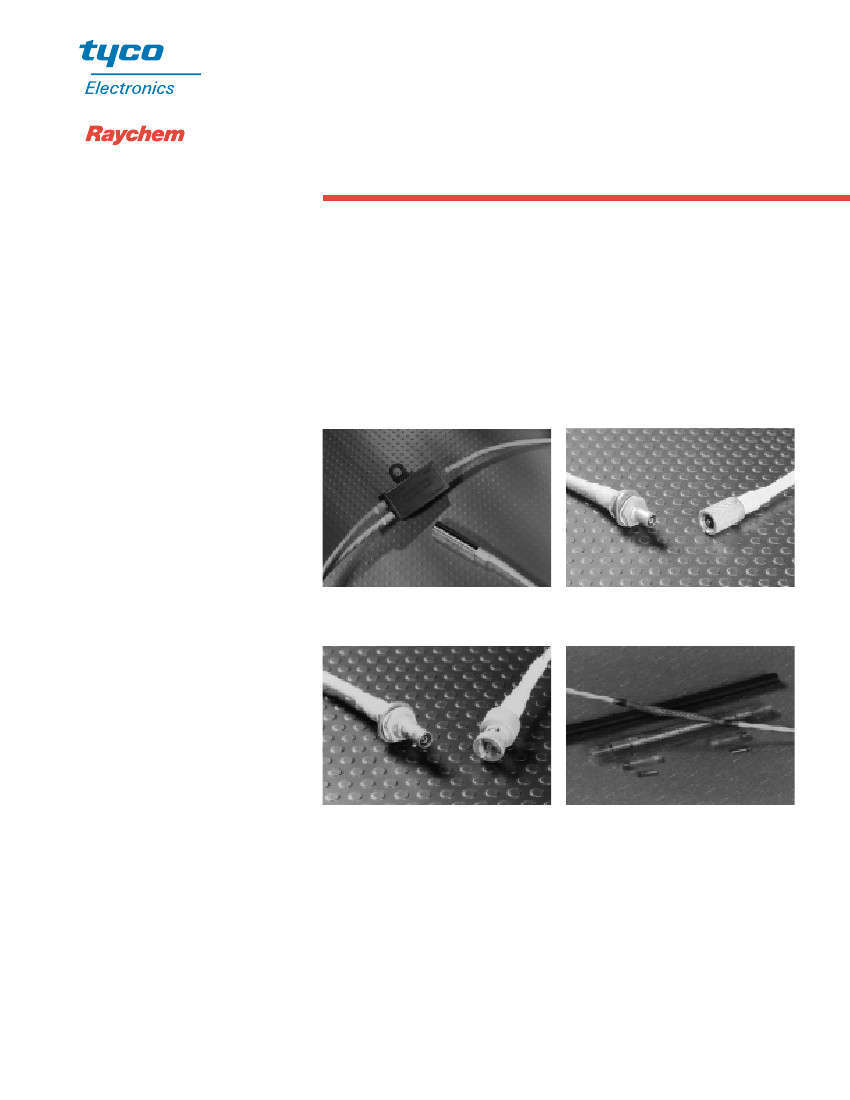

Figure 1. In-line couplers and terminators

Figure 2. Threaded triaxial connectors

Figure 3. Bayonet triaxial connectors

Figure 4. Splice kit
