Part Number

Search

53264-2090

Description
Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Detent, Receptacle
CategoryThe connector    The connector
File Size144KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

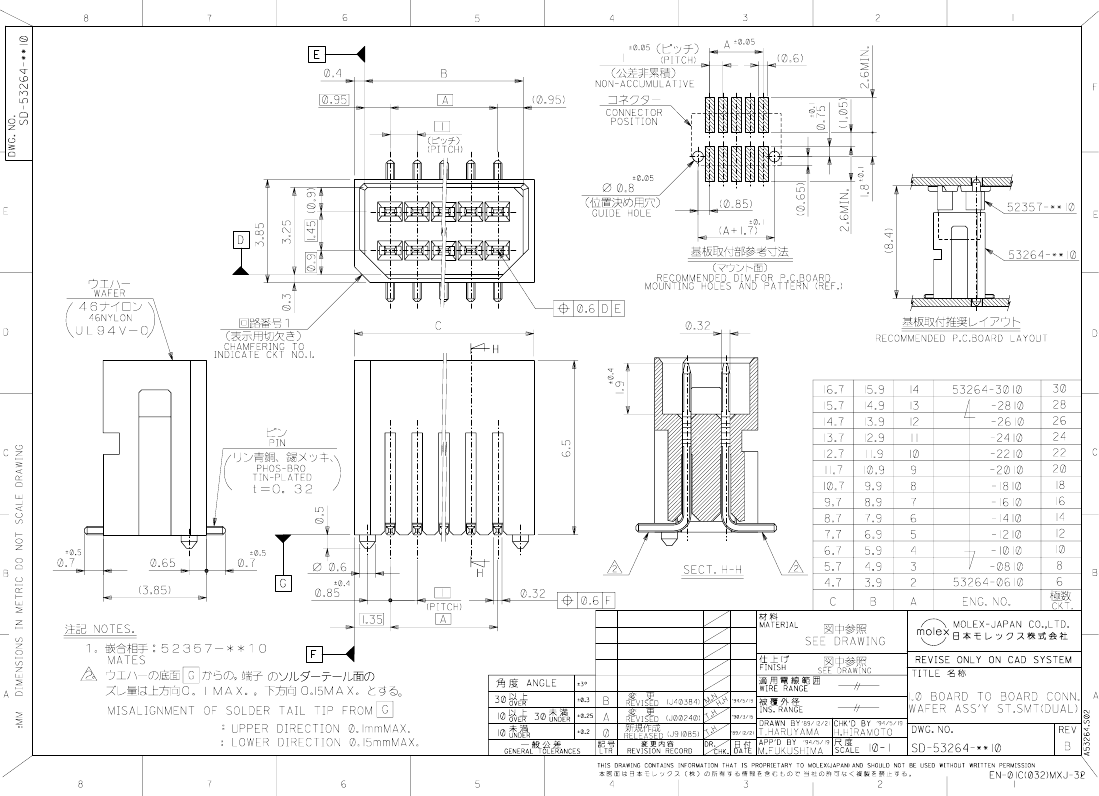

53264-2090 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Detent, Receptacle

53264-2090 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow

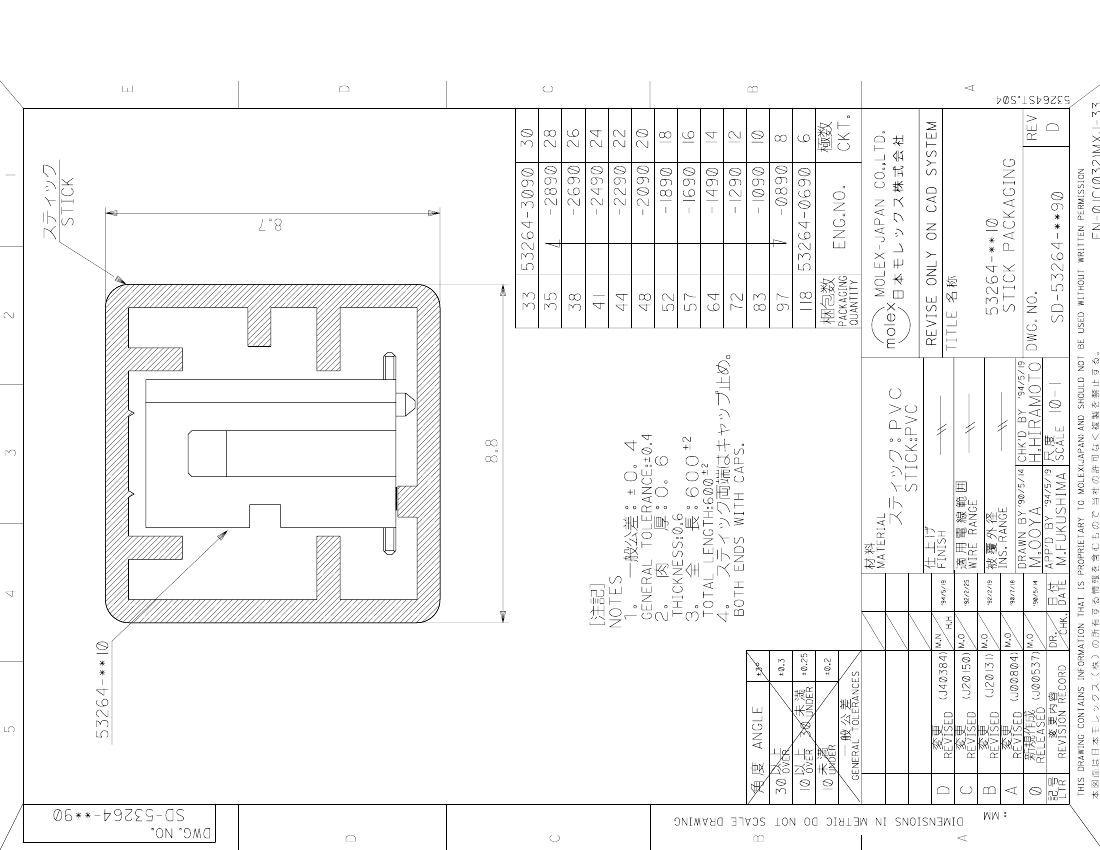

Other features48 PCS/ STICK PACKAGING
Board mount optionsPEG
body width0.152 inch
subject depth0.256 inch
body length0.461 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
insulator materialNYLON
Manufacturer's serial number53264
Plug contact pitch0.039 inch
Match contact row spacing0.057 inch
Installation option 1DETENT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing3.683 mm
Plating thickness12u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts20
Base Number Matches1

53264-2090 Related Products

53264-2090 53264-1890
Description Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Detent, Receptacle Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Detent, Receptacle
Reach Compliance Code unknow unknow
Other features 48 PCS/ STICK PACKAGING 52 PCS/ STICK PACKAGING
Board mount options PEG PEG
body width 0.152 inch 0.152 inch
subject depth 0.256 inch 0.256 inch
body length 0.461 inch 0.421 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN ON NI SN ON NI
Contact completed and terminated TIN OVER NICKEL TIN OVER NICKEL
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
insulator material NYLON NYLON
Manufacturer's serial number 53264 53264
Plug contact pitch 0.039 inch 0.039 inch
Match contact row spacing 0.057 inch 0.057 inch
Installation option 1 DETENT DETENT
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 3.683 mm 3.683 mm
Plating thickness 12u inch 12u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.9906 mm 0.9906 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 20 18
Base Number Matches 1 1
