MTA, CST-100 II, SL-156 and
AMP Economy Power (EP) Connectors
Table of Contents

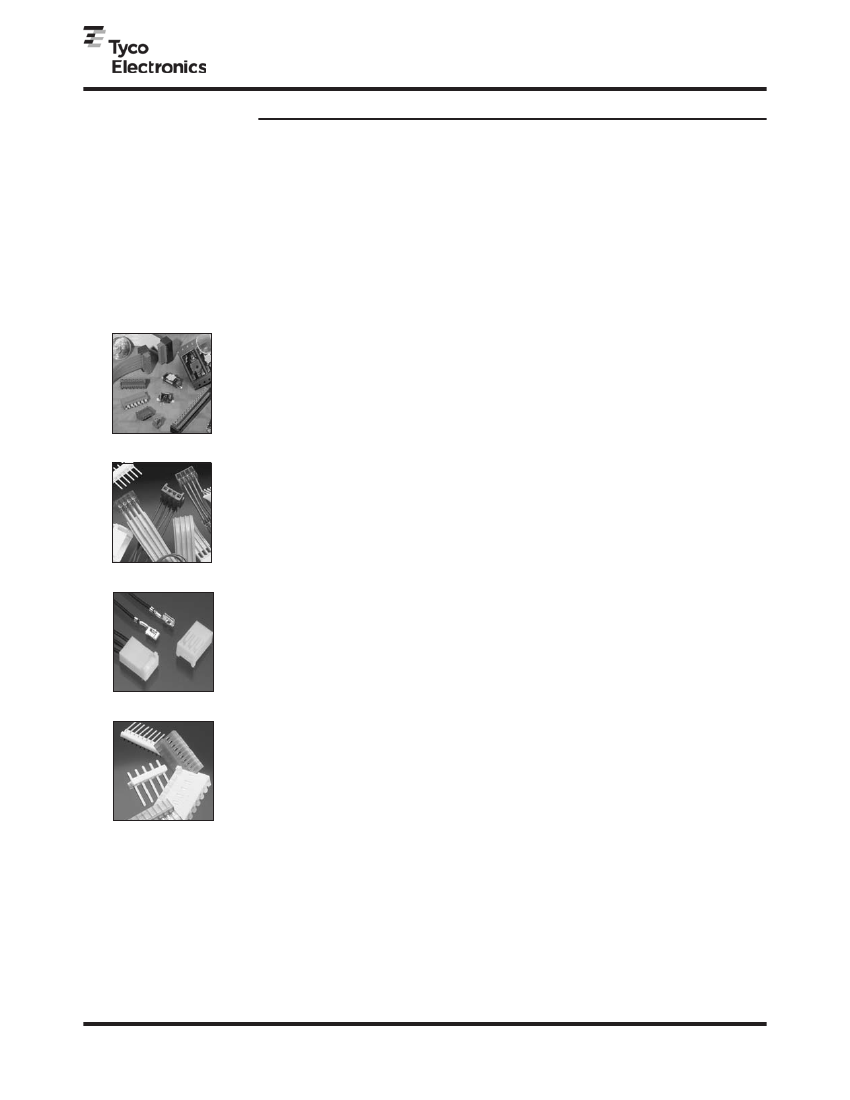

Introduction
This catalog has been designed
to assist you, our customer, iden-
tify products to satisfy your con-
nector needs for printed circuit
board headers, mass termination
connectors preloaded with con-
tacts, crimp-snap contacts and
housings, and card edge con-
nectors with preloaded contacts.
The list at right identifies by
centerline the types of product
available and is meant to be of
assistance to you in the product
selection process.
IDC
MTA-50
IDC
MTA-100
Crimp
CST-100 II
IDC
MTA-156
© 1977, 1978, 1979, 1980, 1983, 1986,
1988, 1992, 1993, 1994, 1995, 1999,
2000, 2001, 2002, 2003 and 2005 by
Tyco Electronics Corporation.
All International Rights Reserved.
AMP, AMP-O-LECTRIC, AMP-O-MATIC,
AMPOMATOR, CERTI-CRIMP,
PRO-CRIMPER, MADISON CABLE and
TYCO are trademarks.
TEFLON is a trademark of E.I. DuPont
De Nemours and Company.
Other products, logos, and company
names mentioned herein may be
trademarks of their respective owners.
Introduction and Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 3
Connector Selection Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
.050 [1.27] Centerline Connectors
MTA-50 IDC Connectors and Headers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
Introduction and Wire-to-Board Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
IDC Connector Kits (Feed-Thru and Closed End)
Ribbon Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 6
Discrete Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
Through-Hole Header Assemblies
Vertical and Right-Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Surface Mount Header Assemblies
Vertical and Right-Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
.100 [2.54] Centerline Connectors
MTA-100 IDC Connectors and Headers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-31
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wire-to-Board Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12, 13
Connectors — UL94V-2 and UL94V-0
Closed End with and without Polarizing Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 15
Feed-Thru with and without Polarizing Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
LED Closed End and Feed-Thru — UL94V-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 15
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 17
Posted Connectors Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 19
MTA-100 Posted Connectors (Wire-to-Wire) UL94V-2
Closed End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Feed-Thru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Headers — UL94V-0
Flat — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Narrow Flat — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Polarized — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Friction Lock — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Headers with Retention Peg — Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
High Profile Headers — Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Polarized — High Temperature, Straight and Right-Angle Posts . . . . . . . . . . . . . . . . .27
Friction Lock — High Temperature, Straight and Right-Angle Posts . . . . . . . . . . . . . .28
Polarized — Surface Mount, Straight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Friction Lock — Surface Mount, Straight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Shrouded — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
CST-100 II Crimp Contacts, Housings and Shrouded Headers
. . . . . . . . . . . . . . . . . . . . . . . . .31, 32
.156 [3.96] Centerline Connectors
MTA-156 IDC Connectors and Headers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-57
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Wire-to-Board Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34, 35
Connectors — UL94V-2 and UL94V-0
Closed End with Locking Ramp, with and without Polarizing Tabs . . . . . . . . . . .36, 37
Closed End without Locking Ramp, with and without Polarizing Tabs . . . . . . . . .36, 37
Feed-Thru with Locking Ramp, with and without Polarizing Tabs . . . . . . . . . . . . .38, 39
Feed-Thru without Locking Ramp, with and without Polarizing Tabs . . . . . . . . . . .38, 39
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-42
Posted Connectors Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43, 44
MTA-156 Posted Connectors (Wire-to-Wire) — UL94V-2
Closed End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Feed-Thru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
MTA-156 Headers — UL94V-0
Flat — Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Flat — Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Friction Lock — Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Friction Lock — Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Polarized Lock — Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Polarized Lock — Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Friction Lock — High Temperature, Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Shrouded — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
MTA-156 Quad Connectors — UL94V-0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54, 55
Closed End with Locking Ramp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Feed-Thru with Locking Ramp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
2
Catalog 82056
Revised 6-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341

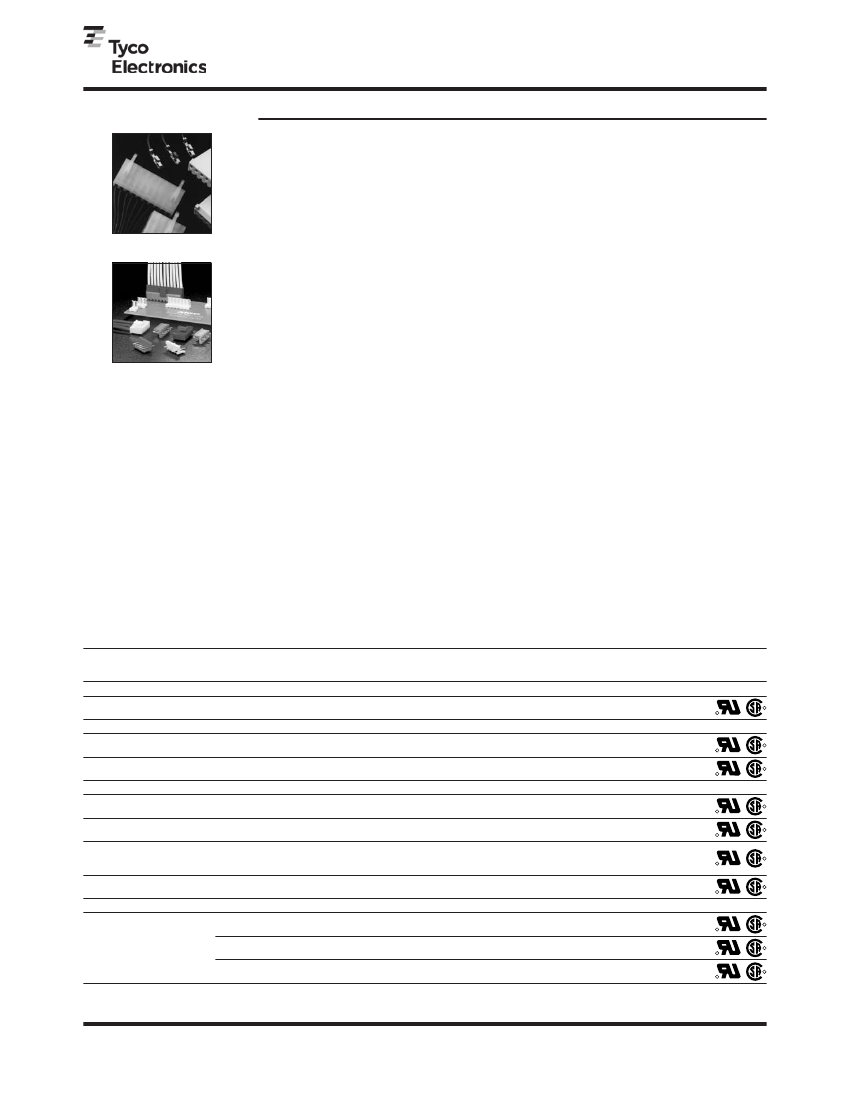

MTA, CST-100 II, SL-156 and
AMP Economy Power (EP) Connectors
Table of Contents
(Continued)
MTA-156 Card Edge
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56, 57
Connectors — UL94V-0
Closed End with and without Mounting Ears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Feed-Thru with and without Mounting Ears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
SL-156 Crimp Connectors and Headers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58-62
Wire-to-Board Mateability Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Wire-to-Board Crimp Contacts and Keying Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Wire-to-Board Housings — UL94V-0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Housings with Through Board Latch — UL94V-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Housings and Contacts for Large Insulation Diameter (LID) Wire . . . . . . . . . . . . . . . . . .62
AMP Economy Power (EP) Connector System
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63-69
.156 [3.96] Centerline Connectors
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Crimp Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Plug Housings, Low-Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Low-Profile Headers — Straight and Right-Angle Posts . . . . . . . . . . . . . . . . . . . . . . . . . .65
Low-Profile Headers, High Temp. — Straight and Right-Angle Posts . . . . . . . . . . . . . . .66
.200 [5.08] Centerline Connectors
Plug Housings and Straight and Right-Angle Post Headers . . . . . . . . . . . . . . . . . . . . . .67
.312 [7.92] Centerline Connectors
Low-Profile Headers — Straight Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Single Connectors
1-Position Plug Housing and High-Profile Header — Straight Post . . . . . . . . . . . . . . . . .69
MTA Wire Selection and Ribbon Cable Preparation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
IDC Ribbon Cable
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71-74
MTA Wire Termination Flowchart
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
MTA Application Tooling
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76-79
Part Number Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80-82
Global Contacts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Crimp
SL-156
Crimp
AMP EP Connectors
Need more information?
Call Technical Support at the
numbers listed below.
Technical Support is staffed
with specialists well versed
in Tyco Electronics products.
They can provide you with:
I
Technical support
I
Catalogs
I
Technical Documents
I
Product Samples
I
Authorized Distributor
Locations
Connector Selection Guide
Product Name
.050" Centerline
MTA-50 IDC Connector
Kits and Headers
.100" Centerline
MTA-100 Connectors
and Headers
CST-100 II Contacts
and Housings
.156" Centerline
MTA-156 Connectors
and Headers
Quad Connectors
SL-156 Contacts
and Housings
Contact
Center- Termin- Wire-to-
No. of
Wire
line
Positions
ation
Option
.050
1.27
.100
2.54
.100
2.54
.156
3.96
.156
3.96
.156
3.96
Wire
Wire
Size Insulation
(AWG) Dia. Max.
.039*
0.99
.060*
1.52
.065
1.65
.095*
2.41
.095*
2.41
.105
2.67
.112
2.84
.118
3.00
.118
3.00
.118
3.00
Current
Rating
(A)**
Voltage
Operating
Replace-
UL
Rating
Temp.
ment
Approvals
Max. (VAC) Range (°C) Flammability Contacts
IDC
Planned
2–28
30–26
1
30
–55 to +105 V-0 & V-2
No
R
R
IDC
Yes
2–28
2–28
28–22
26–22
5
4
250
250
–55 to +105 V-0 & V-2
–55 to +105
V-0
Yes
Yes
R
R
Crimp Planned
R
R
IDC
IDC
Crimp
Crimp
Yes
No
No
No
2–24
2–12
26–18
22–18
7
12.5
10
10
8 (1 pos.)
7.5 (2–12 Pos.)
7.5 (2–12 Pos.)
7.5 (2–5 Pos.)
600
600
250
250
–55 to +105 V-0 & V-2
–55 to +105
–25 to +105
–25 to +105
V-0
V-0
V-0
Yes
Yes
Yes
Yes
R
R
R
R
1–24; 2–10
w/ through 24–18
board latch
2–24
24–16
R
R
SL-156 Large Ins. Dia. (LID)
.156
Contacts and Housings
3.96
.156", .200" and .312" Centerlines
.156
3.96
AMP Economy Power
.200
(EP) Connector System
5.08
.312
7.92
R
R
Crimp
Crimp
Crimp
No
No
No
1–12
2–12
2–5
22–18
22–18
22–18
250
250
250
–25 to +105
–25 to +105
–25 to +105
V-0
V-0
V-0
Yes
Yes
Yes
R
R
R
R
R
R
**
When terminated one position at a time.
** Current Rating is application dependent.
3
Catalog 82056
Revised 6-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341

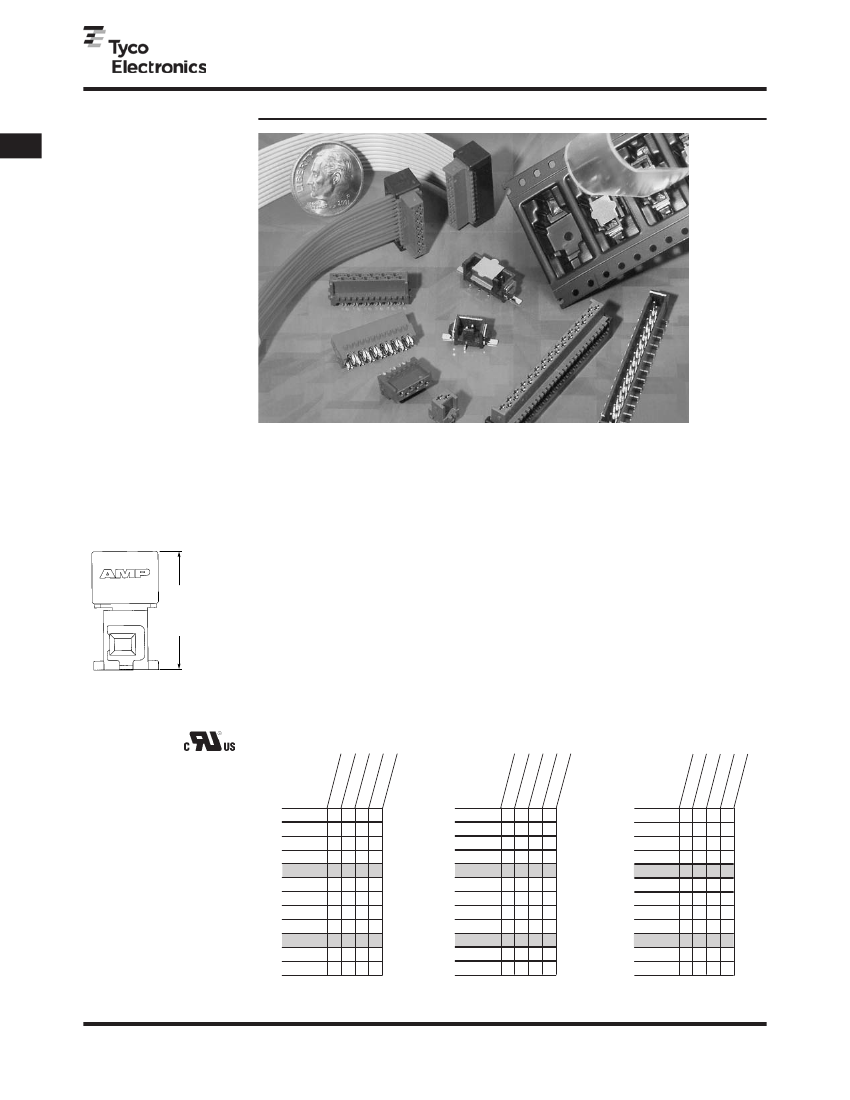

MTA, CST-100 II, SL-156 and
AMP Economy Power (EP) Connectors
MTA-50 IDC Connectors and Headers
Product Facts
I
I
I
I
I
I
I
I
I
I
I
I
2–28 contact positions
Connectors terminate 26,
28 and 30 AWG discrete wire
or .050 [1.27] centerline rib-
bon cable
Color-coded housings
Maximum cable insulation
diameter of .039 [0.99] with
PVC insulation only
IDC contacts pre-loaded in
receptacle housing
30 V, 1 A contact rating
Contact design allows for
gold-to-gold or tin-to-tin
interface
Contacts are lubricated to
prevent fretting corrosion
Wire feed-thru capability for
daisy-chain wiring or closed
end for point-to-point wiring
Connectors are polarized for
proper mating
Manual and semiautomatic
application tooling
Mating heights shown below:
MTA-50
.050 [1.27]
.503
[12.78]
or
.254
[6.45]
Max.
Vertical
Max.
Right-Angle
The MTA-50 IDC Connector
System is a wire-to-printed cir-
cuit board system with con-
tacts in a staggered, single
row on .050 [1.27] centerline.
The design features wire feed-
through capability for daisy-
chain applications. Insulation
displacement contacts are
used to terminate a wide
range of conductor sizes.
Ribbon cable can also be ter-
minated when the appropriate
receptacle assembly and
strain relief cover are used.
Header assemblies for board
mount applications include
right-angle (horizontal) and
vertical mount products.
These are available in
through-hole and surface
mount configurations.
Typical uses of the MTA-50
IDC connectors would be in
the Appliance, Commercial
and Home Equipment and
Security products industries.
See the following pages for
related products:
I
Ribbon Cable (reels), .050
[1.27] centerline (p. 71)
I
Application Tooling (p. 76)
I
Cable Assemblies (p. 74)
Dielectric Withstanding Voltage
—
500 VAC
Insulation Resistance
—
1,000 megohms
Operating Temperature
—
–55°C to +105°C for connector only;
cable rating may be lower
Technical Documents
Application Specification
—
114-13072 MTA-50 Connectors
Product Specifications
—
108-2113 MTA-50 Connectors
100-4703 MADISON CABLE Cable
Specification (28 AWG,
7/36 Tinned copper,
PVC insulation)
100-6257 MADISON CABLE Cable
Specification (28 AWG,
7/36 Tinned copper,
TPO insulation)
Performance Data
Voltage Rating
— 30 VAC
Current Rating
— 1 amp max.
Low-Level Resistance
—
30 milliohms
I
1445
120
1445
121
1445
169
1445
172
1445
125
1445
126
1445
171
1445
174
These matrixes have been
prepared to assist you in
defining the correct mating
halves for the MTA-50 header
and connector kit combina-
tion. Where a “Y” is indicated
the combination is a valid
mating pair.
Note:
Tyco Electronics does NOT rec-
ommend intermating connectors and
headers with different contact plat-
ings.
1445341
1445344
1445347
1445350
1445353
1445356
1445359
1445362
1445365
1445368
1445371
1445374
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
1445343
1445346
1445349
1445352
1445355
1445358
1445361
1445364
1445367
1445370
1445373
1445376
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
1445342
1445345
1445348
1445351
1445354
1445357
1445360
1445363
1445366
1445369
1445372
1445375
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Connector Kits
Connector Kits
Matrix for Tin Plated
Part Numbers
Matrix for .000030 [0.00076]
Gold Plated Part Numbers
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
4
Catalog 82056
Revised 6-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
Connector Kits
Matrix for .000015 [0.00038]
Gold Plated Part Numbers
1445
123
1445
124
1445
170
1445
173
Component Recognized by
Underwriters Laboratories
Inc. to US and Canadian
Standards,
File No. E28476
(Connectors and Headers)
File No. E53793
(Ribbon Cable)
MTA-50 IDC Connector Kit / Header Mateability Guide
Headers
Headers
Headers
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y

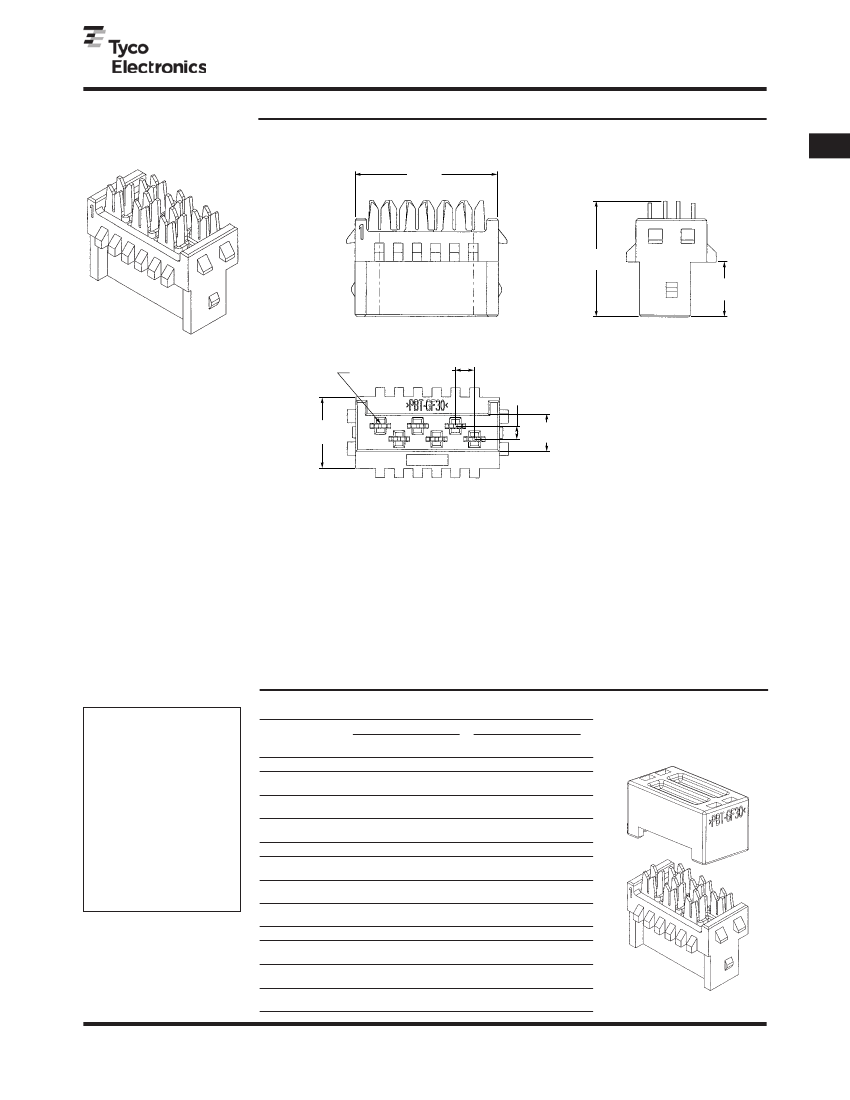

MTA, CST-100 II, SL-156 and
AMP Economy Power (EP) Connectors
MTA-50 IDC Connectors and Headers
(Continued)
Feed-Thru and Closed End
Connectors
Receptacle Assemblies — Ribbon Cable
±
.004
[± 0.10]
(See Note 1)
MTA-50
.050 [1.27]
A
.315
±
.006
[8.00
±
0.15
]
.150
[3.81]
Material and Finish
Housing
— UL 94V-2 rated, thermo-
plastic
Contacts
— Phosphor bronze;
.000100 [0.00254] min. tin in wire
termination area, over .000050 [0.00127]
min. nickel; choice on mating end:
.000100 [0.00254] min. tin or
.000030 [0.00076] gold or
.000015 [0.00038] gold, over
.000050 [0.00127] min. nickel
Position 1
.050
Ref.
[1.27]
.035
Ref.
[0.89]
.190
±
.003
[4.83
±
0.08
]
.100
±
.003
[2.54
±
0.08
]
Notes:
1. To determine connector overall
length (dim. A), multiply .050 x the
number of circuits and add .082.
Example: .050 x 10 circuits
equals 0.50 + .082 = .582 [14.78].
2. Strain relief covers shown on
page 6 are required and sold as
part of the Connector Kit.
3. Stranded UL Style 1061 or equiv-
alent wire is recommended.
Color Coding by Wire Size for
UL94V-0 Connectors
26 AWG
— Blue
28 AWG
— Green
30 AWG
— Brown
For Strain Relief Covers see
page 6.
For mating Headers see
pages 9 and 10.
For Mateability Guide, see
matrixes on page 4.
4. Unless otherwise stated all toler-
ances (except plating) to be ±.005
[±0.13].
5. Consult Product Drawing for
RoHS Compliant information.
Connector Kits — Ribbon Cable
Base Part Numbers
Connector
Type &
Wire Size
Feed-Thru
Connector Kit
No. of
Part Nos.
Circuits
Closed End
Connector Kit
No. of
Part Nos.
Circuits
Connector Kit Ordering
Information
Connector Kit consists of
Receptacle Assembly and
Strain Relief Cover.
Base part number prefixes
and suffixes indicate the
number of circuit positions,
for example: Base part num-
ber 1445359
2 position = 0-1445359-2
and
28 position = 2-1445359-8
Note:
Tin-plated connectors and
headers in even position sizes from
2–12 and 18 are stocked parts; all
other position sizes and products
with gold-plated contacts are
Make To Order.
Tin Plated
26 AWG
1445359
0.12–0.15 mm
2
28 AWG
1445362
0.08–0.09 mm
2
30 AWG
1445365
0.05–0.06 mm
2
.000030 [0.00076] Gold Plated
26 AWG
1445361
0.12–0.15 mm
2
28 AWG
1445364
0.08–0.09 mm
2
30 AWG
1445367
0.05–0.06 mm
2
.000015 [0.00038] Gold Plated
26 AWG
1445360
0.12–0.15 mm
2
28 AWG
1445363
0.08–0.09 mm
2
30 AWG
1445366
0.05–0.06 mm
2
2–28
2–28
2–28
1445368
1445371
1445374
2–28
2–28
2–28
2–28
2–28
2–28
1445370
1445373
1445376
2–28
2–28
2–28
2–28
2–28
2–28
1445369
1445372
1445375
2–28
2–28
2–28
5
Catalog 82056
Revised 6-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 52-55-1106-0800
C. America: 57-1-254-4444
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
Embedded System
京公网安备 11010802033920号
EEWORLD
