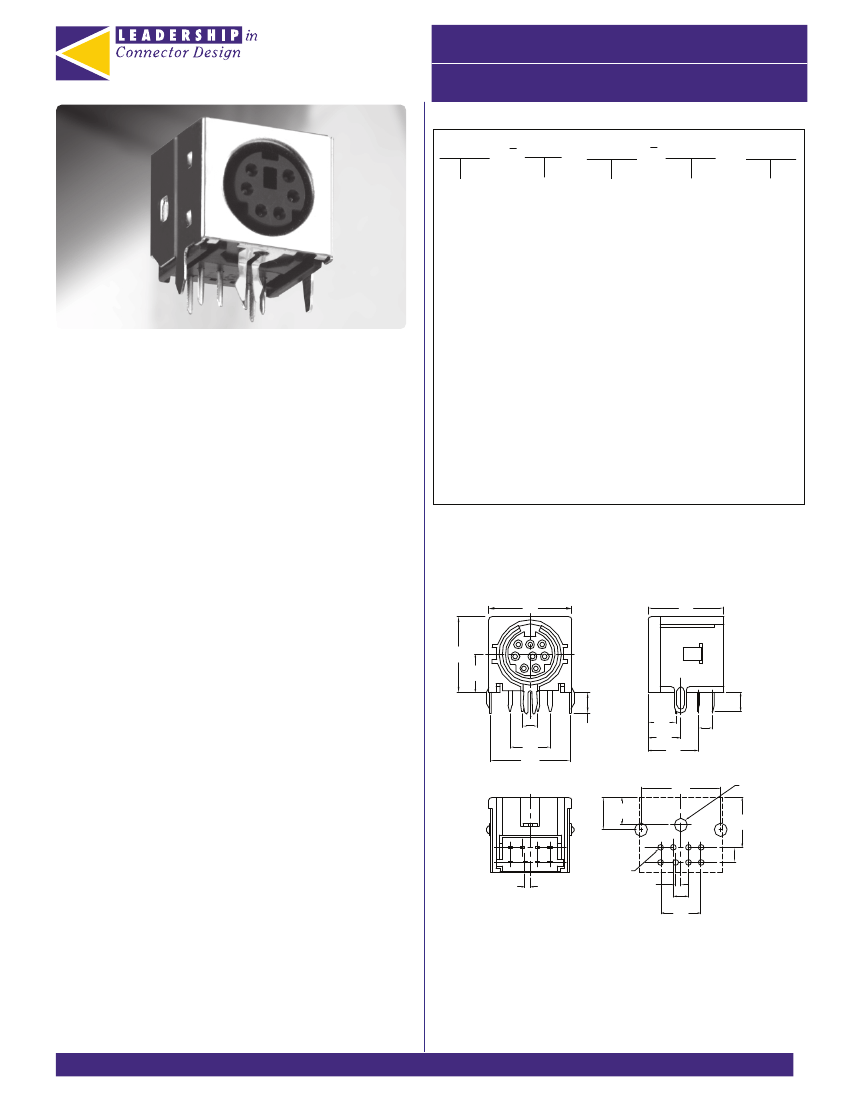

MINI-DINs / CIRCULAR DINs
KYCON
RoHS
KMDGXHT Series
Ordering Information
Series
Number of
Contacts
Contact
Type
Shielding
Option
Plating
Option
Series*
KMDGXHT - Reflow Compatible Version**
Number of Contacts
3, 4, 5, 6, 7, 8, 9
Contact Type
S - Receptacle
Shielding Option
N - Non-Shielded
AS - Sides and Back Shielded
BS - Fully Shielded
Plating Option
Standard -
Gold flash over nickel on contacts.
Tin over nickel on soldertails
KMDGXHT Series
Right Angle Mini-DIN
Features
• PC99 Colors Available
• Shielded Options Available for Good Conductivity,Grounding
and EMI/RFI Protection
• Mates with Standard and Snap and Lock Plugs
• Visual and Mechanical Polarization for Plug Insertion
• Reflow Compatible Design Available
• CSA/NRTL Certified File No. LR78160
Contact Kycon for other Options
*KMDGX-GEO-7S-BS also available
KMDGX Series
14.0
12.8
Performance Specifications
12.8
Body
8
5
7
4
2
1
6
3
Phosphor Bronze, Gold Plated
2.60
6.80
13.50
3.5±0.30
4.70
5.50
8.50
Recommended PCB Layout
(Bottom View)
2.50
Shield
5.50
4.70
Durability :
500 Cycles Minimum
8
7
4
6
8
7
4
6
Ø0.90
0.90
0.90
2.60
6.80
Electrical Characteristics
Contact Current Rating :
2 Amp at 12V DC
Insulation Resistance :
500 Megohms Min at 500V DC
Contact Resistance
Before Durability Test :
Plug to Terminals: 30 Milliohms Max
After Durability Test :
Plug to Terminals: 60 Milliohms Max.
Dielectric Withstanding Voltage :
500V AC for 1 Minute
Operating Temperature :
-25˚C to +85˚C
KYCON, Inc. • Tel:
+1 408-494-0330
• US: 1-888-KYCON-22 • Fax:
+1
408-494-0325 • www.kycon.com
2.50
Insertion Force :
4.5 kg max.
Extraction Force :
0.4 kg - 3.5 kg
5
2
1
3
5
2
1
3
8.50
Mechanical Characteristics
Standard: Brass, Tin Plated
HT: Brass, Nickel Plated
13.50
3.18±0.30
KMDGX - PBT Thermoplastic, Black, Purple, Green
or Yellow Color, UL94V-0 Rated
KMDGXHT - High Temperature Thermoplastic, Black Color,
UL94V-0 Rated
Contacts
6.50
3-Ø2.20
