V15H22-CZ100B-04 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> V15H22-CZ100B-04

V15H22-CZ100B-04: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, Quick Connect Terminal, Simulated Roller Lever Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size260KB，6 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

V15H22-CZ100B-04 Overview

Snap Acting/Limit Switch, SPDT, Momentary, Quick Connect Terminal, Simulated Roller Lever Actuator, Panel Mount

V15H22-CZ100B-04 Parametric

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	SIMULATED ROLLER LEVER

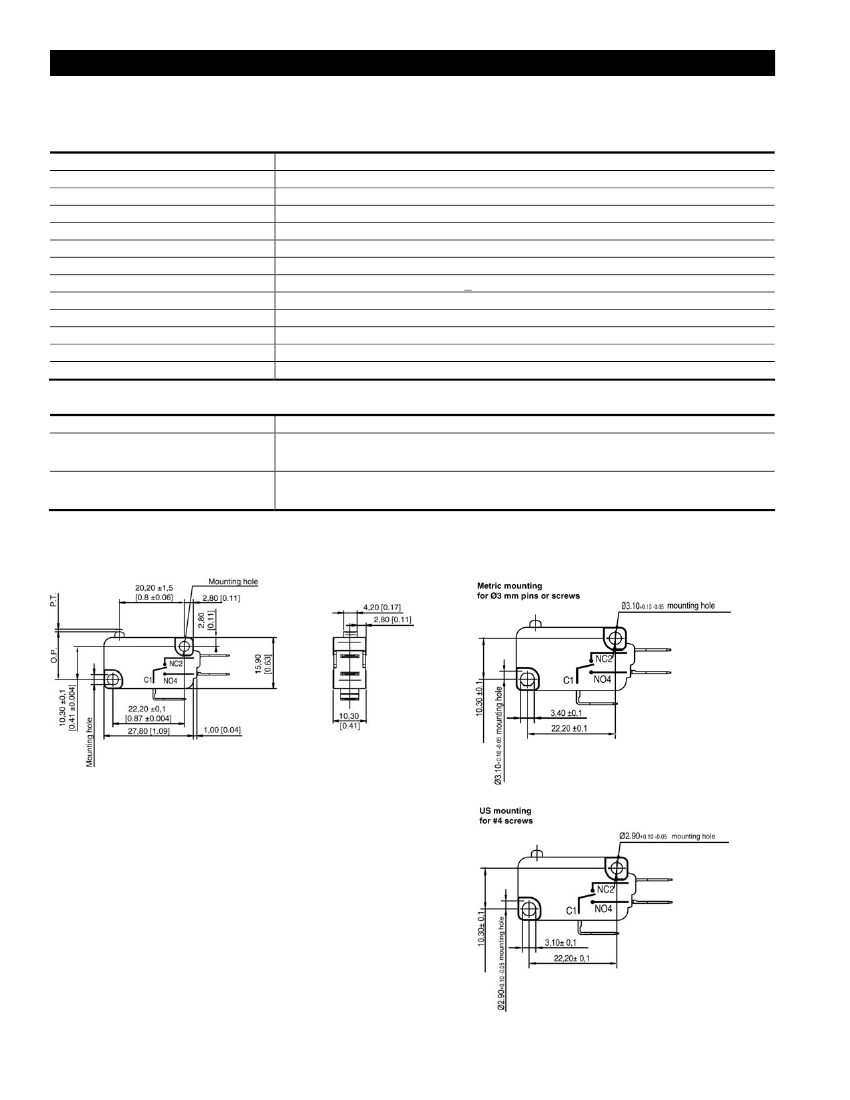

body width	10.3 mm
body height	15.9 mm
Body length or diameter	27.8 mm
Contact (AC) maximum rated R load	22A@250VAC
Maximum contact current (AC)	22 A
Maximum contact voltage (AC)	250 V
Electrical life	6000 Cycle(s)
Manufacturer's serial number	V15
Installation features	PANEL MOUNT
Maximum operating force	0.98 N
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT

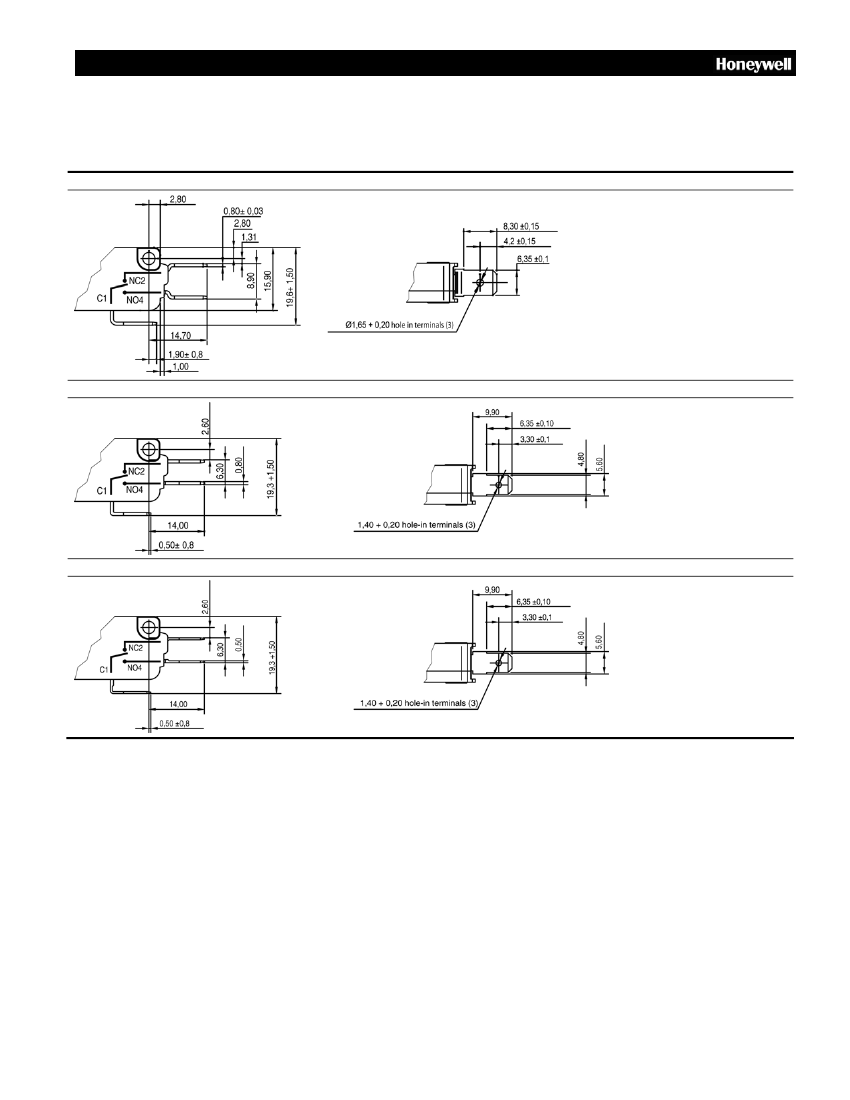

Preview

Download Datasheet

View All

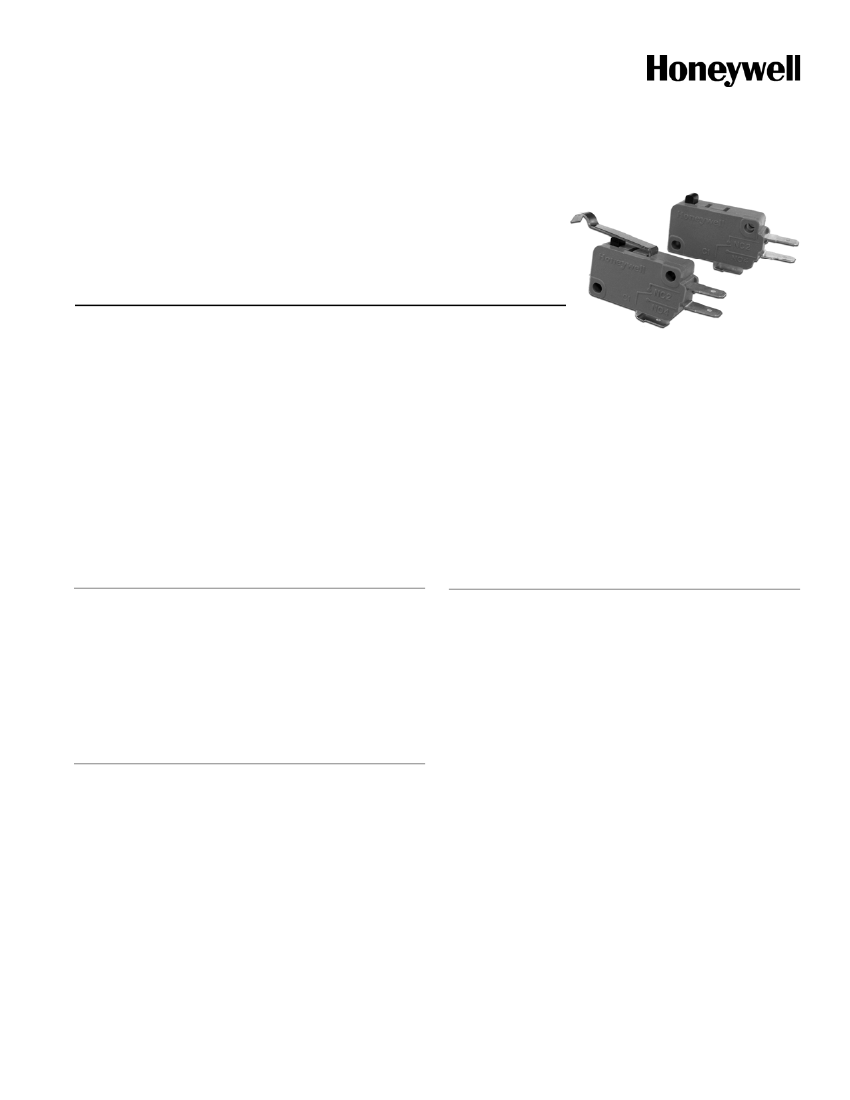

V-Basic Standard V15 Series

Electromechanical Basic Switch

DESCRIPTION

Honeywell’s V-Basic Standard V15 series is an

electromechanical switch designed for enhanced reliability at a

great value. This switch is often ideal for “low-cost-of-failure” –

where the cost to replace the switch or to service any failure

related to the switch is minimal. The V15 is designed for

applications requiring

≥

100 g of operating force and electrical

ratings ranging from 16A to 22A.

FEATURES

•

Broad range of electrical loads

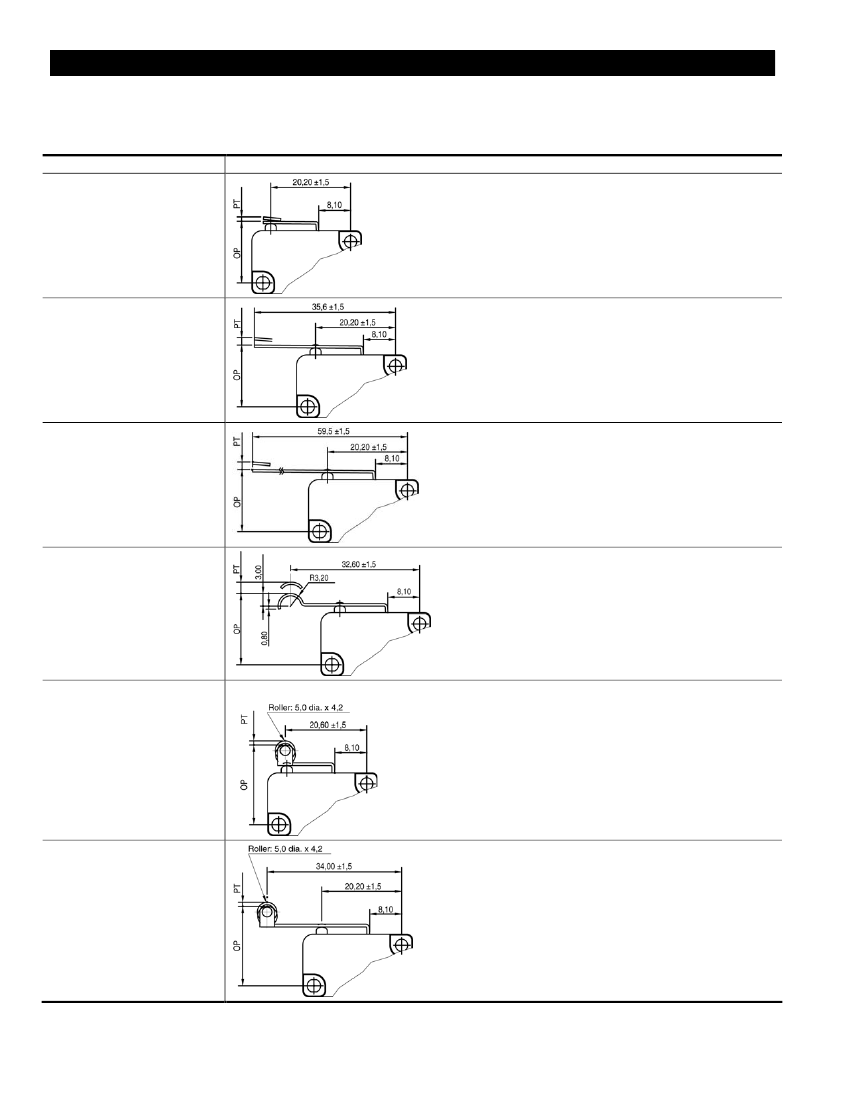

Straight, roller, simulated roller, and special actuators

Special terminations available upon request

Precision operation and application versatility

Wide temperature range

Global approvals (ENEC, CQC, UL, cUL)

•

POTENTIAL APPLICATIONS

Appliance

Gaming

Vending machines

Water heaters

Industrial controls

The V15 Series switch offers a wide range of standard

offerings, including a choice of actuators, electrical ratings,

operating forces, and circuitry, and holds global approvals

(ENEC, CQC, UL, cUL).

BENEFITS

•

Compatible with many applications due to the switches

design flexibility, broad range of electrical loads, and

actuators

•

Accepts insulated connections, most quick connect

openings

Reliability, repeatability within range of conditions
