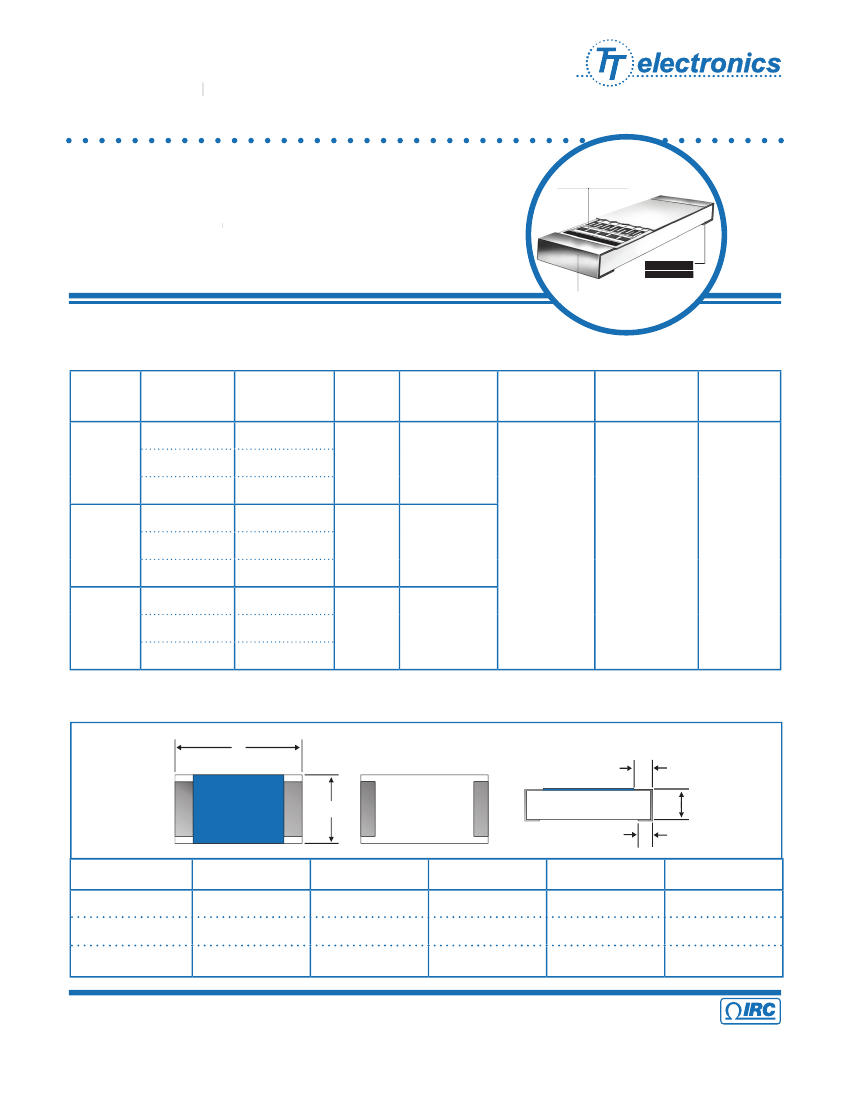

High Temperature
TaNFilm
®
Chip Resistors
PFC HT Series
•
Available in industry standard 0603, 0805 and 1206 chip sizes
•
Gold and 100% tin (Pb-free) terminations available
•
Self-passivating TaNFilm
®
element
•
Absolute TCR to ±25ppm/°C
IRC Advanced Film Division
Ultra stable Tantalum Nitride
resistor fi
lm system
Non-leaching
Nickel barrier
Wrap around
termination
Electrical Data
Model
Ohmic Range
10Ω to 10KΩ
W0603HT
25Ω to 10KΩ
50Ω to 10KΩ
10Ω to 20KΩ
W0805HT
25Ω to 20KΩ
50Ω to 20KΩ
5Ω to 85KΩ
W1206HT
25Ω to 85KΩ
50Ω to 85KΩ
Absolute TCR
±100ppm/°C
±50ppm/°C
±25ppm/°C
±100ppm/°C
±50ppm/°C
±25ppm/°C
±100ppm/°C
±50ppm/°C
±25ppm/°C
0.125W
100V
0.100W
50V
-55°C to 200°C
Gold and 100%
tin (Pb-free)
99.5%
Alumina
0.0625W
33.3V
Rated
Power
Rated Voltage
(not to exceed
rated power)
Temperature
Range
Termination
Substrate
Physical Data
L
a
TOP
W
BOTTOM
SIDE
b
H
L
W0603
W0805
W1206
0.063”±0.004”
0.081”±0.005”
0.126”±0.006”
W
0.031” ±0.004”
0.050”±0.020”
0.063”±0.005”
H
0.020” ±0.004”
0.020”±0.004”
0.024”±0.004”
a
0.012”±0.005”
0.016”±0.005”
0.025”±0.010”
b
0.015”±0.005”
0.016”±0.008”
0.025”±0.010”
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
A subsidiary of
TT electronics plc
PFC Hi Temp Series Issue May 2005
High Temperature
TaNFilm
®
Chip Resistors
Performance Data
Environmental Test
MIL-PRF-55342
Thermal Shock
Short Time Overload
High Temperature Exposure
Effects of Solder
Moisture Resistance
Life
(1000 hours, 200°C, no load )
IRC Advanced Film Division
Rated Power vs Temperature Data
Performance
Maximum
±0.10%
±0.05%
±0.10%
±0.10%
±0.10%
±1.0%
±0.5%
100
Typical
±0.02%
±0.02%
±0.03%
±0.01%
±0.03%
±0.8%
±0.2%
% Rated Power
50
50
100
150
200
Temperature in °C
Life
(1000 hours, 150°C, rated power )
Ordering Data
Prefix
Chip Size
W1206; W0805; W0603
PFC - W1206 HT - 01 - 1001 - F
Termination
HT = High temperature chip resistor with gold plated terminations
HTLF = High temperature chip resistor with 100% tin (Pb-free) terminations
TCR Code
01 = ±100ppm/°C; 02 = ±50ppm/°C; 03 = ±25ppm/°C
Resistance Code
4-Digit resistance code. Ex: 1002 = 10KΩ; 50R0 = 50Ω
Tolerance Code
J = ±5%; G = ±2%; F = ±1%
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
PFC Hi Temp Series Issue May 2005
