Manufactured and tested in accordance with EN60950 and EN61558
Specifications:
Maximum winding temperature
Overall insulation rating
Flash test (isolation test)
Winding wire
Tape
Core
Finish
:
:
:
:
:
:
:
55°C
> 50 MΩ (at 500 V, 20°C)
Primary / secondary / lamination 2.4 kV
rms
Polyurethane coated IEC317 grade 1
3M no 56 or 36M no 1350Y thermosetting
400 / 50
Ultimeg 3.72 clear

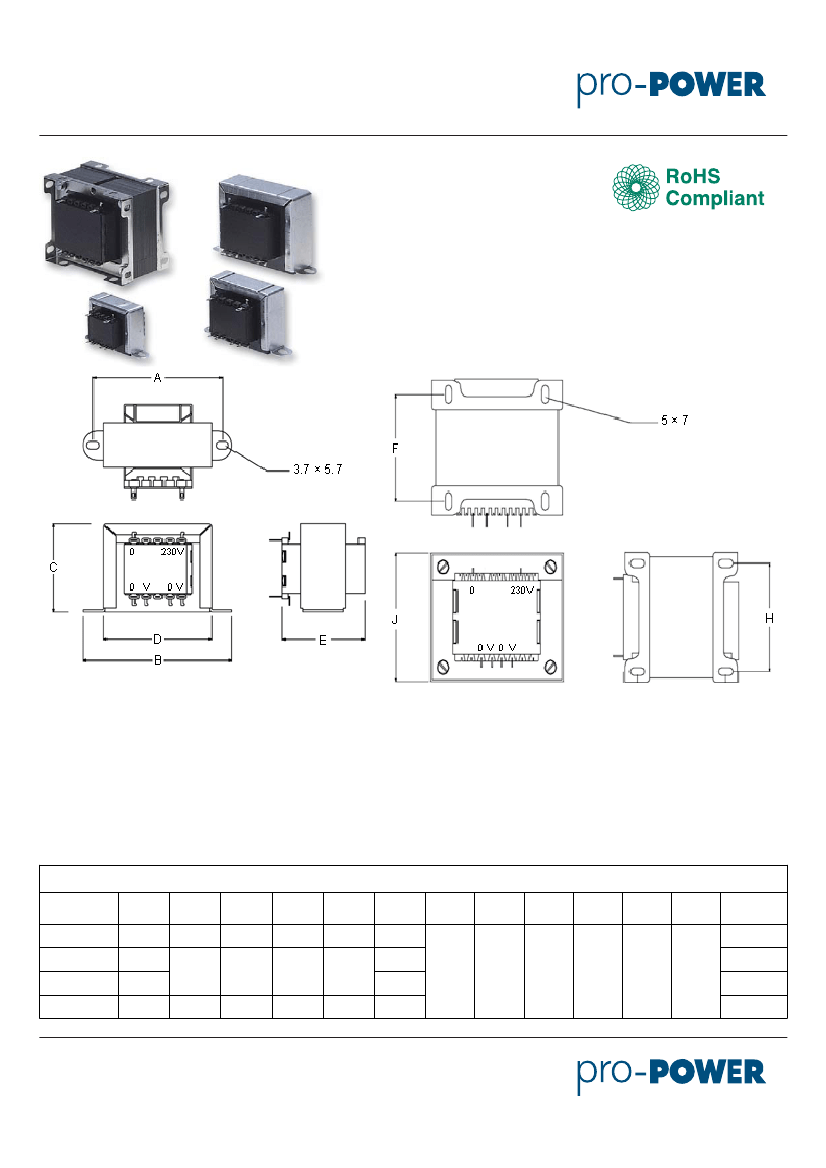

Dimensions : Millimetres
Dimension Table
Dimensions
VA
Rating
6
12
20
50
Reg%
24
16
12
9
A
55
74
94
B
68
90
106
C
37
50
65
D
45
60
79
E
36
45
52
53
-
-
-
-
-
-
F
G
H
I
J
K
Weight (g)
170
390
530
985
Dimensions : Millimetres
www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
<Page 1>
20/12/11 V1.1
Transformers
Chassis Mount
Dimension Table
Dimensions
VA
Rating
100
150
200
Tolerance
Reg%
10
9
8
2
-
-
-
-
-
A
B
C
D
E
F
45
68
±1
G
57
72
H
57
56
I
89
102
J
75
85
K
65
85
Weight (g)
1,550
2,750
approximate
Dimensions : Millimetres
Specifications Table
Description
Transformer, 6 VA, 2 × 5 V
Transformer, 6 VA, 2 × 6 V
Transformer, 6 VA, 2 × 9 V
Transformer, 6 VA, 2 × 12 V
Transformer, 6 VA, 2 × 15 V
Transformer, 6 VA, 2 ×18 V
Transformer, 6 VA, 2 × 20 V
Transformer, 6 VA, 2 × 24 V
Transformer, 12 VA, 2 × 6 V
Transformer, 12 VA, 2 × 9 V
Transformer, 12 VA, 2 × 12 V
Transformer, 12 VA, 2 × 20 V
Transformer, 12 VA, 2 × 24 V
Transformer, 20 VA, 2 × 6 V
Transformer, 20 VA, 2 × 9 V
Transformer, 20 VA, 2 × 12 V
Transformer, 20 VA, 2 × 15 V
Transformer, 20 VA, 2 × 18 V
Transformer, 20 VA, 2 × 20 V
Transformer, 20 VA, 2 × 24 V
Transformer, 50 VA, 2 × 6 V
Transformer, 50 VA, 2 × 12 V
Transformer, 50 VA, 2 × 15 V
Transformer, 50 VA, 2 × 18 V
Transformer, 50 VA, 2 × 24 V
50
20
12
6
VA
Output V
ac
2×5
2×6
2×9
2 × 12
2 × 15
2 × 18
2 × 20
2 × 24
2×6
2×9
2 × 12
2 × 20
2 × 24
2×6
2×9
2 × 12
2 × 15
2 × 18
2 × 20
2 × 24
2×6
2 × 12
2 × 15
2 × 18
2 × 24
Part Number
CTFCS6-5
CTFCS6-6
CTFCS6-9
CTFCS6-12
CTFCS6-15
CTFCS6-18
CTFCS6-20
CTFCS6-24
CTFCS12-6
CTFCS12-9
CTFCS12-12
CTFCS12-20
CTFCS12-24
CTFCS20-6
CTFCS20-9
CTFCS20-12
CTFCS20-15
CTFCS20-18
CTFCS20-20
CTFCS20-24
CTFCS50-6
CTFCS50-12
CTFCS50-15
CTFCS50-18
CTFCS50-24
www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
<Page 2>
20/12/11 V1.1
Transformers
Chassis Mount
Specifications Table
Description
Transformer, 100 VA, 2 × 9 V
Transformer, 100 VA, 2 × 12 V
Transformer, 100 VA, 2 × 18 V
Transformer, 100 VA, 2 × 24 V
Transformer, 100 VA, 2 ×50 V
Transformer, 150 VA, 2 × 12 V
Transformer, 150 VA, 2 × 18 V
Transformer, 150 VA, 2 × 24 V
Transformer, 200 VA, 2 × 9 V
Transformer, 200 VA, 2 × 18 V
Transformer, 200 VA, 2 × 24 V
Transformer, 200 VA, 2 × 50 V
200
150
100
VA
Output V
ac
2×9
2 × 12
2 × 18
2 × 24
2 × 50
2 ×12
2 × 18
2 × 24
2×9
2 × 18
2 × 24
2 × 50
Part Number
CTFCS100-9
CTFCS100-12
CTFCS100-18
CTFCS100-24
CTFCS100-50
CTFCS150-12
CTFCS150-18
CTFCS150-24
CTFCS200-9
CTFCS200-18
CTFCS200-24
CTFCS200-50
Important Notice :
