BS62LV4006TA70

Description
Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 20 MM, TSOP-32
Categorystorage    storage
File Size393KB，12 Pages
ManufacturerBrilliance
Download Datasheet Parametric Compare View All

BS62LV4006TA70 Overview

Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 20 MM, TSOP-32

BS62LV4006TA70 Parametric

Parameter NameAttribute value
MakerBrilliance
Parts packaging codeTSOP
package instructionTSOP1,
Contacts32
Reach Compliance Codeunknown
ECCN code3A991.B.2.A
Maximum access time70 ns
JESD-30 codeR-PDSO-G32
length18.4 mm
memory density4194304 bit
Memory IC TypeSTANDARD SRAM
memory width8
Number of functions1
Number of terminals32
word count524288 words
character code512000
Operating modeASYNCHRONOUS
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
organize512KX8
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP1
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
Parallel/SerialPARALLEL
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.4 V
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
width8 mm

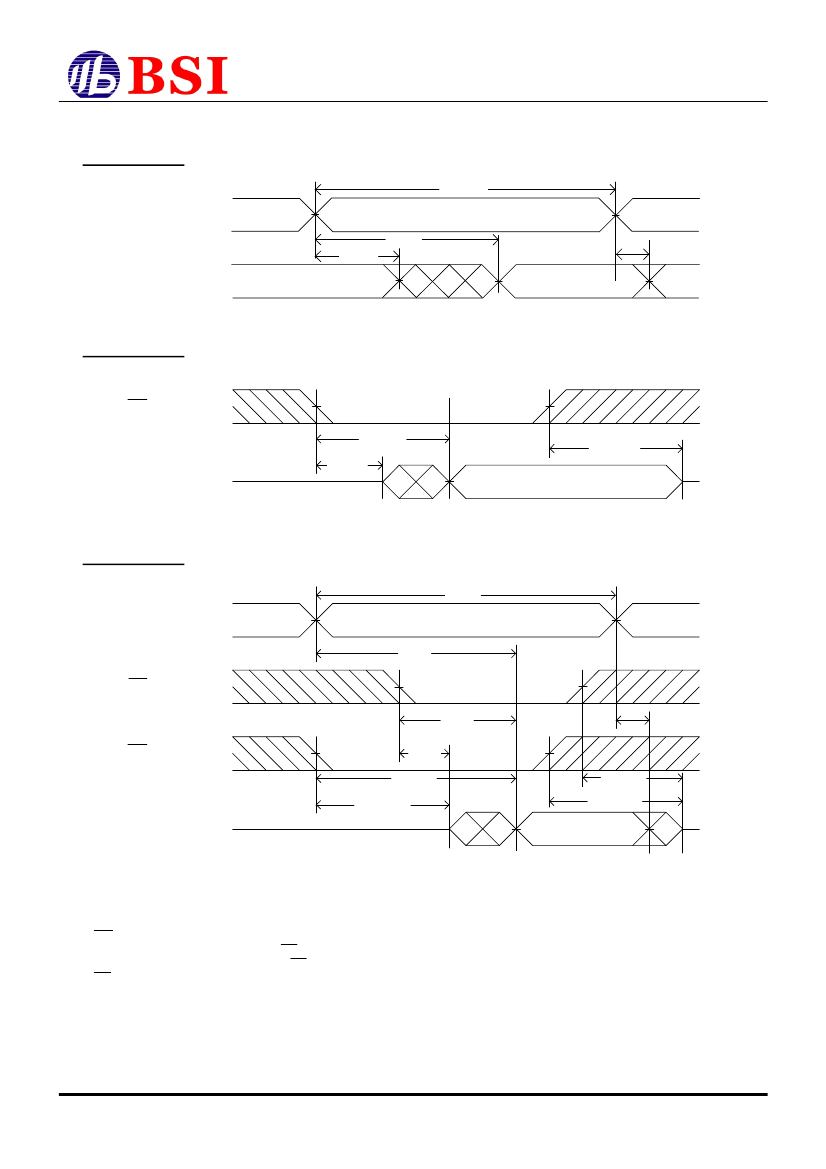

Preview

Download Datasheet

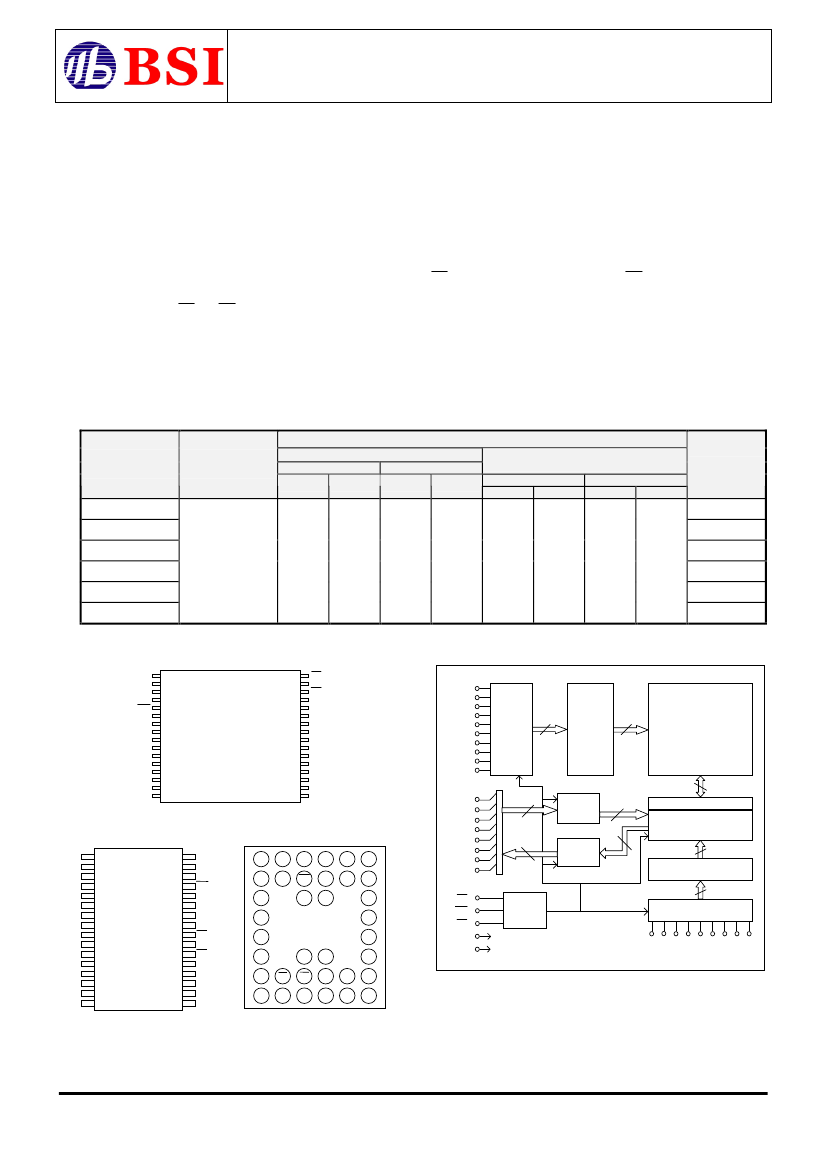

Very Low Power CMOS SRAM
512K X 8 bit
Green package materials are compliant to RoHS
Automotive Grade
BS62LV4006
n
FEATURES
Ÿ
Wide V
CC
operation voltage : 2.4V ~ 5.5V
Ÿ
Very low power consumption :
V
CC
= 3.0V
Operation current : 25mA (Max.) at 70ns
2mA (Max.) at 1MHz
Standby current : 0.25uA (Typ.) at 25
O
C
V
CC
= 5.0V
Operation current : 60mA (Max.) at 70ns
10mA (Max.) at 1MHz
Standby current : 1.5uA (Typ.) at 25
O
C
Ÿ
High speed access time :
-70
70ns (Max.) at V
CC
=2.7~5.5V
Ÿ
Automatic power down when chip is deselected
Ÿ
Easy expansion with CE and OE options
Ÿ
Three state outputs and TTL compatible
Ÿ
Fully static operation
Ÿ
Data retention supply voltage as low as 1.5V
n
DESCRIPTION
The BS62LV4006 is a high performance, very low power CMOS
Static Random Access Memory organized as 524,288 by 8 bits and
operates form a wide range of 2.4V to 5.5V supply voltage.
Advanced CMOS technology and circuit techniques provide both
high speed and low power features with typical CMOS standby
current of 0.25uA at 3.0V/25
O
C and maximum access time of 70ns at
2.7V/125
O
C.
Easy memory expansion is provided by an active LOW chip enable
(CE), and active LOW output enable (OE) and three-state output
drivers.
The BS62LV4006 has an automatic power down feature, reducing
the power consumption significantly when chip is deselected.
The BS62LV4006 is available in DICE form, JEDEC standard 32 pin
450mil Plastic SOP, 600mil Plastic DIP, 400mil TSOP-II,
8mmx13.4mm STSOP and 8mmx20mm TSOP package.
n
POWER CONSUMPTION
POWER DISSIPATION
PRODUCT
FAMILY
BS62LV4006EA
BS62LV4006HA
BS62LV4006PA
BS62LV4006SA
BS62LV4006STA
BS62LV4006TA
Automotive
Grade
O
-40 C to +125
O
C
1.5uA
0.25uA
50uA
25uA
10mA
60mA
2mA
25mA
OPERATING
TEMPERATURE
STANDBY
(I
CCSB1
, Typ.)
(I
CCSB1
, Max)
Operating
(I
CC
, Max)
PKG TYPE
V
CC
=5.0V
V
CC
=3.0V
V
CC
=5.0V
V
CC
=3.0V
V
CC
=5V
1MHz
f
Max.
V
CC
=3V
1MHz
f
Max.
TSOP II-32
BGA-36-0608
PDIP-32
SOP-32
STSOP-32
TSOP-32
n
PIN CONFIGURATIONS
n
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
OE
A10
CE
DQ7
DQ6
DQ5
DQ4
DQ3
GND
DQ2
DQ1
DQ0
A0
A1
A2
A3
BLOCK DIAGRAM
A12
A14
A16
A18
A15
A17
A13
A8
A9
A11
•
BS62LV4006TA
BS62LV4006STA
1
2
A1
A11
A9
A8
A13
WE
A17
A15
VCC
A18
A16
A14
A12
A7
A6
A5
A4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Address
Input
Buffer
10
Row
Decoder
1024
Memory Array
1024 x 4096
4096
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
8
Data
Input
Buffer
8
256
Column Decoder
9
CE
WE
OE
Control
Address Input Buffer
8
Column I/O
Write Driver
Sense Amp
3
NC
4
A3
5
A6
6
A8
8
A18
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
DQ1
DQ2
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
•
BS62LV4006EA
BS62LV4006SA
BS62LV4006PA
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VCC
A15
A17
WE
A13
A8
A9
A11
OE
A10
CE
DQ7
DQ6
DQ5
DQ4
DQ3
A
A0
Data
Output
Buffer
B
DQ4
A2
WE
A4
A7
DQ0
C
DQ5
NC
A5
DQ1
D
VSS
VCC
E
VCC
VSS
V
CC
GND
A7 A6 A5 A4 A3 A2 A1 A0 A0
F
DQ6
A18
A17
DQ2
G
DQ7
OE
CE
A16
A15
DQ3
H
A9
A10
A11
A12
A13
A14
36-ball BGA top view
Brilliance Semiconductor, Inc.
reserves the right to change products and specifications without notice.
R0201-BS62LV4006A
1
Revision 1.3A
Mar.
2006

BS62LV4006TA70 Related Products

BS62LV4006TA70 BS62LV4006EAG70 BS62LV4006STA70 BS62LV4006SAG70 BS62LV4006EA70 BS62LV4006SA70 BS62LV4006STAG70 BS62LV4006TAG70 BS62LV4006PA70 BS62LV4006PAG70
Description Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 20 MM, TSOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.400 INCH, GREEN, MS-024, TSOP2-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 13.40 MM, STSOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.450 INCH, GREEN, PLASTIC, SOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.400 INCH, MS-024, TSOP2-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 0.450 INCH, PLASTIC, SOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 13.40 MM, GREEN, STSOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDSO32, 8 X 20 MM, GREEN, TSOP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32 Standard SRAM, 512KX8, 70ns, CMOS, PDIP32, 0.600 INCH, GREEN, PLASTIC, DIP-32
Maker Brilliance Brilliance Brilliance Brilliance Brilliance Brilliance Brilliance Brilliance Brilliance Brilliance
Parts packaging code TSOP TSSOP2 TSOP SOIC TSSOP2 SOIC TSOP TSOP DIP DIP
package instruction TSOP1, TSOP2, TSOP1, SOP, TSOP2, SOP, TSOP1, TSOP1, DIP, DIP,
Contacts 32 32 32 32 32 32 32 32 32 32
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknow unknow
ECCN code 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A 3A991.B.2.A
Maximum access time 70 ns 70 ns 70 ns 70 ns 70 ns 70 ns 70 ns 70 ns 70 ns 70 ns
JESD-30 code R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDSO-G32 R-PDIP-T32 R-PDIP-T32
length 18.4 mm 20.95 mm 11.8 mm 20.447 mm 20.95 mm 20.447 mm 11.8 mm 18.4 mm 41.91 mm 41.91 mm
memory density 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bi 4194304 bi
Memory IC Type STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM
memory width 8 8 8 8 8 8 8 8 8 8
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 32 32 32 32 32 32 32 32 32 32
word count 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words 524288 words
character code 512000 512000 512000 512000 512000 512000 512000 512000 512000 512000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
organize 512KX8 512KX8 512KX8 512KX8 512KX8 512KX8 512KX8 512KX8 512KX8 512KX8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSOP1 TSOP2 TSOP1 SOP TSOP2 SOP TSOP1 TSOP1 DIP DIP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE IN-LINE IN-LINE
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V 2.4 V
Nominal supply voltage (Vsup) 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V
surface mount YES YES YES YES YES YES YES YES NO NO
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING THROUGH-HOLE THROUGH-HOLE
Terminal pitch 0.5 mm 1.27 mm 0.5 mm 1.27 mm 1.27 mm 1.27 mm 0.5 mm 0.5 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
width 8 mm 10.16 mm 8 mm 11.303 mm 10.16 mm 11.303 mm 8 mm 8 mm 15.24 mm 15.24 mm
Maximum seat height 1.2 mm 1.2 mm 1.2 mm 2.997 mm 1.2 mm 2.997 mm 1.2 mm 1.2 mm - -
Base Number Matches - 1 1 1 1 1 1 - - -

Recommended Resources

Product type phase frequency discriminator circuit diagram composed of MC1496 (quadrature frequency discriminator) (4.5MHz)

Stepper motor control circuit

Power line transmission temperature patrol detection receiving circuit

One of the high input and high output integrated regulated power supply circuits

Frequency converter speed regulating circuit with tracking setting box

The Origin of Transient Overvoltage Problems
Regarding the protection against transient overvoltage, I would like to recommend that you take a look at the origin of transient overvoltage so that you can design protection circuits....
lixiaohai8211 Analog electronics
Low EMI Noise Boost Converter Suitable for Powering NFC Modules
[font=normal 宋体, Arial, Helvetica, sans-serif][color=#000000][size=12px]Low EMI noise boost converter suitable for powering NFC module[/size][/color][/font] [align=left][color=#000]Transferred from: d...
okhxyyo Analogue and Mixed Signal
APM32E103VET6 Review: Serial Port (USART1)
Based on the previous project, new bsp_Usart.c and bsp_Usart.h are created to write the serial port test program of APM32E103VET6. This test program mainly tests the query transmission and interrupt t...
Zachary_yo Domestic Chip Exchange
Re-discussion on Linux and WinCE
Linux is a monolithic kernel, that is, graphics, drivers, file systems and other functions are all implemented in the operating system kernel, running in the kernel state and the same address space. I...
ap9805411 Linux and Android
What introductory book should I choose? I want a practical one.
As the title says, I have some knowledge of the Linux kernel and experience in writing small operating systems. I want to learn ARM embedded systems. What books should I choose to get started? I hope ...
ftm5080139 Embedded System
Questions about LCD display?
Heroes: We use a 122*32 LCD display on the seesaw car to display mileage and speed, etc. The problem we are facing now is that we don’t know how to program the LCD. We use C language to program it. Do...
fefefe MCU
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. T1920160132-009
  2. 8BA105Z35PN
  3. BG3020-7DB
  4. 370MS037M1205-7N
  5. SP1-004-H165/4-98/2A
  6. NDS9956A-NL
  7. 1206S4J0683C5
  8. RP73F2B1K6DTDF
  9. BAT54-AU_L0_00001
  10. BX34AT/R13
  11. D3961WV-21P-H-G15
  12. CR0402L331P05

Popular Articles

  1. vivo X70 series new product launch conference
  2. The stock will resume trading on the 14th, and the controlling shareholder of Goertek will be changed to Wuxi Weigan
  3. 51 single chip microcomputer realizes two cascaded 74HC595 to drive 16 LED lights
  4. Apple is sued again, this time by an LED manufacturer?
  5. How to use the Tektronix MSO series oscilloscope for digital acquisition
  6. Creative invention: making a copycat stopwatch and bicycle stopwatch
  7. Features and precautions of HZGZ-712 cable fault intelligent tester
  8. How many factories have been brought vitality by automation equipment?
  9. What is the main function of the EthIf module? What are the common function interfaces of Ethif?
  10. Software defines cars, who will "support" the software?

Technical ResourceMore

  1. Computer enthusiast
  2. Functional safety technology and application
  3. Using MQTT and cloud storage to achieve STM32 remote wireless upgrade
  4. Timer capture application based on STM32Cube library
  5. Protues simulation example (8051) - 8-channel automatic temperature detection system simulation (including original program).rar
  6. Angle estimation of circular arrays
  7. The Current State and Future of Integrated Circuit Design
  8. Industrial serial port screen solution: Application of large color screen in laser cleaning equipment (large color serial port screen solution)
  9. Voltage distribution and voltage balancing issues in series-connected high-voltage rectification
  10. Practical Radio Design

ForumMore

  1. Low EMI Noise Boost Converter Suitable for Powering NFC Modules
  2. APM32E103VET6 Review: Serial Port (USART1)
  3. Re-discussion on Linux and WinCE
  4. What introductory book should I choose? I want a practical one.
  5. Questions about LCD display?
  6. How to collect uart format data?
  7. A modulation method and design of communication signal based on DDS technology
  8. #Meet friends by dismantling#----Memorial screen replacement record of Meizu Note 2
  9. How to use Transact-SQL queries in InTouch
  10. About the counter problem of ATmega8l

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2478  520  883  2095  2627  50  11  18  43  53
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
