LS8404M datasheet, PDF - EEWORLD Datasheet

LS8404M: DescriptionOperational Amplifier, 4 Func, BIPolar; CategoryAnalog mixed-signal IC Amplifier circuit; File Size436KB，10 Pages; ManufacturerSGS-Ates Componenti Electronici SPA

Download Datasheet Parametric Compare View All

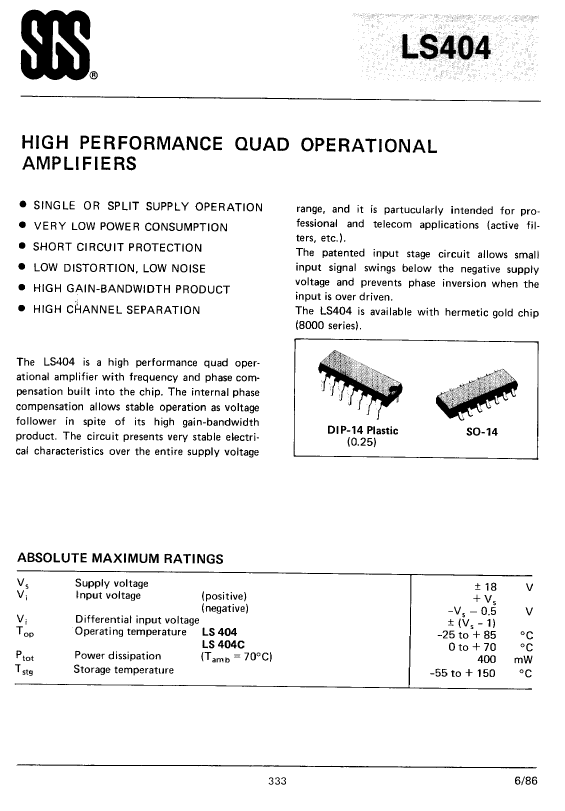

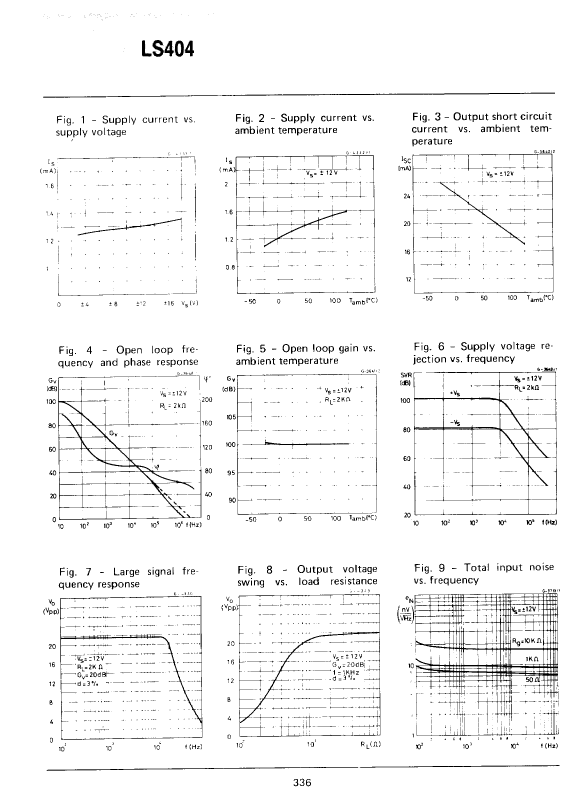

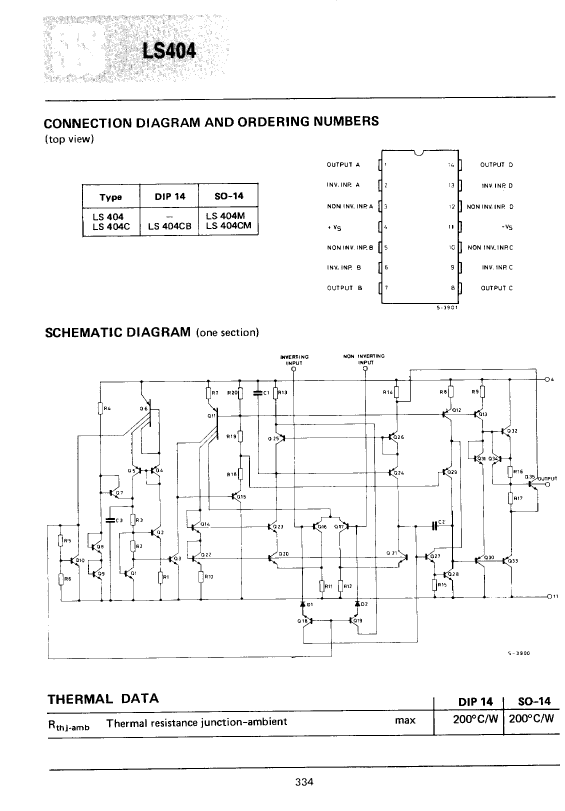

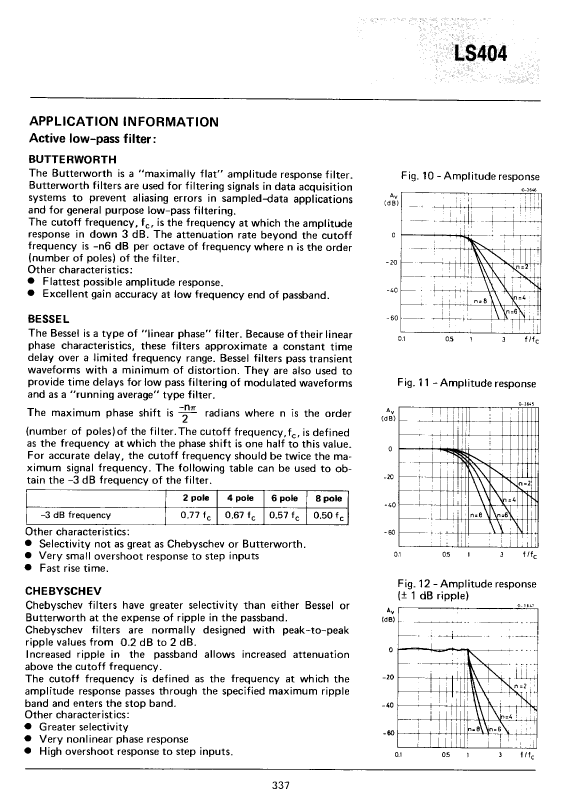

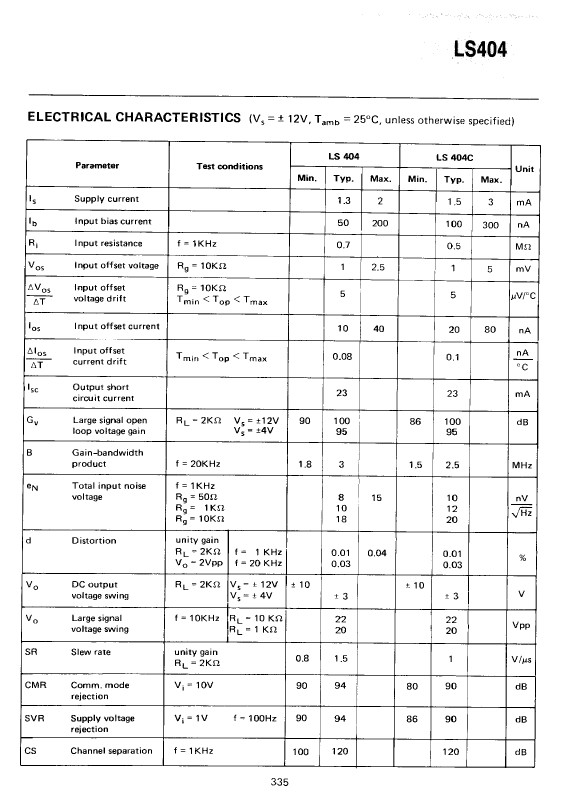

LS8404M Overview

Operational Amplifier, 4 Func, BIPolar

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SGS-Ates Componenti Electronici SPA
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
JESD-30 code	R-XDSO-G14
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUT LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	LS8404M	LS8404CM
Description	Operational Amplifier, 4 Func, BIPolar	Operational Amplifier, 4 Func, BIPolar
Is it Rohs certified?	incompatible	incompatible
Maker	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA
package instruction	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES
JESD-30 code	R-XDSO-G14	R-XDSO-G14
JESD-609 code	e0	e0
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	85 °C	70 °C
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUT LINE	SMALL OUT LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
