DRR4110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> DRR4110

DRR4110: DescriptionROTARY SWITCH,RIGHT ANGLE,HEX,16,PC TAIL TERMINAL,ROTARY SCREW,5; Categoryunclassified; File Size214KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric View All

DRR4110 Overview

ROTARY SWITCH,RIGHT ANGLE,HEX,16,PC TAIL TERMINAL,ROTARY SCREW,5

DRR4110 Parametric

Parameter Name	Attribute value
state	CONSULT MFR
Manufacturer Series	DRR

Preview

Download Datasheet

View All

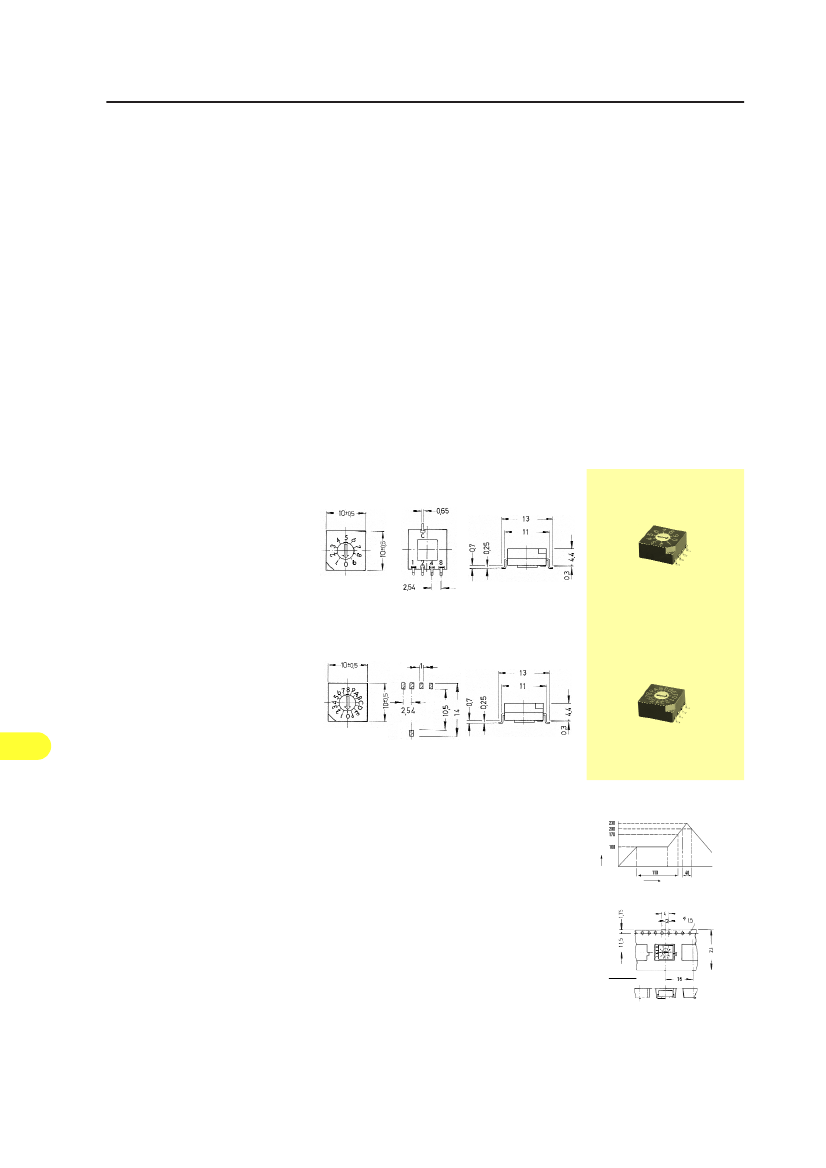

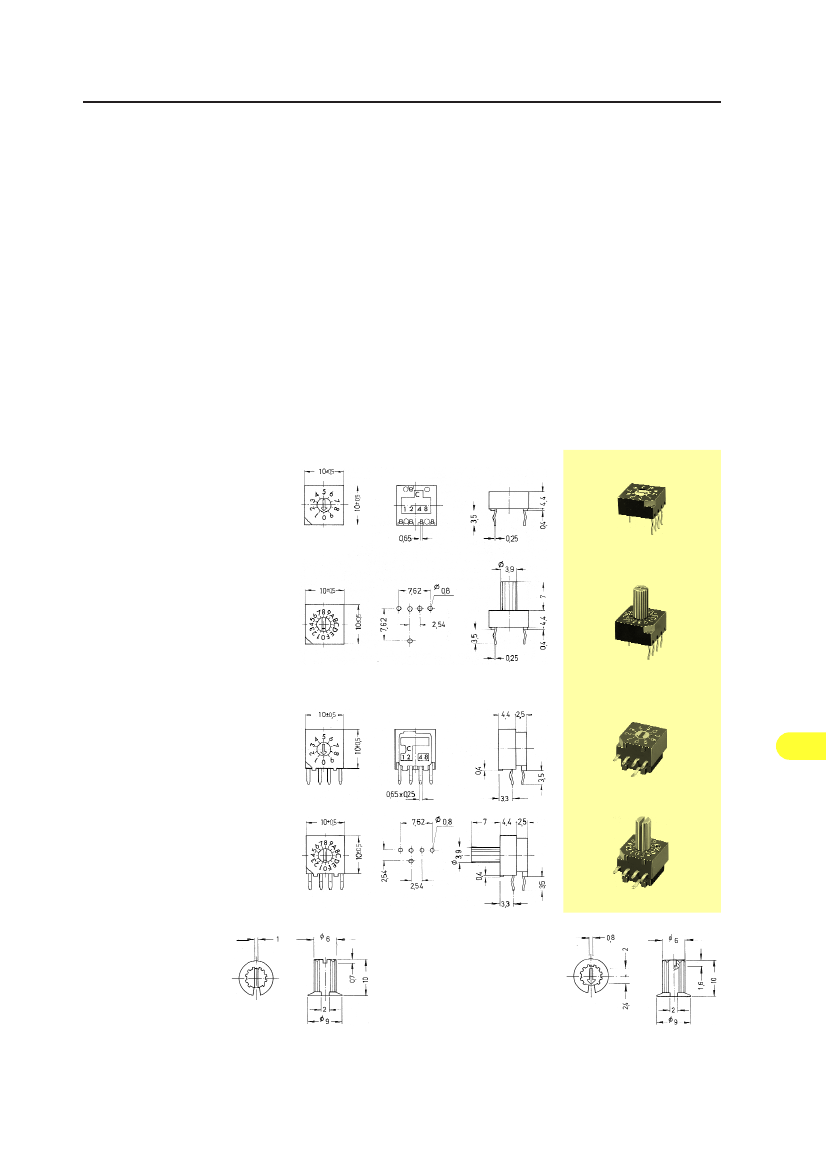

Subminiature Rotary Coded Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Contacts:

Terminals:

Case material:

Construction:

Mounting:

Soldering conditions:

50 V DC, 100 mA, non switching

15 V DC, 30 mA, switching

< 100 m½

> 1000 M½ at 250 V DC

250 V, 50 Hz for the duration of 1 minute

– 25° to + 75° C

minimum 20 000 operations

gold-plated

PC terminals, phosphor bronze, tin-plated

PBT black, rotor: standard types yellow; inverse types red

case totally sealed, suitable for washing by immersion

on pc-board

auto-soldering – max.: 3 sec, 245° C ± 10º C

Models:

DRS 3010

DRS 3110

DRS 3016

DRS 3116

Code

BCD

BCD Inverse

Hexadecimal

Hexadecimal Inverse

DRS 3010

DRS 4010

DRS 4110

DRS 4016

DRS 4116

BCD

BCD Inverse

Hexadecimal

Hexadecimal Inverse

DRS 4016

DRR 3010

DRR 3110

DRR 3016

DRR 3116

BCD

BCD Inverse

Hexadecimal

Hexadecimal Inverse

DRR 3010

DRR 4010

DRR 4110

DRR 4016

DRR 4116

Accessories:

Caps*

yellow

red

white

BCD

BCD Inverse

Hexadecimal

Hexadecimal Inverse

DRR 4016

KR 108

KR 109

KR 110

grey

KR 207

* further types on request
