REVISION T
.100 2.54
(TYP) REF
DO NOT
SCALE FROM
THIS PRINT
.263 6.67
REF
"A"
(No OF POS x .050 [1.27]) +
.570 [14.48] REF
2 MAX SWAY

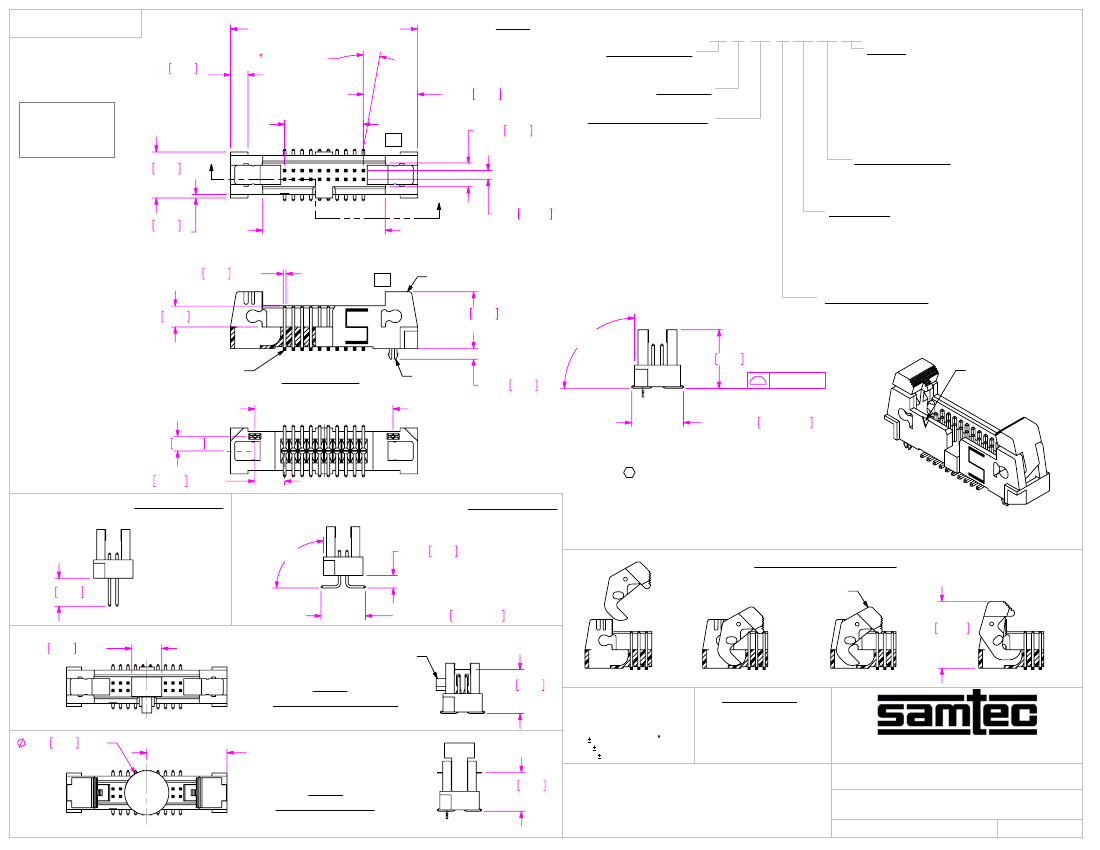

EHF-110-01-XX-D-SM-LC
FIG. 1
EHF-1XX-01-XX-D-XX-XX-XX
No OF POSITIONS
-03, -04,-05, -08, -10,
-13, -17, -20, -25
LEAD STYLE
-01
PLATING SPECIFICATION
-L: LIGHT GOLD (USE T-1SXX-XX-L)
-F: FLASH SELECTIVE GOLD
(USE T-1SXX-XX-F)
-S: SELECTIVE (USE T-1SXX-XX-S)
-H: HEAVY GOLD,
GOLD FLASH ON TAIL
(USE T-1SXX-XX-H)
-LM: LIGHT SELECTIVE GOLD,
MATTE TIN ON TAIL
(USE T-1SXX-XX-L)
-SM: HEAVY SELECTIVE GOLD,
MATTE TIN ON TAIL
(USE T-1SXX-XX-S)
-FM: FLASH SELECTIVE GOLD,
MATTE TIN ON TAIL
(USE T-1SXX-XX-F)
.310 7.87 REF
(No OF POS - 1)
x .050 [1.27]
REF
02
T
.135 3.43 REF
OPTION
-LC: LOCKING CLIP (FOR -SM ONLY)
-P: PICK & PLACE PAD (FOR -SM ONLY)
(USE PPP-48, SEE FIGURE 2)
-K: POLYAMIDE FILM
(USE K-500-300, SEE FIGURE 3)
-TR: TAPE & REEL PACKAGING
(FOR -SM, -SM-P, & -SM-K ONLY)
(NOT AVAILABLE ON -SM-LC)
XX
"A"
.05 1.270
POLARIZED OPTION
-XX = PIN OMITTED
(N/A ON -RA OPTION)
TAIL OPTION
(LEAVE BLANK FOR THROUGH HOLE,
SEE FIG. 4, SHEET 2, USE T-1S63-01-XX)
-SM: SURFACE MOUNT (USE T-1S15-02-XX)
-RA: RIGHT ANGLE
(USE T-1S63-02-XX AND T-1S63-03-XX)
(SEE FIG. 5, SHEET 2)
ROW SPECIFICATION
-D: DOUBLE
.020 0.51
REF
.016 0.41 REF
01
(No OF POS x.050 [1.27])
+ .200 [5.08] REF
T
EHF-XX-D
.325 8.26
REF
.120 3.05 REF
90°
- 0°
.335 8.51
.004[0.10]
POS 1 INDICATOR
+4°
T-1S15-02-XX
SECTION "A"-"A"
(No OF POS x .050 [1.27])
+ .290 [7.37] REF
LC-09-TM
.060 1.52
.296±.010 7.52±0.25
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .004 [.10].
3. BURR ALLOWANCE: .0015 [.038] MAX.
4. MINIMUM PUSHOUT FORCE: 1 LB MIN.
5. MAXIMUM ALLOWABLE BOW: .002 [.05] INCH/INCH AFTER ASSEMBLY.
6. NOTE DELETED.
ARM ASSEMBLY & ROTATION
EHA-02
.296±.010 7.52±0.25
.445 11.31
REF
.083 2.111
.170 4.318 (TYP)
-SM IN-PROCESS 1
(SCALE: 1.5:1)
90°±3°
.186 4.72
.084 2.13
-SM IN-PROCESS 2
(SCALE: 1.5:1)
.200 5.08 REF
C
L
PPP-48
-P: PICK AND PLACE PAD
(SCALE 1.5:1)
.295 7.50 REF
C
L
(No. OF POS X .050 + .570)/2)
FIG. 2
.293 7.44
REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
-K: POLYAMIDE FILM
(SCALE: 1.5:1)
FIG. 3
.260 6.60
REF
INSULATOR: VECTRA E130i, COLOR BLACK
50% REGRIND
TERMINAL: PHOS BRONZE 510 SPRING
DO NOT SCALE DRAWING
SHEET SCALE: 1.75:1
.050 EJECTOR HEADER ASSEMBLY
EHF-1XX-01-XX-D-XX-XX-XX
08/17/01
SHEET
1
OF
3
F:\DWG\MISC\MKTG\EHF-1XX-01-XX-D-XX-XX-XX-MKT.SLDDRW
BY:
ERIC M.
REVISION T

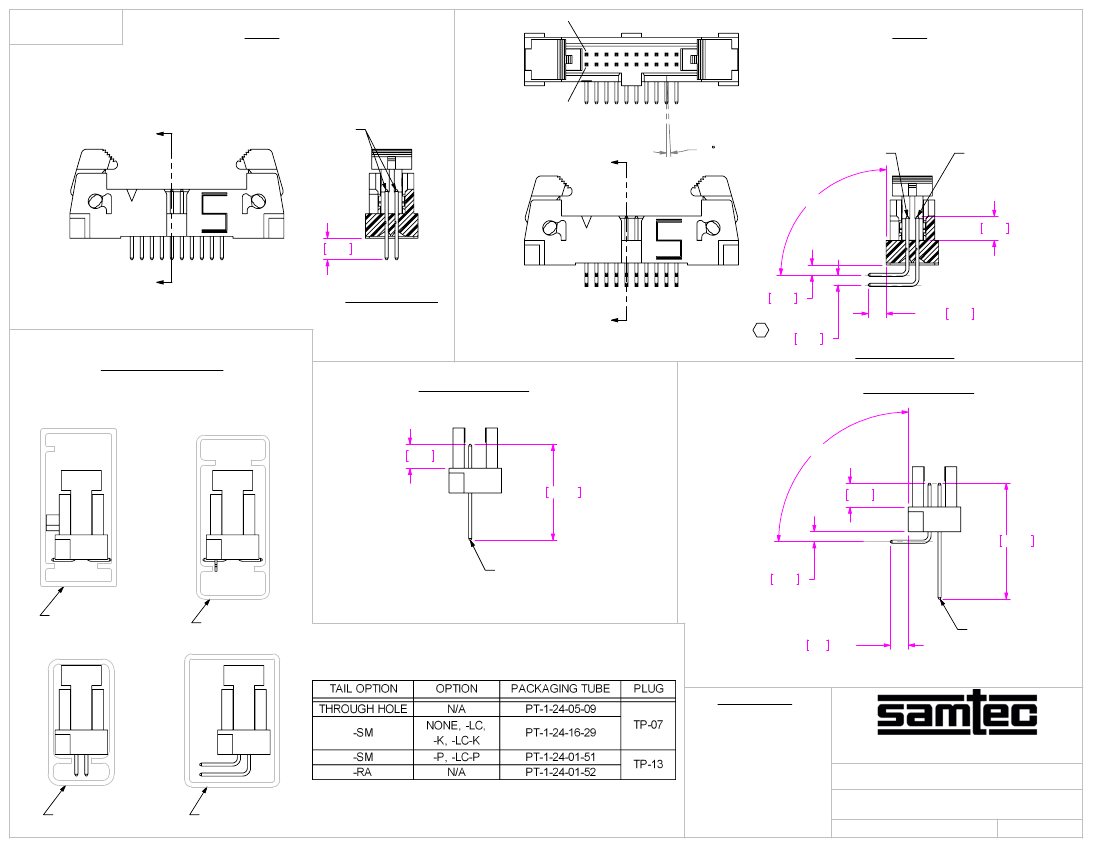

STANDARD THROUGH HOLE
(SHOWN: EHF-110-01-XX-D)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
01
FIG. 4
02
-RA: RIGHT ANGLE OPTION
(SHOWN: EHF-110-01-XX-D-RA)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 5
"B"
T-1S63-01-XX
"C"
2 MAX SWAY
(EITHER DIRECTION)
T-1S63-03-XX
T-1S63-02-XX
90°±3°
.120 3.05 REF
.107 2.72
"B"
SECTION "B"-"B"
"C"
.050 1.27
.090 2.29
C1
REF
.050 1.27
PACKAGING VIEWS
(LOAD PARTS WITH POSITION #1 INDICATOR
IN SAME DIRECTION AS ARROW ON TUBE)
SECTION "C"-"C"
-RA IN-PROCESS 2
-RA IN-PROCESS 1
.120 3.05
.480 12.19
90°±3°
.120 3.05
.580 14.73
T-1S63-03-XX
.050 1.27
PT-1-24-01-51
PT-1-24-16-29
.09 2.3 REF
T-1S63-02-XX
F:\DWG\MISC\MKTG\EHF-1XX-01-XX-D-XX-XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 EJECTOR HEADER ASSEMBLY
PT-1-24-05-09
PT-1-24-01-52
BY:
ERIC M.
EHF-1XX-01-XX-D-XX-XX-XX
08/17/01
SHEET
2
OF
3
REVISION T
-SM: SURFACE MOUNT OPTION
(SHOWN: EHF-110-01-XX-D-SM-LC)
(SHOWN WITH LATCHES OPEN)
R.028 0.70
REF (TYP)
FIG. 6
.400 10.17
REF (TYP)
.097 2.46
REF (TYP)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 EJECTOR HEADER ASSEMBLY
F:\DWG\MISC\MKTG\EHF-1XX-01-XX-D-XX-XX-XX-MKT.SLDDRW
BY:
ERIC M.
EHF-1XX-01-XX-D-XX-XX-XX
08/17/01
SHEET
3
OF
3
