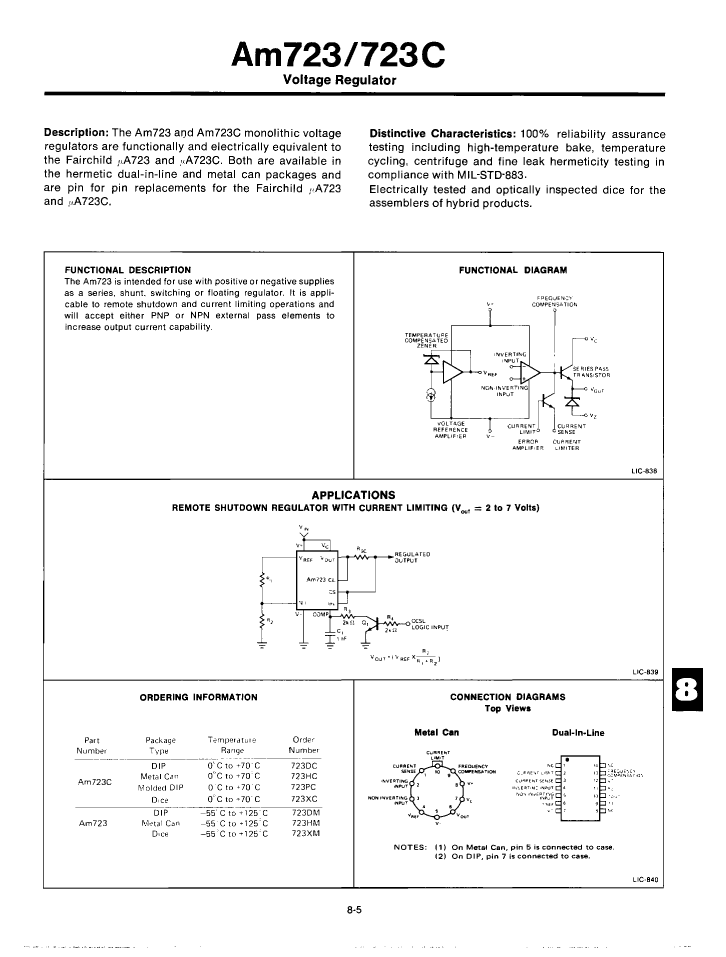

Preview

LM723DMB: DescriptionAdjustable Positive Standard Regulator, 2V Min, 37V Max, CDIP14, HERMETIC SEALED, DIP-14; CategoryPower/power management The power supply circuit; File Size131KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LM723DMB Overview

Adjustable Positive Standard Regulator, 2V Min, 37V Max, CDIP14, HERMETIC SEALED, DIP-14

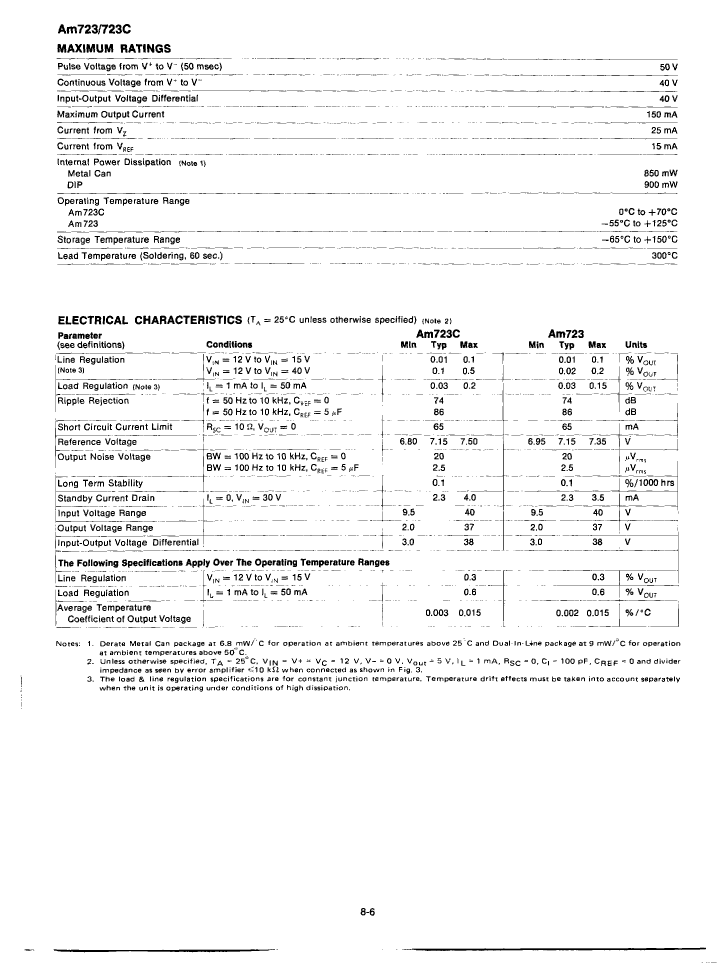

LM723DMB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AMD
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum Differential Input-Output Voltage	38 V
Minimum Differential Input-Output Voltage	3 V
JESD-30 code	R-GDIP-T14
length	19.431 mm
Number of functions	1
Number of terminals	14
Maximum output voltage 1	37 V
Minimum output voltage 1	2 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	5.08 mm
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

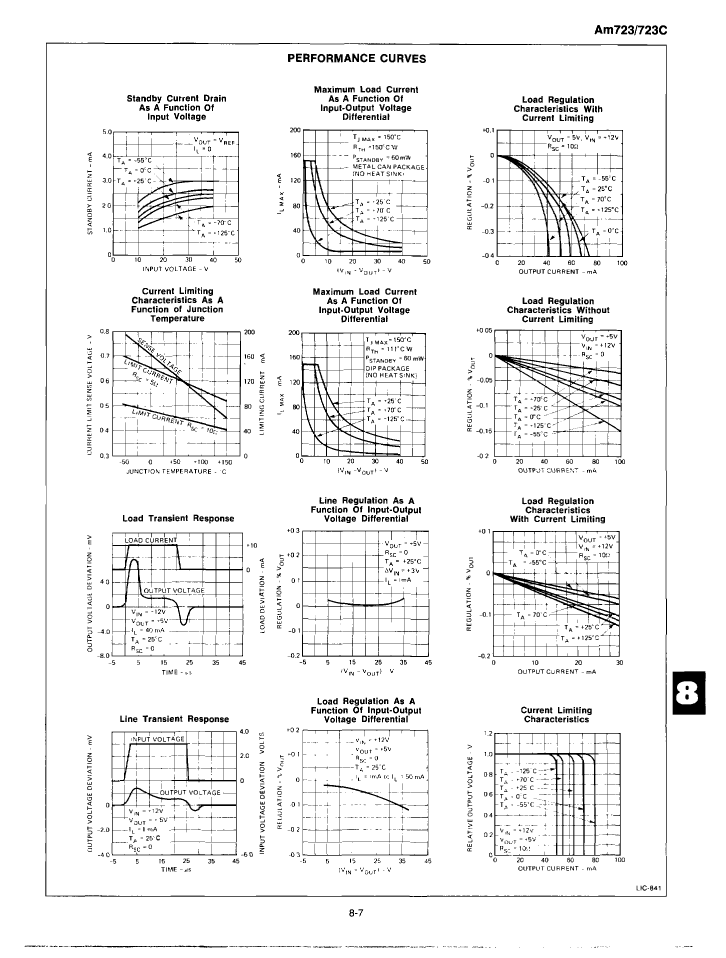

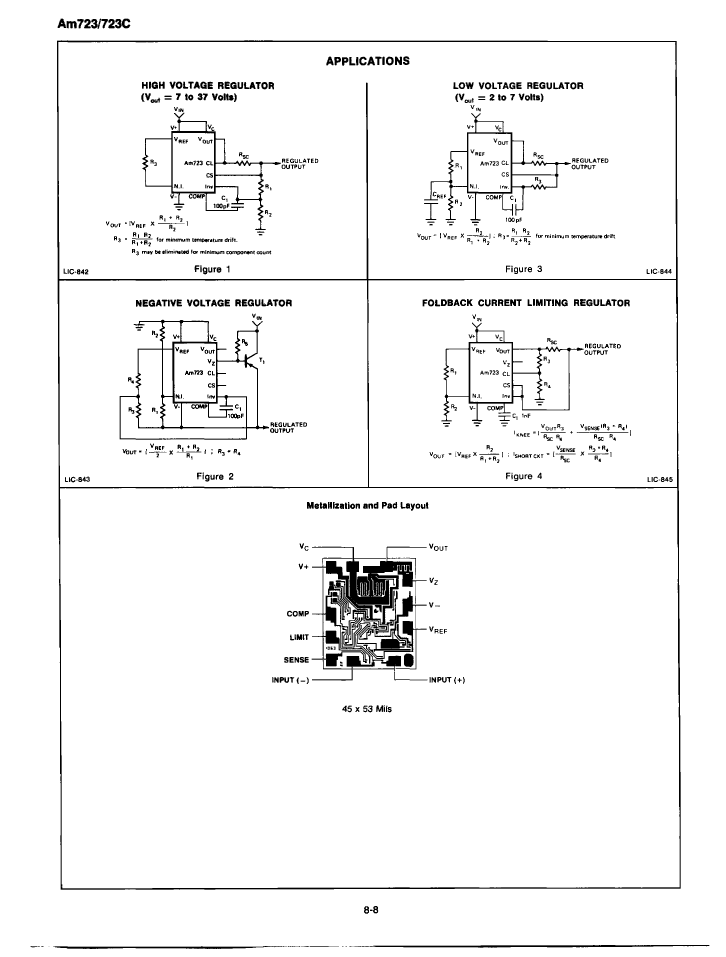

Preview

Download Datasheet

View All

LM723DMB Related Products

	LM723DMB	723HM	723XM	723XC	723HC	723DC	723HMQB	723DM883B	723PC
Description	Adjustable Positive Standard Regulator, 2V Min, 37V Max, CDIP14, HERMETIC SEALED, DIP-14	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, 0.045 X 0.053 INCH, DIE-11	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, 0.045 X 0.053 INCH, DIE-11	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Adjustable Positive Standard Regulator, 2V Min, 37V Max, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Adjustable Positive Standard Regulator, 2V Min, 37V Max, BIPolar, PDIP14, PLASTIC, TO-116, DIP-14
Maker	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	DIP	BCY	DIE	DIE	BCY	DIP	BCY	DIP	DIP
package instruction	DIP,	, CAN10,.23	DIE, DIE OR CHIP	DIE, DIE OR CHIP	METAL CAN-10	HERMETIC SEALED, DIP-14	METAL CAN-10	DIP, DIP14,.3	PLASTIC, TO-116, DIP-14
Contacts	14	10	11	11	10	14	10	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum Differential Input-Output Voltage	38 V	38 V	38 V	38 V	38 V	38 V	38 V	38 V	38 V
Minimum Differential Input-Output Voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
JESD-30 code	R-GDIP-T14	O-MBCY-W10	R-XUUC-N11	R-XUUC-N11	O-MBCY-W10	R-GDIP-T14	O-MBCY-W10	R-GDIP-T14	R-PDIP-T14
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	14	10	11	11	10	14	10	14	14
Maximum output voltage 1	37 V	37 V	37 V	37 V	37 V	37 V	37 V	37 V	37 V
Minimum output voltage 1	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Package body material	CERAMIC, GLASS-SEALED	METAL	UNSPECIFIED	UNSPECIFIED	METAL	CERAMIC, GLASS-SEALED	METAL	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	UNCASED CHIP	UNCASED CHIP	CYLINDRICAL	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	YES	YES	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	WIRE	NO LEAD	NO LEAD	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	UPPER	UPPER	BOTTOM	DUAL	BOTTOM	DUAL	DUAL
Is it Rohs certified?	conform to	incompatible	-	-	incompatible	incompatible	-	incompatible	incompatible
encapsulated code	DIP	-	DIE	DIE	-	DIP	-	DIP	DIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Adjustability	-	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	-	ADJUSTABLE	ADJUSTABLE
JESD-609 code	-	e0	-	-	e0	e0	-	e0	e0
Output times	-	1	1	1	1	1	-	1	1
Maximum operating temperature	-	125 °C	125 °C	70 °C	70 °C	70 °C	-	125 °C	70 °C
Encapsulate equivalent code	-	CAN10,.23	DIE OR CHIP	DIE OR CHIP	CAN10,.23	DIP14,.3	-	DIP14,.3	DIP14,.3
technology	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR
Terminal surface	-	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	-	1	1	1	1	1	1	1	1
