C
ERAMIC
C
APACITOR
E
NGINEERING
D
ESIGN
K
ITS

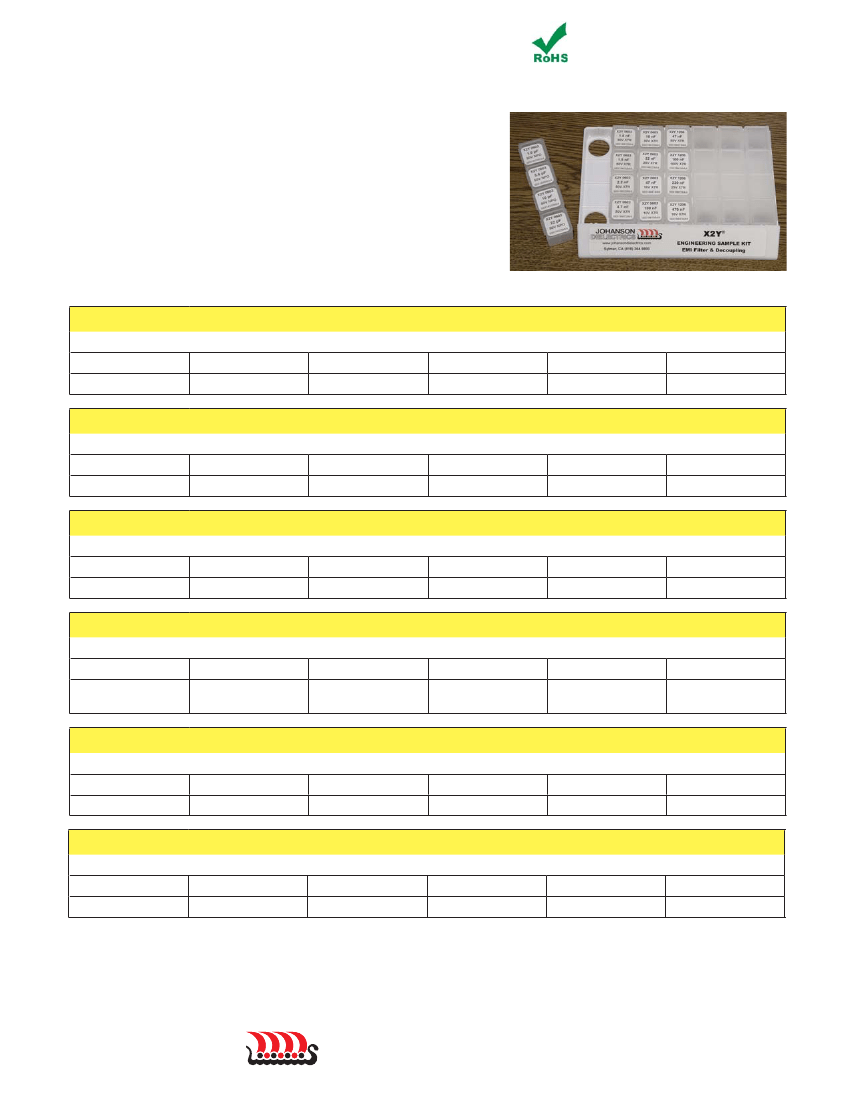

Johanson Dielectrics, Inc. offers a variety of multi-layer chip
capacitor sample kits for proto-type design work. Each kit is
grouped by type, size, or voltage and contains a selection of popular
values and tolerances. The chips are individually packaged in
labeled plastic compartments for easy access. The general range of
kit contents is described below. Specific part number details may be
found at JohansonDielectrics.com
0402 CERAMIC CHIP CAPACITOR KIT
1400 piece sample assortment of selected values from 1.0pF to 0.1µF
Chip Size
0402
Voltage Rating
50 VDC - 6.3 VDC
Dielectric
NPO, X7R,Y5V
Capacitanc Range
1.0pF to 0.22µF
Qty / Value
50 pcs
P/N: S-0402
Total Qty
1400 pcs
0603 CERAMIC CHIP CAPACITOR KIT
1400 piece sample assortment of selected values from 1.0pF to 0.1µF
Chip Size
0603
Voltage Rating
50 VDC - 16 VDC
Dielectric
NPO, X7R,Y5V
Capacitanc Range
10pF to 0.22µF
Qty / Value
50 pcs
P/N: S-0603
Total Qty
1400 pcs
0805 CERAMIC CHIP CAPACITOR KIT
1400 piece sample assortment of selected values from 1.0pF to 0.1µF
Chip Size
0805
Voltage Rating
100 VDC - 16 VDC
Dielectric
NPO, X7R
Capacitanc Range
10pF to 0.47µF
Qty / Value
50 pcs
P/N: S-0805
Total Qty
1400 pcs
TANCERAM® HIGH CAPACITANCE CERAMIC CHIP CAPACITOR KIT
500 piece sample assortment of selected values from 1.0µF to 100µF
Chip Size
0402, 0603, 0805
1206, 1210
Voltage Rating
25 VDC - 6.3 VDC
Dielectric
X5R
Capacitanc Range
1.0µF - 100µF
Qty / Value
10 - 25 pcs
P/N: S-TAN-X5R
Total Qty
500 pcs
500 VDC CERAMIC CHIP CAPACITOR KIT
400 piece sample assortment of selected values from 33pF to 0.1µF
Chip Size
0805 - 1812
Voltage Rating
500 VDC
Dielectric
NPO, X7R
Capacitanc Range
33pF to 0.1µF
Qty / Value
10-20 pcs
P/N: S-500
Total Qty
400 pcs
1000 VDC CERAMIC CHIP CAPACITOR KIT
400 piece sample assortment of selected values from 22pF to 0.1µF
Chip Size
0805 - 2225
Voltage Rating
1000 VDC
Dielectric
NPO, X7R
Capacitanc Range
22pF to 0.1µF
Qty / Value
10-20 pcs
P/N: S-1KV
Total Qty
400 pcs
Johanson may from time-time adjust actual kit contents based on design demand trends.
Check the Johanson web site for design kit updates and kit content changes.
4
www.johanson dielectrics.com
C
ERAMIC
C
APACITOR
E
NGINEERING
D
ESIGN
K
ITS
2000 VDC CERAMIC CHIP CAPACITOR KIT
300 piece sample assortment of selected values from 22pF to 0.022µF
Chip Size
1206 - 2225
Voltage Rating
2000 VDC
Dielectric
NPO, X7R
Capacitanc Range
22pF to 0.022µF
Qty / Value
10-20 pcs
Total Qty
300 pcs
P/N: S-2KV
X2/Y3 SAFETY CERTIFIED CERAMIC CHIP CAPACITOR KIT
240 piece sample assortment of selected values from 10pF to 1500 pF
Chip Size
1808
Voltage Rating
3KV DC / 250 AC
Dielectric
NPO, X7R
Capacitanc Range
10pF to 1500 pF
Qty / Value
20 pcs
P/N: S-SY3
Total Qty
240 pcs
X1/Y2 SAFETY CERTIFIED CERAMIC CHIP CAPACITOR KIT
200 piece sample assortment of selected values from 10pF to 2200 pF
Chip Size
1808 - 2220
Voltage Rating
5KV DC / 250 AC
Dielectric
NPO, X7R
Capacitanc Range
10pF to 2200pF
Qty / Value
20 pcs
P/N: S-SY2
Total Qty
200 pcs
X2Y® EMI FILTER CAPACITOR KIT - 0402 SIZE
600 piece sample assortment of selected values from 1.0pF to 0.01µF
Chip Size
0402
Voltage Rating
10 - 50 VDC
Dielectric
NPO, X7R
Capacitanc Range
1.0pF to 0.01µF
Qty / Value
50 pcs
P/N: S-X07CBK
Total Qty
600 pcs
X2Y® EMI FILTER CAPACITOR KIT - 0603 SIZE
700 piece sample assortment of selected values from 1.0pF to 0.01µF
Chip Size
0603
Voltage Rating
50 - 100 VDC
Dielectric
NPO, X7R
Capacitanc Range
1.0pF to 0.01µF
Qty / Value
50 pcs
P/N: S-X14CBK
Total Qty
700 pcs
X2Y® POWER BYPASS CAPACITOR KIT - 0603 SIZE
300 piece sample assortment of selected values from 1.0nF to 1.0µF
Chip Size
0603
Voltage Rating
6.3 - 100 VDC
Dielectric
X7R, X5R
Capacitanc Range
1.0nF to 1.0µF
Qty / Value
20 pcs
P/N: S-X14-PBP
Total Qty
300 pcs
X2Y® EMI FILTER CAPACITOR KIT - 0805 SIZE
300 piece sample assortment of selected values from 1.0pF to 0.01µF
Chip Size
0805
Voltage Rating
50 - 100 VDC
Dielectric
NPO, X7R
Capacitanc Range
1.0pF to 0.01µF
Qty / Value
20 pcs
P/N: S-X15-EMI
Total Qty
300 pcs
X2Y® DC MOTOR FILTER CAPACITOR KIT
300 piece sample assortment of selected values from 0.10µF to 0.47µF
Chip Size
1206 - 1812
Voltage Rating
100 VDC
Dielectric
X7R
Capacitanc Range
0.10µF to 0.47µF
Qty / Value
30 pcs
P/N: S-X2Y-MTR
Total Qty
300 pcs
Johanson may from time-time adjust actual kit contents based on design demand trends.
Check the Johanson web site for design kit updates and kit content changes.
www.johanson dielectrics.com
5
