5962-8962701PA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 5962-8962701PA

5962-8962701PA: DescriptionOperational Amplifier, 1 Func, 300uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size390KB，14 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-8962701PA Overview

Operational Amplifier, 1 Func, 300uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8

5962-8962701PA Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.15 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	300 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL

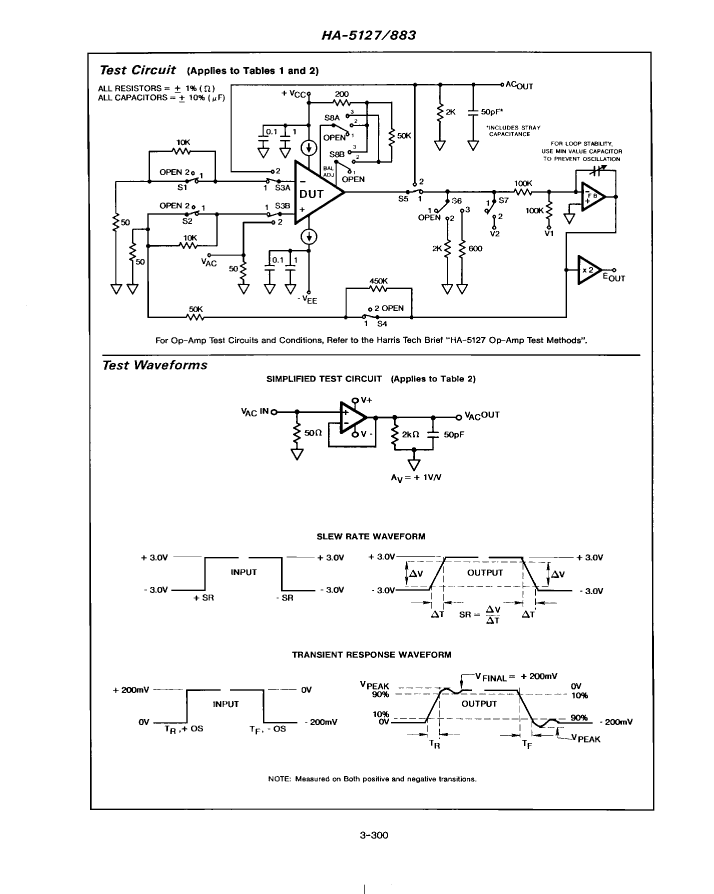

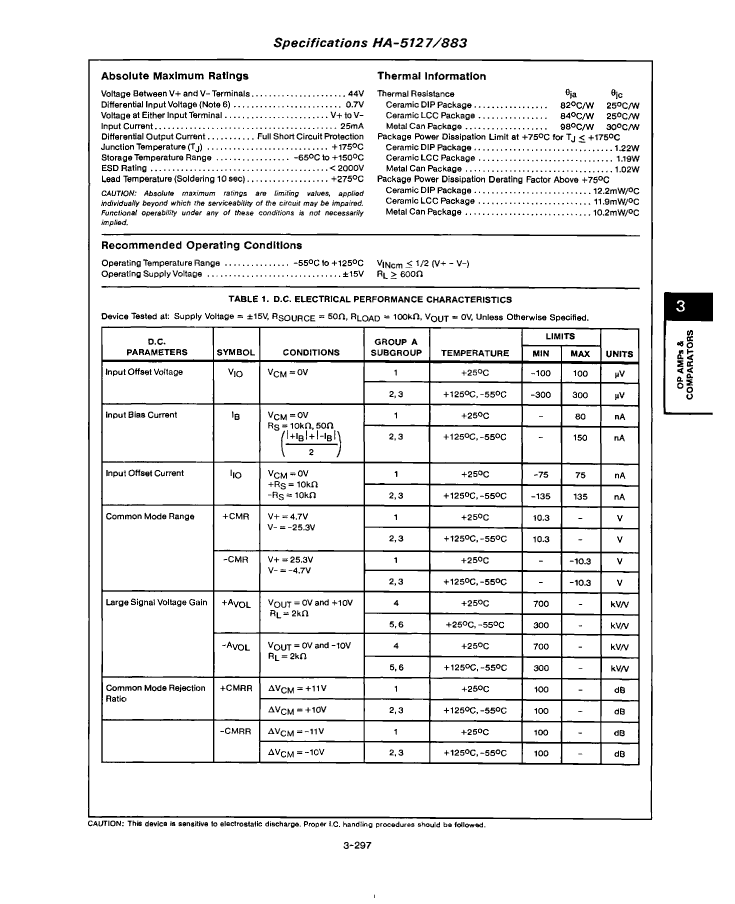

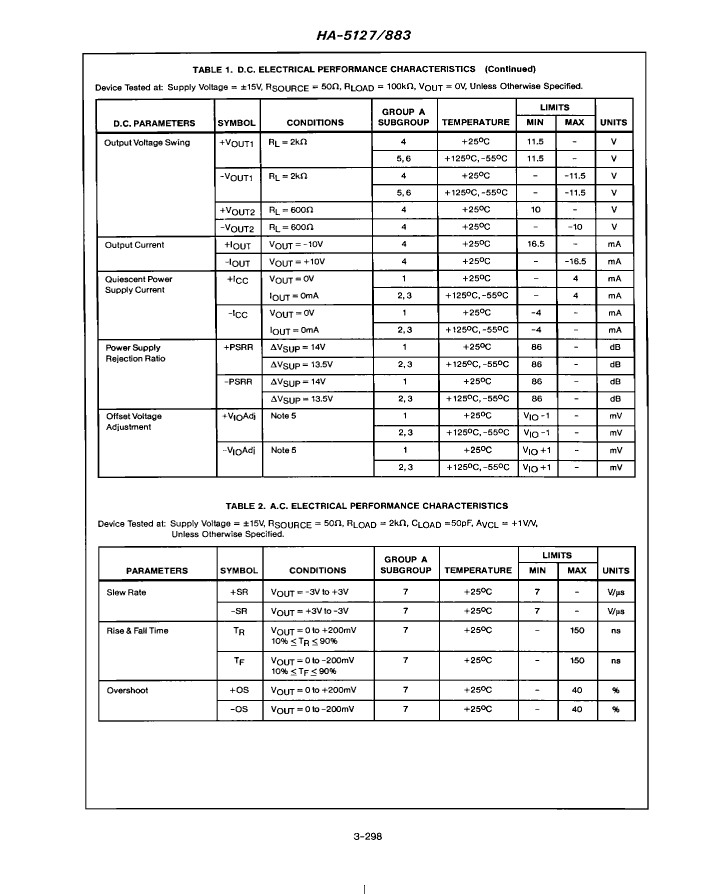

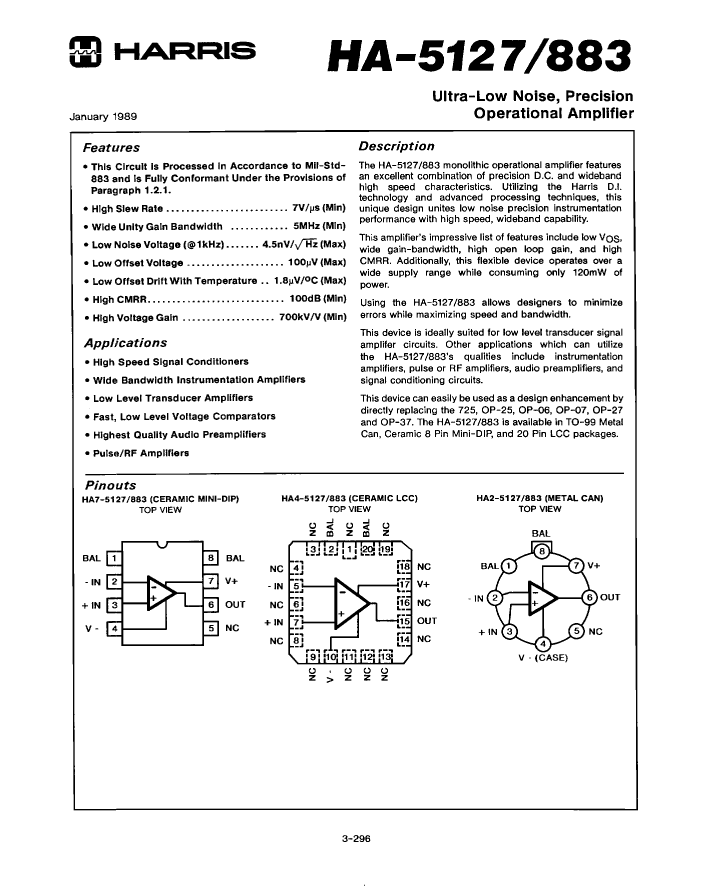

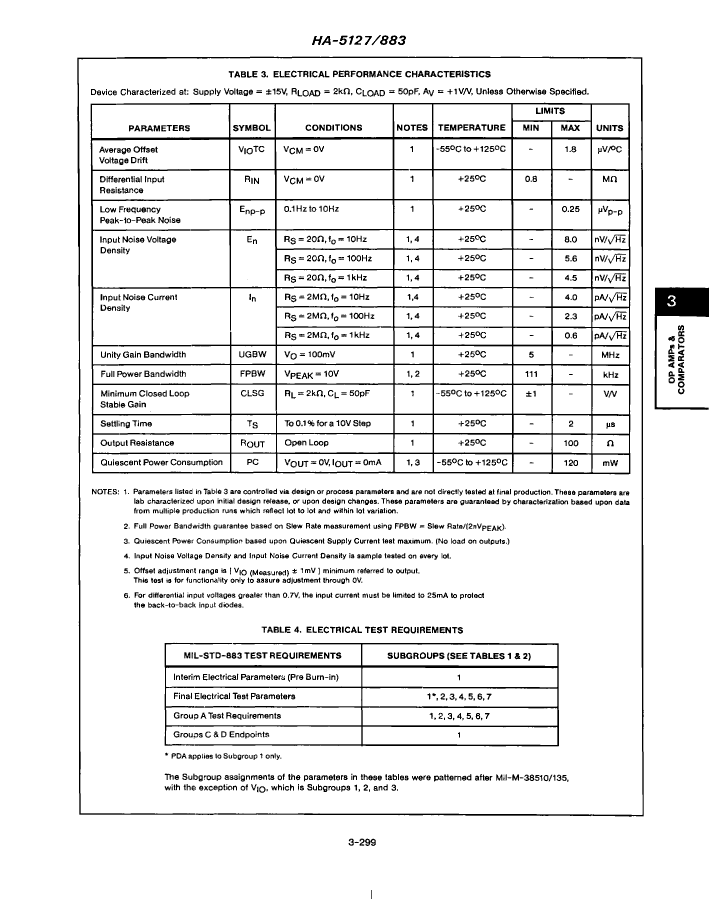

Preview

Download Datasheet

View All

5962-8962701PA Related Products

	5962-8962701PA	5962-89627012X	5962-8962701PX	5962-89627012A
Description	Operational Amplifier, 1 Func, 300uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 300uV Offset-Max, CQCC20, CERAMIC, LCC-20	Operational Amplifier, 1 Func, 300uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 300uV Offset-Max, CQCC20, CERAMIC, LCC-20
Maker	Harris	Harris	Harris	Harris
package instruction	DIP,	QCCN,	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.15 µA	0.15 µA	0.15 µA	0.15 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB
Maximum input offset voltage	300 µV	300 µV	300 µV	300 µV
JESD-30 code	R-GDIP-T8	S-CQCC-N20	R-GDIP-T8	S-CQCC-N20
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	20	8	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	YES	NO	YES
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD
JESD-609 code	e0	e0	-	e0
Terminal surface	TIN LEAD	TIN LEAD	-	TIN LEAD
