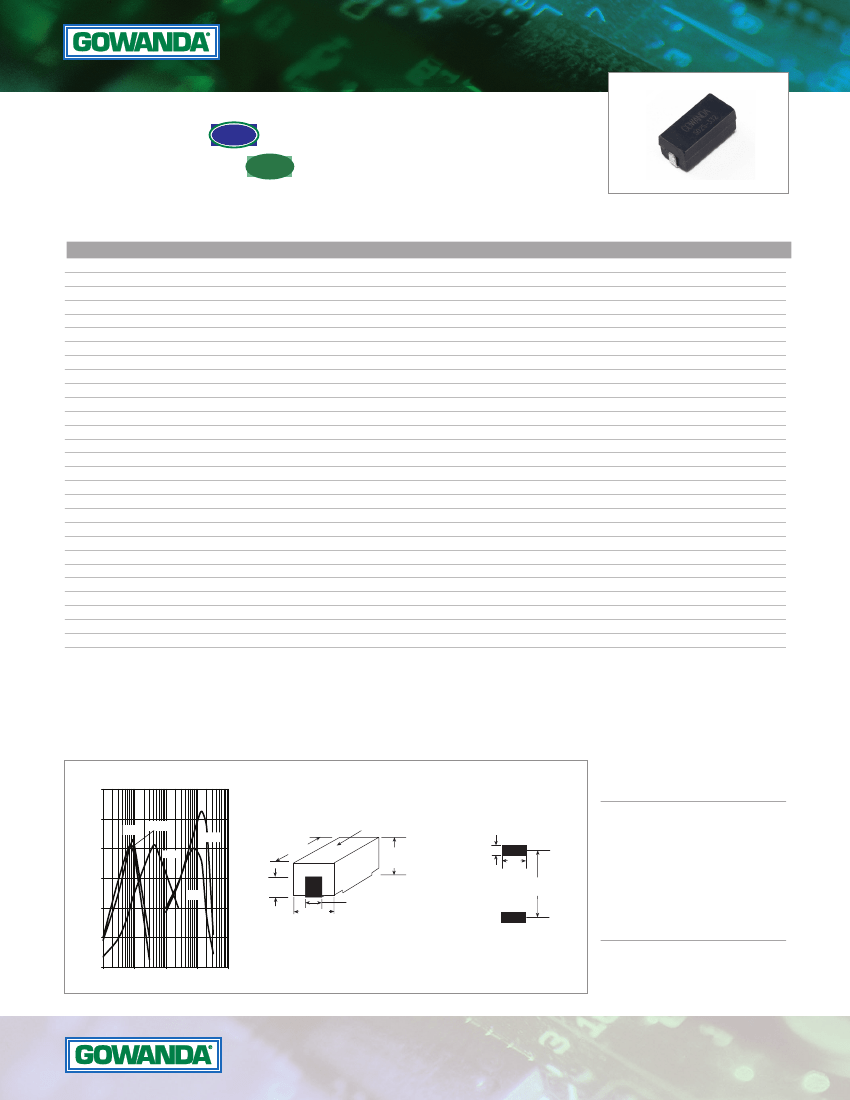

STANDARD RF INDUCTORS - SURFACE MOUNT
SMRF5025
SMRF5025LF
*
Wirewound, Molded
PART
NUMBER
SMRF5025-100K
SMRF5025-110J
SMRF5025-120K
SMRF5025-130J
SMRF5025-150K
SMRF5025-160J
SMRF5025-180K
SMRF5025-200J
SMRF5025-220K
SMRF5025-240J
SMRF5025-270K
SMRF5025-300J
SMRF5025-330K
SMRF5025-360J
SMRF5025-390K
SMRF5025-430J
SMRF5025-470K
SMRF5025-510J
SMRF5025-560K
SMRF5025-620J
SMRF5025-680K
TRADITIONAL
Pb
COMPLIANT
RoHS
L
µH
0.10
0.11
0.12
0.13
0.15
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.33
0.36
0.39
0.43
0.47
0.51
0.56
0.62
0.68
Q
MIN
50
50
50
50
50
50
50
50
50
45
45
45
45
45
45
45
45
45
50
50
50
TEST
FREQ
MHz
PHENOLIC CORE
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
SRF
MHz
MIN
550
535
530
527
525
525
500
475
450
415
400
380
360
350
330
315
310
300
280
280
250
DCR
OHMS
MAX
0.025
0.027
0.028
0.029
0.030
0.035
0.040
0.047
0.055
0.060
0.070
0.080
0.090
0.098
0.100
0.110
0.120
0.125
0.135
0.140
0.150
CURRENT
RATING
mA DC
3835
3690
3624
3561
3500
3241
3032
2790
2580
2470
2285
2140
2015
1935
1915
1825
1750
1715
1645
1615
1555
continued next page
Suffix “J” for 5% tolerance or Suffix “K” for 10% tolerance
Optional tolerances are available; please contact factory
Custom designs are available to meet your specific requirements; please contact factory
*Add “LF” suffix for RoHS requirement. Example: SMRF5025-100KLF
Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
120
Q VS. FREQUENCY
SMRF5025 SERIES
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
NOTES:
2 SIDES
100
470 µH
1000 µH
0.33 µH
10 µH
80
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
• Operating Temperature Range:
-55°C to +125°C
Q
60
1.0 µH
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.440
(11.18)
40
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
2 SIDES
• Current Rating is based on a 35°C
temperature rise at an ambient
temperature of 90°C
• Epoxy-encapsulated for environmental
protection and superior strength to
withstand all types of reflow soldering
TAPE AND REEL SPECS:
20
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
0
0.1
1
10
100
Frequency in MHz
1000
in. (mm)
0.440
(11.18)
Pcs./Reel maximum:
Pitch between parts:
Tape width:
Reel diameter:
800
12 mm
24 mm
13 in.
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
021514

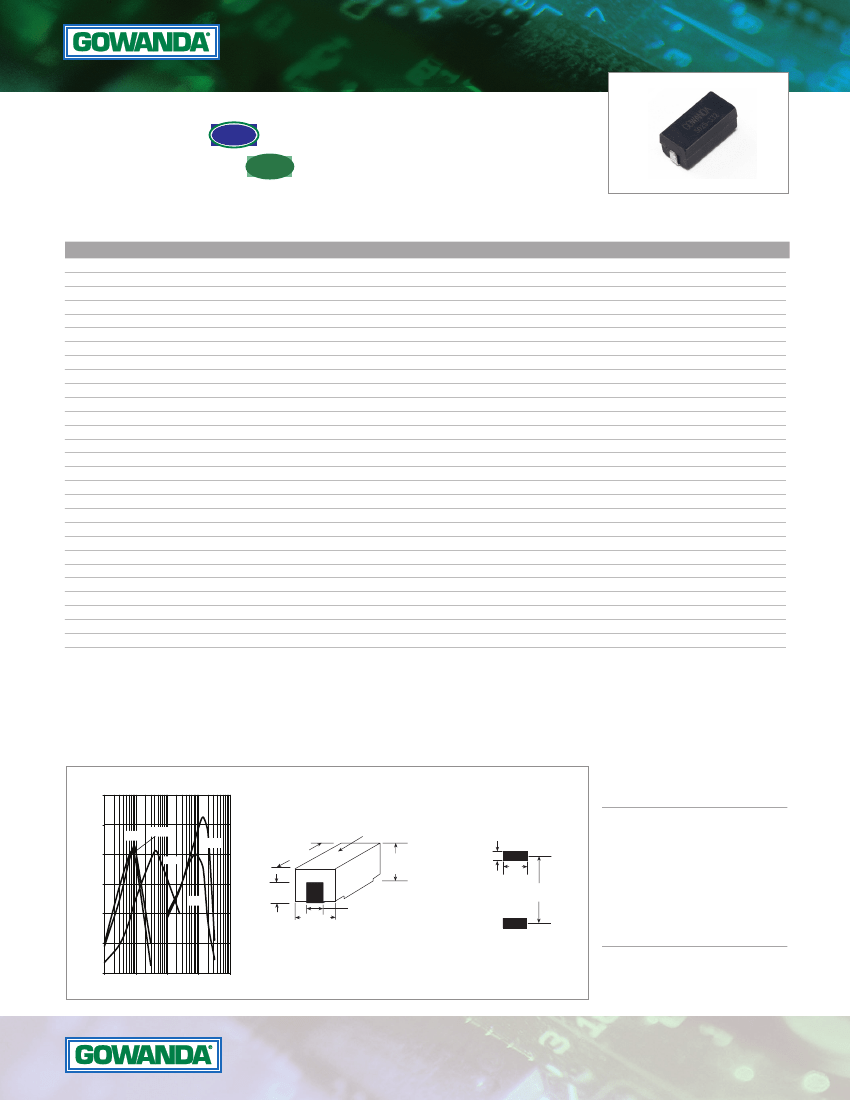

STANDARD RF INDUCTORS - SURFACE MOUNT
continued from previous page
SMRF5025
SMRF5025LF
*
Wirewound, Molded
PART
NUMBER
SMRF5025-750J
SMRF5025-820K
SMRF5025-910J
SMRF5025-101K
SMRF5025-111J
SMRF5025-121K
SMRF5025-131J
SMRF5025-151K
SMRF5025-161J
SMRF5025-181K
SMRF5025-201J
SMRF5025-221K
SMRF5025-241J
SMRF5025-271K
SMRF5025-301J
SMRF5025-331K
SMRF5025-361J
SMRF5025-391K
SMRF5025-431J
SMRF5025-471K
TRADITIONAL
Pb
COMPLIANT
RoHS
L
µH
0.75
0.82
0.91
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
Q
MIN
50
50
50
50
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
TEST
FREQ
MHz
PHENOLIC CORE
25
25
25
25
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
SRF
MHz
MIN
230
220
210
200
190
180
170
160
155
150
140
135
130
120
115
110
105
100
95
90
DCR
OHMS
MAX
0.180
0.220
0.240
0.290
0.350
0.420
0.450
0.500
0.550
0.650
0.900
0.950
1.10
1.20
1.80
2.00
2.15
2.30
2.40
2.60
CURRENT
RATING
mA DC
1425
1300
1240
1125
1025
930
904
855
818
755
639
620
575
550
455
430
415
395
390
375
continued next page
Suffix “J” for 5% tolerance or Suffix “K” for 10% tolerance
Optional tolerances are available; please contact factory
Custom designs are available to meet your specific requirements; please contact factory
*Add “LF” suffix for RoHS requirement. Example: SMRF5025-100KLF
Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
120
Q VS. FREQUENCY
SMRF5025 SERIES
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
NOTES:
2 SIDES
100
470 µH
1000 µH
0.33 µH
10 µH
80
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
• Operating Temperature Range:
-55°C to +125°C
Q
60
1.0 µH
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.440
(11.18)
40
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
2 SIDES
• Current Rating is based on a 35°C
temperature rise at an ambient
temperature of 90°C
• Epoxy-encapsulated for environmental
protection and superior strength to
withstand all types of reflow soldering
TAPE AND REEL SPECS:
20
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
0
0.1
1
10
100
Frequency in MHz
1000
in. (mm)
0.440
(11.18)
Pcs./Reel maximum:
Pitch between parts:
Tape width:
Reel diameter:
800
12 mm
24 mm
13 in.
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
021514
STANDARD RF INDUCTORS - SURFACE MOUNT
continued from previous page
SMRF5025
SMRF5025LF
*
Wirewound, Molded
PART
NUMBER
SMRF5025-511J
SMRF5025-561K
SMRF5025-621J
SMRF5025-681K
SMRF5025-751J
SMRF5025-821K
SMRF5025-911J
SMRF5025-102K
SMRF5025-112J
SMRF5025-122K
SMRF5025-132J
SMRF5025-152K
SMRF5025-162J
SMRF5025-182K
SMRF5025-202J
SMRF5025-222K
SMRF5025-242J
SMRF5025-272K
SMRF5025-302J
SMRF5025-332K
SMRF5025-362J
SMRF5025-392K
SMRF5025-432J
SMRF5025-472K
SMRF5025-512J
SMRF5025-562K
SMRF5025-622J
SMRF5025-682K
TRADITIONAL
Pb
COMPLIANT
RoHS
L
µH
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
Q
MIN
35
45
45
50
50
50
50
55
60
65
65
65
70
75
75
75
60
60
65
65
60
60
60
55
55
55
55
55
TEST
FREQ
MHz
POWDERED IRON CORE
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
SRF
MHz
MIN
65
60
60
55
55
50
50
45
44
42
41
40
38
34
30
30
26
25
21
19
15.5
14.5
13.7
13.0
12.7
12.0
11.5
11.0
DCR
OHMS
MAX
0.350
0.370
0.560
0.590
0.650
0.670
0.890
1.12
1.24
1.25
1.30
1.90
2.26
2.47
2.70
2.86
3.00
3.30
3.50
3.70
2.50
2.60
2.70
2.75
2.85
3.00
3.15
3.30
CURRENT
RATING
mA DC
987
960
781
760
724
714
619
552
525
522
520
424
389
372
355
345
337
322
312
304
337
368
361
352
346
335
329
320
continued next page
Suffix “J” for 5% tolerance or Suffix “K” for 10% tolerance
Optional tolerances are available; please contact factory
Custom designs are available to meet your specific requirements; please contact factory
*Add “LF” suffix for RoHS requirement. Example: SMRF5025-100KLF
0.490/0.510
Q VS. FREQUENCY
SMRF5025 SERIES
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
470 µH
1000 µH
0.33 µH
10 µH
MARKING: GOWANDA
5025-XXX
(12.45/12.95)
Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.
0.210/0.230
OVER TERMINAL
(5.33/5.84)
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
OVER TERMINAL
120
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
NOTES:
2 SIDES
100
80
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
• Operating Temperature Range:
-55°C to +125°C
Q
60
1.0 µH
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.440
(11.18)
40
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
2 SIDES
• Current Rating is based on a 35°C
temperature rise at an ambient
temperature of 90°C
• Epoxy-encapsulated for environmental
protection and superior strength to
withstand all types of reflow soldering
TAPE AND REEL SPECS:
Pcs./Reel maximum:
Pitch between parts:
Tape width:
Reel diameter:
800
12 mm
24 mm
13 in.
20
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
0
0.1
1
10
100
Frequency in MHz
1000
in. (mm)
0.440
(11.18)
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
021514
STANDARD RF INDUCTORS - SURFACE MOUNT
continued from previous page
SMRF5025
SMRF5025LF
*
Wirewound, Molded
PART
NUMBER
SMRF5025-752J
SMRF5025-822K
SMRF5025-912J
SMRF5025-103K
SMRF5025-113J
SMRF5025-123K
SMRF5025-133J
SMRF5025-153K
SMRF5025-163J
SMRF5025-183K
SMRF5025-203J
SMRF5025-223K
SMRF5025-243J
SMRF5025-273K
SMRF5025-303J
SMRF5025-333K
SMRF5025-363J
SMRF5025-393K
SMRF5025-433J
SMRF5025-473K
SMRF5025-513J
SMRF5025-563K
SMRF5025-623J
SMRF5025-683K
SMRF5025-753J
SMRF5025-823K
SMRF5025-913J
SMRF5025-104K
TRADITIONAL
Pb
COMPLIANT
RoHS
L
µH
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1000
Q
MIN
55
50
50
50
60
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
TEST
FREQ
MHz
POWDERED IRON CORE
2.5
2.5
2.5
2.5
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
SRF
MHz
MIN
10.5
10.3
10.0
9.5
8.9
8.7
8.5
8.0
7.5
7.0
6.5
6.2
5.9
5.7
5.4
5.1
4.8
4.5
4.2
3.9
3.7
3.8
3.3
3.1
2.9
2.7
2.5
2.3
DCR
OHMS
MAX
3.7
5.0
5.3
5.4
6.0
6.4
6.5
7.2
7.4
7.8
8.3
8.5
9.0
11.0
11.5
12.0
12.5
16.3
17.1
17.9
18.8
19.5
25.9
27.2
28.6
30.0
31.5
33.0
CURRENT
RATING
mA DC
302
261
254
251
238
231
229
218
215
209
203
200
195
182
178
173
171
149
147
143
139
136
119
116
112
110
107
105
Suffix “J” for 5% tolerance or Suffix “K” for 10% tolerance
Optional tolerances are available; please contact factory
Custom designs are available to meet your specific requirements; please contact factory
*Add “LF” suffix for RoHS requirement. Example: SMRF5025-100KLF
0.490/0.510
Q VS. FREQUENCY
SMRF5025 SERIES
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
470 µH
1000 µH
0.33 µH
10 µH
MARKING: GOWANDA
5025-XXX
Gowanda designates a component RoHS-compliant by adding “LF” (lead
(12.45/12.95)
the part number.
free) to
0.210/0.230
OVER TERMINAL
(5.33/5.84)
OVER TERMINAL
These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.
120
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
NOTES:
2 SIDES
100
80
0.490/0.510
(12.45/12.95)
OVER TERMINAL
MARKING: GOWANDA
5025-XXX
0.210/0.230
(5.33/5.84)
OVER TERMINAL
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
• Operating Temperature Range:
-55°C to +125°C
Q
60
1.0 µH
0.110
(2.79)
REF
0.230/0.250
(5.84/6.35)
0.440
(11.18)
40
0.055/0.075 (1.40/1.91) WIDE X
0.050 (1.27) MIN DEEP
2 SIDES
• Current Rating is based on a 35°C
temperature rise at an ambient
temperature of 90°C
• Epoxy-encapsulated for environmental
protection and superior strength to
withstand all types of reflow soldering
TAPE AND REEL SPECS:
20
RECOMMENDED FOOT PRINT
0.130 (3.30)
0.165
(4.19)
0
0.1
1
10
100
Frequency in MHz
1000
in. (mm)
0.440
(11.18)
Pcs./Reel maximum:
Pitch between parts:
Tape width:
Reel diameter:
800
12 mm
24 mm
13 in.
One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com
www.gowanda.com
021514
京公网安备 11010802033920号
EEWORLD
