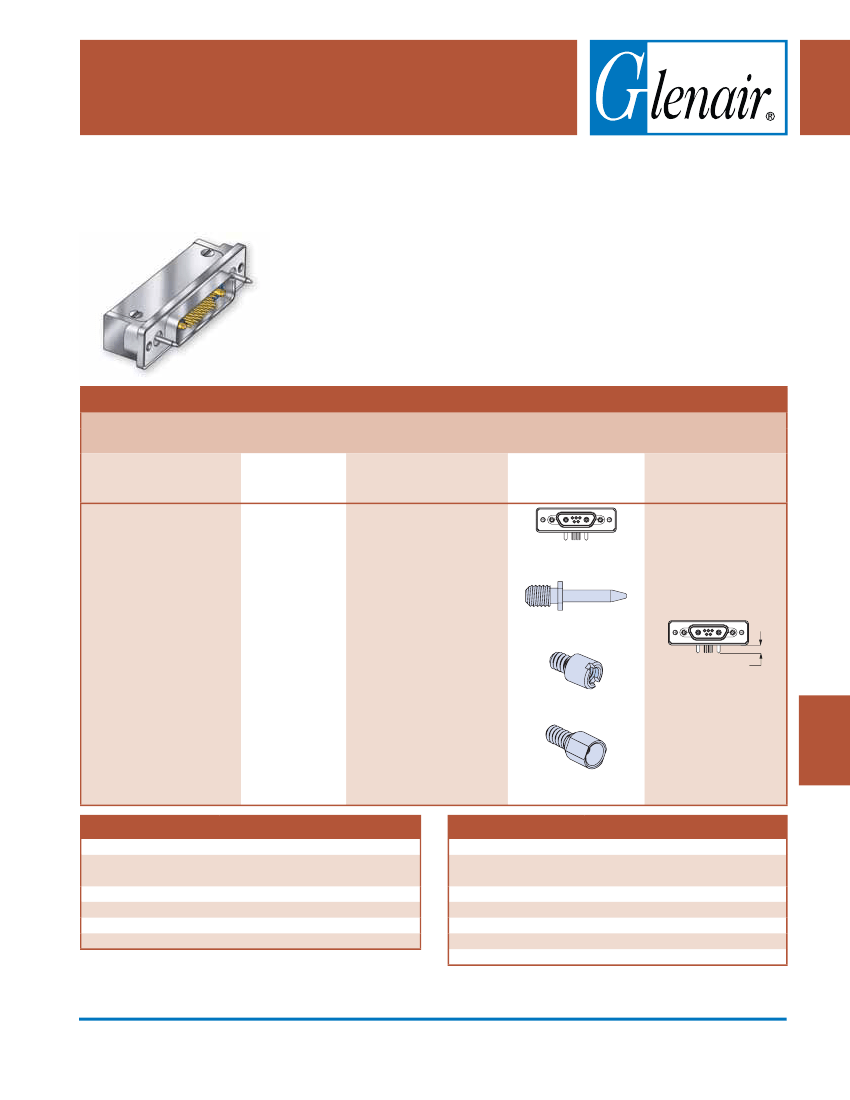

790-036P Right Angle PCB Panel Mount Receptacles
PIN CONTACTS WITH RIGHT ANGLE PCB TERMINATION
Lightweight, rugged right angle headers feature gold-plated contacts for thru-
hole printed circuit board termination. 790-036P connectors are designed for
rear-panel mounting and are supplied with conductive panel gaskets. Contacts
are permanently installed and are sealed with epoxy. Shells are aluminum alloy.
Threaded board mounting holes and integral standoffs simplify installation. EMI
shroud improves EMI performance. Fluorosilicone face seal provides watertight
interface. Available in 29 different contact arrangements, these connectors
feature size #23 signal contacts along with #16 and #12 power contacts for up to
23 amps current rating.
HOW TO ORDER
Sample Part Number
790-036P
Part Number
Rear-Panel Mounted
Receptacle with 90° PC
Tail Pin Contacts for
Termination to Backplanes
or Flexible Circuits
D-7P2
Shell Size -
Insert
Arrangements
See Table 1 for
Available Insert
Arrangements
MT
Shell Finish
Electroless Nickel
general purpose applications
P
Hardware Option
A
PC Tail Length
.125 Inch (3.2 mm.)
790-036P
M
A
B
Nickel-PTFE
1000 Hour Grey™
maximum corrosion
protection and durability
(non-reflective grey)
MT
No Hardware
N
.250 inch (6.4 mm.)
Guide Pin
PC TAIL
LENGTH
G
Zinc-Nickel with Black
Chromate
tactical applications
(non-reflective black)
ZNU
Female Jackpost
P
Additional shell
fi
nishes
are listed on page C-9.
Female Guide Socket
S
SPECIFICATIONS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16
1800 VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
Shell
Contacts
MATERIALS AND FINISHES
Aluminum alloy
Copper alloy, 50 microinches gold
plated
Liquid crystal polymer (LCP)
Flourosilicone rubber
300 series stainless steel
Fluorosilicone, conductive
Epoxy
Insulator
Interfacial Seal
Hardware
Panel Gasket
Encapsulant
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-1
Series 79
90° PCB
Connectors
790-036P
Right Angle PCB Terminated
Panel Mount Receptacle, Pin Contacts
G
790-036P
Right Angle PCB Terminated
Panel Mount Receptacle, Pin Contacts
How To Order
Table I Contact Arrangements
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-15P2
F-23
F-5P5
G-33
H-10P4
33
6
7
2
2
5
66
13
23
33
7
23
33
43
9
6
78
4
2
4
2
4
5
9
19
4
13
23
5
3
2
9
13
15
3
2
2
Contact
Quantity
#23 #16 #12
5
2
Face View
Series 79
90° PCB
Connectors
H-29P7 22
H-36P2 34
H-54P2 52
H-5P5
H-66
J-17P4
J-25P2
J-33

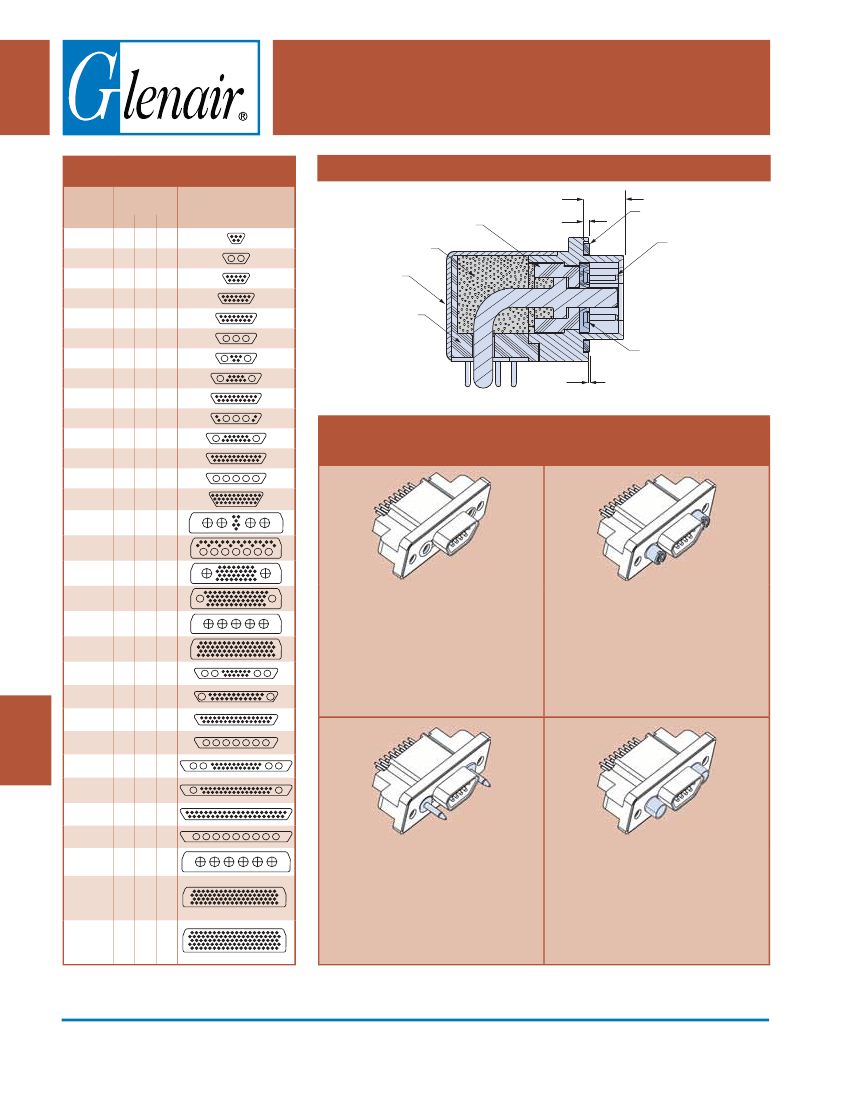

CROSS-SECTIONAL VIEW OF 790-036P
.195 (4.95)
LCP INSULATOR
EPOXY
EMI COVER
LCP TRAY
INTERFACIAL SEAL
.007
(0.18)
.025 (0.64)
EMI GASKET
CONTACT PIN
TABLE 2
HARDWARE OPTION
N
No Mating Hardware
Connector is supplied with blind,
tapped holes. Shell sizes H and L
have 6-32 UNC-2B thread, other
sizes are #4-40. Minimum thread
depth is .150" (3.81).
P
Jackposts
Connector is supplied with non-
removable jackposts. Shell sizes
H and L have #4-40 UNC-2B
thread, other sizes have #2-56
thread.
G
J-7P7
K-27P4
K-35P2
K-43
K-9P9
L-6P6
L-78
G
Male Guide Pins
Connector is supplied with
stainless steel guide pins to mate
with code S guide sockets. Pins
are non-removable.
S
Female Guide Sockets
Connector is supplied with
stainless steel guide sockets to
mate with code G guide pins.
Sockets are non-removable.
M-102
102
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-2
