MV28T1CDFREQ3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> MV28T1CDFREQ3

MV28T1CDFREQ3: DescriptionHCMOS Output Clock Oscillator, 55MHz Min, 160MHz Max, DIP-14/6; CategoryPassive components oscillator; File Size405KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MV28T1CDFREQ3 Overview

HCMOS Output Clock Oscillator, 55MHz Min, 160MHz Max, DIP-14/6

MV28T1CDFREQ3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRI-STATE
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	20%
linearity	10%
Manufacturer's serial number	MV
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	55 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	5 TTL, 15 pF
physical size	20.8mm x 13.2mm x 7.62mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %
Terminal surface	Nickel (Ni)

Preview

Download Datasheet

View All

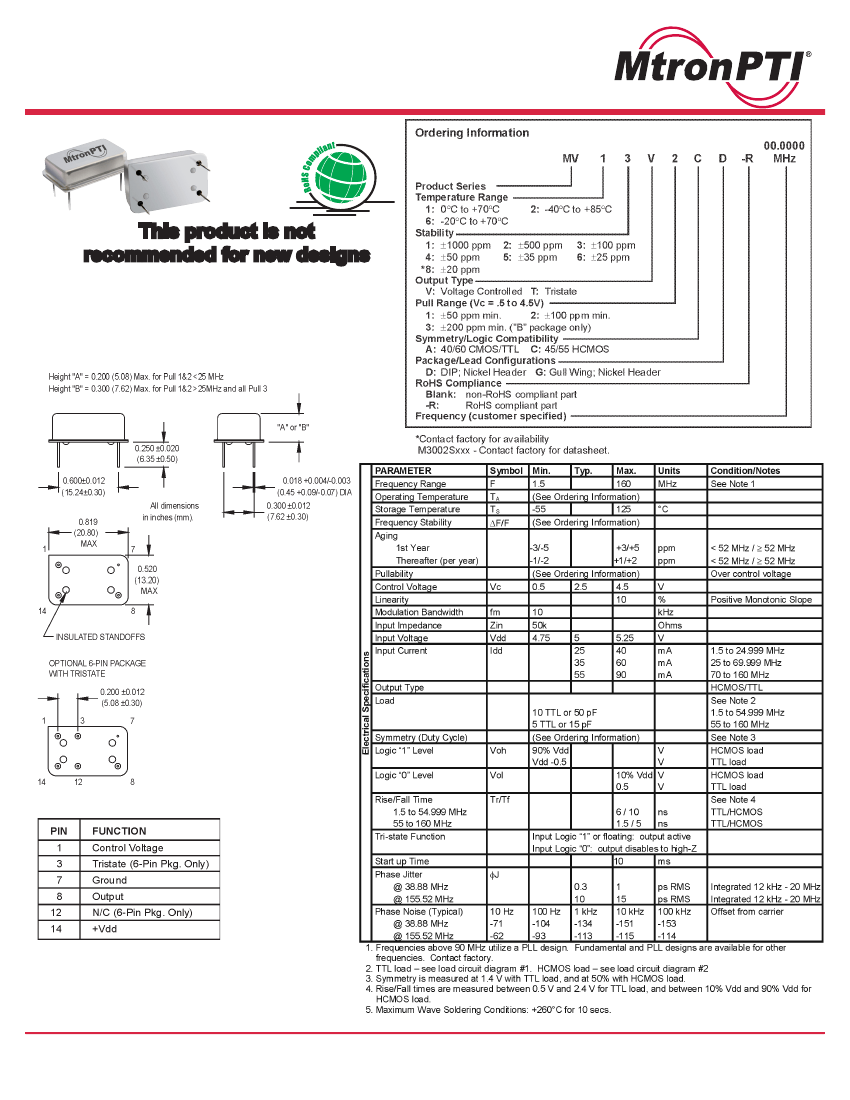

MV Series

14 DIP, 5.0 Volt, HCMOS/TTL, VCXO

This product is not

recommended for new designs

•

General purpose VCXO for Phase Lock Loops

(PLLs), Clock Recovery, Reference Signal Tracking,

and Synthesizers

Frequencies up to 160 MHz

Tri-state Option Available

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-16-10
