Datasheet> All Categories > Discrete semiconductor> diode> SMF103B-C

Preview

SMF103B-C: DescriptionRectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size303KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SMF103B-C Overview

Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

SMF103B-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SECOS
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.15 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

SMF101B ~ SMF107B

Elektronische Bauelemente

RoHS Compliant Product

A suffix of “-C” specifies halogen-free and RoHS Compliant

50 ~ 1000 V

1.0 Amp Surface Mount Silicon

Fast Recovery Rectifiers

FEATURES



Surface mount device

High surge current capability

Low reverse current

Component in accordance to RoHS 2002/95/EC

SMB

B

MECHANICAL DATA



A

C



Cases：DO-214AA(SMB)

Case Material：Molded Plastic. UL Flammability

Classification Rating 94V-0

Terminals：Lead Free Plating(Tin Finish)

Solderable Per MIL-STD-202, Method 208

Polarity：Cathode Band

Weight：0.092 grams(approximate)

REF.

A

B

C

D

H

D

G

E

F

PACKAGE INFORMATION

Package

SMB

MPQ

3K

Leader Size

13 inch

Millimeter

Min.

Max.

1.91

2.20

4.06

4.75

3.30

3.94

1.95

2.65

REF.

E

F

G

H

Millimeter

Min.

Max.

-

0.203

5.08

5.59

0.76

1.52

0.15

0.31

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%)

Part Number

Parameter

Maximum repetitive peak

reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak Forward Surge Current, 8.3ms single half

sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage

@ 1A

Maximum DC Reverse Current at

Rated DC Blocking Voltage

Typical Junction Capacitance

1

Maximum Reverse Recovery Time

2

Thermal Resistance

3

Storage and Operating Temperature Range

T

C

=25°C

T

C

=100°C

Symbol

V

RRM

V

RMS

V

DC

I

F

I

FSM

V

F

I

R

C

J

Trr

R

θJA

T

STG

, T

J

SMF

101B

SMF

102B

SMF

103B

SMF

104B

SMF

105B

SMF

106B

SMF

107B

Unit

V

A

V

50

35

50

100

70

100

200

140

200

400

280

400

1

30

1.3

5

200

20

600

420

600

800

560

800

1000

700

1000



A

pF

250

500

ns

°C / W

°C

150

70

-55 ~ 150

NOTES:

1. Measured at 1.0MHz and applied reverse voltage of 4.0V D.C.

2. Measured with IF=0.5A, IR=1A, IRR=0.25A

3. Device mounted on FR-4 substrate, 1"*1", 2oz, single-sided, PC boards with 0.1"*0.15" copper pad.

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

30-Jul-2013 Rev. E

Page 1 of 2

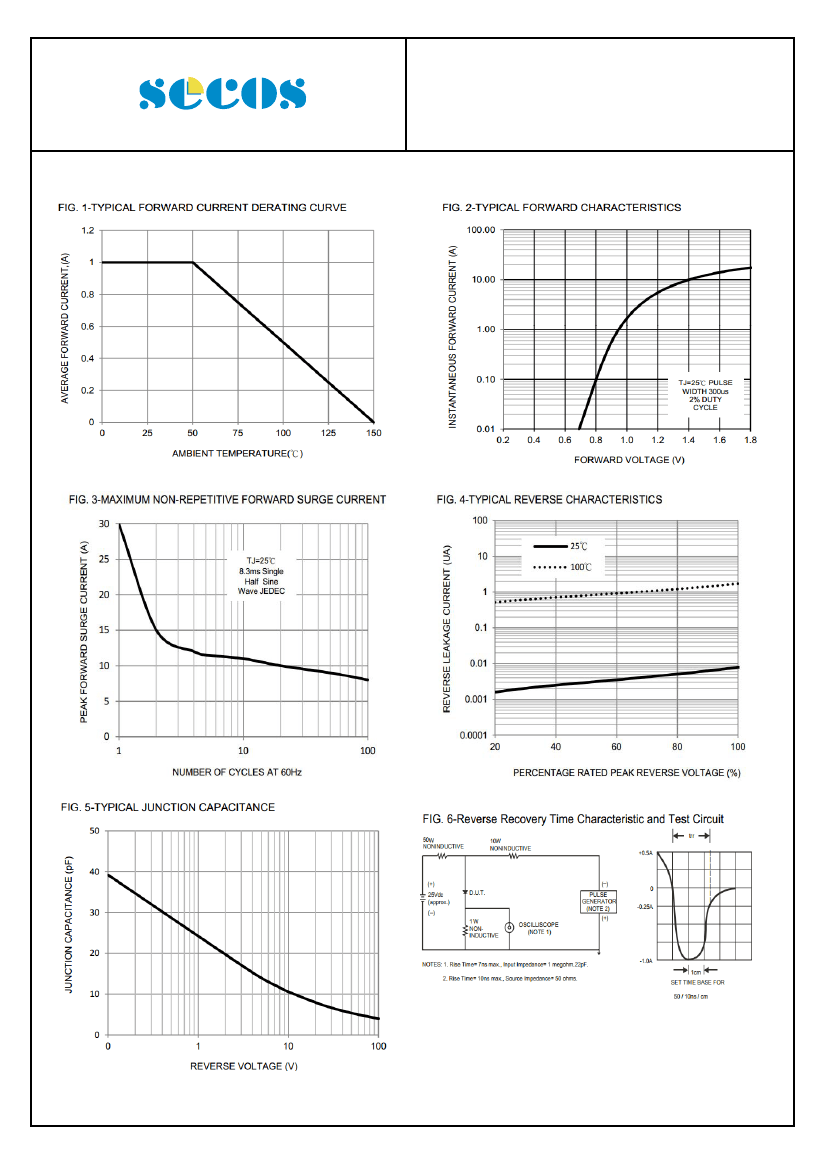

SMF103B-C Related Products

	SMF103B-C	SMF107B-C	SMF104B-C	SMF105B-C	SMF106B-C	SMF101B-C	SMF102B-C
Description	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AA, SMB, 2 PIN	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS
package instruction	R-PDSO-C2	SMB, 2 PIN	R-PDSO-C2	SMB, 2 PIN	R-PDSO-C2	SMB, 2 PIN	SMB, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	200 V	1000 V	400 V	600 V	800 V	50 V	100 V
Maximum reverse recovery time	0.15 µs	0.5 µs	0.15 µs	0.25 µs	0.5 µs	0.15 µs	0.15 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
