NKS2NED1-38.4000-12(T) datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> NKS2NED1-38.4000-12(T)

NKS2NED1-38.4000-12(T): DescriptionParallel - Fundamental Quartz Crystal, 38.4MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size373KB，3 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

NKS2NED1-38.4000-12(T) Overview

Parallel - Fundamental Quartz Crystal, 38.4MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

NKS2NED1-38.4000-12(T) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL; TAPE AND REEEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	12 pF
Manufacturer's serial number	NKS2
Installation features	SURFACE MOUNT
Nominal operating frequency	38.4 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

FH Series

| Legacy NKS2 Series

2.5 x 2.0mm Ceramic SMD

Quartz Crystal

Ceramic

SMD

Actual Size

Frequency Range:

• 20 MHz to 54.0000 MHz (Fundamental)

Product Description

The 4-pad FH Series devices incorporate a sub-

miniature AT-cut crystal resonator housed in a

standard 2.5x2.0mm ceramic package. These

compact crystals are ideal for surface mounting

in densely populated or small form-factor PCB

applications.

Characteristics at 25°C ±2°C:

• Frequency Calibration Tolerance: ±10ppm, ±20ppm, ±30ppm

• Load Capacitance: 12 to 20pF

• Effective Series Resistance:

80Ω max (20 to 29.9 MHz)

60Ω max (30 to 54 MHz)

• Drive Level: 10μW typ. (100μW max)

• Shunt Capacitance: 5pF Max.

Product Features

• Rugged AT-cut crystal construction

• Miniature 2.5x2.0mm ceramic package

• Available on tape & reel; 8mm tape, 3000/reel

• Pb-free and ROHS/Green compliant

Temperature Range:

• Operating: –20 to +70°C or –40 to +85°C (as specified)

• Storage: –40 to +85°C

Typical Applications

• HDD

• PCMCIA Cards

• Portable / Hand-held PCs

• Notebook PC

• GPS

• Bluetooth

• Wireless LAN

• GSM Cell Phone

• USB

Temperature Stability (as speciﬁed):

• ±10, ±20, ±30, ±50ppm (–20 to +70°C)

• ±30, ±50ppm (–40 to +85°C)

Aging at 25°C, First Year:

• ±3ppm Typ., ±5ppm Max.

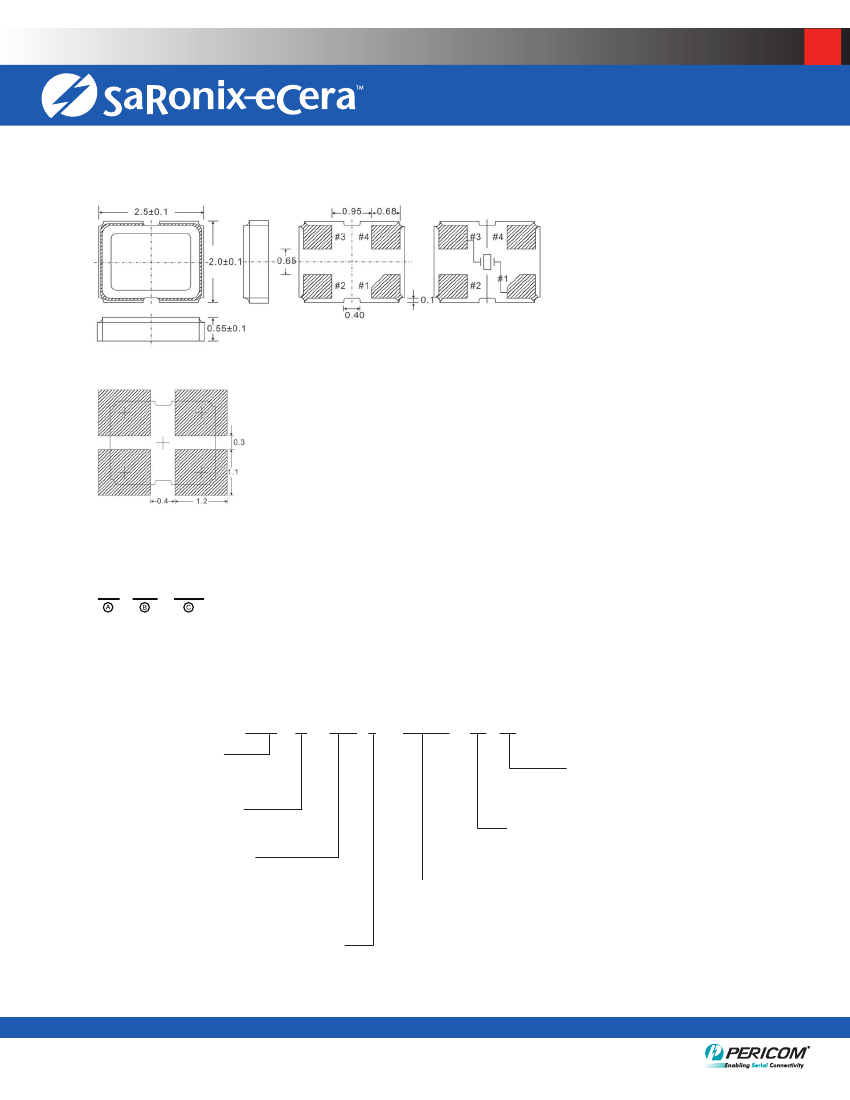

Mechanical:

Common Frequencies (MHz):

20.0000

24.0000

24.5760

25.0000

26.0000

27.0000

30.0000

32.0000

32.7680

33.0000

37.5000

38.4000

40.0000

48.0000

52.0000

54.0000

• Shock: JESD22-B104 (Condition B)

• Solderability: J-STD-002

• Vibration: JESD22-B103

• Solvent Resistance: JESD22-B107

• Resistance to Soldering Heat: J-STD-020C Table 5-2 Pb-free devices

(3 cycles max)

Environmental:

• Gross Test Leak: JESD22-A109 (Condition C)

• Fine Test Leak: JESD22-A109 (Condition A1)

• Moisture Resistance: JESD22-A113

Reﬂow Temperature:

• 260°C Max

SaRonix-eCera™ is a Pericom® Semiconductor Corporation company • 1-800-435-2336 • www.pericom.com/saronix

All specifications are subject to change without notice.

DS 279 Rev 2 | 07/03/07
