QS54FCT2863BTLB datasheet, PDF

QS54FCT2863BTLB: DescriptionBus Transceiver, FCT Series, 1-Func, 9-Bit, True Output, CMOS, CQCC28,; Categorylogic logic; File Size152KB，6 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

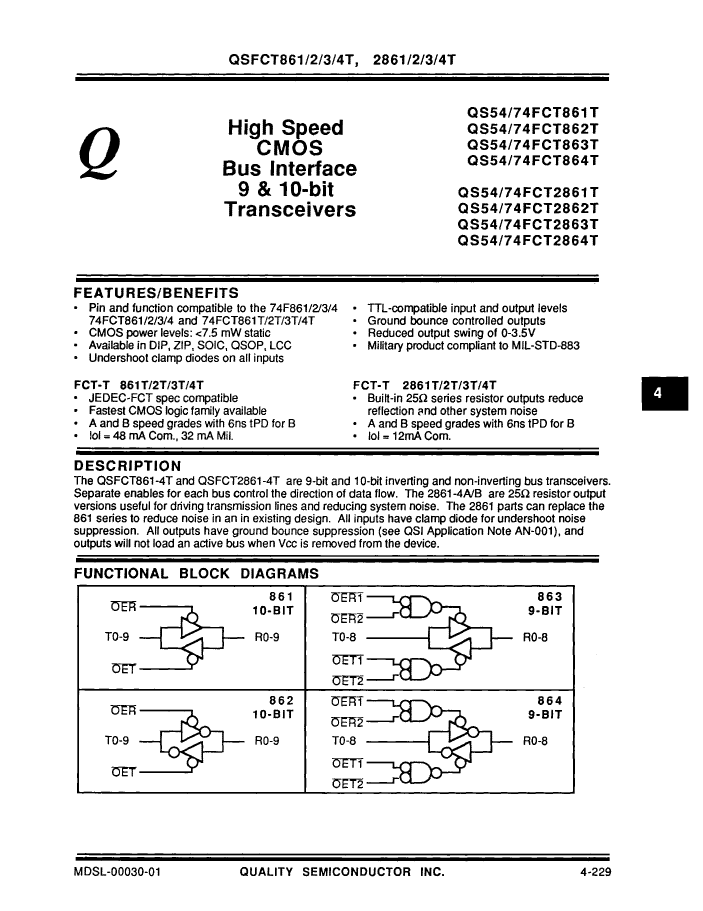

QS54FCT2863BTLB Overview

Bus Transceiver, FCT Series, 1-Func, 9-Bit, True Output, CMOS, CQCC28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	WITH DUAL INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER

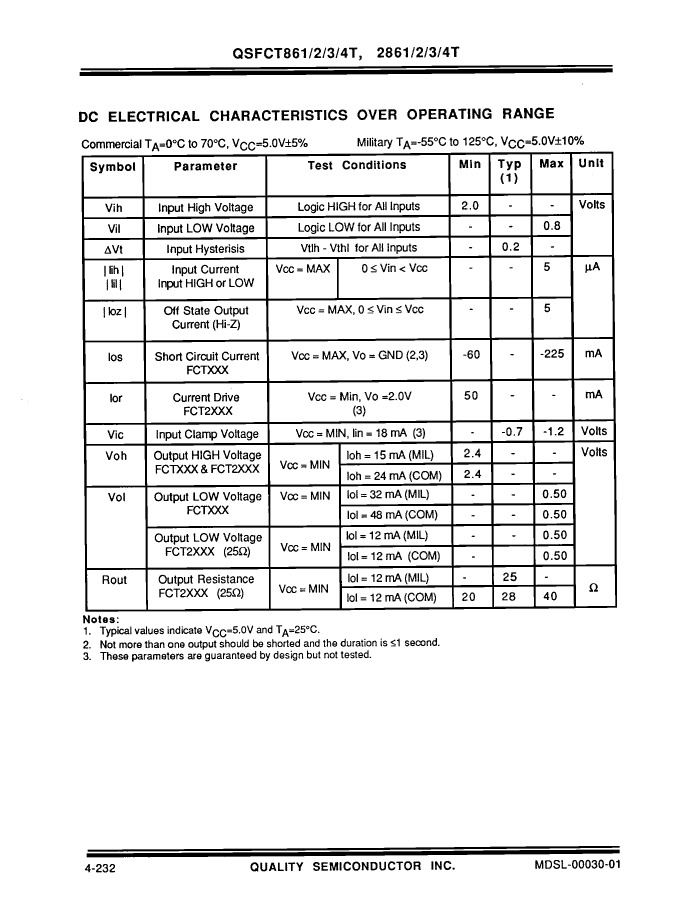

MaximumI(ol)	0.012 A
Number of digits	9
Number of functions	1
Number of ports	2

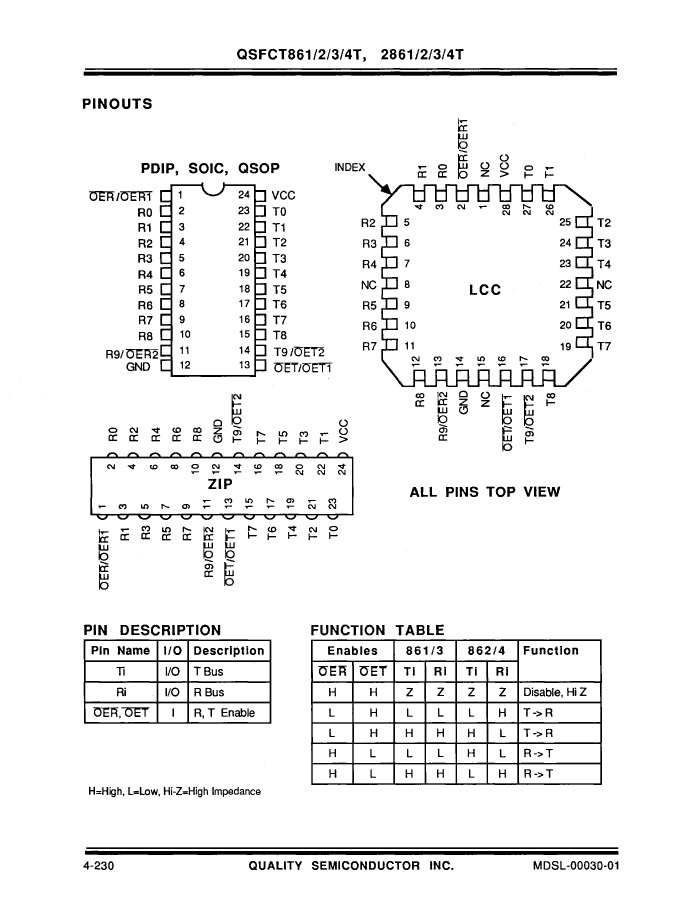

Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

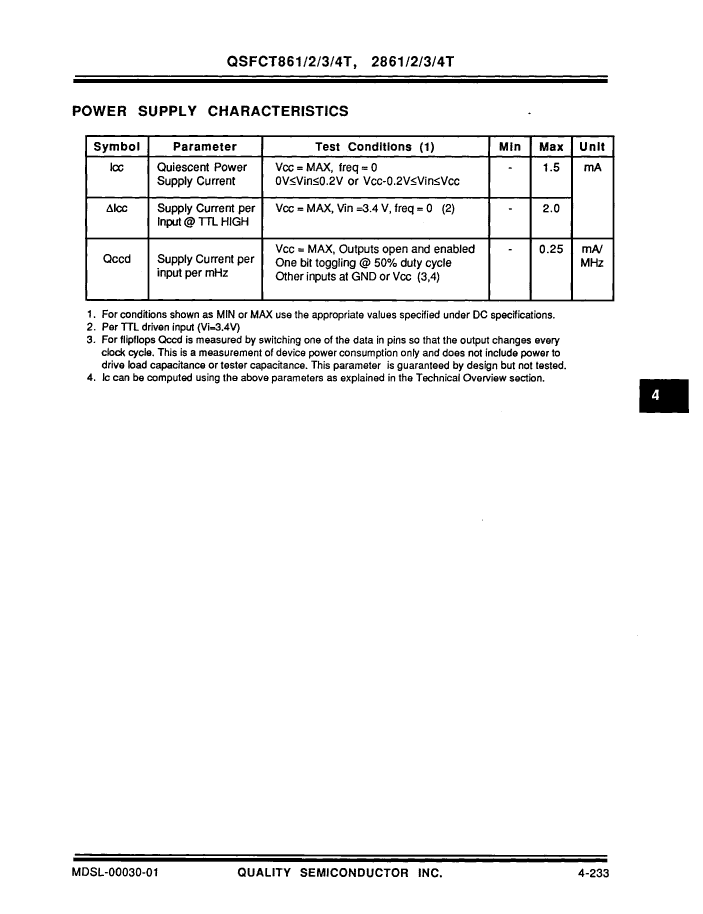

power supply	5 V
Prop。Delay @ Nom-Sup	6.5 ns
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B

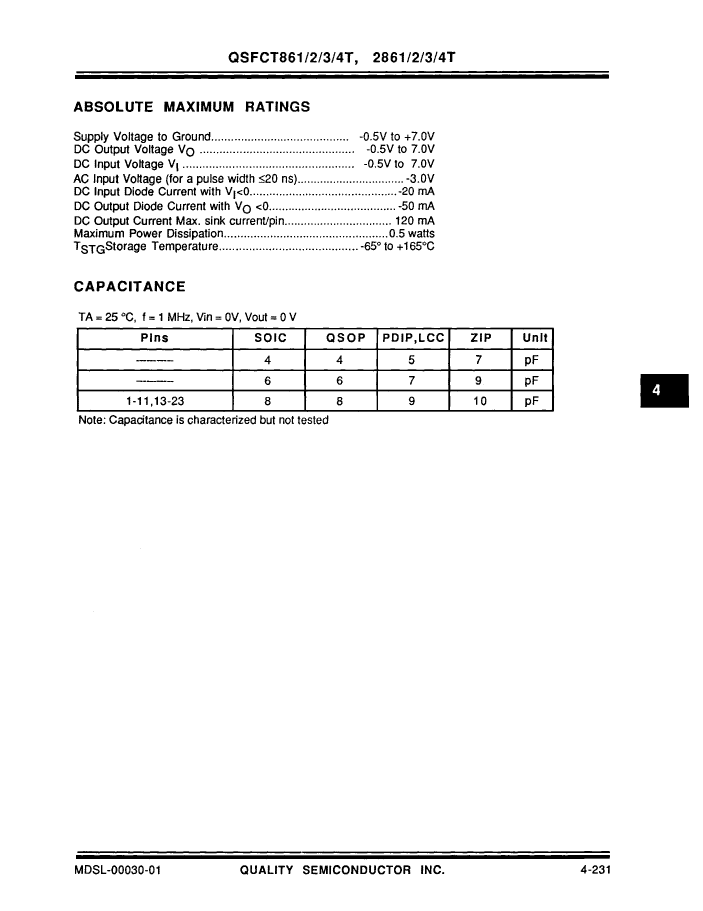

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
