BM40B-GHDS-G-TF datasheet, PDF

Datasheet> All Categories > The connector> The connector> BM40B-GHDS-G-TF

BM40B-GHDS-G-TF: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size99KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

BM40B-GHDS-G-TF Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

BM40B-GHDS-G-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	GHD
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

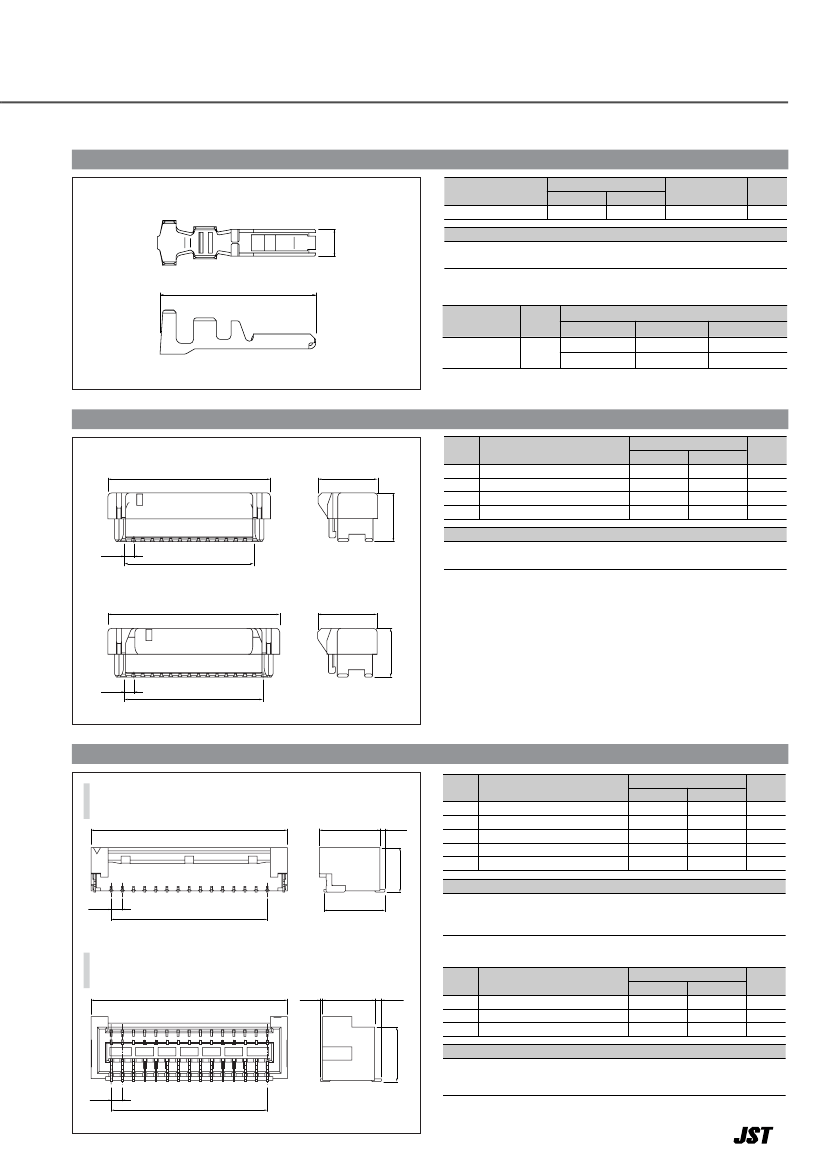

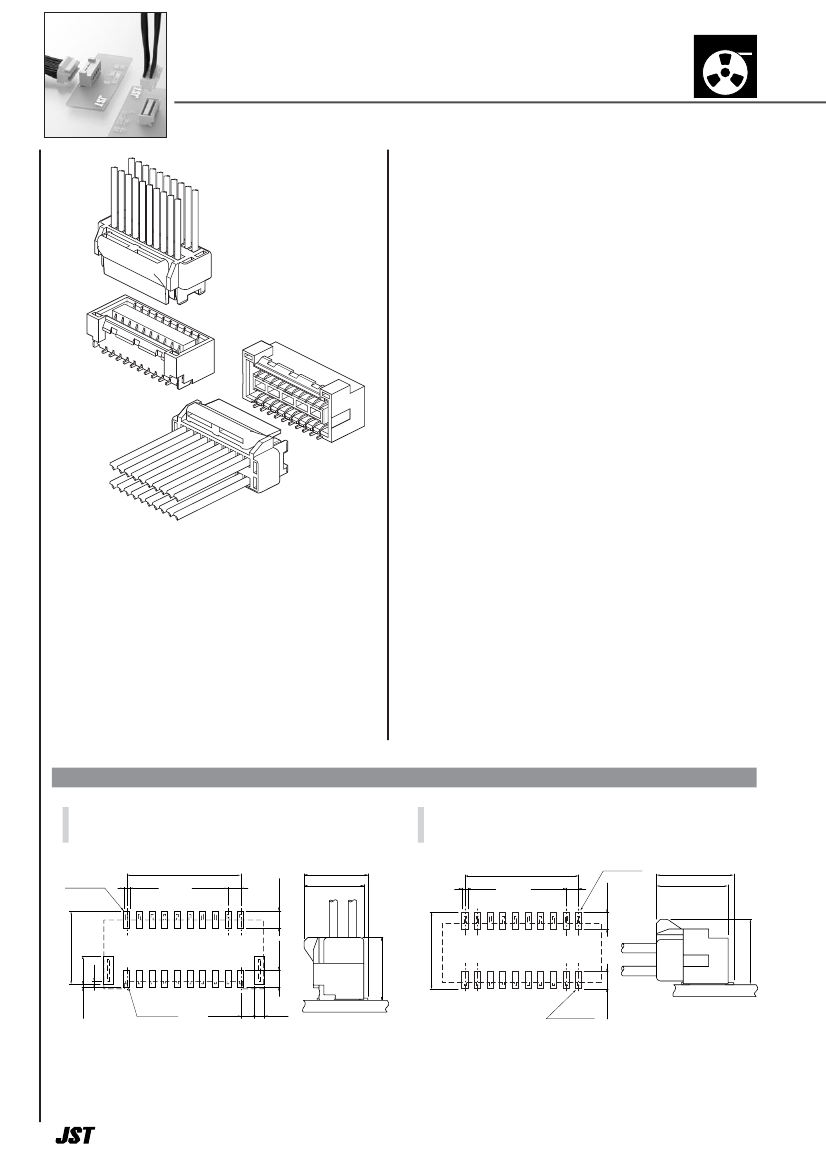

GHD

CONNECTOR

Emboss Tape

1.25mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #26)

• Voltage rating: 50V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance:

Initial value/Top entry type: 30m

Ω

max.

Side entry type: 50m

Ω

max

After environmental testing/Top entry type: 50m

Ω

max.

Side entry type: 70m

Ω

max

• Insulation resistance: 100M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: Conductor size/AWG #30 to #26

Insulation O.D./0.8 to 1.0mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

To meet the requirement of the high

density mounting on PC board of flat

panel TV, AV equipments etc., this

connector is designed to the double-row

type of 1.25mm pitch.

Its operability is very well, in spite of the

small size.

• Secure locking structure

• Low insertion force

• Prevention of contact deformation

• Suction area for picking up

Standards ––––––––––––––––––––––

Recognized E60389

PC board layout and Assembly layout

Top entry type

Side entry type

±0.1

0.6

±0.05

1.7

±0.05

7.55

±0.05

7.25

±0.1

1.7

±0.05

1.25

1.7

±0.05

Circuit No.2

±0.05

（8.6）

8.05

±0.1

0.6

±0.05

1.25

±0.05

Circuit No.1

（10.1）

9.35

±0.1

±0.05

2.8

0.3

8.5

Circuit No.1

1.35

±0.1

Circuit No.2

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

1.7

±0.05

0.3

8.55

BM40B-GHDS-G-TF Related Products

	BM40B-GHDS-G-TF	BM20B-GHDS-G-TF	BM22B-GHDS-G-TF	BM30B-GHDS-G-TF
Description	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	TOP ENTRY, SHROUDED	TOP ENTRY, SHROUDED	TOP ENTRY, SHROUDED	TOP ENTRY, SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	GHD	GHD	GHD	GHD
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	40	20	22	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	-
Base Number Matches	-	1	1	1
